Name: Waterproof Plastic Cable Gland M25x1.5 for 13-18mm Cables
Brand: SNV
SKU: 290705
Availability: InStock

Brand: SNV

$0.60 - $3.60 USD

MOQ: 2000 pieces

Key Features

Connection thread type: metric (M)

Degree of protection of the shell: IP66/IP68

material: polyamide

Operating temperature range: -40...80 °C

Supplier Information

SNV LLC

🇷🇺 📦 🏭 🛡️

View All Products (77)

Quick Inquiry

Description

The ПКВ М25×1.5 (13–18 mm) is a hermetically sealed plastic cable gland manufactured by SNV LLC (Magnito-Kontakt brand) at its facility in Ryazan, Russia. Designed to route flexible AC and DC cable lines into electrical distribution enclosures, control panels, and process-automation housings, it protects the entry point against moisture, dust, and mechanical damage.

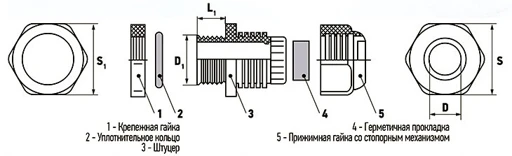

The body and clamping nut are injection-moulded from polyamide, and the internal sealing element is produced from rubber compound 3063 (TU 38-1051082-86). Tightening the locking nut — fitted with an anti-loosening stop mechanism — compresses the gasket radially around cables from 13 to 18 mm in diameter and anchors them against pull-out.

The mounting thread is metric M25×1.5 with a 15 mm entry passage. Rated IP66/IP68 per GOST 14254-2015 (IEC 60529:2013) and climate class УХЛ1, the gland operates across −40 °C to +80 °C.

Declared service life is a minimum of 7 years with at least 100,000 operating hours. The product is registered in the MINPROMTORG RF industrial goods registry (valid October 2024 – September 2027), carries OKPD2 code 27.33.13.130, and is supplied with a factory passport.

Details & Equipment

Product Views

M25×1.5 Flat Top View

Top-down view of the ПКВ М25×1.5 cable gland showing the hexagonal body profile and the clamping nut with its integrated stop mechanism that secures the internal rubber sealing gasket.

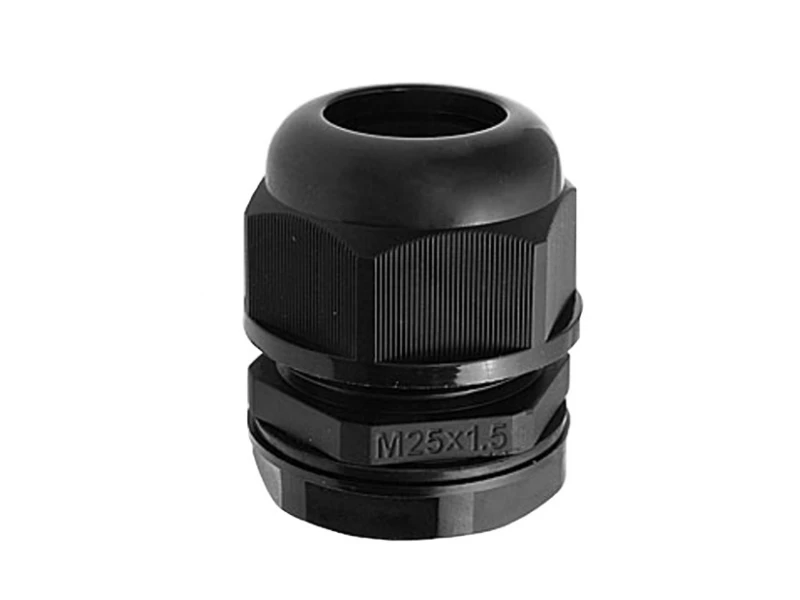

M25 Series — Side Profile

Side-angle view of the M25 gland showing the metric M25×1.5 mounting thread, the sealing ring seat, and the relationship between the outer body and the locking clamping nut.

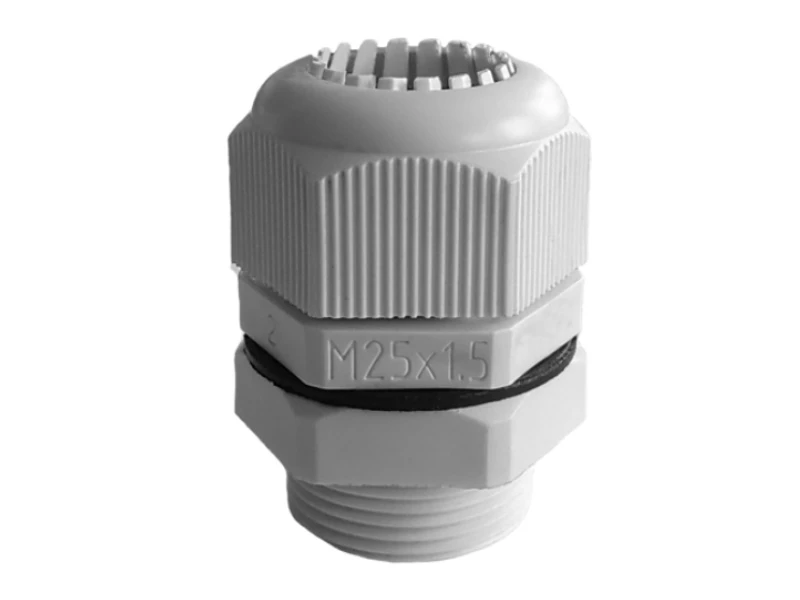

M25 Series — Assembly Detail

View illustrating the two-part assembly: the threaded body that passes through the panel knockout and the clamping nut tightened to compress the polyamide-encased rubber gasket around the cable.

Features

🛡️

IP66/IP68 Dual Protection

Rated IP66/IP68 per GOST 14254-2015 (IEC 60529:2013), the gland prevents dust ingress and withstands prolonged water immersion — suitable for demanding outdoor and wet industrial environments.

🌡️

–40 °C to +80 °C Operating Range

Climate class УХЛ1 rating covers severe cold-climate installations as well as heated industrial enclosures without requiring special-grade variants.

🔩

Metric M25×1.5 Thread

Standard metric M25×1.5 thread with a 15 mm entry bore fits the most common distribution-cabinet knockouts and simplifies selection for engineers working to metric standards.

📐

Polyamide Body with Rubber Gasket

Injection-moulded polyamide housing paired with a rubber compound 3063 (TU 38-1051082-86) sealing gasket firmly clamps cables from 13 to 18 mm and resists common industrial chemicals.

🔐

Anti-Loosening Stop Mechanism

The locking nut incorporates an integrated stop mechanism that maintains compression on the sealing gasket under vibration, eliminating the need for secondary lock washers.

📋

MINPROMTORG RF Registered

Registered in the Russian Ministry of Industry and Trade industrial goods registry with validity from October 2024 to September 2027, confirming domestic manufacture and compliance traceability.

Buyer Benefits

Dual IP66/IP68 sealing certified to IEC 60529 — no additional ingress protection needed at the cable entry point
Lightweight polyamide construction (29 g) resists UV and common industrial chemicals without corrosion risk
Integrated stop mechanism on the clamping nut preserves the seal under continuous vibration without secondary hardware
Available in five colours — white, grey, red, light blue, black — enabling colour-coded cable management on multi-circuit panels
Domestic Russian manufacture with MINPROMTORG RF registry entry simplifies procurement under industrial localisation requirements
Broad −40 °C to +80 °C temperature rating covers the majority of outdoor and indoor industrial applications in one standard variant
Minimum 7-year service life and 100,000-hour operating life backed by factory passport and OKPD2 code 27.33.13.130 for engineering documentation

Applications

Electrical distribution cabinets and junction boxes in industrial manufacturing plants Control panels and operator workstations in process and discrete manufacturing Outdoor switchgear enclosures and field instrument housing entries SCADA and process-automation system cabinets requiring rated sealing Building automation, fire-alarm, and security system wiring panels Cold-climate infrastructure installations including Siberian and Arctic-region electrical equipment Pumping stations, water-treatment facilities, and other wet-environment electrical enclosures Transportation infrastructure electrical cabinets such as railway signalling and road-lighting control boxes
