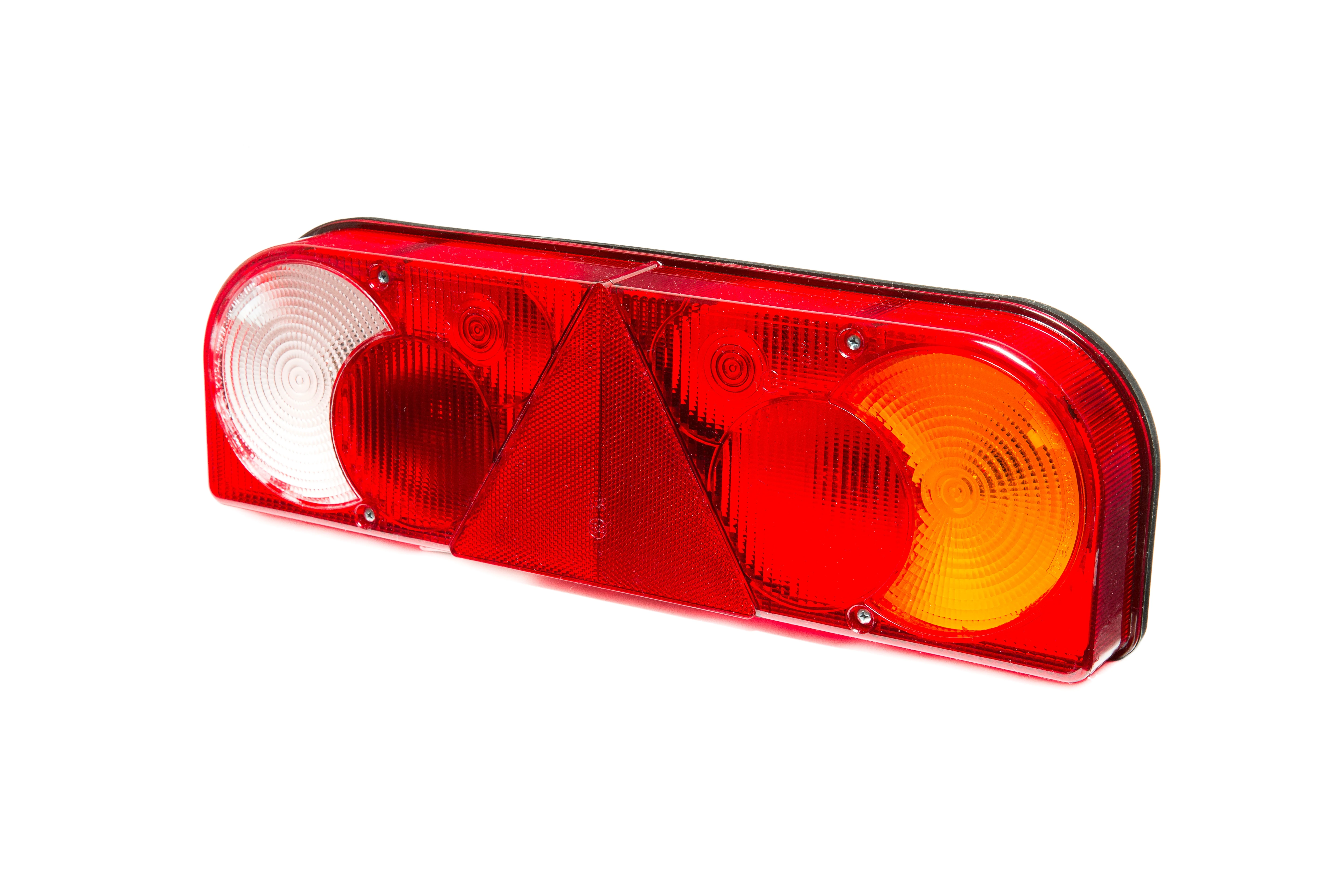

The SAKURA FZ 05.12П is a multi-function rear combination lamp engineered for trailers and semi-trailers of all truck types. Produced by SAKURA LLC (ООО «Сакура»), a Russian signal and automotive lighting plant founded in 1993 in the Republic of Bashkortostan, the unit integrates seven optical functions in a single weatherproof housing: stop light, rear fog lamp, reverse signal, tail/marker light, direction indicator, contour light, and a passive reflector.
Running on the standard 12 V automotive supply, it achieves an IP55 ingress-protection rating — sealed against dust and low-pressure water jets, which is a practical requirement for heavy commercial vehicles operating in rain, road spray, and off-road conditions. The light source is a conventional automotive incandescent bulb, replaceable in the field without specialist tooling.

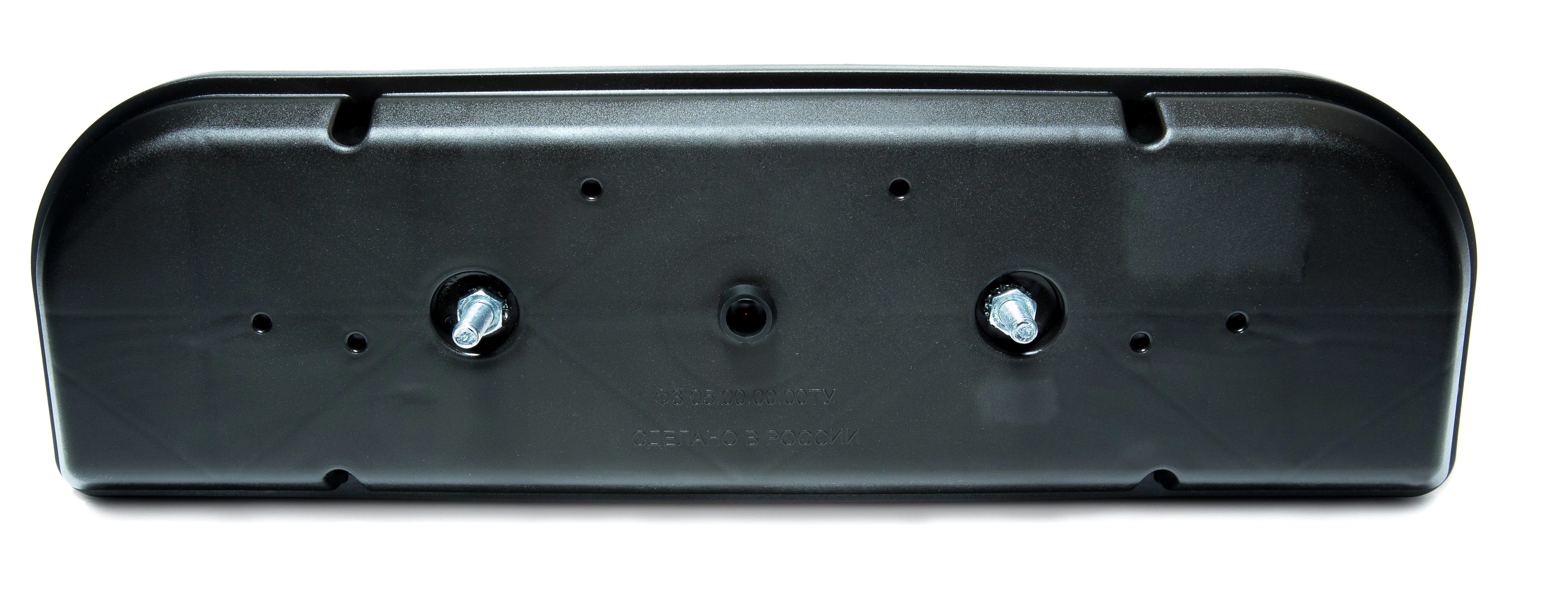

Mounting is via M8 bolt or stud at a 152 mm center-to-center spacing; the unit ships without a wiring harness (bare-wire termination), giving trailer builders maximum flexibility in cable routing. SAKURA has supplied under ISO 9001 since 2007 and holds the Russian СТ-1 national-origin certificate issued in 2023; it ships directly to over 100 truck manufacturers including KAMAZ, NEFAZ, Tonar, TZA, and the GAZ Gazel NEXT production lines.
The FZ-05 series entered serial production in 2014 and has become a reference standard for heavy-transport rear lighting in Russia. The assembled unit weighs 1.2 kg and is packed four pieces per carton (470 × 227 × 290 mm).
