Industrial Explosion-Proof LED Light AEK-DSP35-1-Ex FR

Industrial Explosion-Proof LED Light AEK-DSP35-1-Ex FR — AEC LLC

Name: Industrial Explosion-Proof LED Light AEK-DSP35-1-Ex FR
Brand: AECLight
SKU: 153735
Availability: InStock

Brand: AECLight

$90 - $720 USD

MOQ: 10 pieces

Key Features

Luminous flux: 1500-9000 lm

power: 12-60 W

Overall dimensions: 300x60x80 - 1500x60x80 mm

Mounting options: swivel / suspended / surface-mounted

Supplier Information

AEC LLC

🇷🇺 📦 🏭 🛡️

View All Products (12)

Quick Inquiry

Description

The АЭК-ДСП35-1-Ex FR is a linear explosion-proof and fire-resistant LED luminaire produced by AEC LLC (AECLight), a Russian industrial lighting manufacturer active since 2010. Built on a slim aluminum profile, the fixture combines two key certifications in a single unit: explosion protection marking 1ExmbIIC T6 Gb / 1ExmbIIC T6 Gb X, permitting installation in hazardous zones Class 1 and 2 per GOST IEC 60079-10-1-2013 for gas groups IIA, IIB, and IIC; and fire-resistant construction through a 4 mm tempered silicate glass diffuser rated for fire hazard premises П-I, П-II, П-IIа, and П-III.

Interior compartments are potted with a special encapsulating compound to achieve maximum electrical isolation. Illumination is provided by Samsung LEDs with a Д120 beam distribution, offering up to 8,320 lm at 60 W from the fixture aperture.

The power supply is manufactured by Argos (Russia); MeanWell and other OEM drivers can be specified on request. The series spans five nominal wattages from 12 W to 60 W, carries IP67 ingress protection, and is classified as climate class УХЛ1.

Each unit comes with a five-year factory warranty and a 100,000-hour rated LED service life.

Details & Equipment

Product Design & Construction

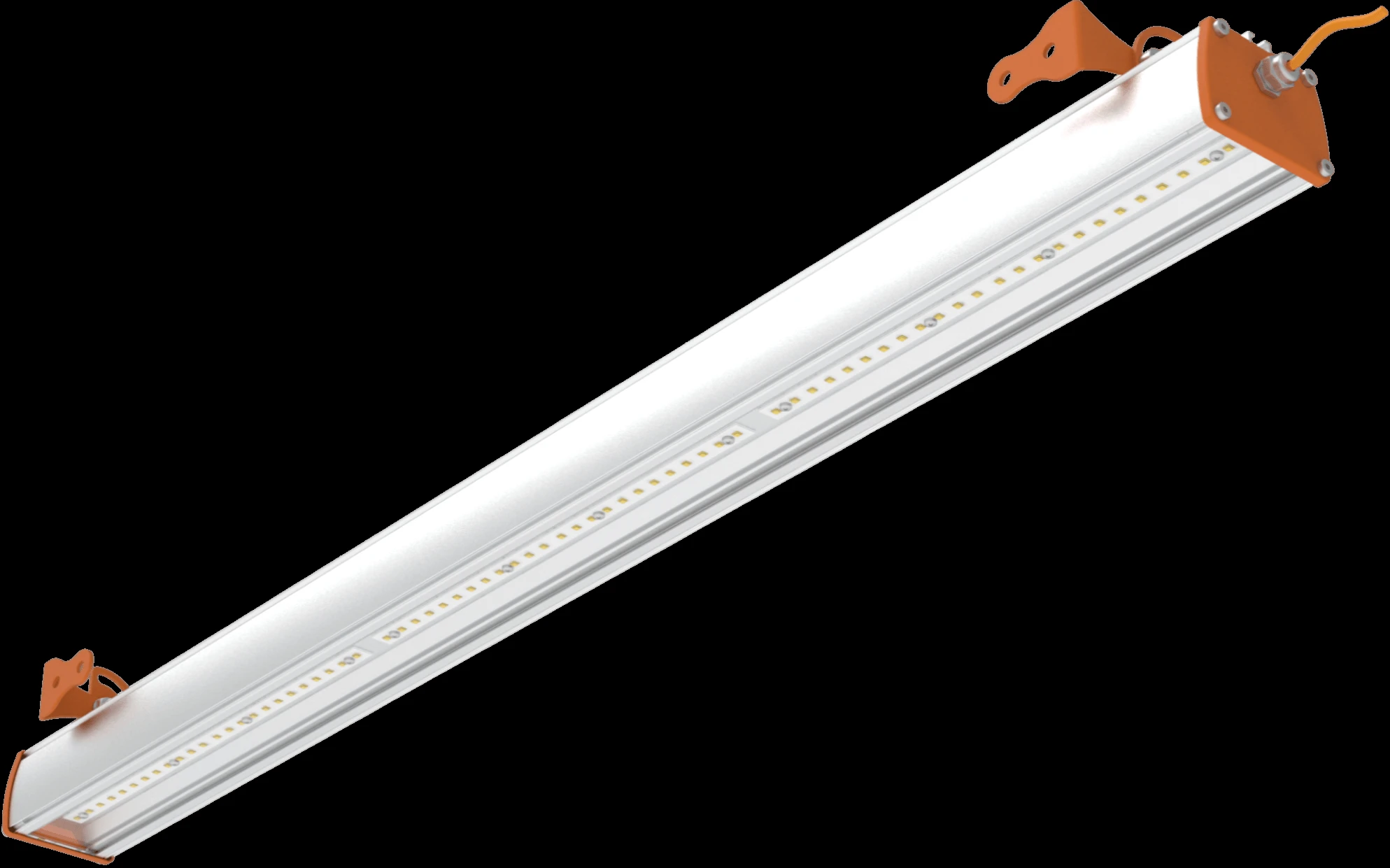

36 W Model — Front View

The 36 W variant (900 mm length) shows the slim aluminum-profile body with the 4 mm tempered silicate glass diffuser running the full length; Д120 beam optics is integrated directly behind the glass.

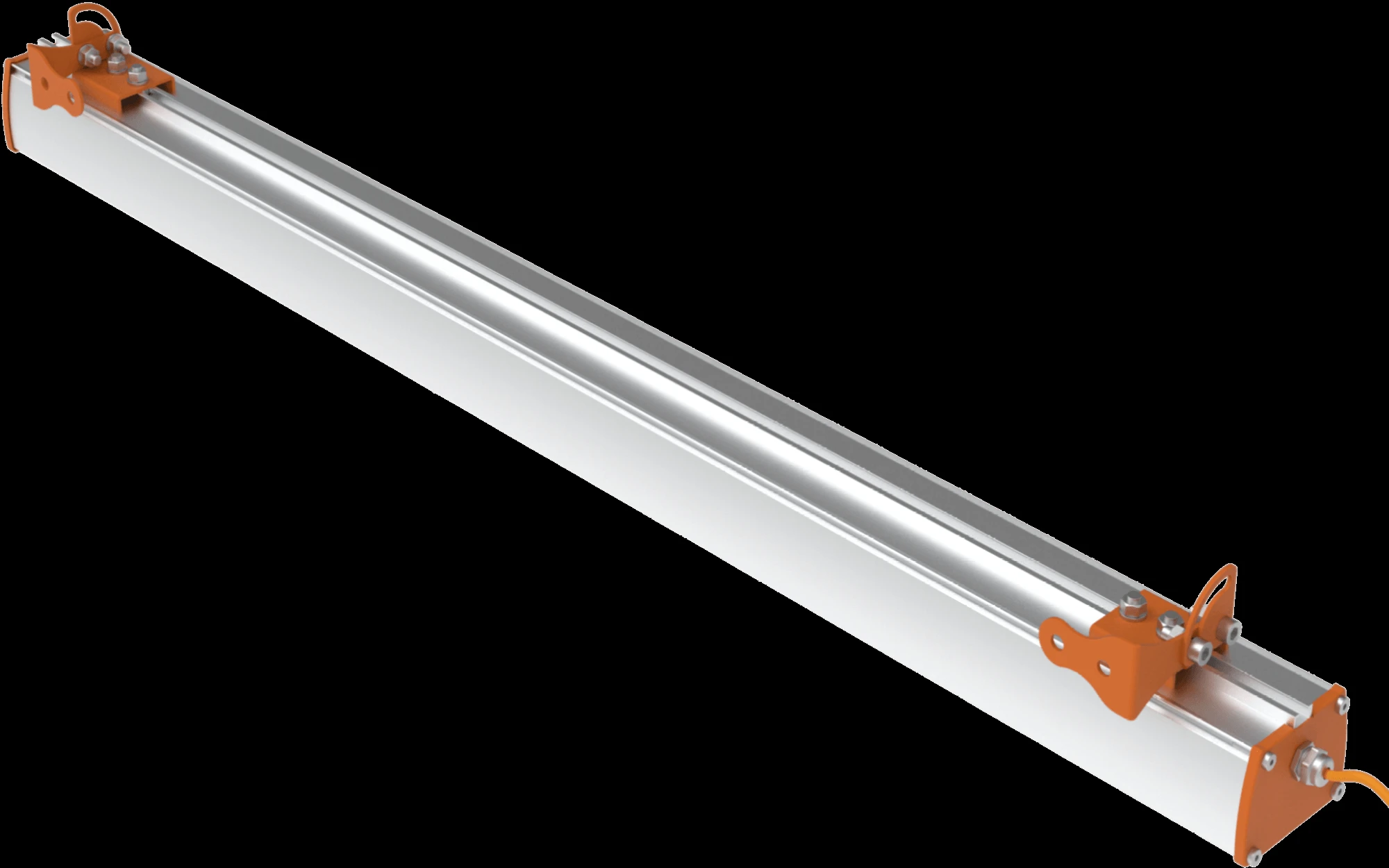

36 W Model — Detail View

A second angle of the 36 W fixture reveals the end-cap design and bracket attachment points; the sealed compartments are visibly potted with encapsulating compound to achieve IP67 and the 1ExmbIIC T6 Gb explosion protection rating.

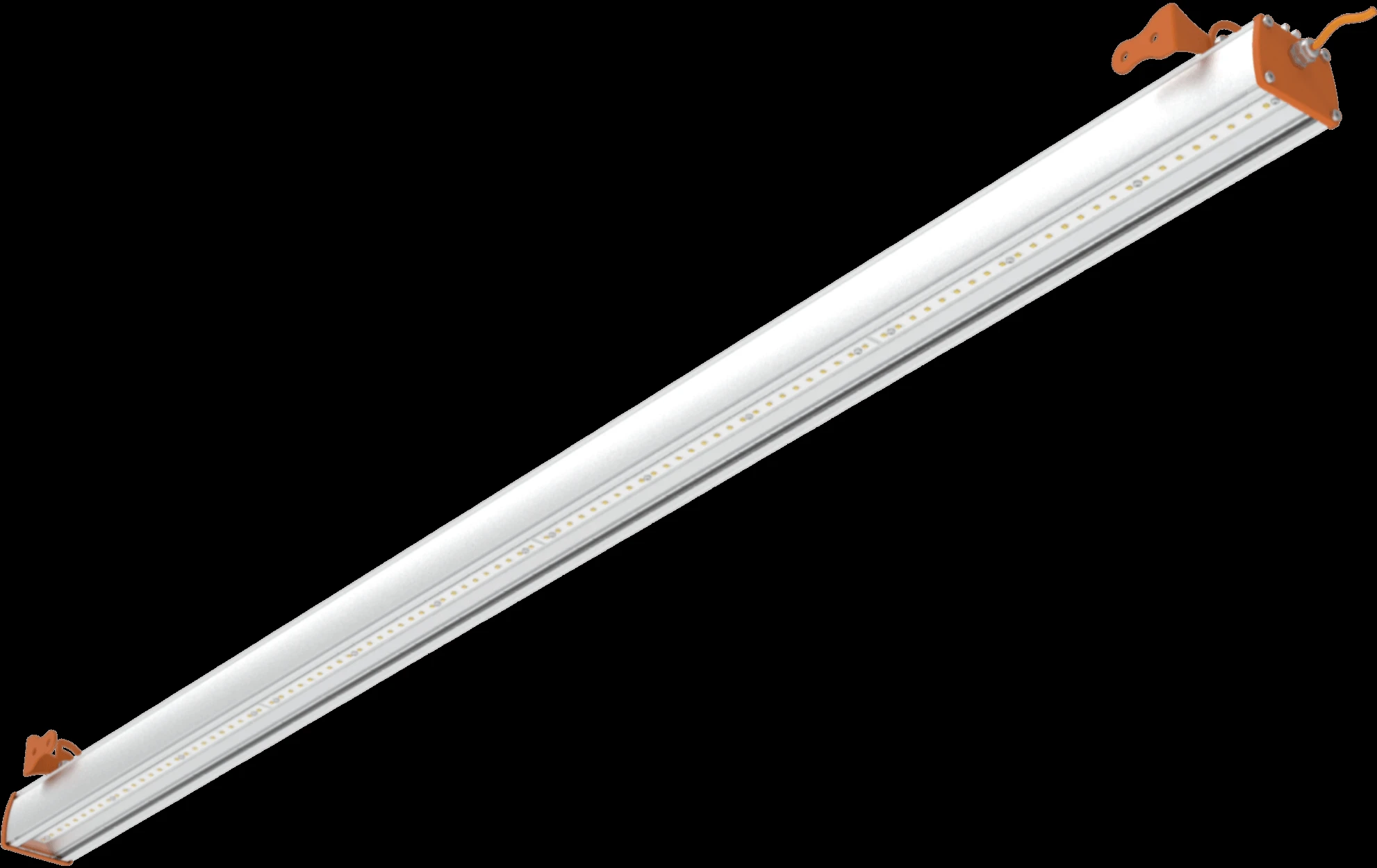

60 W Model — Full Length

At 1,500 mm, the 60 W variant is the largest in the АЭК-ДСП35-1-Ex FR range, delivering up to 8,320 lm from the fixture aperture; the proportionally identical profile confirms the scalable linear design across all five power variants.

Features

🔥

Dual Explosion & Fire Protection

Carries explosion marking 1ExmbIIC T6 Gb / 1ExmbIIC T6 Gb X for hazardous zones Class 1 and 2; tempered silicate glass diffuser meets fire hazard classifications П-I through П-III.

🛡️

IP67 Potted Enclosure

The luminaire housing is rated IP67, and all internal compartments are filled with a special encapsulating compound to provide maximum dust and water isolation.

💡

Samsung LEDs, Д120 Distribution

High-output Samsung diodes deliver up to 8,320 lm (fixture, 60 W model) with a Д120 wide-angle beam; CREE or Osram LEDs available on special order.

⚙️

Five Power Variants, 12–60 W

The series covers five standard wattages (12, 24, 36, 48, 60 W), allowing precise luminous flux selection for any production or warehouse bay.

🌡️

Harsh Climate Class УХЛ1

Designed and certified to climate class УХЛ1, covering an operating temperature range of –40 °C to +60 °C for demanding northern and industrial sites.

🔧

Configurable on Request

Emergency battery backup module (BAP), anti-corrosion lacquer for aggressive environments, MeanWell driver, and opal polystyrene diffuser overlay are all factory-fitted options.

Buyer Benefits

One fixture satisfies both explosion-protection and fire-resistance regulatory requirements, eliminating the need for separate certified products and simplifying project compliance documentation
Explosion protection covering gas groups IIA, IIB, and IIC — the broadest industrial category — means a single SKU can be specified across multiple hazardous zone types
Five-year warranty and 100,000-hour rated LED lifetime significantly lower total cost of ownership compared with traditional HID or fluorescent fixtures in hazardous locations
Range of five wattages from 12 W to 60 W enables precise light level engineering without over-specifying power, reducing energy consumption
Optional emergency battery module keeps critical areas lit during power failures, meeting evacuation lighting requirements without separate luminaires
Climate class УХЛ1 certification validates performance in Russian Arctic and Siberian industrial conditions where temperature extremes are routine
Free professional lighting calculation in DIALux is offered by the manufacturer, reducing design cost for buyers specifying multiple fixtures

Applications

Oil and gas processing plants, compressor stations, and pump houses classified as explosion hazard zones Class 1 or 2 Chemical and petrochemical production facilities with atmospheres containing flammable gases in groups IIA, IIB, or IIC Paint shops, lacquer application lines, and solvent-handling areas requiring simultaneous explosion and fire protection Warehouses storing flammable liquids or combustible materials classified to fire hazard categories П-I and П-II Gas distribution and gas metering stations (GDS) demanding certified Ex luminaires Fuel storage terminals and petroleum product loading/unloading facilities Aerosol production and packaging lines where both vapour-phase explosion risk and fire risk must be managed Mining headframes and surface processing facilities with flammable dust or gas present

Source: official manufacturer website
