Cyclone Dust Separator for Air Filtration - COL-3000

Cyclone Dust Separator for Air Filtration - COL-3000 — AGROPOSTAVKA LLC

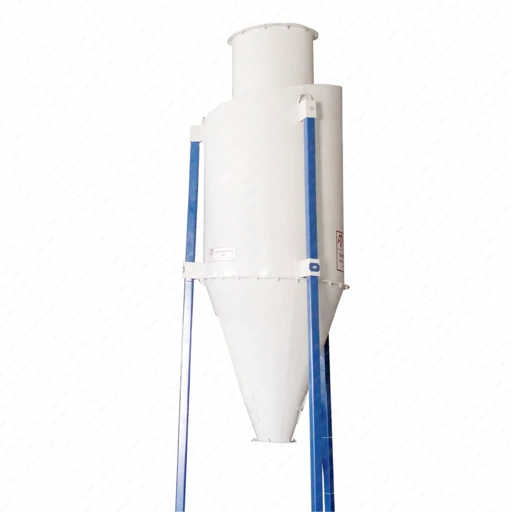

Name: Cyclone Dust Separator for Air Filtration - COL-3000
SKU: 108973
Availability: InStock

$1,500 - $4,800 USD

MOQ: 2 pieces

Key Features

height: 2200 mm

width: 790 mm

length: 790 mm

mass: Flat grinder, Specialised grinder kg

Supplier Information

AGROPOSTAVKA LLC

🇷🇺 📦 🏭 🛡️

View All Products (83)

Quick Inquiry

Description

The COL-3000 (ЦОЛ-3000) is a vertical cyclone dust separator produced by AgroPostavka LLC, a factory-direct manufacturer of agricultural and agro-industrial processing equipment founded in Nizhny Novgorod in 2011. The unit is designed to capture coarse particulate matter from air streams in aspiration networks and pneumatic conveying systems, delivering 95–98% air-cleaning efficiency at a rated throughput of 3,000 m³/h.

A key structural feature is the integrated conical anti-suction device positioned at the inlet pipe, which regulates internal pressure and prevents dust-laden air from bypassing the separation zone. Collected particles drop through the conical bottom outlet for downstream collection, while cleaned air exits through the inner cylinder.

The all-welded steel construction is intentionally straightforward — no moving parts, no consumable filter media — which keeps maintenance to a minimum and ensures a long, reliable service life. AgroPostavka ships the COL-3000 to customers throughout Russia via vetted freight carriers and offers professional on-site installation and commissioning.

Details & Equipment

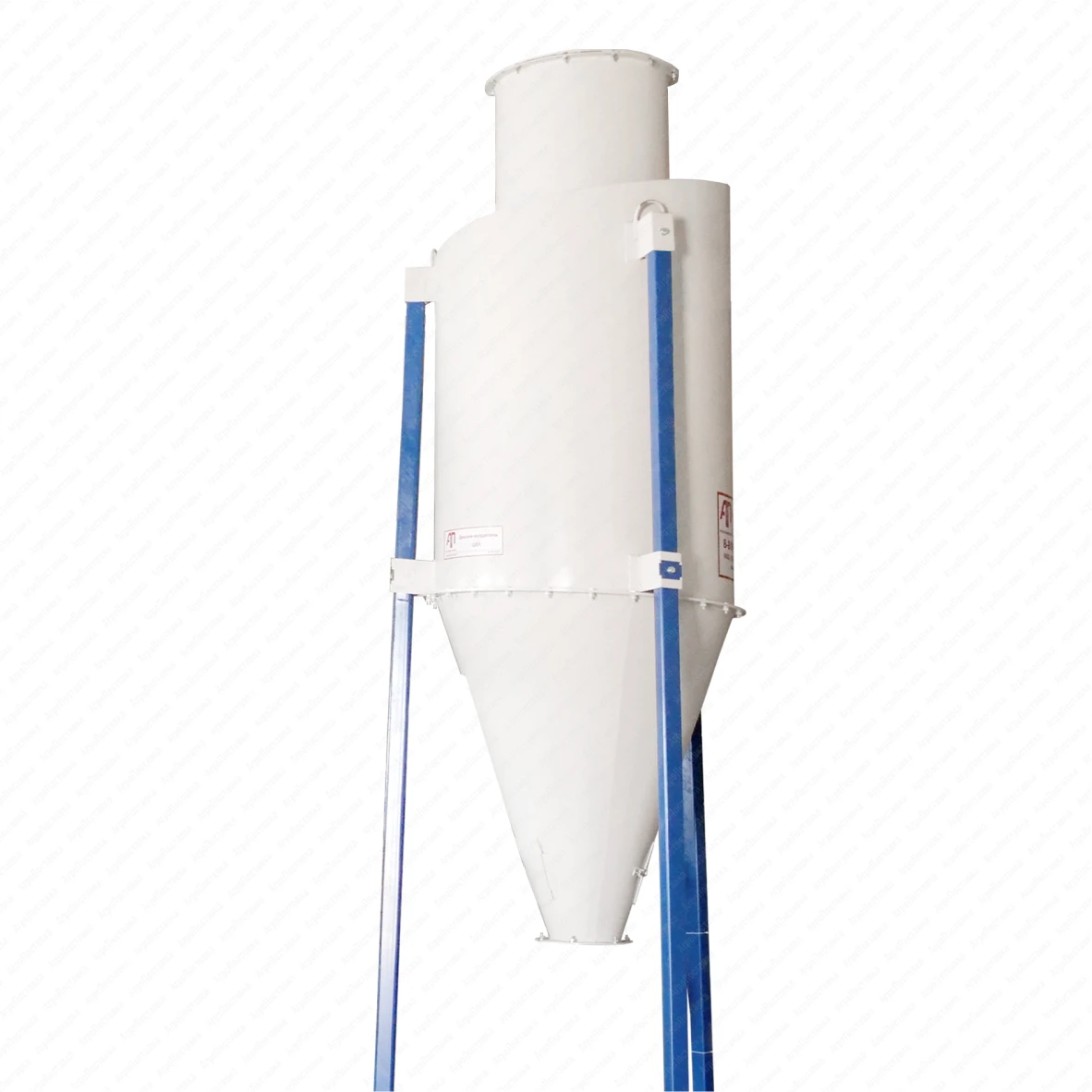

COL-3000 Unit

Product view

The COL-3000 on its support frame, showing the cylindrical separation chamber, inner discharge tube, and the conical bottom outlet where separated dust falls to the collection point below.

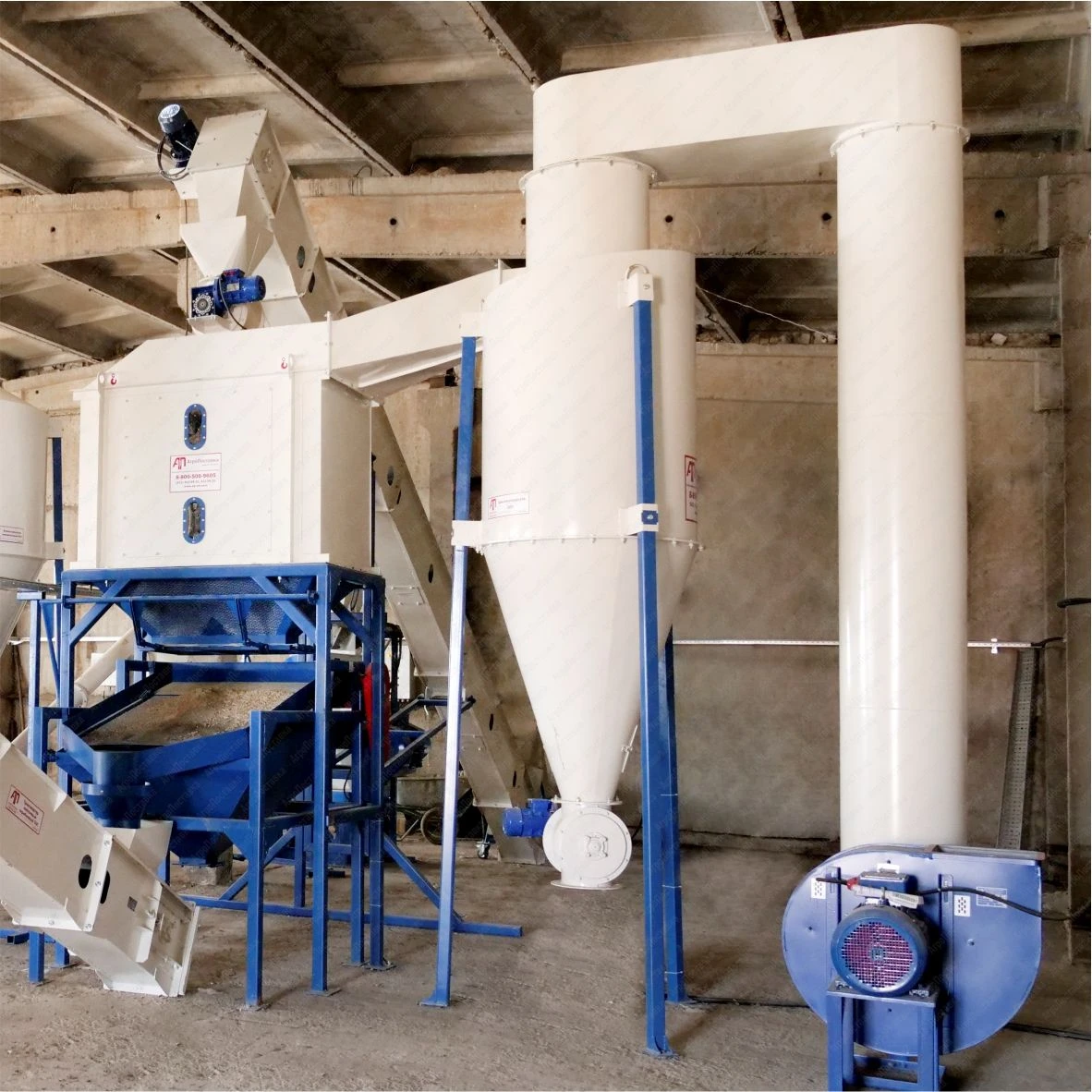

Installation Example

Installed in a compound-feed line

A ЦОЛ cyclone integrated into a working agricultural processing facility, connected to aspiration ductwork alongside a bucket elevator and centrifugal fan — a typical configuration for grain or mixed-feed production.

Features

🌪️

95–98% separation efficiency

The cyclone spin-separates coarse dust from the airstream by centrifugal force against the outer cylinder wall, consistently achieving 95–98% cleaning efficiency across the rated flow range.

🔩

Anti-suction inlet device

A built-in conical anti-suction unit at the inlet pipe stabilizes pressure and blocks uncleaned air from bypassing the separation zone, maintaining performance under varying system pressures.

💨

3,000 m³/h rated airflow

Handles up to 3,000 m³/h, suiting medium-scale grain, flour, and compound-feed production lines where aspiration volumes call for a reliable primary separator.

🏗️

Compact vertical footprint

Outer cylinder diameter of 788 mm and inner cylinder of 460 mm fit comfortably within standard mill or elevator headhouse dimensions, integrating directly into existing aspiration ductwork.

🔧

No consumable parts — minimal upkeep

With no filter media, bags, or moving internals, routine maintenance is limited to periodic inspection of flanges and discharge seals; one operator covers steady-state operation.

🚚

Delivery and installation from the manufacturer

AgroPostavka coordinates freight to the customer's facility and provides professional on-site assembly and commissioning, supporting warranty coverage from day one.

Buyer Benefits

95–98% dust removal cuts product losses in pneumatic conveying and protects downstream equipment
No filter bags or cartridges — zero recurring consumable costs after installation
Single operator is sufficient for routine operation, keeping labor overhead low
Manufactured in Russia (Nizhny Novgorod) — short domestic lead times and readily available spare parts throughout Russia and CIS
Scalable system: AgroPostavka's ЦОЛ series spans 1,500 to 9,000 m³/h, allowing capacity upgrades within the same ductwork architecture
Anti-suction inlet device maintains consistent performance even when system pressure fluctuates
Turnkey supply with professional installation minimizes commissioning risk and accelerates line start-up

Applications

Grain receiving, cleaning, and storage elevators — aspiration of intake pits and cleaning machines Flour and cereal milling — capturing bran and flour dust from conveying and sifting lines Compound-feed (mixed-feed) and pellet production lines — pre-separator ahead of fans or fine filters Biomass and wood-pellet plants — primary dust extraction upstream of pellet presses Extruded-feed manufacturing for livestock and aquaculture with high-volume pneumatic transport Agricultural machinery repair shops and processing halls requiring localized coarse-dust control Grain drying and conditioning systems where pneumatic conveying generates heavy dust loads Small-to-medium agro-industrial complexes seeking factory-supported, turnkey aspiration components

Source: official manufacturer website
