Name: Steel Support Structure for Photovoltaic Modules (FM)
SKU: 550035
Availability: InStock

$900 - $6,000 USD

MOQ: 1 sets

Key Features

Height of support structure: 1000...3154 mm

Pole spacing: 4440 mm

Average thickness of protective anticorrosive paint coating: 0.06 mm

Average thickness of protective anticorrosive zinc coating: 0.06 mm

Supplier Information

PRODMASH OJSC

🇷🇺 📦 🏭 🛡️

View All Products (8)

Quick Inquiry

Description

The ZVPM 1 Field System is a steel ground-mounted support structure engineered by OJSC Zavod Prodmash (Samara) for securing photovoltaic modules at utility-scale and commercial solar power plants. Manufactured to in-house standard STO 07525912-044-2023, the structure is built from high-strength structural steel grade C345 (09G2S) or better and receives a two-layer anti-corrosion system: a hot-dip zinc coating averaging 0.06 mm thickness is combined with an additional protective paint layer of equal thickness, together providing more than 25 years of outdoor durability.

Support-post height spans 1,000 to 3,154 mm, with a post spacing of 4,440 mm, accommodating a wide range of module layouts and ground-tilt requirements. Foundation is achieved by driving or screwing steel piles into the ground; installation on concrete blocks or a continuous slab is also available, making the system adaptable to varying soil conditions.

Every frame can be dimensioned individually to match the client's chosen photovoltaic modules. With over 20 years of metal-structure production experience, ISO 9001-certified quality management, and a 15-year manufacturer warranty, Zavod Prodmash delivers a reliable structural solution for solar energy infrastructure projects across Russia and export markets.

Details & Equipment

Installed Solar Support Structures

Utility-Scale Field Array

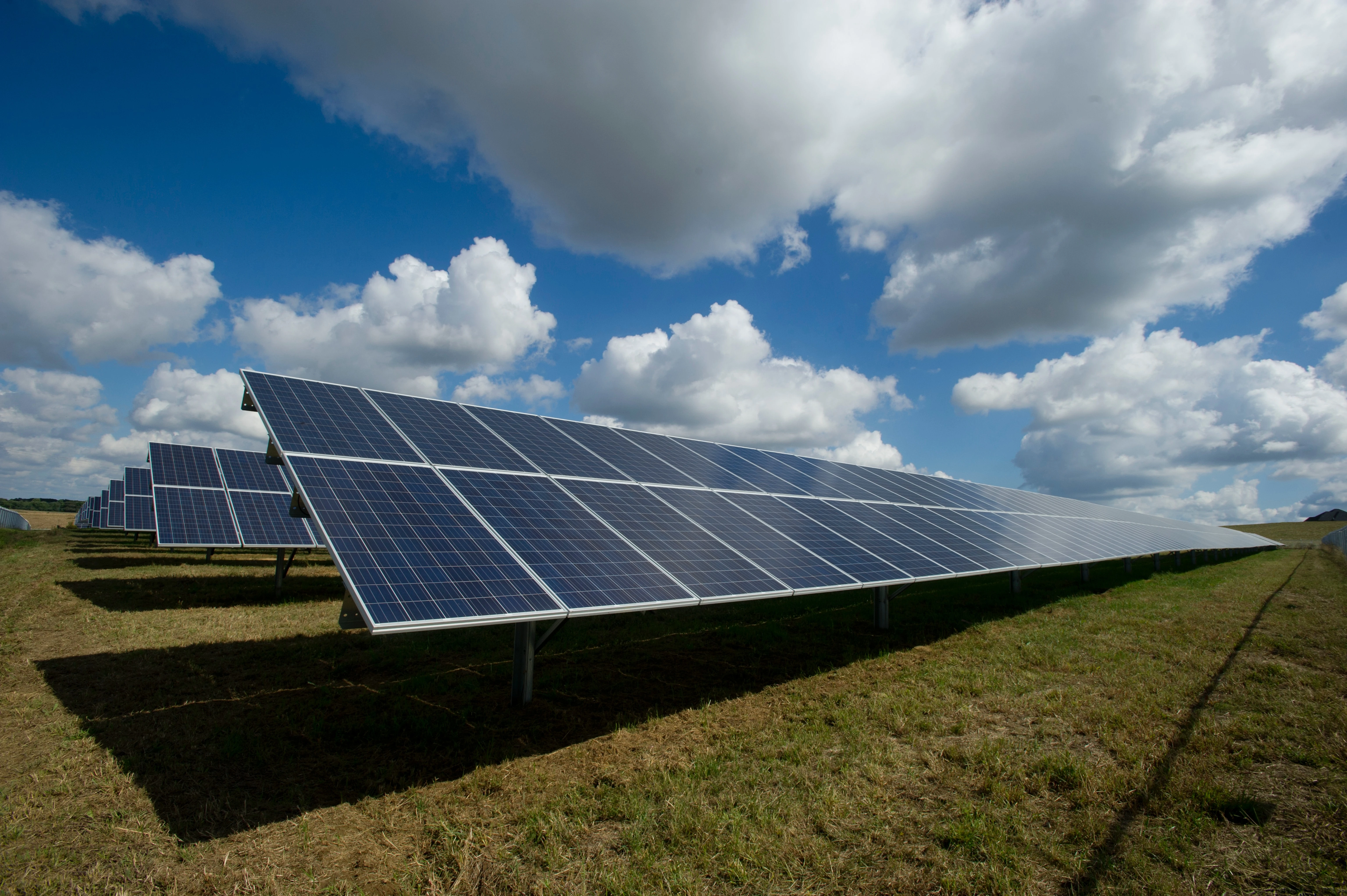

A large ground-mounted solar power plant illustrating rows of photovoltaic panels secured on steel support structures similar to the ZVPM 1 system — the standard application for industrial-scale solar energy generation.

Winter Performance

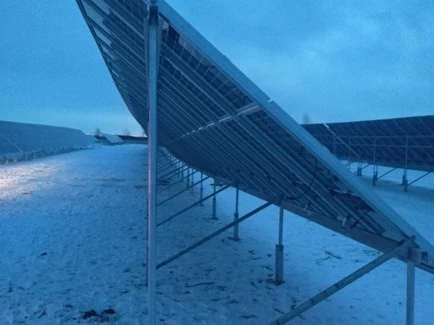

The galvanised steel support frame under winter conditions, demonstrating the structure's mechanical integrity and corrosion resistance in demanding low-temperature and high-humidity outdoor environments.

Manufacturing

In-House Steel Processing

Precision machining of steel components at Zavod Prodmash's Samara production facility, where all frame elements undergo quality inspection before hot-dip galvanising and dispatch.

Features

🏗️

High-Strength Steel

All load-bearing elements are fabricated from structural steel grade C345 (09G2S) or better, ensuring long-term dimensional stability and resistance to static and wind loads across all climate zones.

🛡️

Dual Anti-Corrosion Protection

Each element receives a hot-dip zinc coating (average 0.06 mm) combined with an anti-corrosion paint layer (average 0.06 mm), delivering a service life exceeding 25 years in outdoor conditions.

📐

Adjustable Height Range

Support-post height is configurable from 1,000 mm to 3,154 mm, allowing precise panel elevation and tilt-angle optimisation for the site latitude and array configuration.

⚙️

Multiple Foundation Options

The system installs on driven steel piles (preferred for large utility plants), screw piles (convenient for smaller projects), concrete blocks, or a cast foundation slab — adapting to ground conditions on any site.

🔧

Custom Module Fit

Frame geometry and clamp positions are individually adapted to the dimensions of the chosen photovoltaic modules, ensuring a secure mechanical interface regardless of panel manufacturer or format.

📋

Certified to STO 07525912-044-2023

The structure is produced and verified to Zavod Prodmash's own technical standard, with quality management certified to ISO 9001:2015 and a 15-year manufacturer warranty covering the complete assembly.

Buyer Benefits

15-year manufacturer warranty backed by ISO 9001:2015 certified production
Hot-dip galvanising provides 25+ years of corrosion protection with no repainting required
Post spacing of 4,440 mm and height range 1,000–3,154 mm enable efficient array layouts at minimal material cost
Works with driven piles, screw piles, concrete blocks, or slabs — reducing civil-engineering costs on most soil types
Frame geometry is custom-configured to match any PV module format, simplifying procurement and erection
Produced by a vertically integrated Russian manufacturer with an in-house design bureau and galvanising capacity
Fully compatible with both small distributed solar installations and multi-megawatt utility-scale solar power plants

Applications

Utility-scale ground-mounted solar power plants (СЭС) on flat agricultural or industrial land Commercial solar farms requiring driven-pile foundations in cohesive or rocky soils Smaller distributed solar installations where screw-pile erection avoids heavy equipment Off-grid autonomous power supply for remote facilities, guard posts, and rural infrastructure Private and estate solar installations requiring a cost-effective ground-mount solution Solar projects on moderately sloped terrain where variable post height compensates for grade Replacement or extension of existing solar plant racking when frames must match specific module dimensions Export and EPC projects requiring certified Russian-manufactured steel support structures
