Name: Open Resuscitation System for Newborns "ORS-BONO
Brand: Shvabe
SKU: 425982
Availability: InStock

Brand: Shvabe

$9,000 - $30,000 USD

MOQ: 1 pieces

Key Features

phototherapy: availability

Respiratory therapy: available

Patient heating: available

mass: 115 kg

Supplier Information

UOMZ OJSC

🇷🇺 📦 🏭 🛡️

View All Products (94)

Quick Inquiry

Description

The ORS-BONO is an open resuscitation system for newborns manufactured by UOMZ OJSC (Ural Optical and Mechanical Plant, Ekaterinburg), a member of the Shvabe holding within Russia's state corporation Rostec. The system is designed for resuscitation, intensive treatment, and nursing of newborns and premature infants in delivery rooms, neonatal pathology departments, and intensive care units.

It combines radiant warming, integrated phototherapy, and respiratory support in a single mobile unit, enabling clinicians to reduce treatment duration and the incidence of complications associated with jaundice and respiratory distress. The radiant heater operates in three modes—pre-heat (radiation intensity ≤15 mW/cm², duration ≤20 min), manual, and fully automatic (30.0–38.0°C)—with dual skin-temperature monitoring via central and peripheral sensors, each covering a 10–50°C measurement range.

Phototherapy is provided at two intensity levels (spectral density 36/18 μW/(cm²·nm); total irradiance 3800±700 / 1900±400 μW/cm²) for treatment of neonatal hyperbilirubinemia. Respiratory support enables nCPAP therapy without intubation, with adjustable oxygen concentration from 21 to 100% and flow rates from 0 to 15 L/min.

Additional features include a 360°-rotating electronically height-adjustable mattress platform with 10° tilt, 1000 lux task illumination, integrated infusion stand, audible/visual alarms, and a battery backup of at least 60 minutes. Overall dimensions in the upper position are 2130×800×1550 mm; total weight is 115 kg.

Details & Equipment

Product Overview

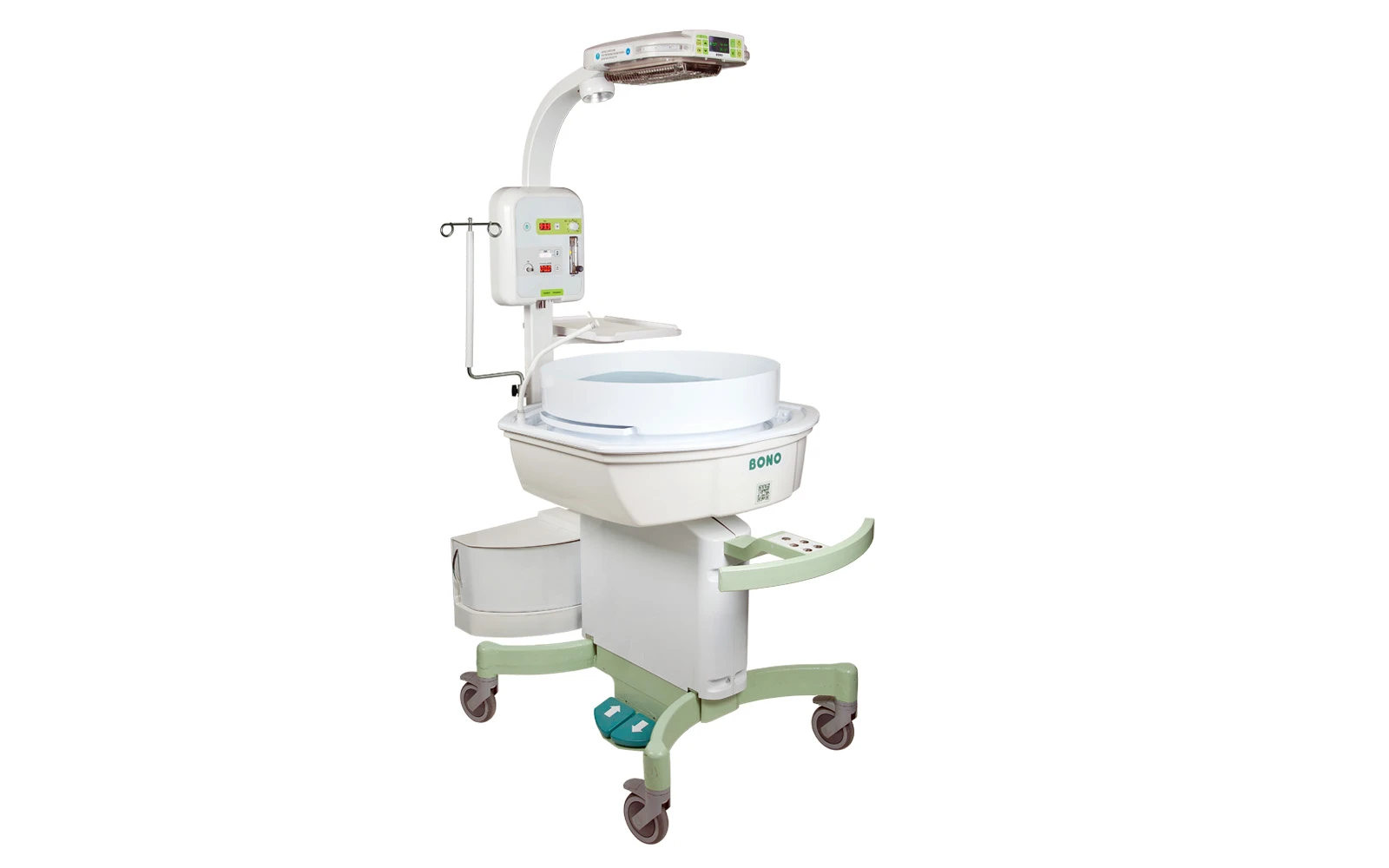

ORS-BONO — full unit

The ORS-BONO stands 2130 mm tall in its upper position on a 800×1550 mm footprint and weighs 115 kg. The column-mounted radiant heater, OLED control panel, and rounded baby mattress platform are all visible in this front-facing view.

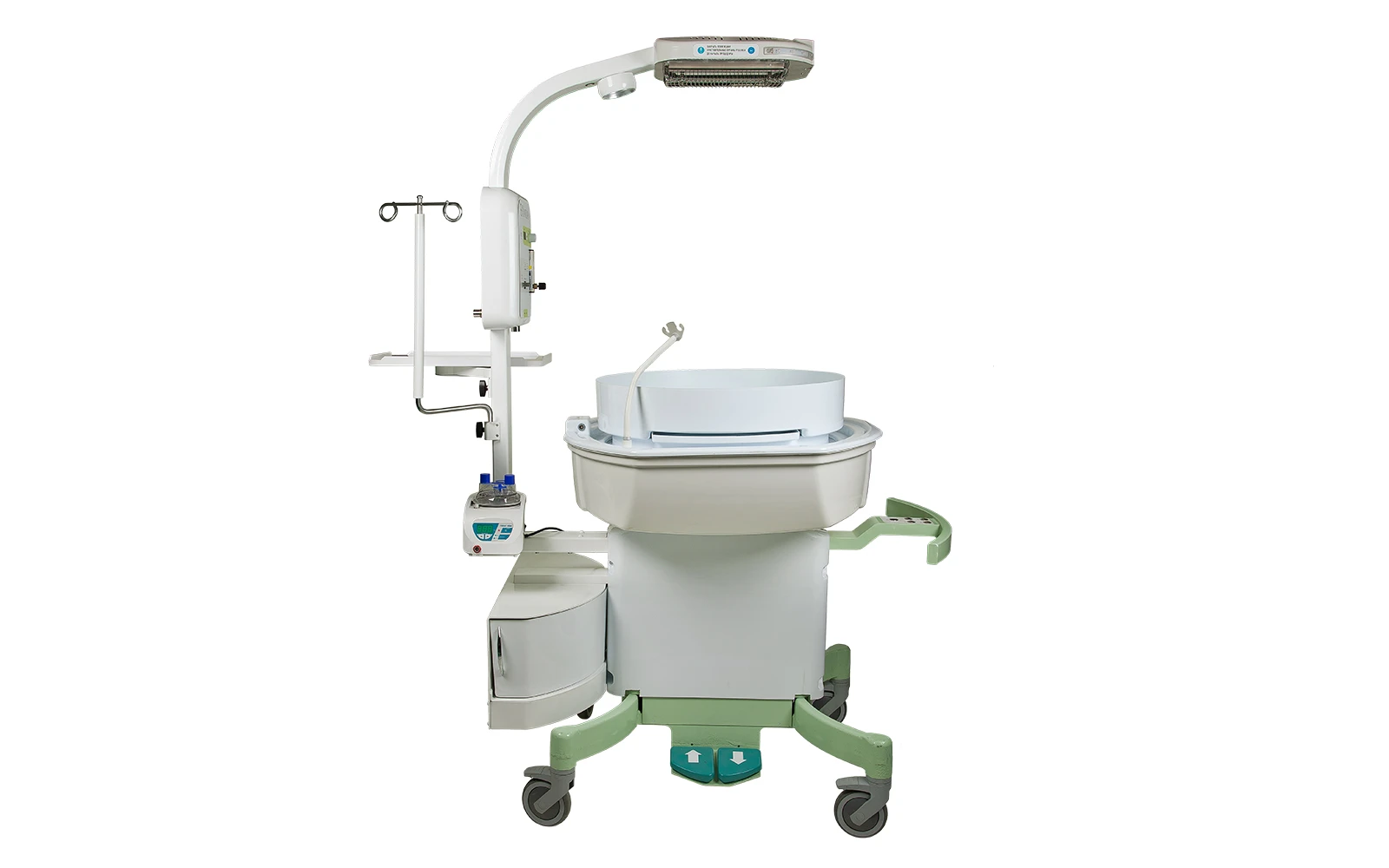

Mattress platform and heater

The rounded mattress bed rotates 360° and tilts up to 10°, with 200 mm of electronic height travel. The overhead radiant heater provides 1000 lux of task illumination and operates in three modes including fully automatic temperature control at 30–38°C.

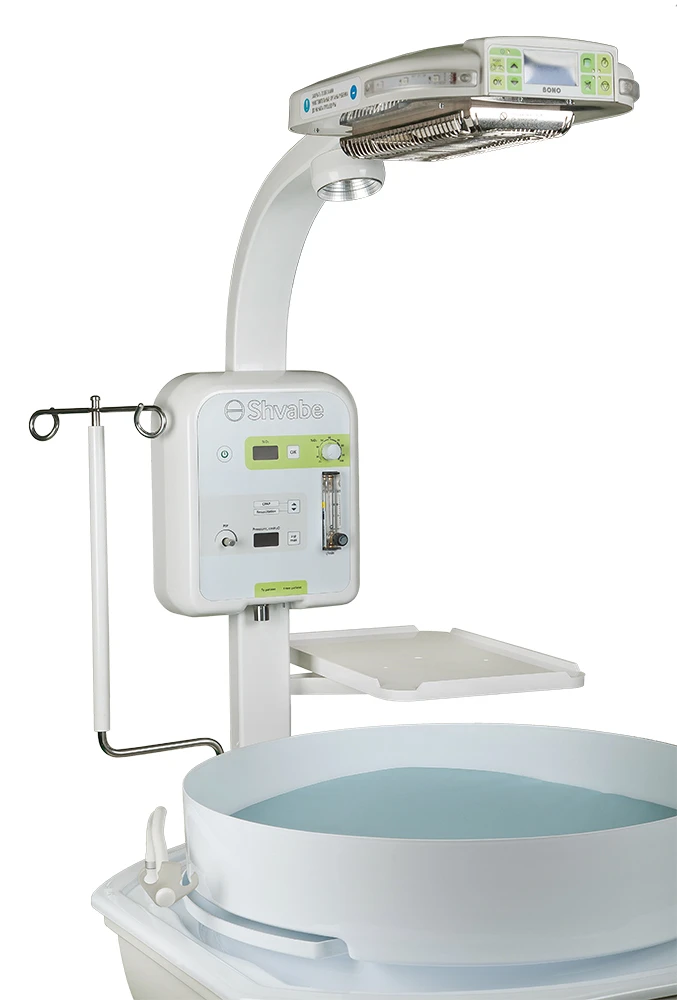

Integrated phototherapy and respiratory module

Built-in phototherapy lamps deliver two selectable irradiance levels (3800±700 or 1900±400 μW/cm²) for jaundice treatment, while the respiratory module supplies a 21–100% O₂/air blend at 0–15 L/min for nCPAP therapy without intubation.

Features

🌡️

Triple-Mode Radiant Warming

Pre-heat, manual, and fully automatic modes maintain the mattress zone at 30.0–38.0°C. Dual central and peripheral skin-temperature sensors (10–50°C range) provide continuous closed-loop feedback.

💡

Dual-Level Phototherapy

Integrated phototherapy operates at two intensity levels—spectral density 36 or 18 μW/(cm²·nm), total irradiance 3800±700 or 1900±400 μW/cm²—for effective in-situ treatment of neonatal hyperbilirubinemia.

🫁

nCPAP Respiratory Support

Delivers a blended gas–air mixture with adjustable oxygen concentration (21–100%) and flow rate (0–15 L/min), allowing non-invasive respiratory therapy without intubation.

🔄

360° Rotating Adjustable Bed

The rounded mattress platform rotates a full 360° and tilts up to 10°; electronic height adjustment provides 200 mm of travel, improving clinical access during procedures.

🔋

Battery Backup ≥60 min

An integrated rechargeable battery sustains warming and monitoring functions for at least 60 minutes, enabling safe in-hospital transport between units without interruption.

📊

OLED Display & Alarms

An OLED touchscreen with a simplified operator interface displays all parameters in real time; audible and visual alarms notify staff immediately of out-of-range conditions.

Buyer Benefits

Consolidates warming, phototherapy, and respiratory support in one unit, reducing the number of devices required at the bedside and shortening overall treatment time
Automatic warming mode with dual-sensor feedback (30–38°C) eliminates manual temperature adjustments and reduces risk of hyperthermia or hypothermia
Two-level phototherapy built into the unit treats neonatal jaundice on-site without moving the infant to a separate device
nCPAP capability at O₂ 21–100% and 0–15 L/min supports respiratory-distress infants non-invasively, avoiding the risks associated with intubation
360° bed rotation and electronic height adjustment reduce clinician physical strain and improve access for examinations and interventions
Battery operation for ≥60 minutes allows safe intra-hospital transport while maintaining thermal and monitoring continuity
Pre-heat mode warms the resuscitation surface before patient arrival, minimising cold stress from the first moment of care

Applications

Primary neonatal resuscitation in delivery room suites Neonatal intensive care and post-resuscitation stabilisation Phototherapy for neonatal hyperbilirubinemia (jaundice) Non-invasive nCPAP respiratory support for infants with respiratory distress syndrome Nursing and warming of premature infants in neonatal pathology departments Post-operative warming and monitoring after neonatal surgical procedures In-hospital transport between wards with uninterrupted battery-powered warming Use as a supplementary or primary radiant heat source in neonatal care units

Source: official manufacturer website
