Medium Voltage Frequency Converter 3.3 kV, 3.5-80 MW

Medium Voltage Frequency Converter 3.3 kV, 3.5-80 MW — DRIVE TECHNOLOGY LLC

Name: Medium Voltage Frequency Converter 3.3 kV, 3.5-80 MW
SKU: 114622
Availability: InStock

$90,000 - $840,000 USD

MOQ: 1 units

Key Features

Output power, kVA: 3000...80000

Rated voltage: 3300 V

Supplier Information

DRIVE TECHNOLOGY LLC

🇷🇺 📦 🏭 🛡️

View All Products (4)

Quick Inquiry

Description

The Momentum MT-3000 is a medium-voltage voltage-source inverter (variable frequency drive) engineered by НТЦ «Приводная техника» (MOMENTUM LLC) in Chelyabinsk, Russia, for variable-speed control and smooth starting of AC motors rated at 3,000–3,300 V. The converter covers a power range from 2,500 to 45,000 kW and operates across an ambient temperature span of −40 to +40 °C, making it well suited to harsh industrial environments including outdoor Siberian installations.

The MT-3000 accommodates both asynchronous (induction) and synchronous AC motors, serving pumps, fans, induced-draft fans, and compressors across heavy industry. Its three-level modular topology uses proven HiPack high-voltage IGBT transistors, enabling a compact cabinet footprint relative to its power class while sustaining a high overload capacity.

Building-block architecture allows power to be scaled by adding modules, and optional liquid or water cooling can be specified for thermally demanding sites. The unit incorporates energy-regeneration capability that feeds braking energy back into the supply network, reducing overall electricity consumption.

A diode-rectifier front-end variant simplifies the input transformer, lowering component count for improved long-term reliability. MOMENTUM has developed proprietary Russian-origin control software, ensuring a high level of domestic localization and straightforward in-country service.

Full lifecycle support—design, installation, commissioning, and maintenance—is provided from the manufacturer's Chelyabinsk facility.

Details & Equipment

MT-3000 Drive Cabinet

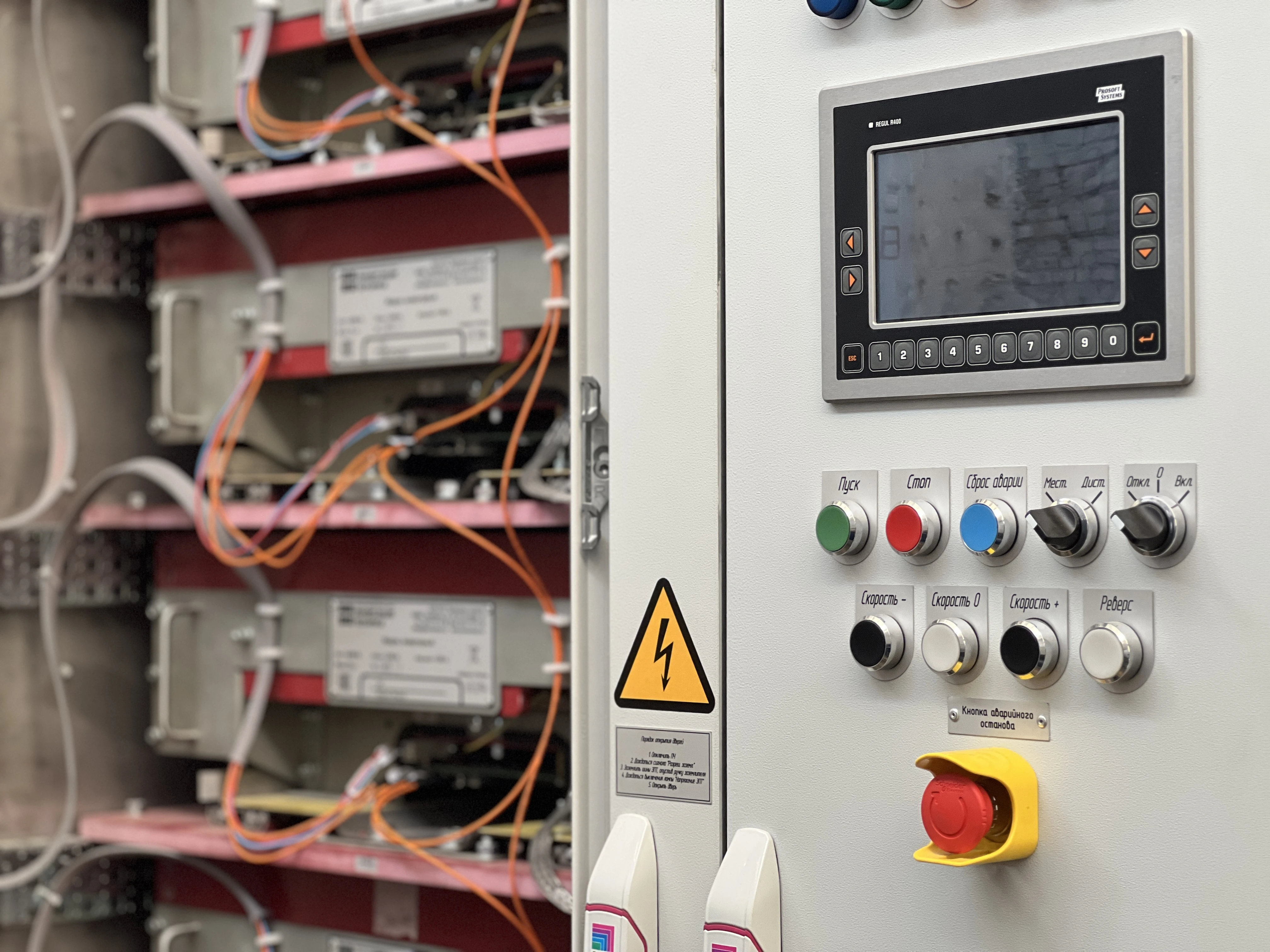

Cabinet exterior

The MT-3000 medium-voltage frequency converter cabinet is designed for integration into existing switchgear rooms, with clearly separated power and control sections supporting safe operation at 3,000–3,300 V.

Drive unit view

Each MT-3000 unit houses the three-level inverter topology built around HiPack HV-IGBT power modules, combining high switching performance with the compact footprint characteristic of the modular MT series.

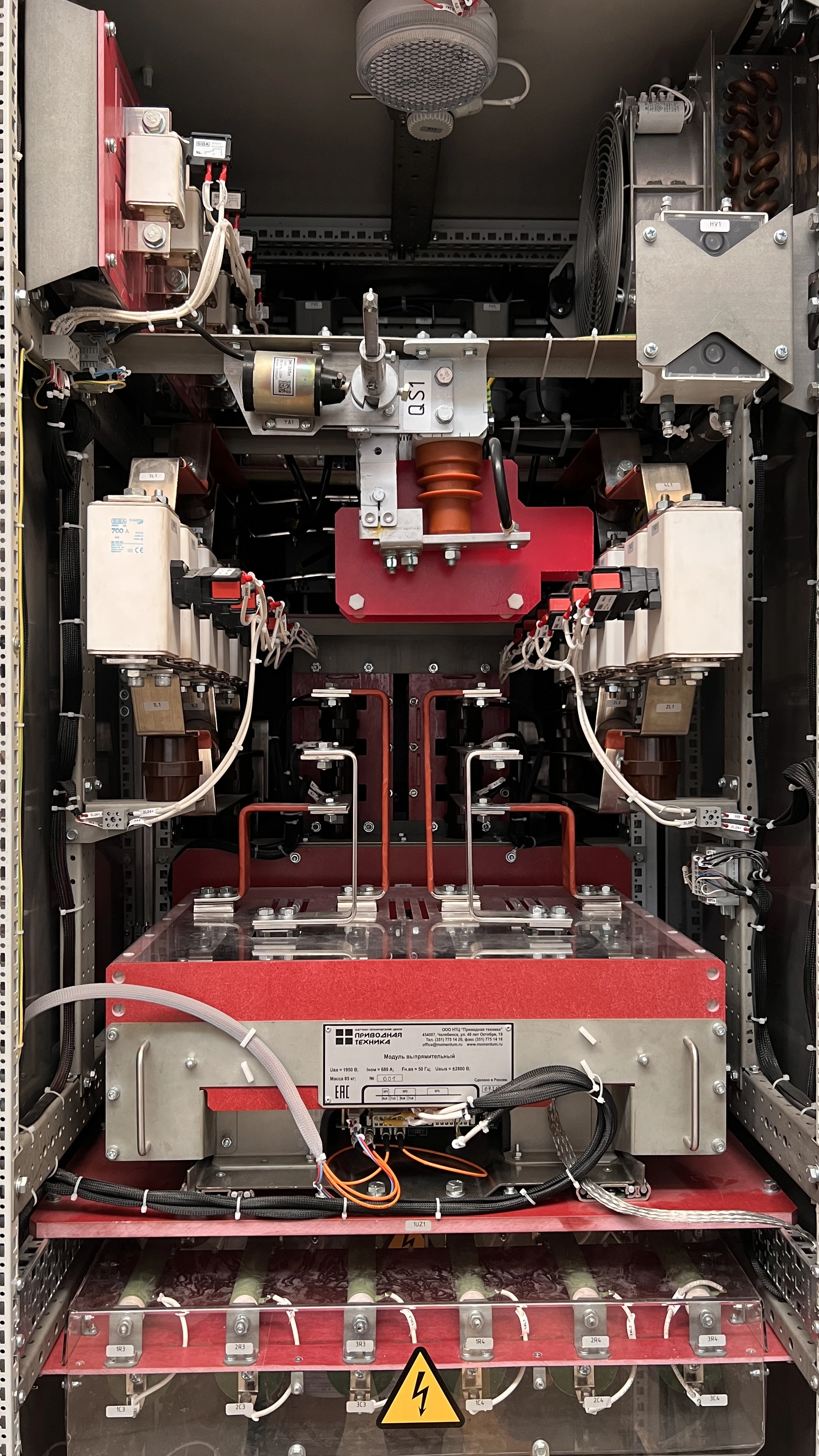

Power module section

The modular power section can be extended with additional building blocks to scale output capacity, allowing the same platform to serve applications from 2,500 kW up to 45,000 kW.

Installation & Integration

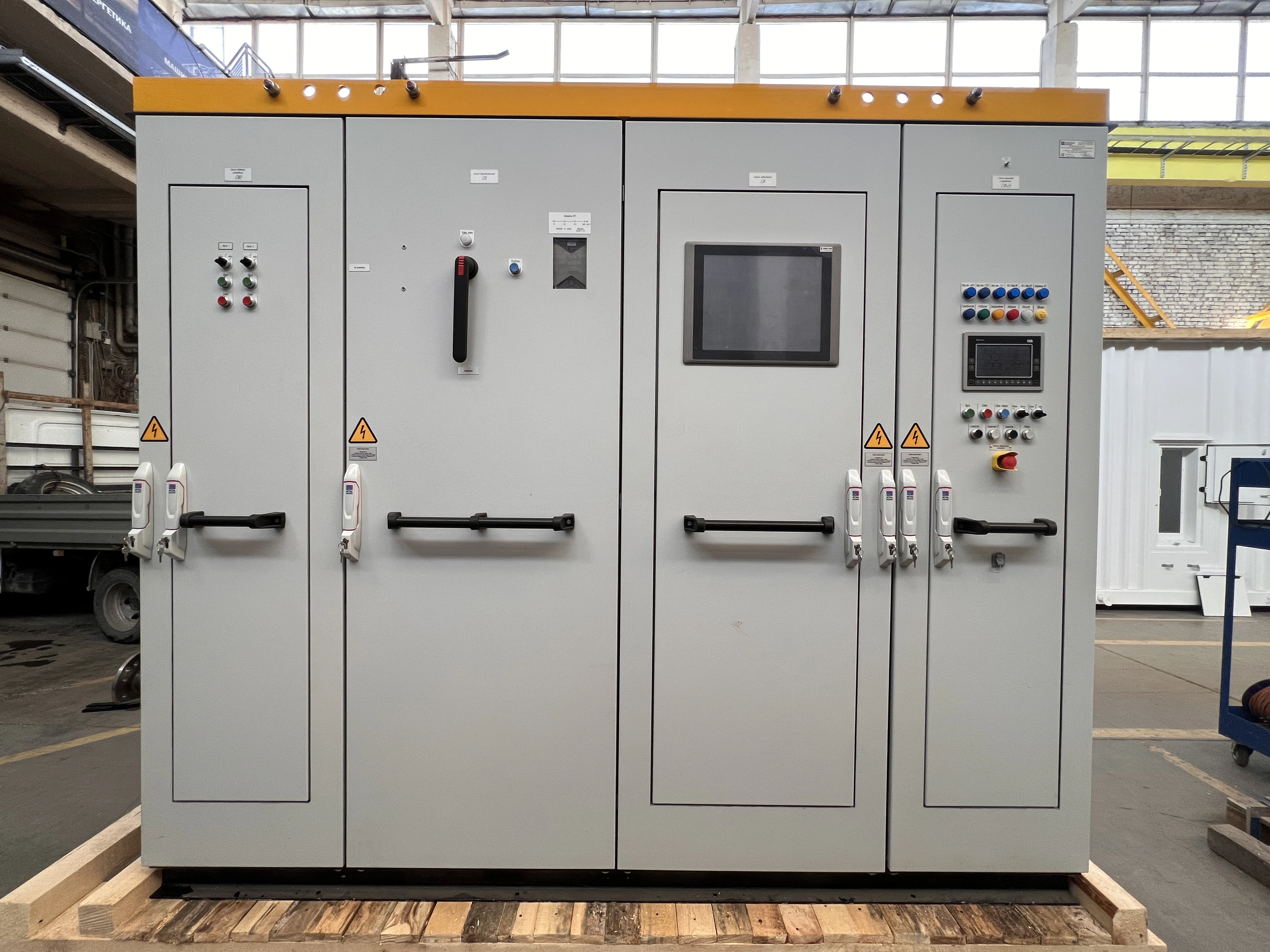

Installed configuration

MT-3000 converters installed at an industrial site demonstrate the compact multi-cabinet arrangement achievable even at multi-megawatt power ratings, minimizing required floor space.

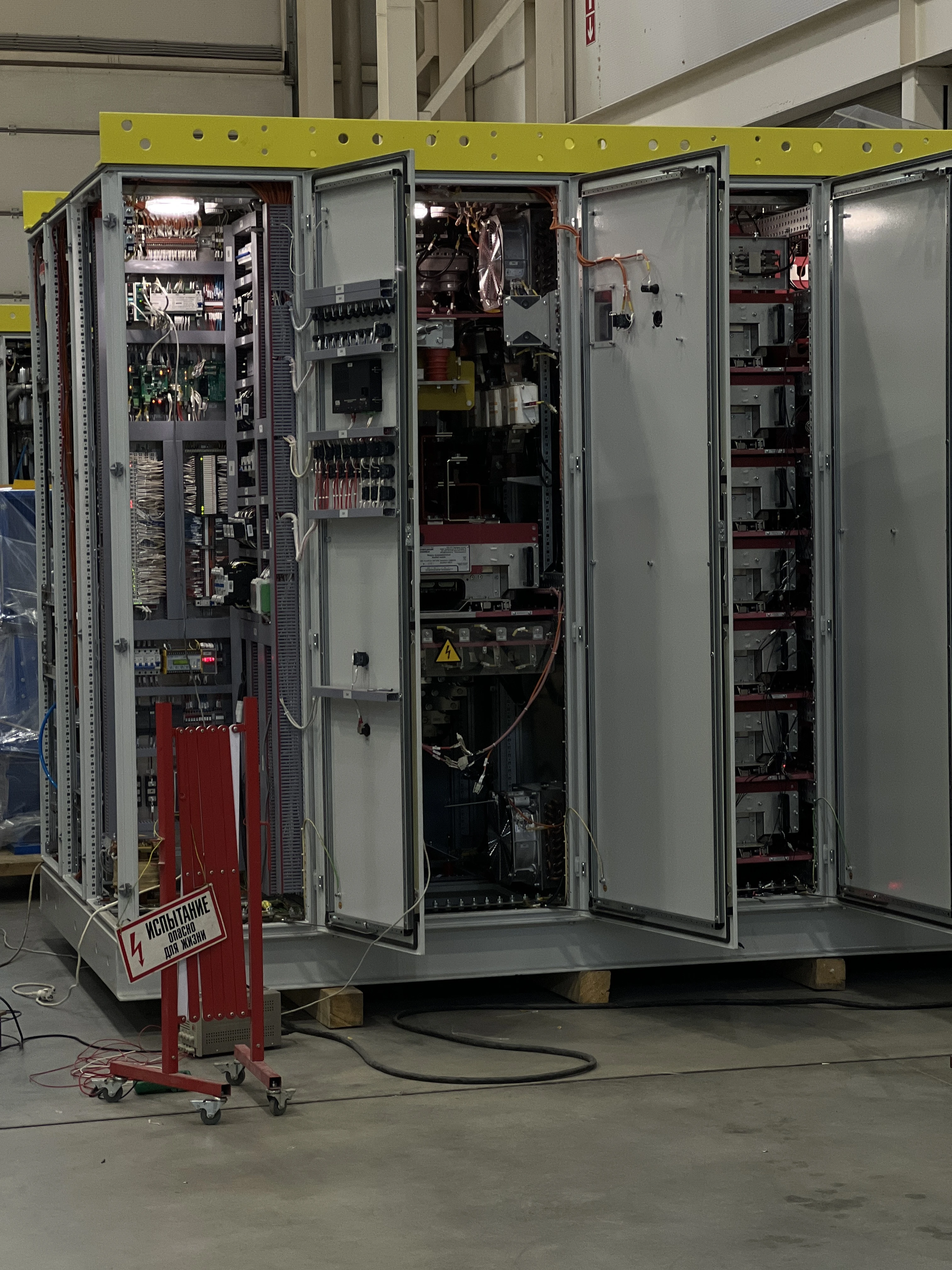

Control and interface

The operator interface provides access to speed setpoints, protection parameters, and diagnostics via MOMENTUM's proprietary Russian-origin control software, supporting in-country maintenance without foreign software dependencies.

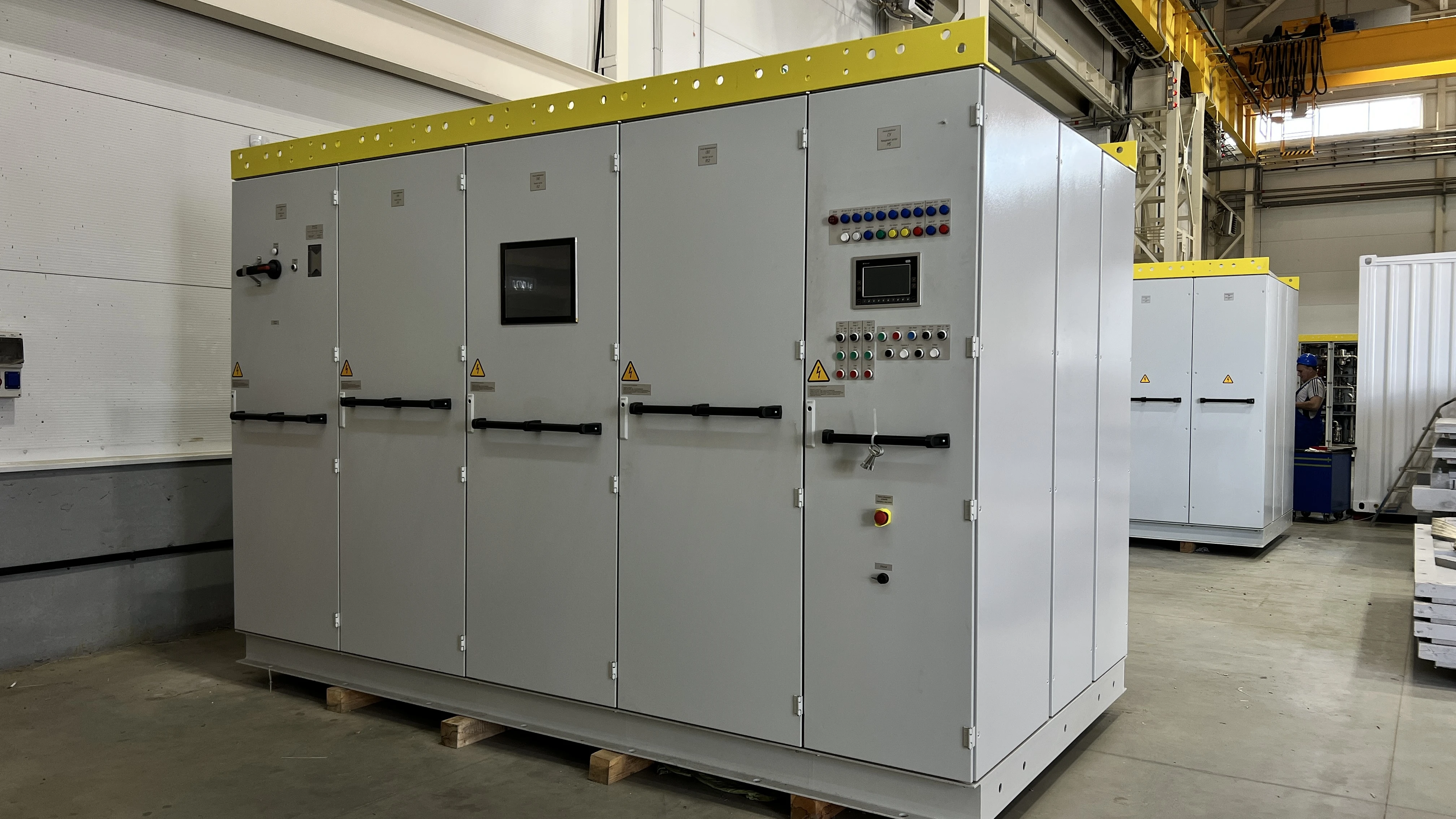

Site integration

Medium-voltage terminations and cable routing are arranged to allow straightforward connection to existing 3,000–3,300 V industrial power distribution infrastructure.

Features

⚡

High Power Density

The MT-3000 delivers up to 40 MW in a compact cabinet, reducing the floor space needed for high-power medium-voltage drives compared with conventional designs.

🔧

Modular Scalability

Building-block modular architecture allows power capacity to be increased incrementally by adding power modules, avoiding a full system replacement as requirements grow.

🔄

Energy Regeneration

Built-in regenerative capability returns braking energy to the supply network rather than dissipating it as heat, improving overall energy efficiency.

🛡️

High Enclosure Protection

High ingress-protection rating allows direct installation in dusty or humid industrial premises without additional protective housings or separate enclosures.

❄️

Flexible Cooling Options

Available in air-cooled, liquid-cooled, and water-cooled configurations to suit different installation constraints and site thermal budgets.

🇷🇺

Russian-Made Control Software

Proprietary domestic software and a high level of component localization simplify in-country maintenance, regulatory approval, and long-term spare-parts availability.

Buyer Benefits

Stepless speed control eliminates inrush current and mechanical shock during motor starting, extending motor and load service life
Power range of 2,500–45,000 kW covers a wide spectrum of heavy-industry applications from a single product family
Compact dimensions at rated power reduce switchgear-room floor area compared with traditional drive solutions of the same power class
−40 to +40 °C operating range accommodates outdoor installations and Arctic or Siberian industrial facilities without additional heating
Reduced component count versus competing topologies lowers failure probability and extends maintenance intervals
Simplified diode-rectifier input transformer option cuts transformer cost and size for non-regenerative drive applications
HiPack HV-IGBT transistors offer proven reliability and are supported by an established supply chain for long-term serviceability

Applications

Centrifugal and axial pumps in water supply, oil-and-gas processing, and mining dewatering Industrial fans and ventilation systems in metallurgical, cement, and mining facilities Induced-draft fans and smoke exhausters at thermal and combined heat-and-power stations High-power compressors in gas transmission pipelines and refrigeration systems Variable-speed asynchronous (induction) motor drives in manufacturing and processing plants Synchronous motor drives for large mill drives, hoists, and heavy industrial mechanisms Regenerative load test stands requiring energy feedback to the supply network Process control drives demanding precise speed regulation in chemical and petrochemical plants

Source: official manufacturer website
