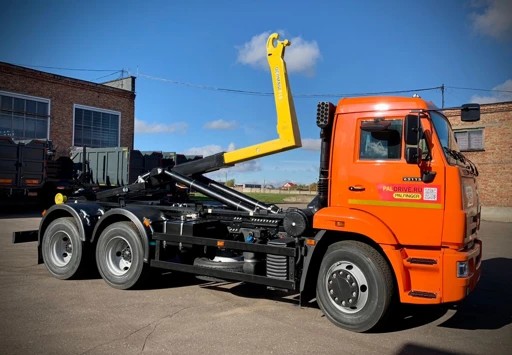

The VK T15-5050 is a hook-lift loader (multilift) designed and manufactured in Russia by VELMASH-S LLC, a member of the international PALFINGER group operating from its plant in Velikiye Luki. Developed in 2018 as part of the VK series launched in 2015, this unit mounts on three-axle heavy truck chassis with gross vehicle weights between 17.5 and 25 tonnes.
Its rated payload capacity is 15,000 kg, with an own weight not exceeding 1,670 kg. The telescopic boom system accommodates swap bodies ranging from 3.75 to 6.5 metres in length and also allows placement of loaded bodies onto a trailer—particularly valuable for waste haulage to remote landfills.
The loader is 5,050 mm long overall, achieves a maximum tipping angle of 50°, and completes a full loading cycle in approximately 43 seconds and a tipping cycle in 49 seconds. The hydraulic system operates via a Walvoil SDS150 distributor at a working pressure of 310 bar, with a supply flow of 50–81 l/min.
Standard control is pneumatic (6–8 bar); an electric control option is available on request. VELMASH-S produces all three VK variants—15 t, 20 t, and 26 t—under PALFINGER group quality standards.
