Agricultural Wheel Tractor RSM 3485 3000 4WD

Agricultural Wheel Tractor RSM 3485 3000 4WD — Rostselmash LLC

Name: Agricultural Wheel Tractor RSM 3485 3000 4WD
Brand: Rostselmash
SKU: 175541
Availability: InStock

Brand: Rostselmash

$150,000 - $420,000 USD

MOQ: 1 pieces

Key Features

Motor power: 362 kW

Traction class: 8

Tractor operating weight, not more: 26140 kg

Supplier Information

Rostselmash LLC

🇷🇺 📦 🏭 🛡️

View All Products (52)

Quick Inquiry

Description

The RSM 3485 is Rostselmash's powerful articulated four-wheel-drive tractor, positioned in the mid-range of the company's Series 3000 lineup. Built at the Rostselmash plant in Rostov-on-Don, it draws on five decades of engineering heritage inherited from Versatile — a brand Rostselmash acquired — combined with modern powertrain and precision farming technology.

The tractor is powered by a Cummins QSX15 Common Rail diesel engine delivering 492 hp nominal and 527 hp peak, with peak torque of 2,219 N·m at 1,400 rpm. Drive passes through a Caterpillar 16×4 electrohydraulic automatic transmission with multi-disc wet clutch cooled in an oil bath, providing smooth and programmable power delivery across demanding field conditions.

The articulated chassis keeps all four wheels in constant contact with the ground on uneven terrain, while a centrally positioned fuel tank maintains consistent axle weight distribution as fuel is consumed. At 26,140 kg operating weight and traction class 8, the RSM 3485 is purpose-built for the most intensive tillage, cultivation, and seeding operations on large arable farms.

Standard equipment includes the Agrotronic™ remote telemetry system, cruise control, speed radar, and headland management. A full daily maintenance cycle can be completed solo in approximately 30 minutes, with all service points and lubrication nodes designed for easy single-operator access.

Details & Equipment

Tractor at Work

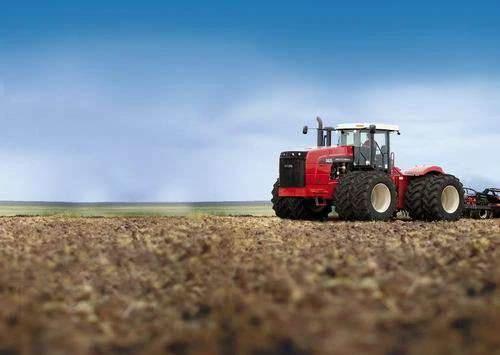

RSM 3485 Series 3000

The RSM 3485 leads Rostselmash's Series 3000 lineup, combining Cummins QSX15 power with a flexible articulated frame that maintains constant four-wheel ground contact across any terrain profile.

Field Performance

Series 3000 tractors demonstrate their high-productivity design in the field, achieving around 5 ha/h on ploughing operations — approximately twice the output of a 220 hp machine at a lower fuel cost per hectare.

Engineering and Design

Balanced Architecture

The fuel tank is located at the geometric centre of the machine, keeping axle load distribution optimal and consistent as fuel is consumed, which protects driveline components and maintains traction.

Operator Environment

All working-system controls are grouped on the right armrest console with colour-coded hydraulic coupler controls; standard features include cruise control, speed radar, headland management, and the Agrotronic™ telemetry interface.

Drivetrain and Serviceability

The Caterpillar 16×4 electrohydraulic automatic transmission and all key service points are designed for single-operator daily maintenance in approximately 30 minutes, reducing downtime between shifts.

Features

⚙️

Cummins QSX15 Engine

The Cummins QSX15 Common Rail diesel engine produces 492 hp nominal / 527 hp peak and up to 2,219 N·m peak torque at 1,400 rpm, ensuring confident performance under the heaviest draft loads.

🔄

Caterpillar 16×4 Transmission

An electrohydraulic automatic gearbox with 16 forward and 4 reverse speeds features a multi-disc wet clutch cooled in an oil bath; both the transmission and hydraulic system are fully programmable for specific implements and soil types.

💧

High-Flow Hydraulic System

The standard hydraulic circuit delivers 208 l/min through four pairs of 1/2" couplings plus a 3/4" coupling with a no-pressure return line; an optional 303 l/min system with six coupler pairs supports pneumatic seeders and wide-working-width implements.

🔗

Flexible Implement Attachment

The standard drawbar carries 4,082 kg vertical load (reinforced option: 5,443 kg); an optional Cat IV three-point hitch offers 9,525 kg at the hitch axis and 5,900 kg at 610 mm offset, with a 1,000 rpm PTO.

📡

Agrotronic™ Telemetry

Agrotronic™ remote monitoring is standard equipment, transmitting real-time location, speed, fuel level, engine load, oil pressure, and coolant temperature to fleet management platforms without additional hardware.

🚜

Articulated Chassis with Dual Tyres

The flexible articulated frame keeps all four wheels in continuous contact with the ground on any relief, delivering a tight turning radius and consistent traction; both axles are fitted with dual 710/70R42 tyres as standard.

Buyer Benefits

492 hp / 362 kW nominal engine output delivers around 5 ha/h on ploughing — roughly double the output of a 220 hp machine — cutting total field time and fuel cost per hectare
Centrally mounted fuel tank keeps front-to-rear weight distribution constant throughout the working day, protecting the driveline and preserving field traction as fuel is consumed
Full daily service by one operator in about 30 minutes: all maintenance points and lubrication nodes are deliberately placed for fast, easy solo access
Agrotronic™ telemetry included in base spec enables remote fleet monitoring without extra investment, helping fleet managers track location, downtime, and machine health in real time
Programmable Caterpillar АКПП and hydraulic system can be pre-configured for each implement type and soil condition, reducing operator workload during long continuous shifts
Standard dual 710/70R42 tyres on both axles spread ground pressure evenly, reducing soil compaction on heavy arable land
Ten-lamp working light system (6 front / 4 rear) supports uninterrupted round-the-clock operations during time-critical sowing or post-harvest tillage campaigns

Applications

Deep and conventional ploughing on large arable farms at up to 5 ha/h productivity High-speed stubble cultivation and disc tillage with wide-working-width implements Precision seeding with high-flow pneumatic seed drills using the optional 303 l/min hydraulic circuit Subsoil loosening and deep compaction breaking on heavy clay soils Bulk trailer transport on farm roads between fields and on-farm storage facilities Land reclamation and site preparation work using rear drawbar attachments Round-the-clock field operations during time-critical planting or post-harvest windows Integration with RTK auto-steering and ISOBUS precision farming systems

Source: official manufacturer website
