Available for Import

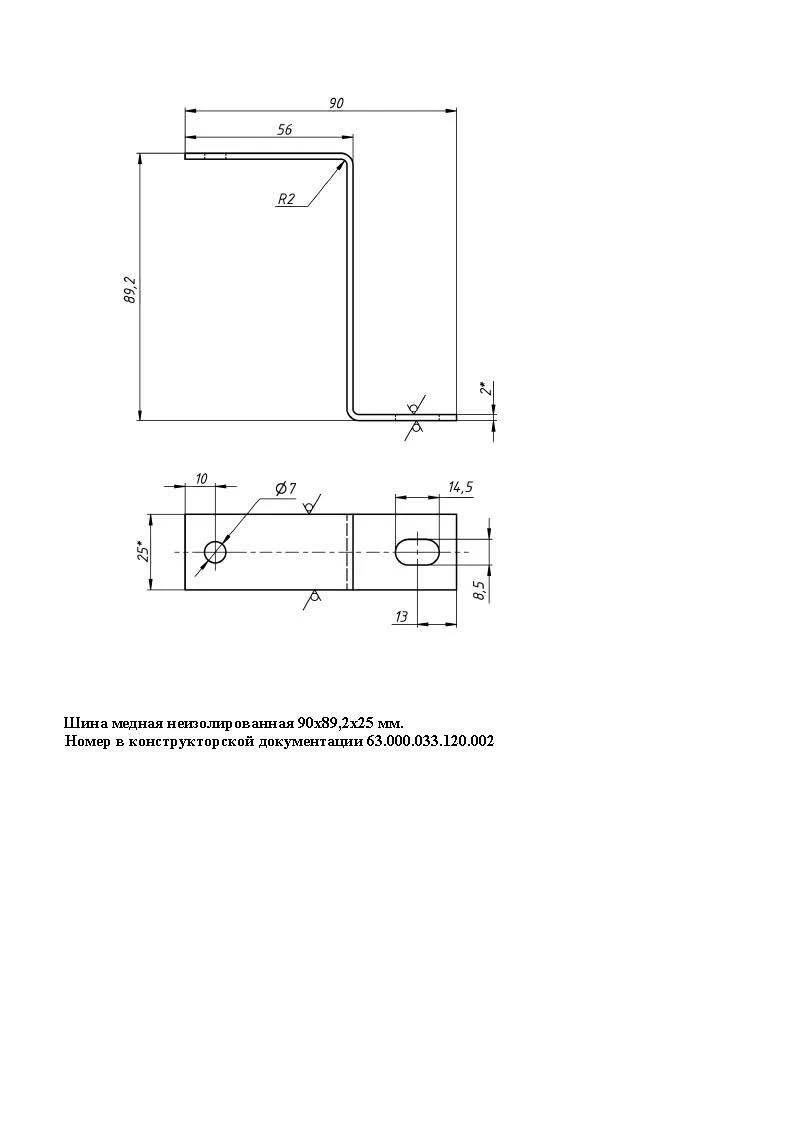

Uninsulated Copper Busbar 90x89.2x25 mm for Electric Drive Systems

Electrical Gear Parts

Manufacturer: ASK OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The tyre is intended for subsequent installation in the electrical equipment housings of the traction electric drive of the modular type for trams of the third generation 63.000.216 for the purpose of electrical connection of individual elements of the electrical equipment

Specifications

Assignment

Electrical connection of the apparatus

Material

Copper

Size

90x89.2x25

Mark

Copper tire

Flammability class according to GOST 28157 (UL 94)

non-flammable

Connection size

absent

Housing type

absent

Housing material

absent

Fixing element

absent

Thread

absent

Type of cover

absent

Cover material

absent

Purpose of the frame

absent

Type of product

Current-carrying conductor

Number of installation locations

Connection dimension for mounting in enclosure

absent

Operating conditions

According to GOST 51321.1-2007

Operating temperature range

40...-40 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
