Control Cables AKPPGEng(A)-HF for Industrial Use

Control Cables AKPPGEng(A)-HF for Industrial Use — KAVKAZKABEL LLC

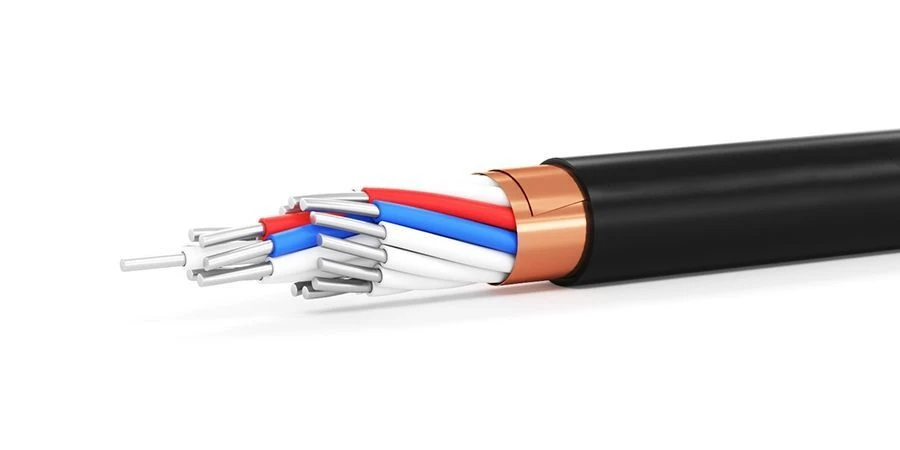

Name: Control Cables AKPPGEng(A)-HF for Industrial Use
Brand: KAVKAZKABEL
SKU: 317208
Availability: InStock

Brand: KAVKAZKABEL

$0.90 - $3.60 USD

MOQ: 2000 meters

Key Features

Core material: aluminum

Insulation material: polymer composition without halogens

Sheath material: polymer composition without halogens

Supplier Information

KAVKAZKABEL LLC

🇷🇺 📦 🏭 🛡️

View All Products (290)

Quick Inquiry

Description

The АКППГЭнг(А)-HF is a multi-core halogen-free control cable manufactured by KAVKAZKABEL LLC, a cable plant operating since 1976 in Prokhladny, Kabardino-Balkar Republic, Russia. The factory produces more than 800 cable designs in over 22,000 size variants and supplies major Russian energy, industrial, and infrastructure enterprises.

This cable is designed for stationary connection to electrical instruments, apparatus, and terminal blocks in switchgear assemblies, rated for AC voltages up to 660 V at frequencies up to 100 Hz or DC up to 1000 V. It features aluminum conductors, an overall metallic shield (Э), and both insulation and outer sheath made from halogen-free polymer compositions — the нг(А) classification confirms group-A non-flame-propagating performance when installed in cable bundles.

Available with 2 to 61 cores in cross-sections from 0.75 mm² to 10 mm², the cable suits climate versions УХЛ and Т (placement categories 1–5 per GOST 15150-69) and is manufactured in accordance with TU 27.32.13-002-77342679-2022.

Features

🔬

Halogen-Free Construction

Both insulation and outer sheath are made from halogen-free polymer compositions, eliminating toxic halogen gas and reducing corrosive smoke in fire scenarios.

🛡️

Overall Electromagnetic Shield

The Э designation indicates an overall metallic screen over all conductors, providing suppression of external electromagnetic interference for reliable control signal transmission.

⚡

Dual Voltage Rating

Rated for AC up to 660 V at up to 100 Hz, or DC up to 1000 V, covering the full range of standard industrial control and instrumentation circuit voltages.

🔥

Non-Flame-Propagating нг(А)

Meets category А of Russian fire standards for grouped cable installation, limiting fire spread in densely packed cable trays and cable ducts.

🔩

Aluminum Conductors

Aluminum conductors deliver a cost-effective and lightweight alternative to copper for fixed control wiring, practical for long runs in large industrial facilities.

📐

Wide Core Selection

Available with 2 to 61 cores in cross-sections from 0.75 mm² to 10 mm², accommodating anything from compact sensor loops to large multi-circuit switchgear panels.

Buyer Benefits

Reduced fire toxicity: halogen-free materials emit minimal toxic fumes, protecting personnel and sensitive equipment in enclosed or poorly ventilated spaces
EMI immunity: the integral screen blocks interference from adjacent power cables and machinery, ensuring stable control signals in electrically noisy industrial environments
Lower material cost compared to copper equivalents for the same rated performance in fixed, stationary installations
Broad core count and cross-section range — 2 to 61 cores, 0.75 to 10 mm² — covers virtually all standard control-circuit configurations from a single cable series
Compliance with TU 27.32.13-002-77342679-2022 and GOST 15150-69, backed by a manufacturer with decades of certified cable production
Climate-resistant versions УХЛ and Т enable deployment across the full range of Russian continental and tropical operating conditions
Direct supply from the manufacturer: KAVKAZKABEL has over 500 in-house employees and its own production capacity of 800+ cable types

Applications

Switchgear panels and relay protection circuits in power substations Industrial automation and distributed control systems (DCS/SCADA) Electrical instrument and sensor wiring in power generation facilities Oil and gas processing plant automation and instrumentation loops Mining and metallurgical facility control circuits Building management systems requiring halogen-free cabling in occupied areas Machine-building and manufacturing plant multi-axis control wiring Transport infrastructure monitoring, signaling, and control installations

Source: official manufacturer website
