Vertical Washer-Dryer Combo VSSK-11P — VMZ

Name: Vertical Washer-Dryer Combo VSSK-11P
Brand: VMZ
SKU: 589903
Availability: InStock

Brand: VMZ

$9,000 - $30,000 USD

MOQ: 1 pieces

Key Features

Loading laundry: 11 kg

Type of heating: steam

Power supply voltage: 380 V

mass: 410 kg

Supplier Information

VMZ

🇷🇺 📦 🏭 🛡️

View All Products (90)

Quick Inquiry

Description

The VSSK-11P is a professional vertical washer-dryer combination unit manufactured by Vyazma Machine Building Plant (VMZ), one of Russia's largest and most established producers of commercial laundry equipment. The unit integrates an 11 kg front-loading washer-extractor and an 11 kg tumble dryer in a compact stacked configuration that occupies just 0.6 m² of floor space.

The washing section features steam heating, 50 user-programmable wash cycles, and a high-speed extraction drum reaching 1,020 rpm with a G-factor of 350, leaving linen at no more than 50% residual moisture before handoff to the dryer. The drying section runs 30 programmable programs with axial drum ventilation and reduces residual moisture to under 10%.

Both sections operate from a touch-screen controller, connect to hot and cold water, and accept up to eight dosing pumps for liquid detergents without a separate control unit. Built to industrial standards for over 10 years of service life at 16 hours per day, the VSSK-11P is certified (validity through December 2027) and can be supplied as a combined unit or separated into independent washing and drying machines to suit space constraints.

Details & Equipment

Product Views

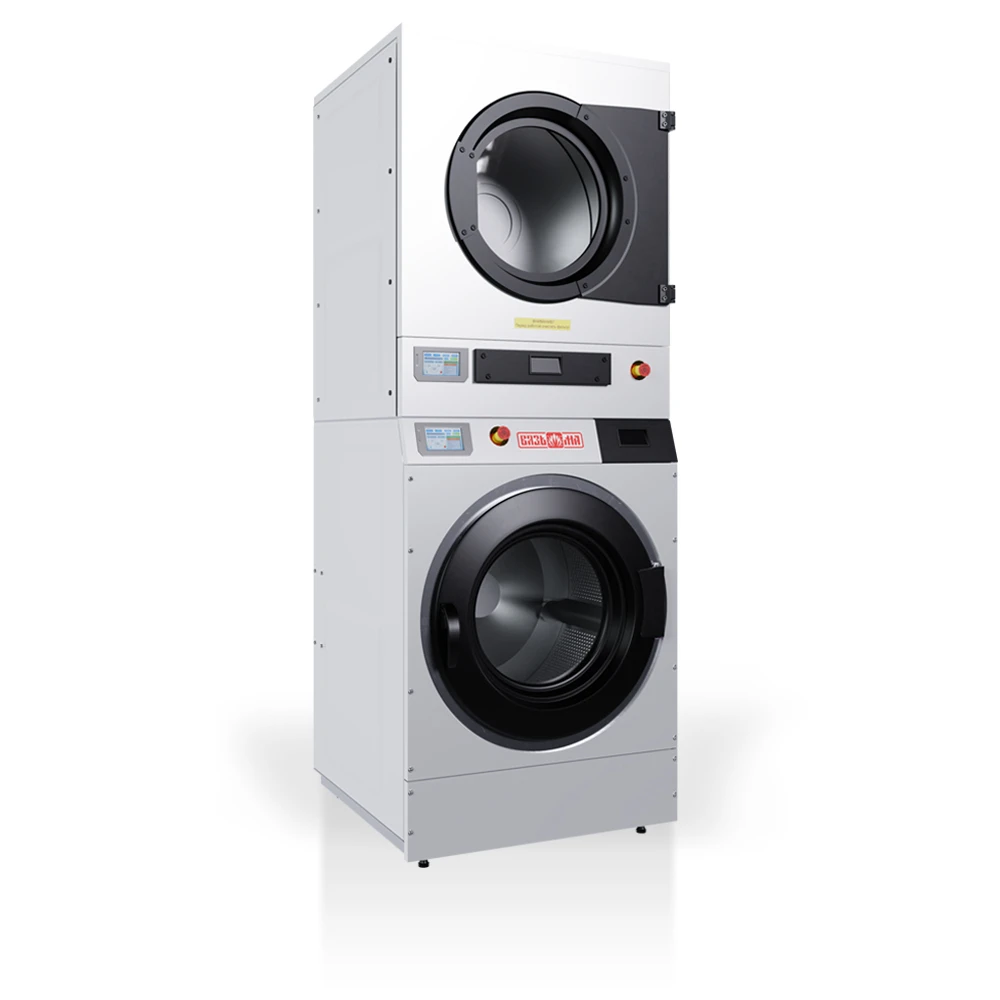

Front View

The VSSK-11P in standard stacked configuration, showing the washer-extractor section below and the dryer section above with its large-diameter ergonomic loading hatches.

Left Side View

Side profile illustrating the compact 850 mm depth and overall 2,050 mm height of the combined unit when installed on fully-threaded adjustable levelling feet.

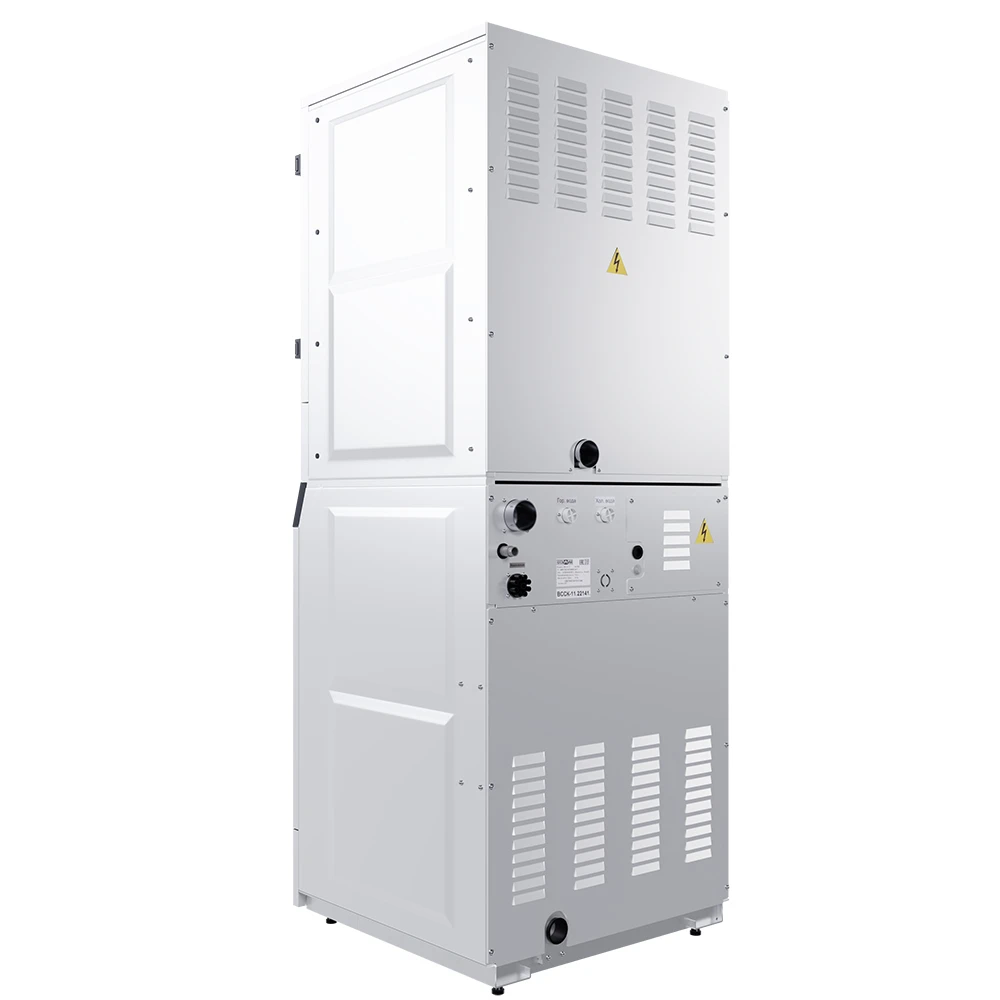

Rear Three-Quarter View

Rear perspective showing the steam and water connection points, the 51 mm drain outlet, and the 100 mm dryer exhaust duct port.

Internal Components

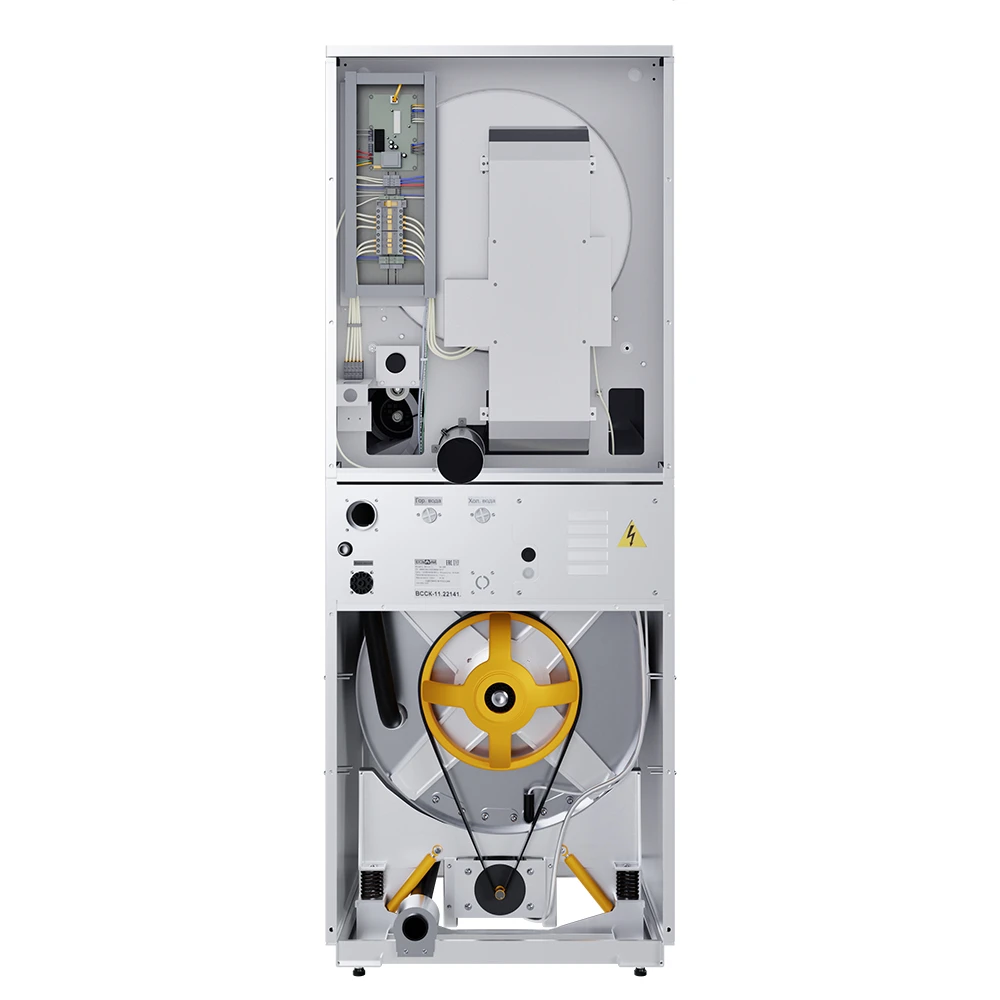

Rear Exploded View

Labelled rear-view diagram identifying the main internal assemblies of the drying section including the 200 dm³ drum, 0.25 kW fan motor, and 6.15 kW heating elements.

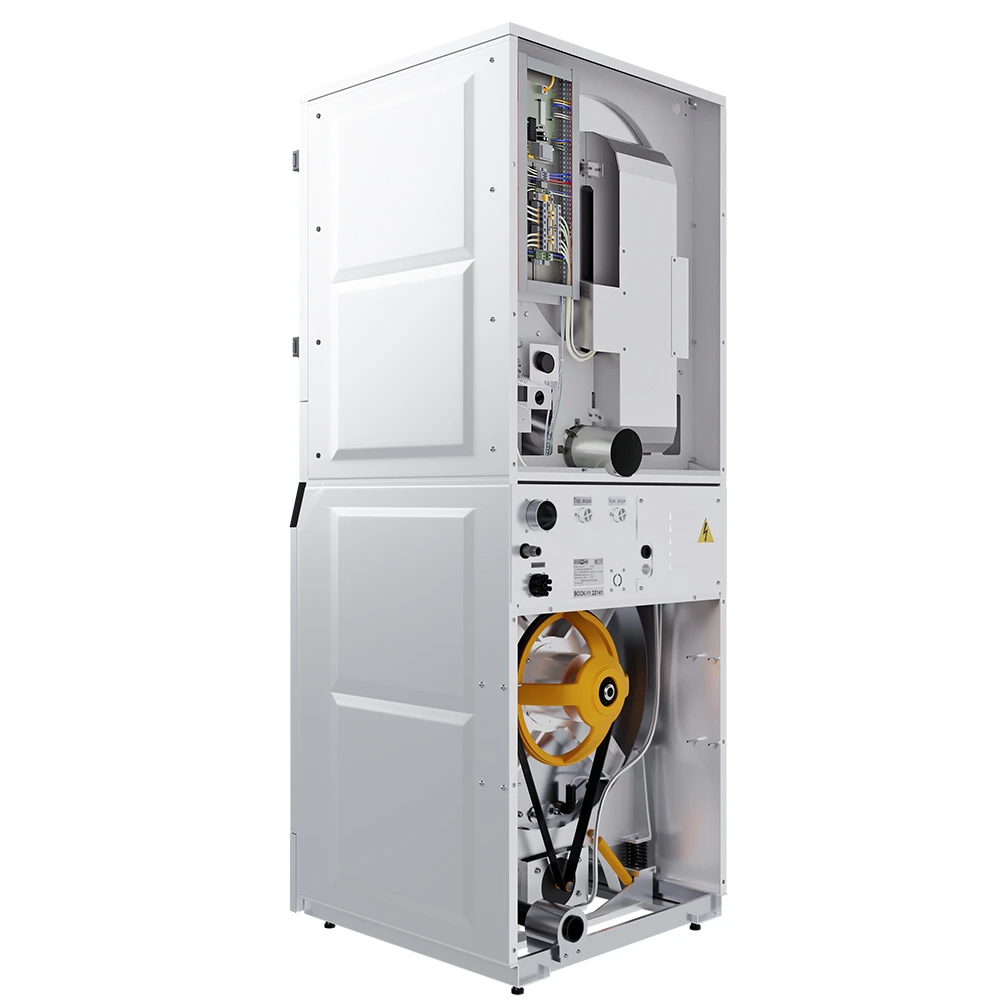

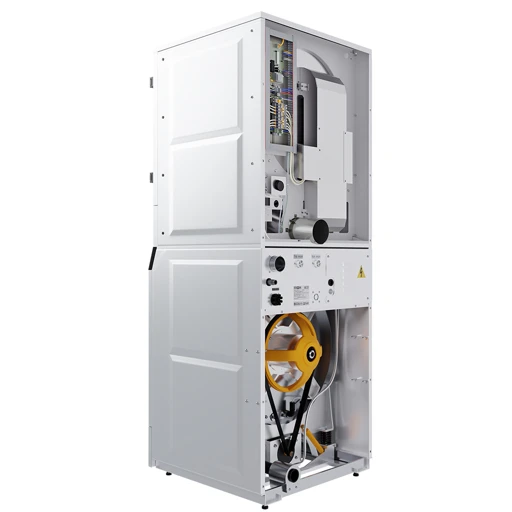

Three-Quarter Exploded View

Three-quarter cross-section highlighting the axial-flow air path through the drying drum and the layout of the 1.1 kW drive motor and extraction mechanism of the washing section.

Features

🖥️

Touch-Screen Computer Control

Each section has its own controller with a touch display: 50 user-modifiable washing programs and 30 drying programs provide precise cycle management without specialist programming.

📐

Ultra-Compact Footprint

The stacked washer-dryer occupies only 0.6 m² of floor space (850 × 750 mm base) and stands 2,050 mm tall, making it one of the most space-efficient professional laundry solutions available.

⚙️

High-Performance Extraction

The washing drum reaches 1,020 rpm at a G-factor of 350, reducing residual moisture in linen to ≤50% after spin — significantly cutting dryer energy and time.

♨️

Steam Heating (P Variant)

The VSSK-11P washing section uses steam heating, enabling fast heat-up without electrical heating elements and reducing energy costs where a steam supply is available.

🔧

Industrial-Grade Durability

Designed for 16-hour daily operation with a declared service life exceeding 10 years; all contact surfaces and drum bearings are dimensioned for continuous commercial use.

🪣

8-Port Liquid Detergent Dosing

The washer section offers 8 dosing-pump connection ports; pumps are driven directly by the machine controller with no separate control module required, accommodating 2 to 8 liquid-chemical lines.

Buyer Benefits

Combined washer and dryer in a single 0.6 m² footprint — ideal for facilities where floor space is limited
Steam heating cuts cycle time and energy costs wherever a steam line is present
Separable design: washing and drying sections can be installed as independent machines if needed
50 wash and 30 dry programs allow the unit to handle a wide range of fabrics and soil levels without operator expertise

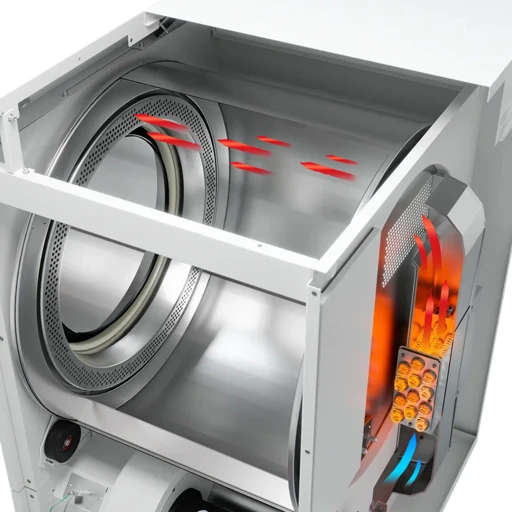

Axial drum ventilation in the dryer delivers uniform hot-air distribution, reducing drying time and fabric stress
Hot-water connection support lowers electrical energy consumption by pre-heating bath water from the building's hot-water circuit
Certified compliance (certificate valid through December 2027) confirms adherence to Russian technical regulations for commercial laundry equipment

Applications

Hotel and guesthouse on-premises laundries processing bed linen, towels, and uniforms Clinic and hospital linen services requiring reliable daily throughput in limited space Mini-laundry businesses and coin-operated laundry points Military, correctional, and government institutional laundries Sports clubs, fitness centres, and wellness facilities washing towels and sports kit Restaurant and catering operations processing staff uniforms and table linen Dormitories, boarding schools, and residential care homes Industrial workwear services where steam heating infrastructure is already in place

Source: official manufacturer website
