Name: Universal Engine Heater UMP-350, UMP-400 for Ural 4320 Chassis
Brand: Unisteam
SKU: 149783
Availability: InStock

Brand: Unisteam

$42,000 - $150,000 USD

MOQ: 1 pieces

Key Features

Number of axles: 3 pcs

Number of brake suspensions: 6 pcs

Number of drive hangers: 6 pcs

load capacity: 300 t

Supplier Information

UNISTIM STEAM EQUIPMENT PLANT LLC

🇷🇺 📦 🏭 🛡️

View All Products (39)

Quick Inquiry

Description

The UMP-400 Universal Motor Pre-heater is a self-contained mobile heating complex built on the Ural 4320-1912-60 all-terrain 6×6 truck chassis. Manufactured by Unisteam Steam Equipment Plant LLC in Miass, Chelyabinsk Region — a specialist in oilfield mobile heating technology — the unit delivers between 175 kW and 400 kW (0.344 Gcal/h) of thermal output, maintained automatically at a supply-air temperature of 110°C.

Two Italian BALTUR burners (220 V each) provide staged combustion on diesel fuel with consumption not exceeding 30 litres per hour, feeding the ВЦ14-46 centrifugal fan that moves 18,000 m³/h at 1,200 RPM and 1,200–1,600 Pa of duct pressure. Heat is distributed through twelve flexible hoses of 220 mm bore and 6,000 mm length via five independent outlets, enabling simultaneous pre-heating of multiple large diesel engines or pieces of equipment from a single unit.

The 350-litre on-board fuel tank provides more than ten hours of autonomous operation. The 40 mm-wall insulated metal-frame van body houses the heating assembly, a 1,500 W inverter, spark arrestor, on-board grounding reel, and fire extinguisher.

The Ural 4320-1912-60 base chassis features a 230 hp Euro-5 V6 diesel engine, a five-speed YaMZ-2361 mechanical gearbox, 6×6 permanent all-wheel drive, and 425/85 R21 all-terrain tyres — delivering full cross-country mobility to remote oilfield sites regardless of season. Climate rating is У per GOST 15150, confirming suitability for Russian continental conditions.

Details & Equipment

Complete Unit

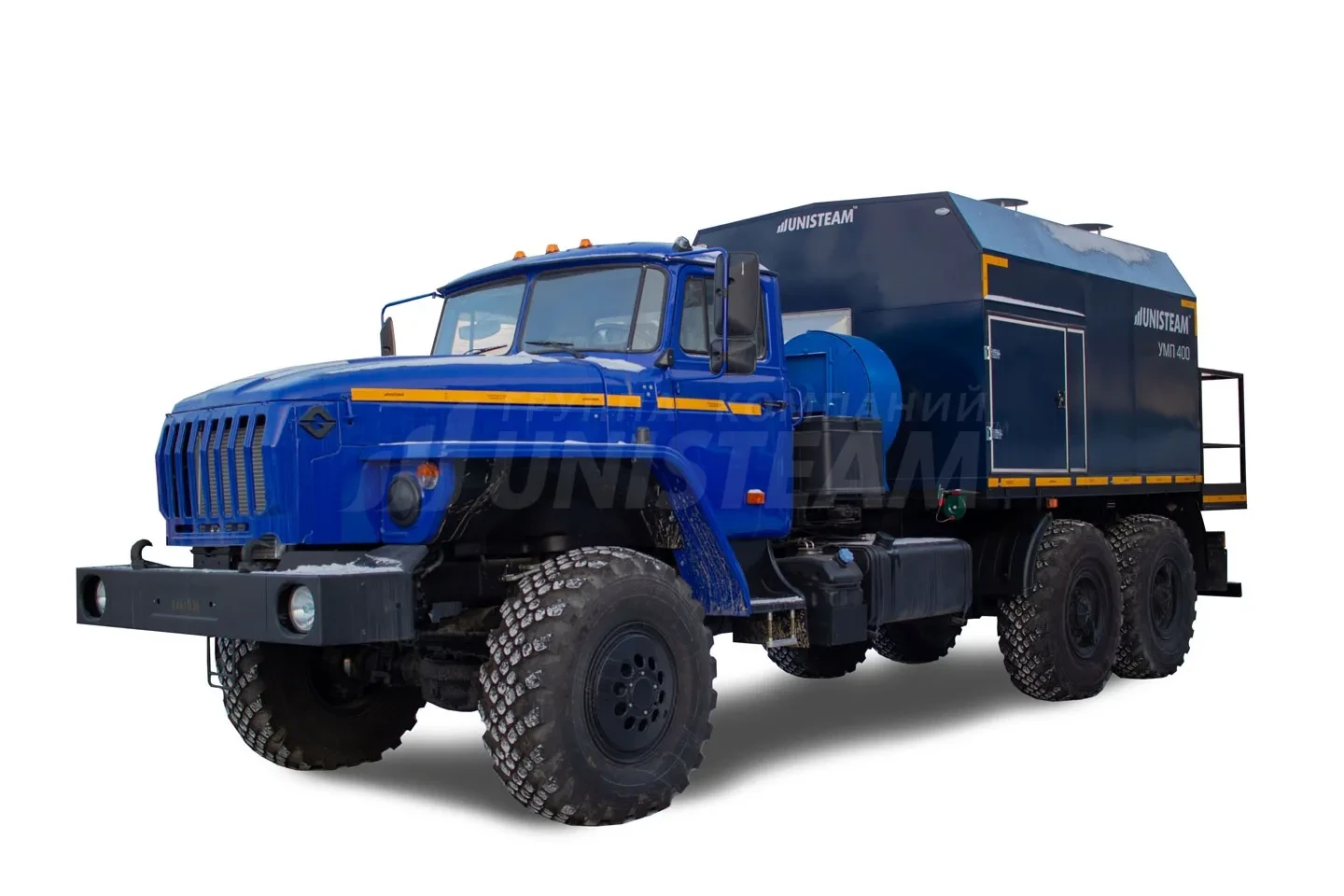

Three-quarter front view

The UMP-400 on Ural 4320-1912-60 in standard Unisteam livery. The insulated 40 mm metal-frame van body housing the burners, fan, and hose storage sits behind the rugged Ural bonneted cab.

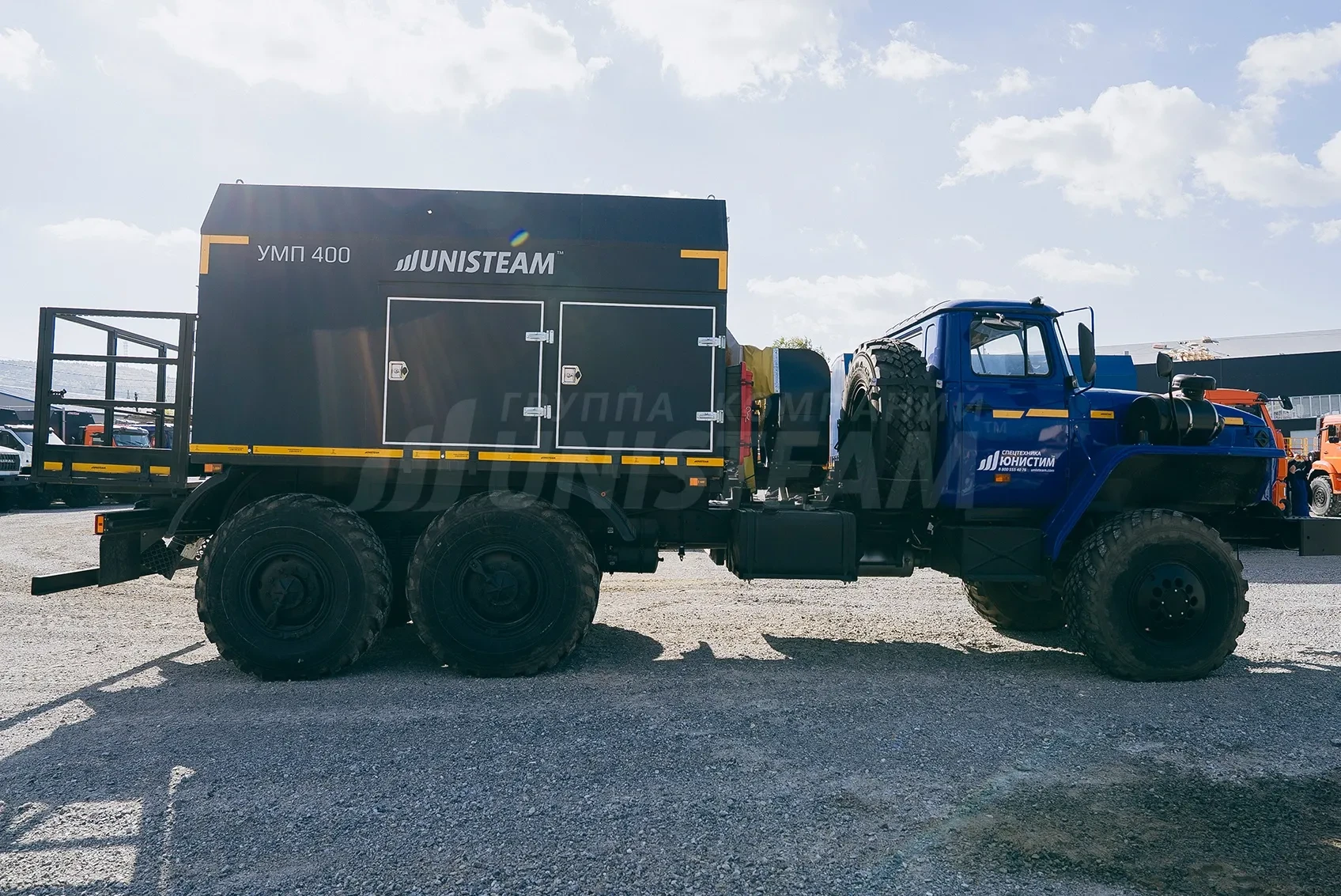

Side profile

Full side profile of the assembled unit ready for field deployment. The compact body layout keeps the vehicle's centre of gravity low for stability on uneven oilfield terrain.

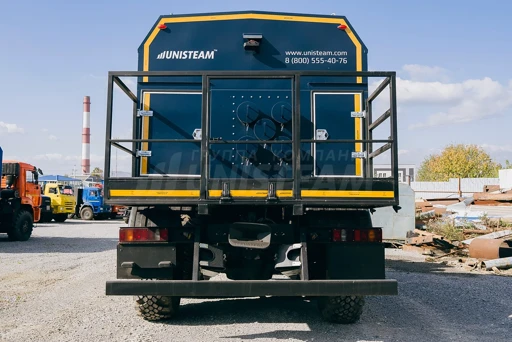

Equipment body — rear aspect

Rear view showing the van body access doors and hose storage provisions, with the Ural 4320's rear bogie and large-section 425/85 R21 tyres visible beneath.

Chassis & Field Readiness

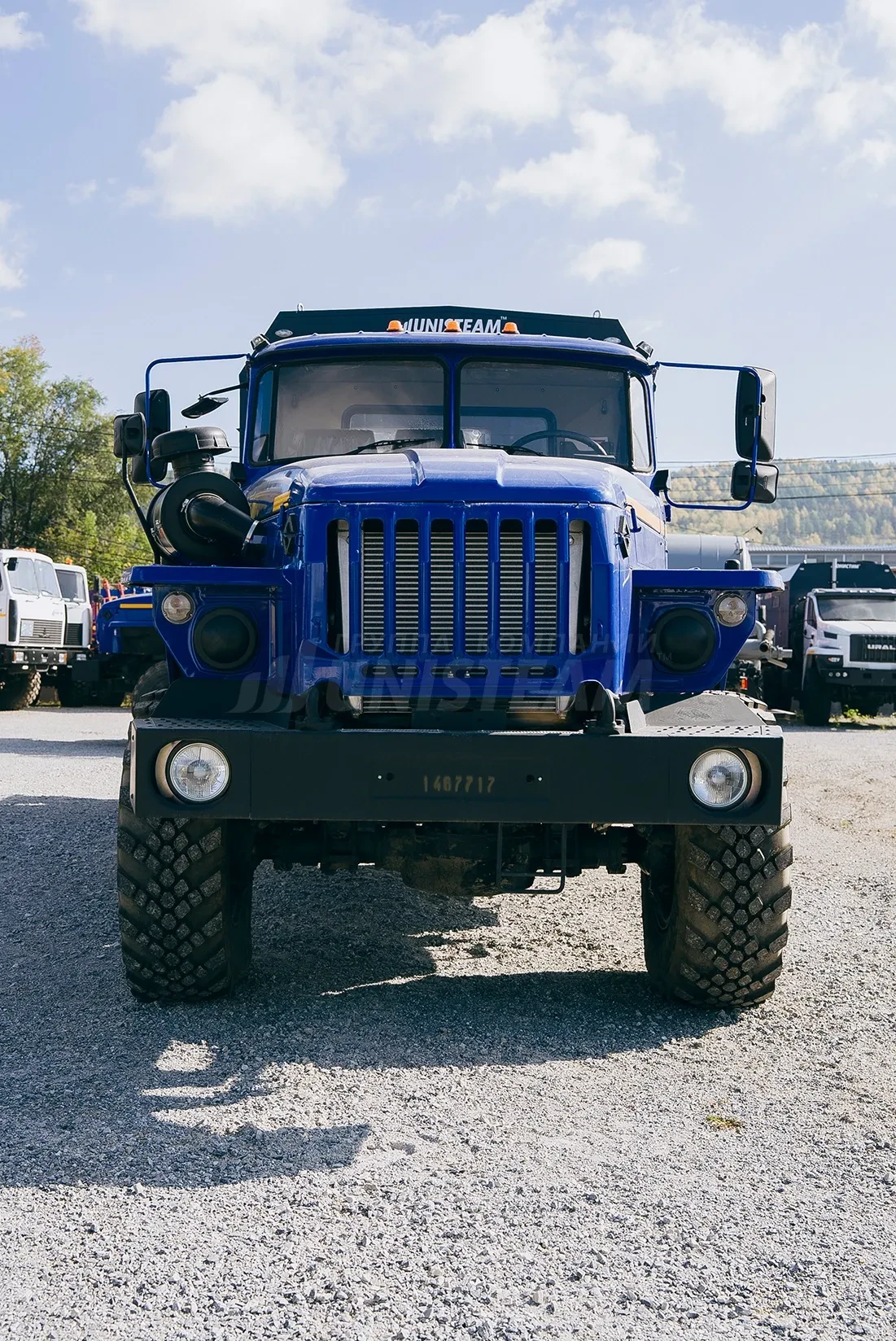

Ural 4320 cab — front view

Head-on view of the Ural 4320 bonneted cab. The 230 hp Euro-5 V6 diesel and permanent 6×6 drivetrain give the unit class-leading mobility across unprepared oilfield roads.

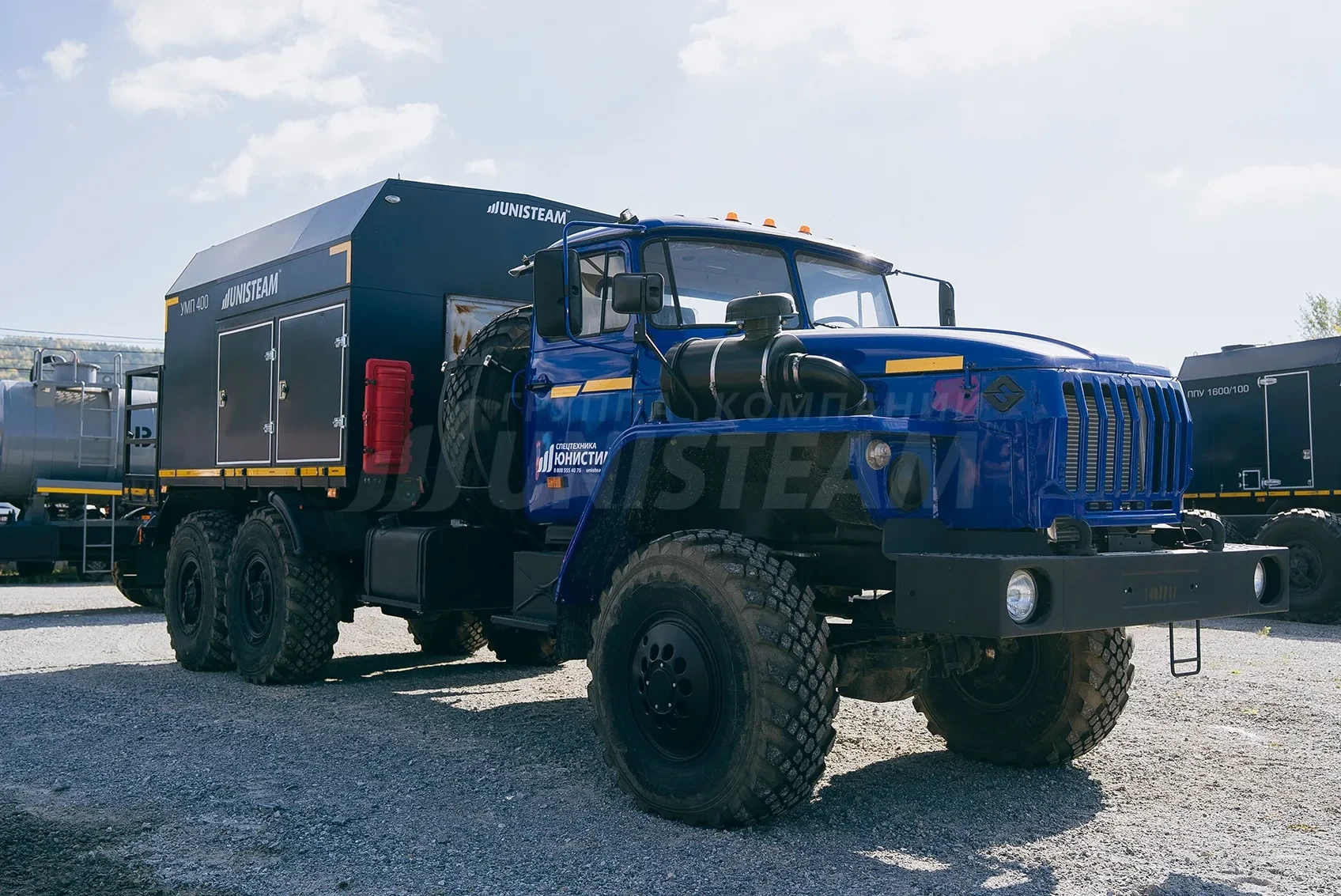

Front-right angle

This angle highlights the side-mounted equipment body and the cab-to-body gap. The Ural's deep-lug 425/85 R21 tyres handle soft ground, snow, and ice without chains.

Features

🔥

400 kW Thermal Output

Two automated BALTUR burners (220 V each) produce up to 400 kW (0.344 Gcal/h) and are adjustable down to 175 kW (0.15 Gcal/h). Supply-air temperature is controlled automatically at up to 110°C.

💨

High-Flow Centrifugal Fan

The ВЦ14-46 fan delivers 18,000 m³/h at 1,200 RPM with a working pressure of 1,200–1,600 Pa, ensuring hot air reaches target equipment through long flexible hoses with minimal heat loss.

🔗

12-Hose Distribution System

Five outlets supply twelve 220 mm-bore flexible hoses each 6,000 mm long, enabling simultaneous pre-heating of multiple vehicles or large-displacement engines from a single deployment.

⛽

10-Hour Fuel Autonomy

The 350-litre on-board diesel tank and a consumption ceiling of 30 L/h guarantee at least ten hours of uninterrupted operation, reducing refuelling stops in remote oilfield locations.

🚛

Ural 4320 6×6 All-Terrain Chassis

A 230 hp Euro-5 V6 diesel, five-speed YaMZ-2361 mechanical gearbox, and 425/85 R21 tyres on a permanent 6×6 drivetrain give the unit reliable mobility on unprepared oilfield access roads and frozen terrain.

🛡️

Integrated Safety System

Standard-fit spark arrestor, fire extinguisher, and on-board grounding reel reduce fire and static-discharge risk; automatic temperature control prevents overheating of connected equipment.

Buyer Benefits

Five simultaneous hot-air outlets and twelve hoses allow parallel pre-heating of an entire vehicle fleet from one unit, cutting crew requirements and time-to-ready
Automatic maintenance of 110°C supply-air temperature eliminates constant manual adjustment during multi-hour heating cycles
350-litre fuel tank provides 10+ hours of autonomous operation per fill, minimising downtime for refuelling in remote locations
6×6 Ural 4320 all-wheel-drive platform handles mud, snow, and frozen terrain on oilfield and construction-site access roads
Euro-5 engine certification satisfies environmental licensing requirements common on modern Russian and export oilfield concessions
Wide factory upgrade menu — GLONASS navigation, extra lighting, winches, additional fuel capacity, cab pre-heaters — supports project-specific customisation direct from Unisteam
Climate code У per GOST 15150 confirms suitability for the full range of Russian continental operating temperatures without special preparation

Applications

Pre-heating wellhead equipment, Christmas trees, and downhole assemblies before winter well operations Cold-start warm-up of drilling rig prime movers and diesel power plants at remote oil and gas sites Simultaneous pre-heating of oilfield service fleets — tankers, pump trucks, and well-service vehicles — before shift start in arctic conditions Pre-heating of heavy earthmoving and mining equipment during winter maintenance periods Heating separator vessels, manifolds, and process pipework to restore flow during cold-season shutdowns Winter engine warm-up for military and emergency-service vehicle convoys in extreme cold regions Field support for pipeline and road-construction machinery operating in Siberia, the Urals, and the Russian Far East Creating heated work zones around outdoor industrial equipment during low-temperature maintenance operations

Source: official manufacturer website
