Two-Port Bidirectional Vector Network Analyzer S50244

Two-Port Bidirectional Vector Network Analyzer S50244 — PLANAR LLC

Name: Two-Port Bidirectional Vector Network Analyzer S50244
Brand: PLANAR
SKU: 90838
Availability: InStock

Brand: PLANAR

$9,000 - $30,000 USD

MOQ: 1 pieces

Key Features

Operating frequency range: 10...44000

Measurement range of the reflection modulus: 0...1

Measuring range of the modulus of transfer coefficient: -113...10

Number in the State Register of Measurement Devices (in the Federal Information Fund for Ensuring Uniformity of Measurements): 88573-23

Supplier Information

PLANAR LLC

🇷🇺 📦 🏭 🛡️

View All Products (55)

Quick Inquiry

Description

The S50244 Two-Port Bidirectional Vector Network Analyzer, manufactured by PLANAR LLC, is designed for precision measurement in industrial and laboratory settings. Operating within a frequency range of 10 MHz to 44 GHz, it is recognized as the highest frequency vector network analyzer in the Compact series.

With a dynamic range of 133 dB and a measurement speed of just 22 microseconds per frequency, it delivers exceptional performance. The device is certified under the state registry of measurement instruments, ensuring reliability and compliance with industry standards.

It features a user-friendly software interface, S2VNA, compatible with Windows and Linux operating systems, enhancing usability and accessibility.

Details & Equipment

Design and Components

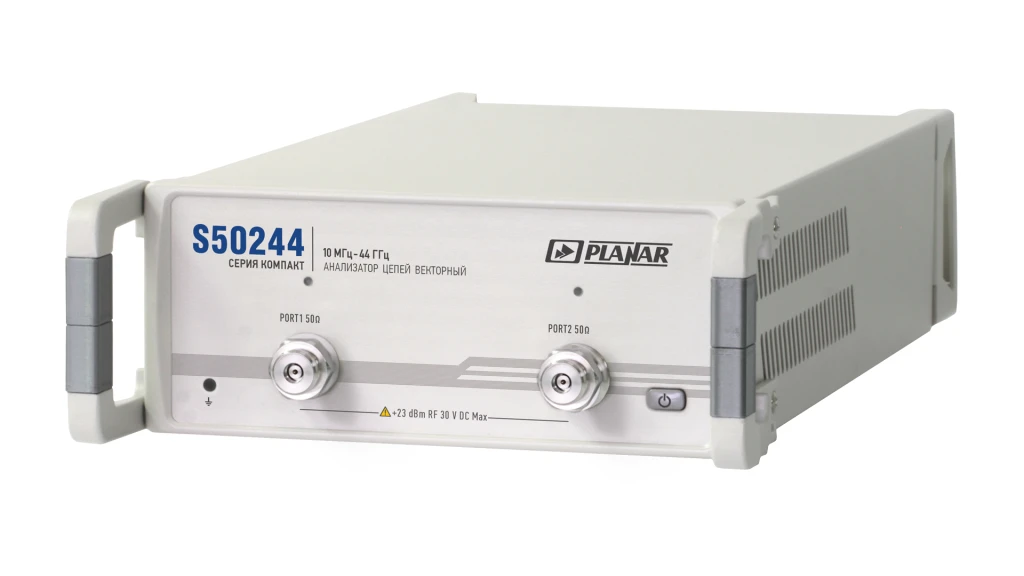

S50244 Analyzer Front View

Front view showcasing the design of the S50244 Vector Network Analyzer.

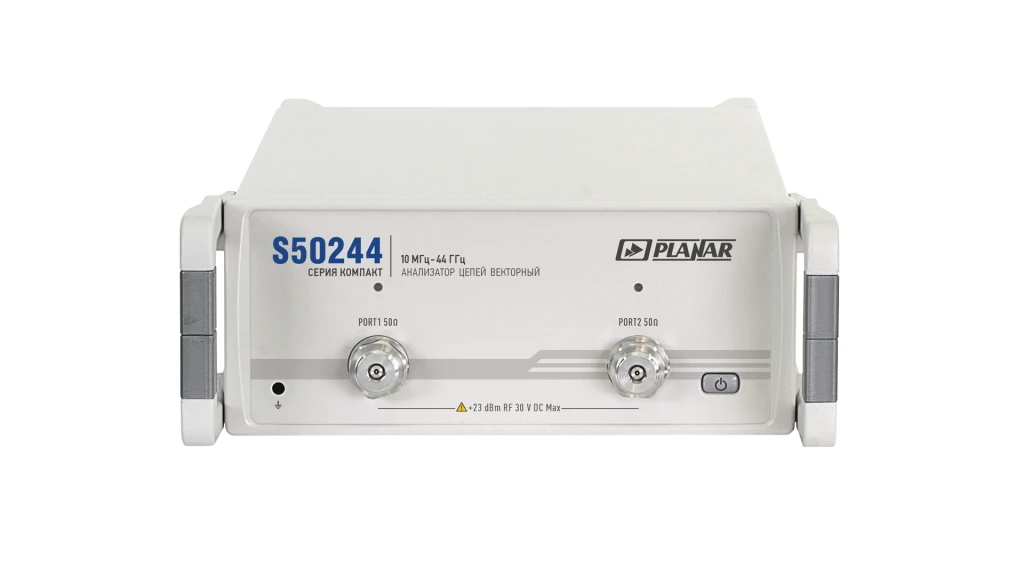

S50244 Analyzer Side View

Side view of the S50244, highlighting its compact size.

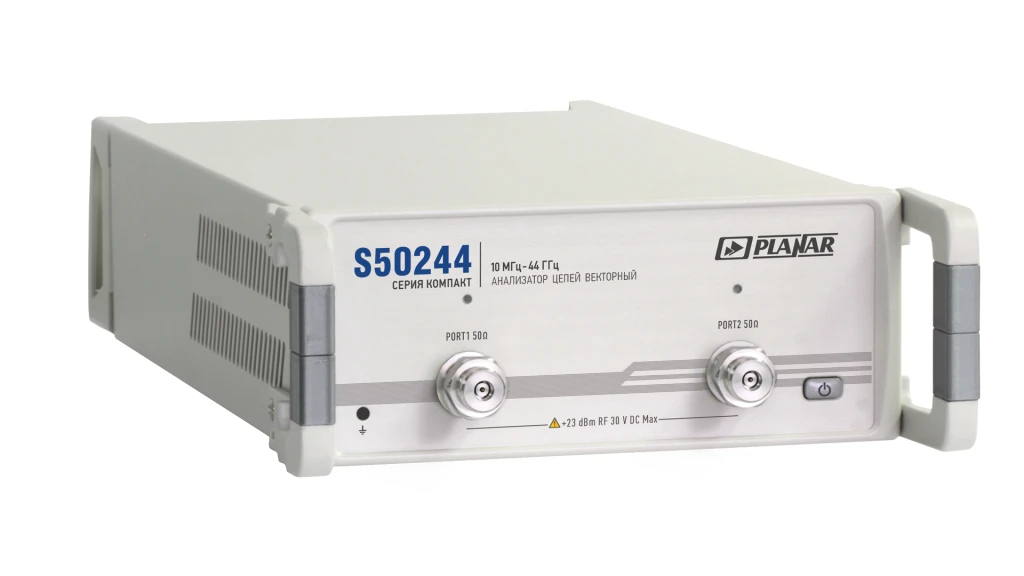

S50244 Analyzer Setup

Setup of the S50244 in a testing environment.

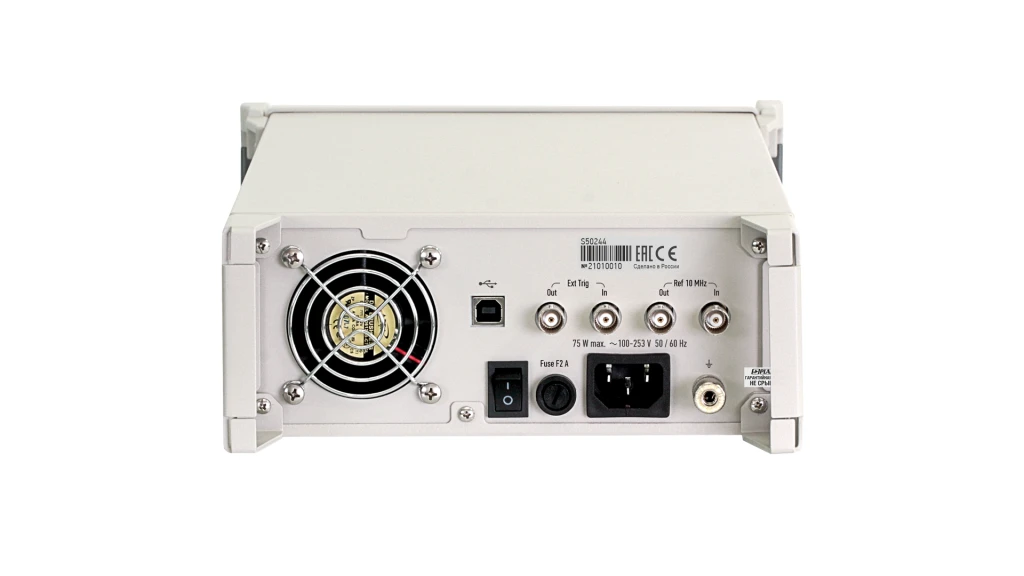

S50244 Analyzer with Accessories

S50244 displayed with essential accessories for operation.

Features

📏

Frequency Range

Covers a wide frequency range from 10 MHz to 44 GHz.

📊

Measurement Parameters

Measures S11, S12, S21, and S22 parameters, providing comprehensive analysis.

⚙️

Dynamic Range

Offers a dynamic range of 133 dB for accurate measurements.

💻

Software Compatibility

Operates with S2VNA software, supporting both Windows and Linux.

🔌

USB Interface

Connects easily to external computers via USB for seamless operation.

Buyer Benefits

Compact design allows for easy integration into various setups.
High measurement speed enhances productivity in testing environments.
User-friendly software simplifies operation and data analysis.
Versatile applications in both industrial and laboratory settings.
Reliable and certified performance ensures compliance with industry standards.

Applications

Used for testing and tuning devices in industrial production. Ideal for laboratory research and development. Integrates into automated measurement systems. Supports calibration processes with automatic calibration modules. Facilitates RF component testing and characterization. Applicable in telecommunications and electronics industries.

Source: official manufacturer website
