Name: Transparent ISBC® UHF Labels 50x50mm for Non-Metallic Identification
Brand: ISBC
SKU: 247850
Availability: InStock

Brand: ISBC

$0.15 - $0.60 USD

MOQ: 10000 pieces

Key Features

length: SBVVBG mm

width: SBVVBG mm

Reading distance: "up to 16.3 m. Reading distances vary on different surfaces."

chip: NXP UCODE

Supplier Information

SMART SYSTEMS LLC

🇷🇺 📦 🏭 🛡️

View All Products (71)

Quick Inquiry

Description

The ISBC® Labels 50×50 UHF crystal adhesive (46×46) is a passive, self-adhesive RFID label produced at the ISBC factory in Zelenograd by ООО «Смарт Системз», one of Russia's leading manufacturers of RFID identification products. Built around an NXP UCODE 8 chip paired with a 46×46 mm antenna, the label is laminated under a transparent, moisture-resistant PET film — the "crystal adhesive" variant carries no printable surface, making the label virtually invisible once applied to an object.

A protected pressure-sensitive adhesive layer on the reverse side allows permanent attachment to thin plastics, cardboard, paper, and wooden surfaces.

Operating in the 865–868 MHz UHF band and fully compliant with EPC Class 1 Gen 2 (ISO 18000-6C), the label achieves read distances up to 16.3 metres at 1 W ERP when placed on thin plastic. The NXP UCODE 8 chip offers up to 448 bits of EPC memory, 96 bits of locked TID, and up to 3 Kbits of user memory, supporting rich item-level data storage.

Rated for a 20-year service life across a –40 °C to +85 °C operating range, the label requires no battery or maintenance and is supplied in rolls of 2,000 units for high-volume deployment. It is compatible with FEIG Electronic readers and any EPC Class 1 Gen 2 hardware.

Details & Equipment

Product Overview

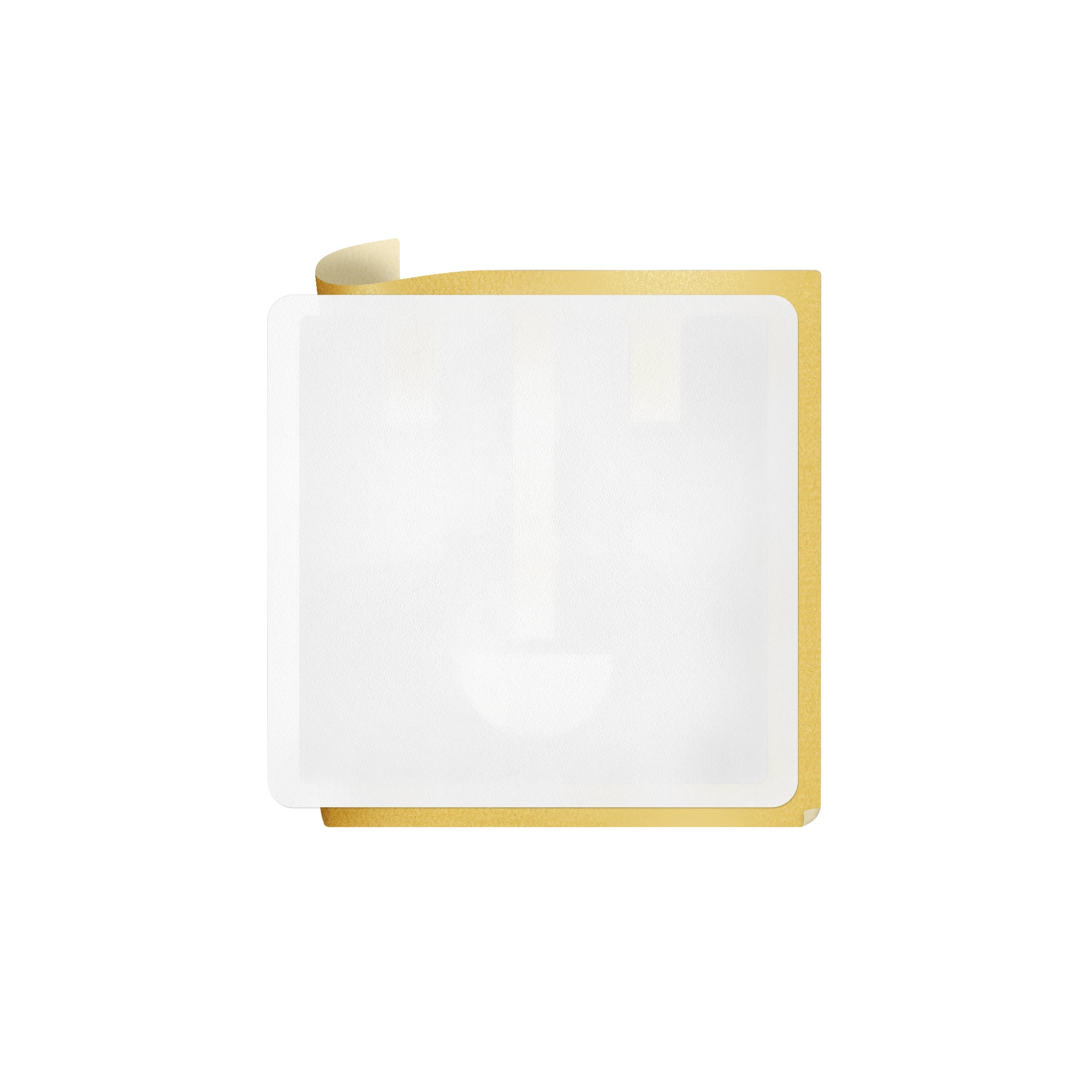

ISBC Labels 50×50 UHF (46×46)

The label measures 50×50×0.2 mm with a 46×46 mm NXP UCODE 8 antenna inlay. The crystal adhesive variant features a transparent PET top surface and a pressure-sensitive adhesive bottom layer protected by silicone-lined paper.

RFID Label Application

ISBC UHF labels are supplied in rolls of 2,000 units, ready for manual or automated application to non-metallic surfaces such as thin plastic, cardboard, paper, and wood packaging.

Features

📡

Long Read Range

Achieves up to 16.3 m read distance at 1 W ERP on thin plastic surfaces. Passive UHF operation in the 865–868 MHz band enables hands-free bulk scanning without line-of-sight.

💾

High-Capacity NXP UCODE 8 Chip

Equipped with an original NXP UCODE 8 chip providing up to 448-bit EPC memory, 96-bit locked TID, and up to 3 Kbits of user memory for dense item-level data storage.

🌡️

Wide Temperature Range

Rated for storage and operation from –40 °C to +85 °C, making it suitable for cold-chain logistics, outdoor tagging, and industrial process environments.

🔍

Transparent Crystal Surface

Clear, moisture-resistant PET top layer with no print zone. Once applied, the label is nearly invisible — ideal for branded packaging and consumer-facing products.

⚙️

Self-Adjusting Antenna Tuning

The NXP UCODE 8 chip incorporates automatic performance optimisation for different substrate materials, delivering consistent read performance across various surface types without manual calibration.

📦

Production-Ready Supply Format

Delivered in rolls of 2,000 labels from the ISBC factory in Zelenograd; complies with EPC Class 1 Gen 2 (ISO 18000-6C) and is compatible with FEIG Electronic and other standard UHF readers.

Buyer Benefits

Read distances up to 16.3 m enable bulk scanning of entire pallets or shelves in a single pass, significantly reducing inventory cycle time.
Transparent PET finish keeps the label invisible after application, preserving product appearance on branded or consumer-facing goods.
Passive design requires no battery or scheduled maintenance over a rated 20-year service life, minimising total cost of ownership.
EPC Class 1 Gen 2 (ISO 18000-6C) compliance ensures plug-and-play interoperability with FEIG Electronic, Zebra, Impinj, and other standard UHF readers.
Up to 3 Kbits of user memory allows article metadata, production-batch information, and tracking records to be stored directly on the label.
Russian-made product from an IT-accredited factory, qualifying for government and regulated procurement under Federal Laws 223-FZ and 44-FZ.
Roll supply of 2,000 units per reel is compatible with automated label dispensers and industrial print-and-apply systems.

Applications

Warehouse inventory management and stocktaking Retail item-level and shelf tracking Industrial asset identification on plastic, cardboard, and wooden components Parcel and shipment tracking in courier and postal services Anti-theft and loss-prevention systems in distribution and retail Supply-chain traceability across manufacturing and logistics Library book and media asset management RFID-based interactive quest and event installations

Source: official manufacturer website
