Thermoregulating Valve T1 for Automatic Refrigerant Control

Thermoregulating Valve T1 for Automatic Refrigerant Control — CLAROS LLC

Name: Thermoregulating Valve T1 for Automatic Refrigerant Control
Brand: CLAROS
SKU: 108996
Availability: InStock

Brand: CLAROS

$9 - $36 USD

MOQ: 200 pieces

Key Features

mass: 0.45 kg

height: 93 mm

Chamber temperature range: -50...10 °C

width: 83 mm

Supplier Information

CLAROS LLC

🇷🇺 📦 🏭 🛡️

View All Products (21)

Quick Inquiry

Description

The T1 Thermoregulating Valve is a thermostatic expansion valve manufactured by CLAROS LLC (ООО "Кларос"), a Russian specialist in refrigeration and heating automation components based in Orel. Designed for automatic refrigerant flow control in vapor-compression refrigeration circuits, the T1 regulates superheat at the evaporator outlet to keep the system operating at peak efficiency.

Its operating temperature range spans –50 to +10 °C, making it equally suited to deep-freeze cold stores and medium-temperature chiller applications. The valve accommodates refrigeration systems with cooling capacities from 700 to 7,500 W — a span that covers compact commercial refrigeration units through mid-scale industrial installations.

CLAROS LLC develops full design documentation and manages in-house serial production for every component it supplies, ensuring consistent part quality and reliable off-the-shelf availability. The T1 body measures 83 × 48 × 93 mm and weighs just 0.45 kg, keeping installation footprint minimal and making it straightforward to fit into existing refrigeration circuits or OEM assemblies.

Details & Equipment

Product Views

Front view — valve body

High-resolution scan of the T1 valve showing the main body construction, inlet/outlet ports, and thermostatic element assembly at 83 × 48 × 93 mm overall dimensions.

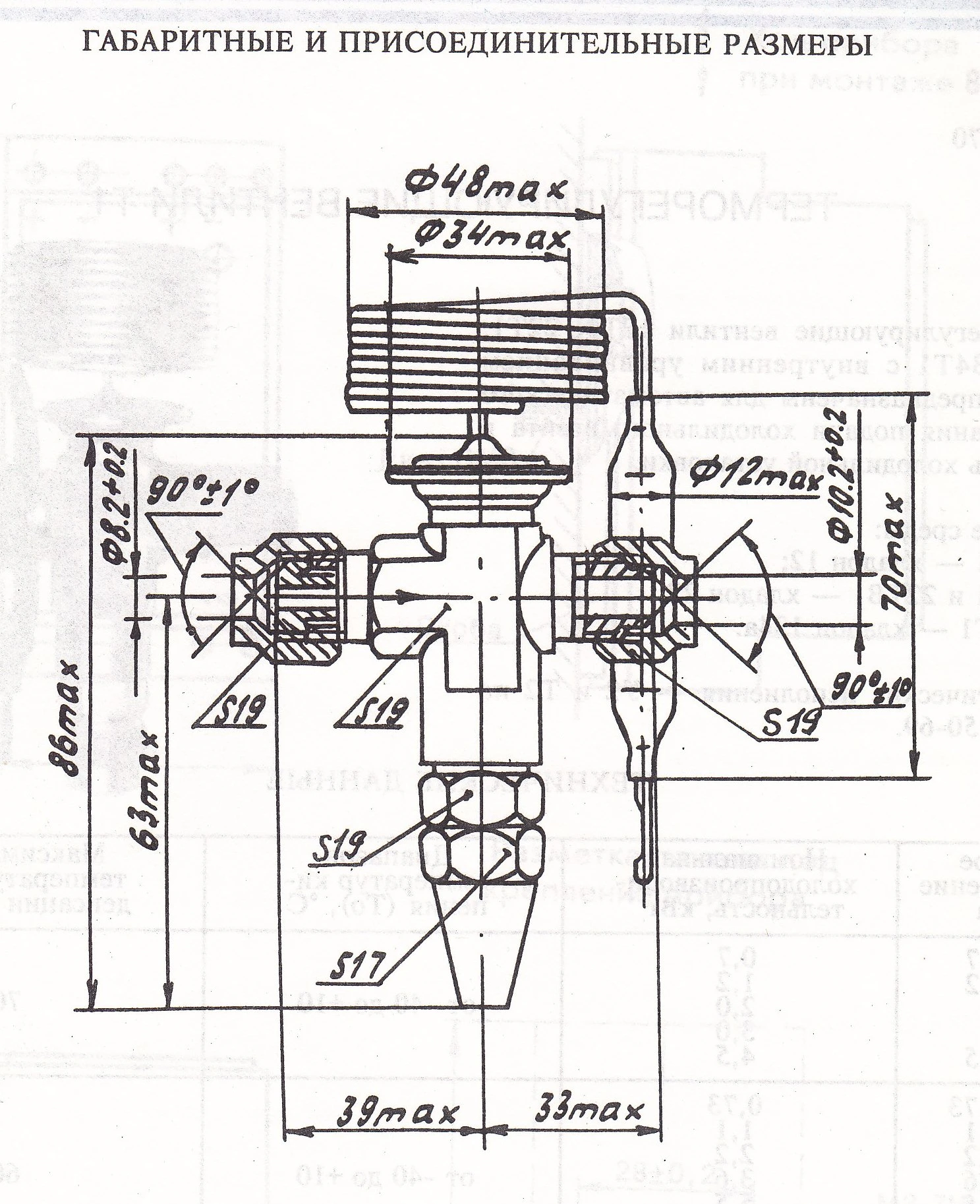

Side and connection detail

Second view of the T1 highlighting the connection geometry and compact profile of the 0.45 kg valve body as manufactured by CLAROS LLC.

Features

🌡️

Wide Temperature Range

Operates across chamber temperatures from –50 to +10 °C, supporting both deep-freeze and medium-temperature refrigeration in a single valve model.

⚡

Broad Capacity Coverage

Rated for refrigeration systems with cooling capacities of 700 to 7,500 W, spanning compact commercial units to mid-size industrial installations.

📐

Compact, Lightweight Body

The valve body measures 83 × 48 × 93 mm and weighs 0.45 kg, allowing easy integration into tight-clearance refrigeration assemblies.

🏭

In-House Serial Production

CLAROS LLC holds full design documentation and manages serial manufacturing in-house, ensuring part consistency and dependable supply.

🔄

Automatic Superheat Control

Thermostatic sensing element continuously adjusts refrigerant flow to maintain proper evaporator superheat without manual intervention.

Buyer Benefits

Temperature range –50 to +10 °C covers both freezer and chiller installations in a single product
700–7,500 W capacity range fits the majority of commercial and light-industrial refrigeration equipment
Compact 83 × 48 × 93 mm footprint simplifies retrofit and OEM integration
Low mass of 0.45 kg reduces mechanical load on refrigerant piping connections
Produced by a Russian manufacturer with fully in-house design and production capabilities
Off-the-shelf serial availability from CLAROS LLC shortens procurement lead times
Automatic operation reduces service intervals and operator workload

Applications

Commercial refrigerated display cabinets and cold storage rooms Industrial freezer systems operating down to –50 °C Medium-temperature food chiller and cold-chain equipment Refrigeration circuits in food processing and storage facilities OEM vapor-compression refrigeration assemblies requiring automatic expansion control Refrigerated transport and stationary storage units with variable load profiles Small-to-mid-scale industrial cooling systems in the 700–7,500 W capacity band

Source: official manufacturer website
