Theodolite 3T2KP - Precision Angle Measurement Tool

Theodolite 3T2KP - Precision Angle Measurement Tool — UOMZ OJSC

Name: Theodolite 3T2KP - Precision Angle Measurement Tool
SKU: 97698
Availability: InStock

$900 - $3,000 USD

MOQ: 2 pieces

Key Features

increase: 30

Mean square error of measurement: 2

Weight of theodolite with stand: 4.7 kg

Operating temperature range: SBVVBG °C

Supplier Information

UOMZ OJSC

🇷🇺 📦 🏭 🛡️

View All Products (94)

Quick Inquiry

Description

The 3T2KP is a high-precision optical theodolite manufactured by JSC PA UOMZ (Ural Optical and Mechanical Plant, Yekaterinburg, Russia) — part of the Shvabe Holding under Rostec State Corporation, one of Russia's leading defence-grade optics and instrumentation producers. The instrument is designed for measuring horizontal and vertical angles in the construction of industrial facilities, geodetic surveys, and astronomical-geodetic measurements.

It can also be used for geometric levelling with a horizontal beam. The 3T2KP achieves a mean quadratic error of no more than 2 arc-seconds for horizontal angles and 2.4 arc-seconds for vertical angles or zenith distances.

A 30× telescope with direct (erect) image provides sharp, comfortable viewing at minimum sighting distances from 1.5 m. The built-in compensator for the vertical circle — with a working range of ±3′ — enables fast, accurate measurements without manual levelling of the vertical circle at each station.

A key advantage cited by the manufacturer is reliable performance at low temperatures, unlike many foreign counterparts. The instrument ships with a tripod stand and a hard case, and is compatible with ShR-160 tripods and UOMZ-manufactured light-distance meters (EDM attachments), making it expandable for total-station workflows.

Type approval is confirmed by Russian Gosstandart certificate.

Details & Equipment

Instrument Overview

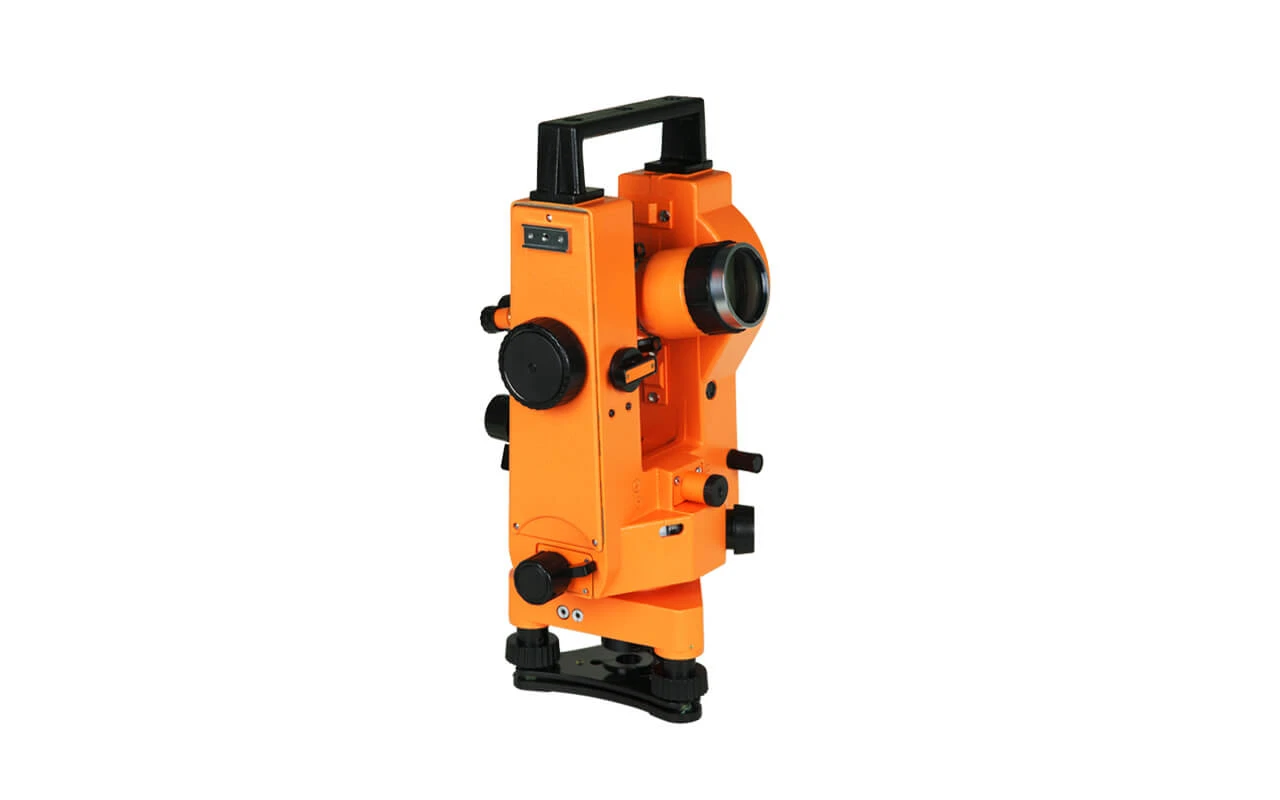

Right-Side View — Telescope & Controls

Three-quarter view from the right showing the 30× telescope objective lens, the horizontal and vertical tangent screws, and the clamping knobs on the orange-anodised alidade body. The tribrach levelling footscrews are visible at the base.

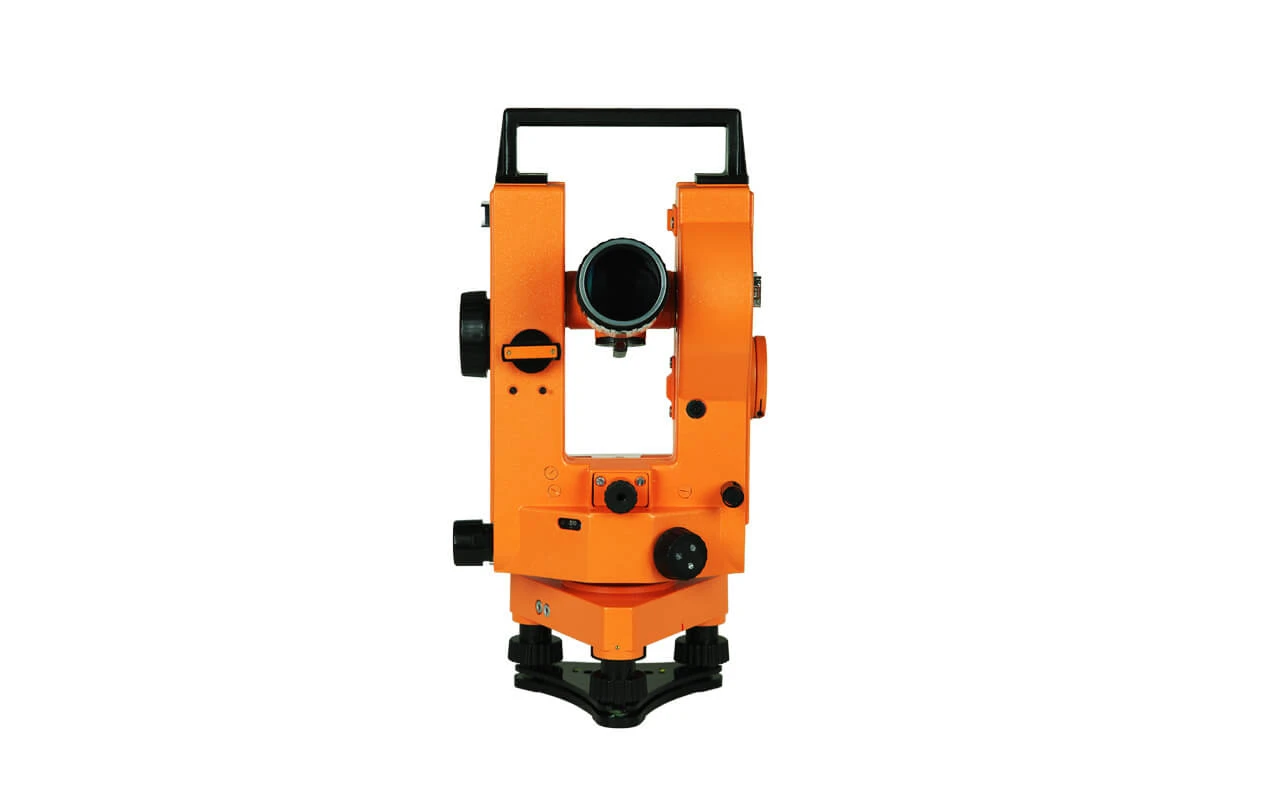

Front View — Alidade Frame

Direct front view of the 3T2KP showing the telescope in the zenith position, the open alidade frame, and the lower tribrach with three footscrews for precise levelling over the survey station.

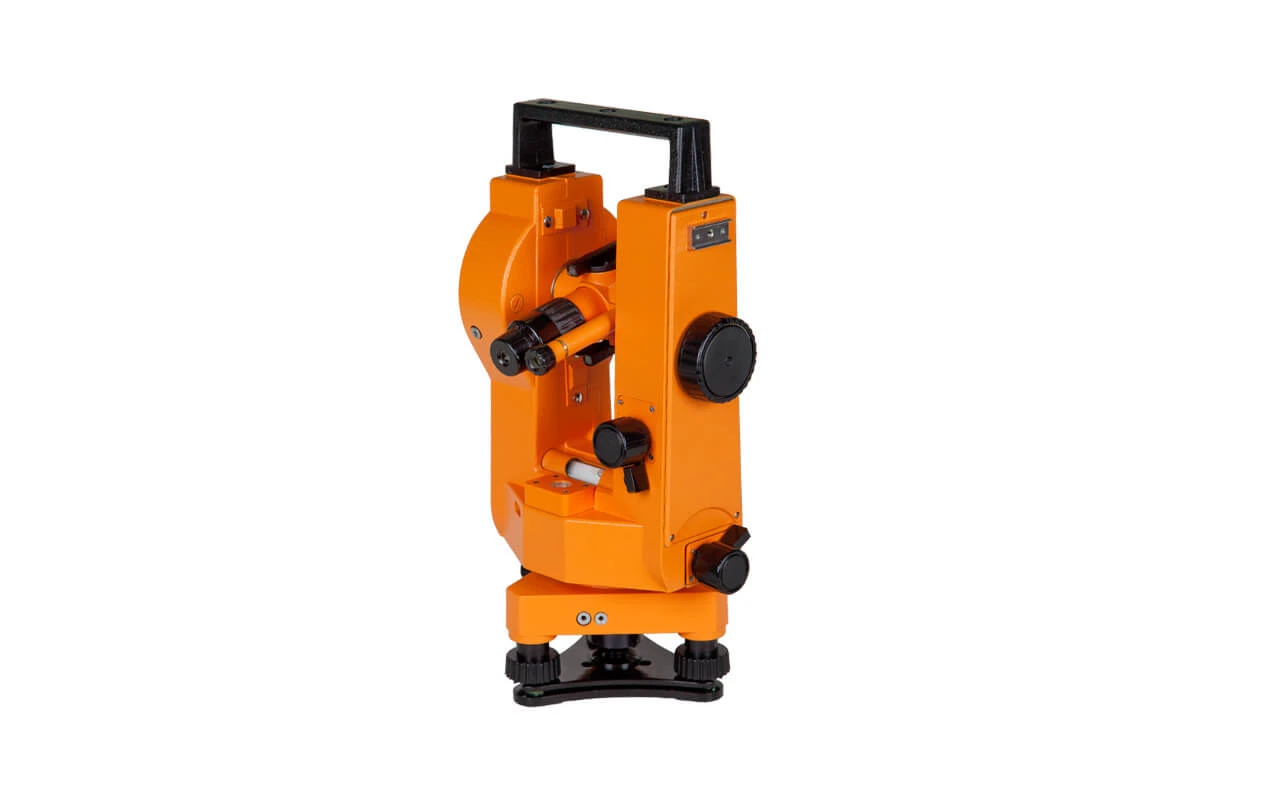

Left-Side View — Reading Microscope & Compensator Housing

Left-side view highlighting the reading microscope eyepiece used for circle readings at 1″ division value, and the vertical circle housing where the built-in compensator (±3′ range) is located — enabling fast, accurate vertical-angle measurement without manual re-levelling.

Features

🎯

2″ Angular Accuracy

Mean quadratic error ≤2″ for horizontal angles and ≤2.4″ for vertical angles / zenith distances in a single measurement set — meets Class II geodetic instrument standards.

🔭

30× Erect-Image Telescope

30× magnification with direct (erect) image and minimum sighting distance of 1.5 m, ensuring comfortable and accurate target acquisition in both field and industrial settings.

⚖️

Vertical-Circle Compensator ±3′

Self-aligning compensator on the vertical circle with a ±3′ operating range enables rapid, reliable vertical-angle readings without manual re-levelling, increasing throughput on traverse and triangulation surveys.

🌡️

Cold-Weather Operation

Engineered for reliable measurements at low temperatures — a stated advantage over comparable foreign instruments, making the 3T2KP suitable for year-round surveys in harsh continental and arctic climates.

📏

1″ Reference Micrometer

Optical micrometer with 1″ division value on the reading microscope provides fine angular resolution for precision traversing and first/second-order triangulation.

🔌

EDM-Ready Platform

Compatible with UOMZ-produced light-distance meters of various designs, allowing the theodolite to serve as the optical base of an integrated angle-and-distance measurement station.

Buyer Benefits

Russian state-certified instrument (type approval certificate issued by Gosstandart) — compliant with national metrological standards for legal use in cadastral, construction, and infrastructure surveys
Manufactured by UOMZ (Shvabe / Rostec), a defence-grade optical plant with over 80 years of precision optics heritage — guaranteed production consistency and long-term spare-parts availability
3T2KP naming decodes instrument class: '3' = third series UOMZ geodetic line, 'T' = theodolite, '2' = 2-arcsecond accuracy class, 'K' = compensator on vertical circle, 'П' = direct (прямое) image
Ships fully equipped — theodolite with tribrach, hard case, adjustment tools, oiler, and certificate — ready for immediate field deployment with no additional accessories required
Compatible with standard ShR-160 tripods widely available in CIS markets, reducing total procurement cost

Applications

First- and second-order triangulation and traversing in state geodetic control networks Construction stakeout and monitoring for industrial plants, bridges, dams, and high-rise buildings Astronomical-geodetic measurements requiring high angular precision Geometric levelling using the horizontal line of sight Mining and underground surveying where compact, rugged optics are required Land cadastre and boundary demarcation surveys Engineering surveys for pipelines, railways, and utility corridors Educational and research applications in geodesy and surveying institutions

Source: official manufacturer website
