Name: Spinal Immobilization Board with Head Fixator and Strapping System (Set)
SKU: 289173
Availability: InStock

$90 - $300 USD

MOQ: 20 sets

Key Features

size: 1830±40x450±50x50±10 mm

material: polyethylene

weight: 9.5 kg

type: immobilization

Supplier Information

MEDPLANT LLC

🇷🇺 📦 🏭 🛡️

View All Products (71)

Quick Inquiry

Description

MEDPLANT LLC is a Moscow-based manufacturer of professional medical immobilization and evacuation equipment, holding Russian registration certificate № РЗН 2014/2128 (renewed 17.07.2024) and Kazakh certificate РК-МТ-5№016801. This complete spinal immobilization set — article 1301 — bundles three certified components into one kit: a full-length spinal board, a foldable head fixator, and a five-pair adjustable strapping system, covering every critical immobilization need from first contact to hospital handover.

The board is formed from high-strength, latex-free polyethylene measuring 1,830 ± 40 × 450 ± 50 × 50 ± 10 mm. It is X-ray transparent, allowing diagnostic imaging without repositioning the patient, and buoyant, so it can be used in water-rescue situations.

A dedicated hole at the lower end enables separate immobilization of hip or shin fractures. The strapping system features a central strap with five pairs of secondary straps; the three central pairs slide freely to accommodate any patient build or height.

The head fixator is a lightweight, collapsible unit that attaches to the board with straps, is also X-ray transparent, and includes openings in the side supports to allow inspection of the ear canals. The total set weight does not exceed 9.5 kg, and all components tolerate repeated chemical disinfection without loss of strength or appearance.

Details & Equipment

Complete Set Overview

Full kit — board, head fixator, strapping

The article 1301 set as supplied: the polyethylene spinal board with multiple fixation holes, the foldable head fixator, and the five-pair central strapping system, ready for immediate deployment.

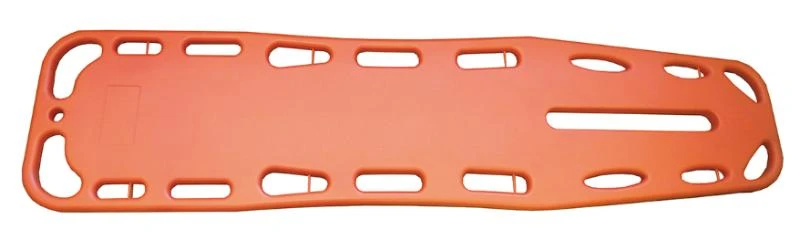

Board dimensions and hole pattern

The board measures 1,830 ± 40 × 450 ± 50 × 50 ± 10 mm; the grid of perforations accepts strap fixation at multiple positions to secure patients of any body type.

Head Fixator & Strapping System

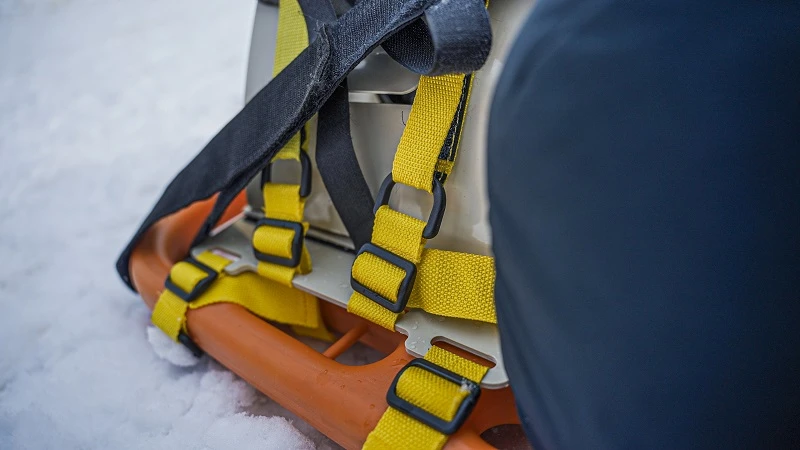

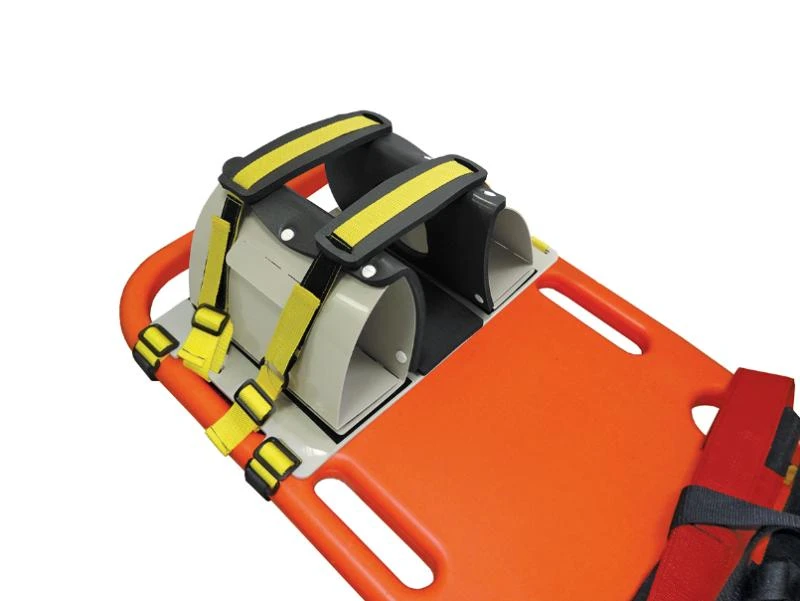

Head fixator attached to board

The foldable ФГС-01 head fixator clips onto the board via straps; side supports position around the ear and temporal region, with cutouts allowing inspection of the ear canal for bleeding signs.

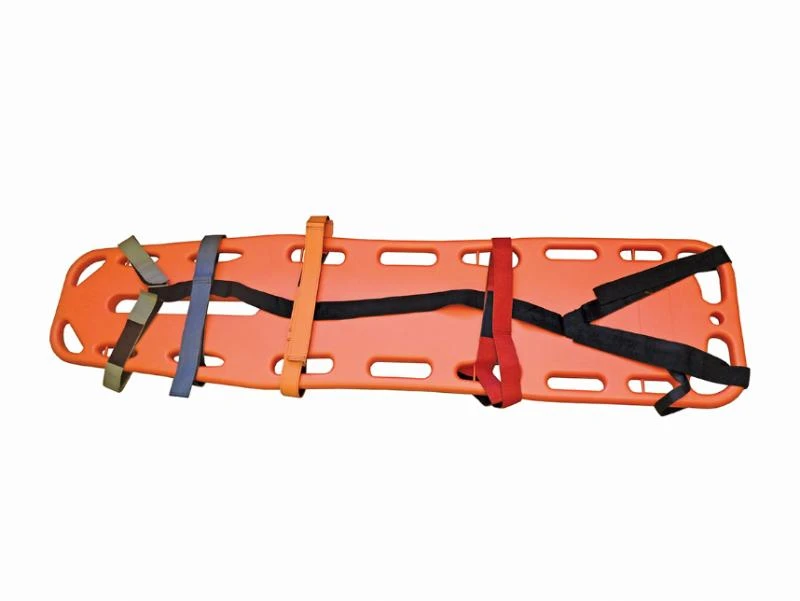

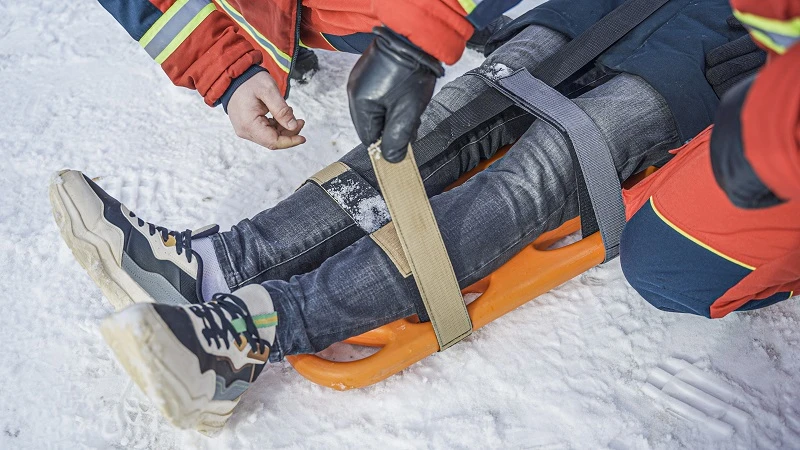

Strapping system on patient

The five-pair strap system wraps across chest, abdomen, pelvis, thighs, and lower legs; the three central pairs slide along the spine strap to accommodate different patient heights and builds.

Field Use

Loading onto stretcher

The board is dimensioned to sit directly on standard medical stretchers and is compatible with vacuum mattresses, enabling seamless handover between pre-hospital and hospital teams.

Water rescue use

Made from buoyant high-strength polyethylene, the board keeps a secured patient afloat during water rescue operations, extending the kit's utility well beyond standard EMS scenarios.

Features

🦴

Complete 3-Component Kit

Includes the spinal board, a foldable head fixator, and a five-pair strapping system — everything needed for full-body immobilization in a single set (art. 1301).

🔬

X-Ray Transparent

Both the board and the head fixator are fully radiolucent, so diagnostic X-rays can be taken without removing the patient from the device.

💧

Buoyant Construction

The high-strength polyethylene board floats, enabling safe use during water-rescue and flood-zone operations.

🔧

Universal Adjustable Strapping

Three of the five strap pairs slide freely along the central strap to fit patients of any build or height; outer pairs are statically fixed for consistent positioning.

🧠

Foldable Head Fixator with Ear Windows

The side supports lock in multiple positions for different head sizes and have inspection openings that allow EMS staff to check for ear-canal bleeding without disturbing spinal alignment.

♻️

Chemical Disinfection Ready

All materials withstand repeated sanitization and chemical disinfection with no change to structural integrity or surface condition, supporting reuse in high-turnover EMS environments.

Buyer Benefits

Single-purchase kit eliminates the need to source board, head fixator, and strapping system separately
X-ray transparency of both board and head fixator avoids patient repositioning during imaging, reducing secondary injury risk
Buoyancy allows the same device to be used in land, water, and flood-rescue scenarios
Sliding strap design rapidly accommodates patients of any body size without adjusting the board
Compact folded head fixator stows flat for space-efficient storage in ambulances and medical kits
Certified in both Russia (РЗН 2014/2128) and Kazakhstan (РК-МТ-5№016801) for compliant procurement
Compatible with standard medical stretchers and vacuum mattresses, integrating into existing EMS equipment chains

Applications

Emergency medical services and ambulance crews for trauma patient transport Military and tactical medicine — spinal stabilization during combat casualty evacuation Traumatology departments for initial in-hospital immobilization Water rescue and flood-disaster response teams Civil defense and mass-casualty incident response First-aid stations and occupational health points in industrial facilities Stabilization of cervical and thoracic spine injuries before and during transfer Separate limb immobilization for hip and shin fractures using the board's dedicated lower aperture
