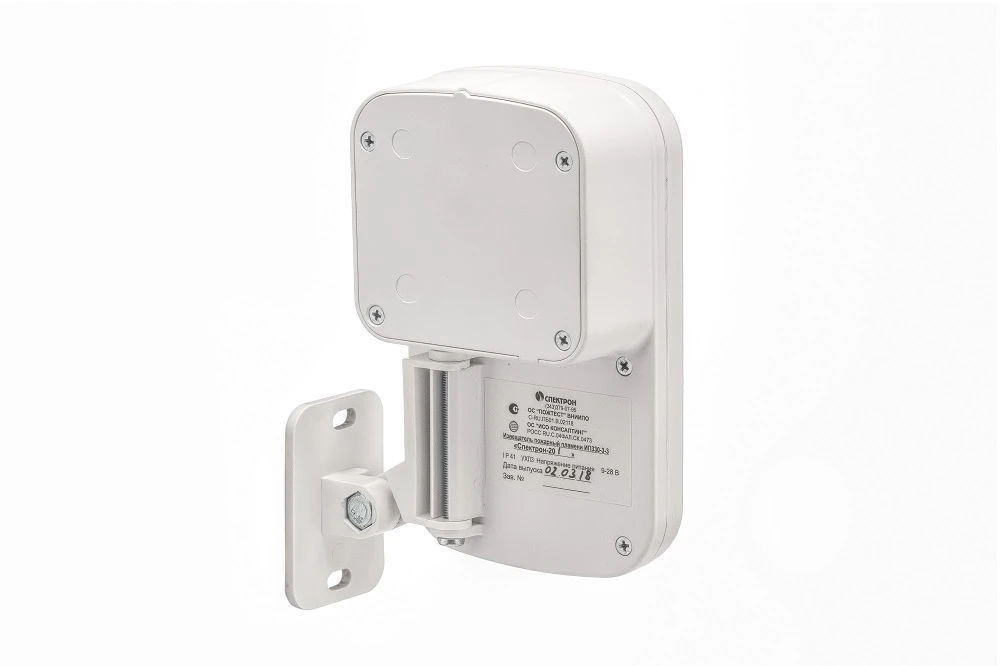

Spectron-601-C is a fire detector flame infrared / ultraviolet (IR / UV) ranges. The detector housing is made of high-strength ABS plastic and has a degree of protection IP68 from the environment. The design of the device and the scheme of sensor arrangement allows to obtain the resulting diagram of detection of fire sources in the form of a 90° cone. The signal "FIRE" is formed only when IR and UV sensors register the presence of flame simultaneously. The standard configuration of the detector includes a relay for the "FIRE" signal, and an opto relay for the "FAULT" signal
4 signals "FAULT". There are 4 detector operation modes with different sensitivity thresholds and signal processing time to reduce the influence of interference when the detector identifies a fire or close location of the suspected ignition location. Minimum response time of the detector to test foci of flame TP-5 and TP-6 at a distance of 30 m - 6 s. .
