Name: Soybean Harvester RSM FS-600-02 "Float Stream
Brand: Float Stream
SKU: 119830
Availability: InStock

Brand: Float Stream

$9,000 - $24,000 USD

MOQ: 1 pieces

Key Features

Working width: 6 m

mass: 1950 kg

Operating speed: 7

length: 3200 mm

Supplier Information

ROSTSELMASH OJSC

🇷🇺 📦 🏭 🛡️

View All Products (145)

Quick Inquiry

Description

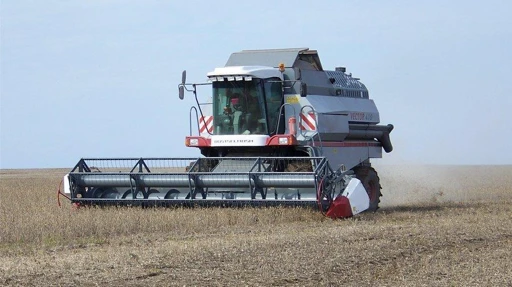

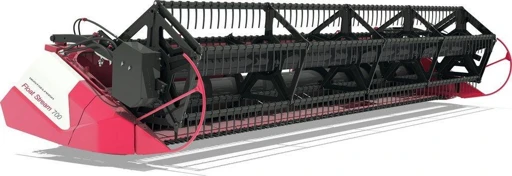

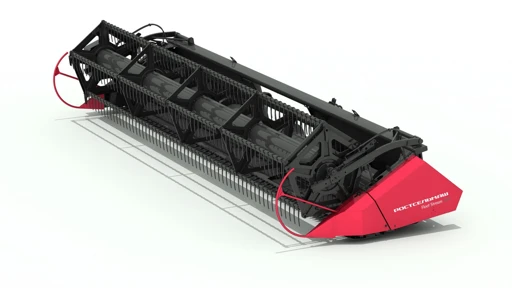

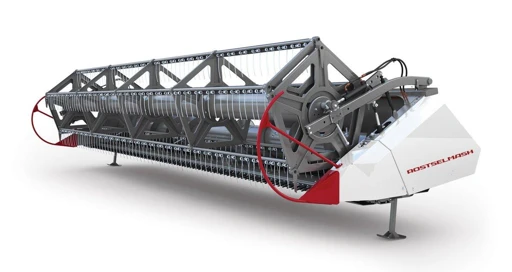

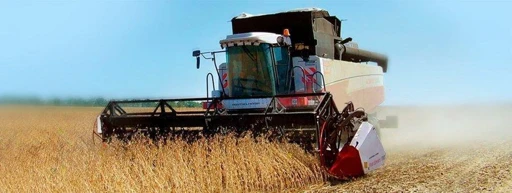

The RSM FS-600-02 Float Stream is a universal low-cut grain header manufactured by АО "Клевер" (Klever), a subsidiary of the Rostselmash group — Russia's leading agricultural machinery producer. Engineered primarily for soybean harvesting, this 6-metre header is built to reach the lowest-hanging pods: its floating knife cuts at just 30 mm above ground and continuously adapts to field relief across a 100 mm range in both longitudinal and lateral directions, dramatically reducing harvest losses on lodged or low-podding crops.

Beyond soybeans, the Float Stream handles the full breadth of small-grain and oilseed crops — wheat, barley, chickpeas, pulses, and flax with an optional smooth-edge knife kit — and is compatible with both Rostselmash self-propelled combines and a wide range of imported machines. At 1,950 kg and 6,500 mm overall width, the FS-600-02 reaches 7 km/h in floating-knife mode and up to 9 km/h in rigid-knife mode.

Durability features include a belt-driven cutter bar with an oscillating drive shaft that absorbs shock loads, individually replaceable knife segments that eliminate full-bar disassembly, and plastic reel tine fingers that shield the cutter assembly during ground contact. An optional electronic terrain-copying system (SCRP) uses contact sensors tied to the combine's onboard computer for fully automatic cut-height regulation, with a dedicated Soy/Grain mode selector on the wind screen for rapid configuration changes.

Details & Equipment

Cutting System

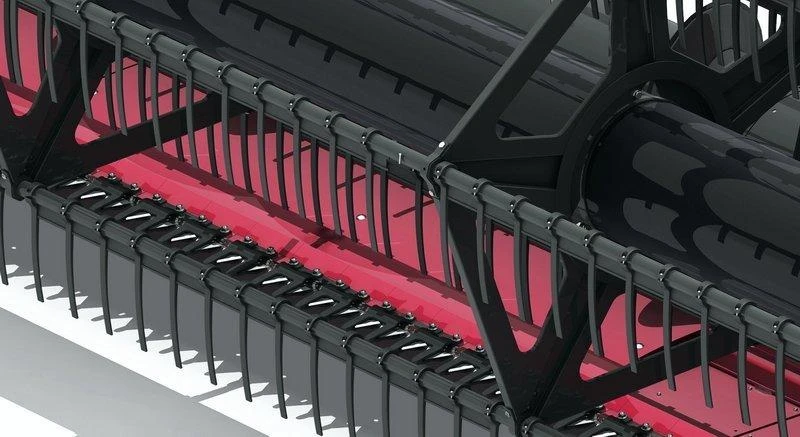

Plastic Reel Tine Fingers

Plastic spring fingers on the eccentric reel tines flex on ground contact rather than transmitting force to the cutter bar, reducing the risk of segment breakage during floating-knife operation.

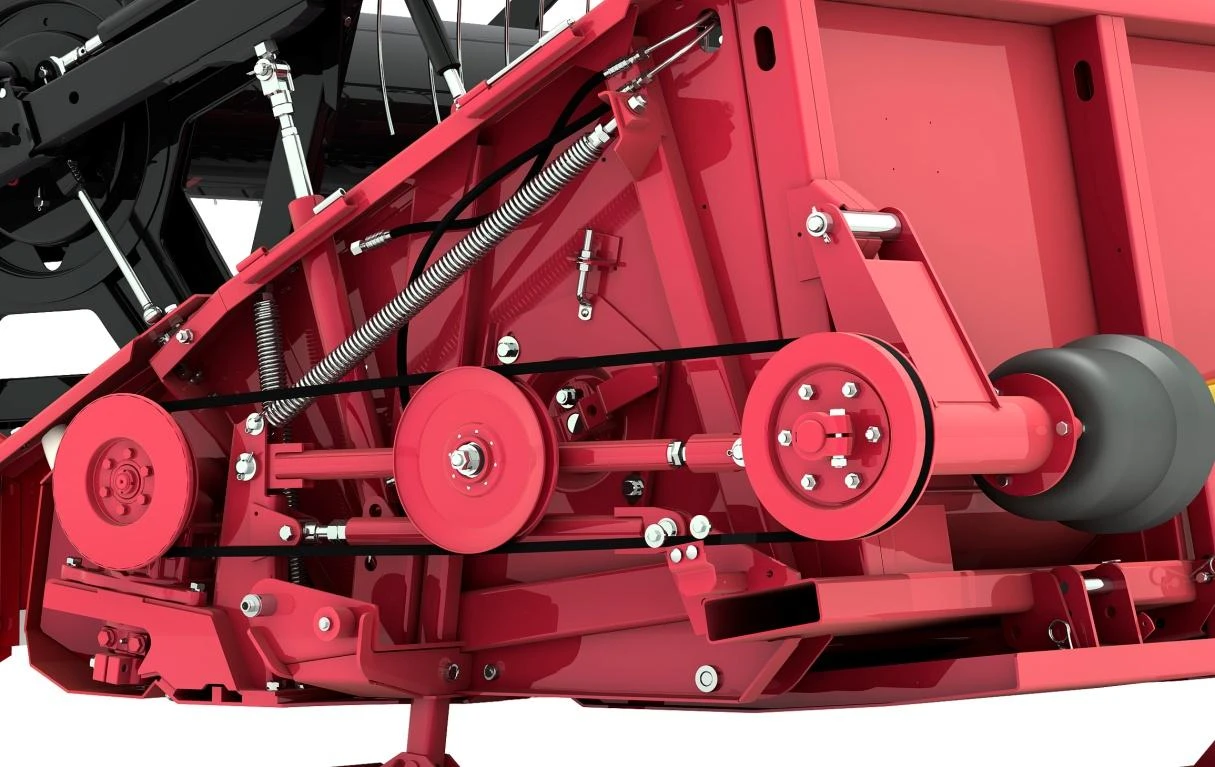

Belt Drive with Oscillating Shaft

The belt circuit with a swinging drive shaft absorbs peak torques and shock loads, protecting the planetary gearbox and prolonging the service life of the entire drive train.

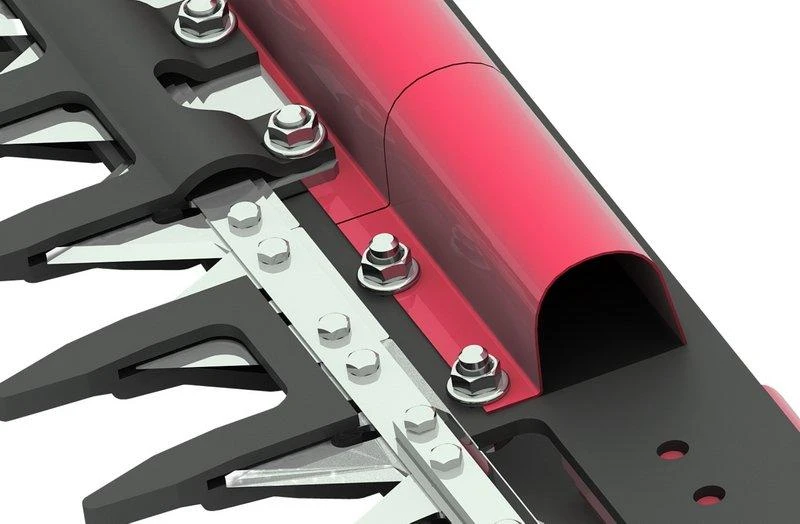

Stone and Debris Deflectors

Profiled deflectors guide stones and foreign objects away from the knife segments, preventing jamming and segment damage that would otherwise require field stops for repair.

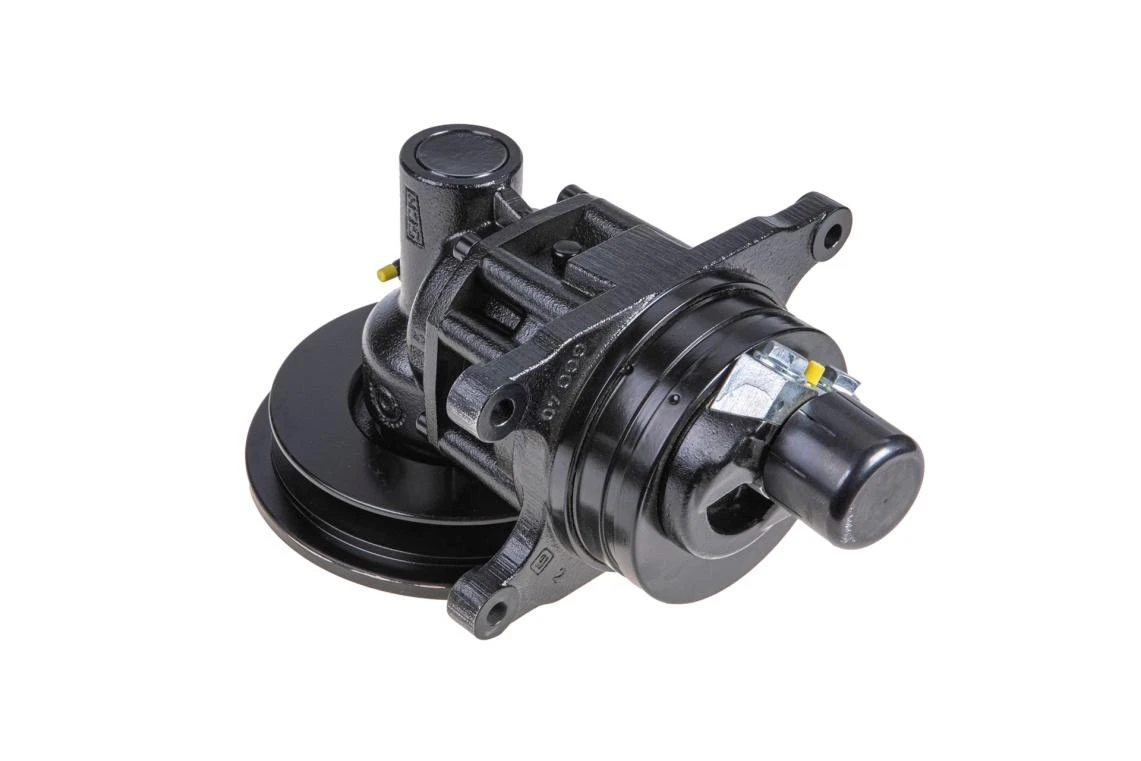

Replaceable Knife Segments

Driven by a planetary gearbox, individual segments can be swapped out without dismounting the full cutter bar assembly, keeping planned maintenance fast and straightforward.

Terrain Adaptation

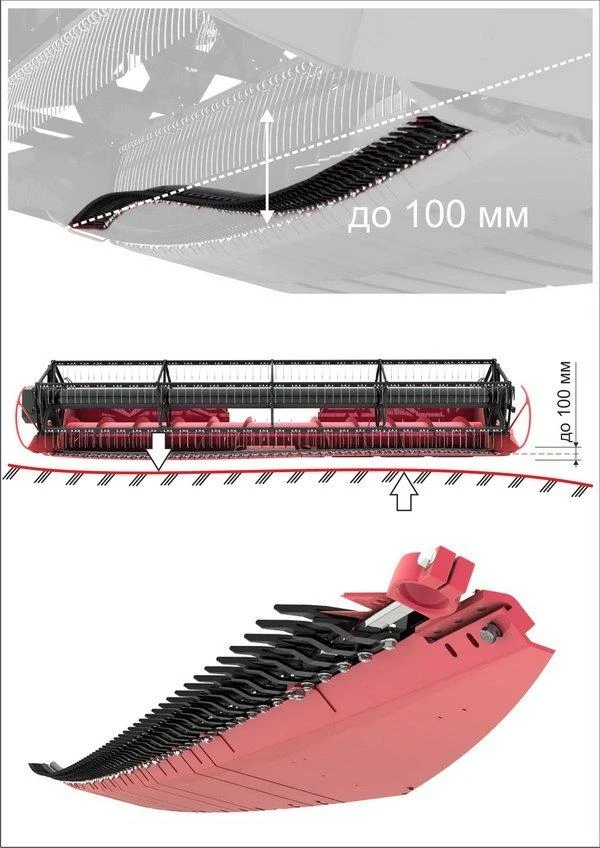

Spring-Lever Terrain Following

The cutter bar is mounted on spring-loaded pivot arms that allow it to follow surface contours up to 100 mm in depth, maintaining consistent cut height across furrows and ridges without manual correction.

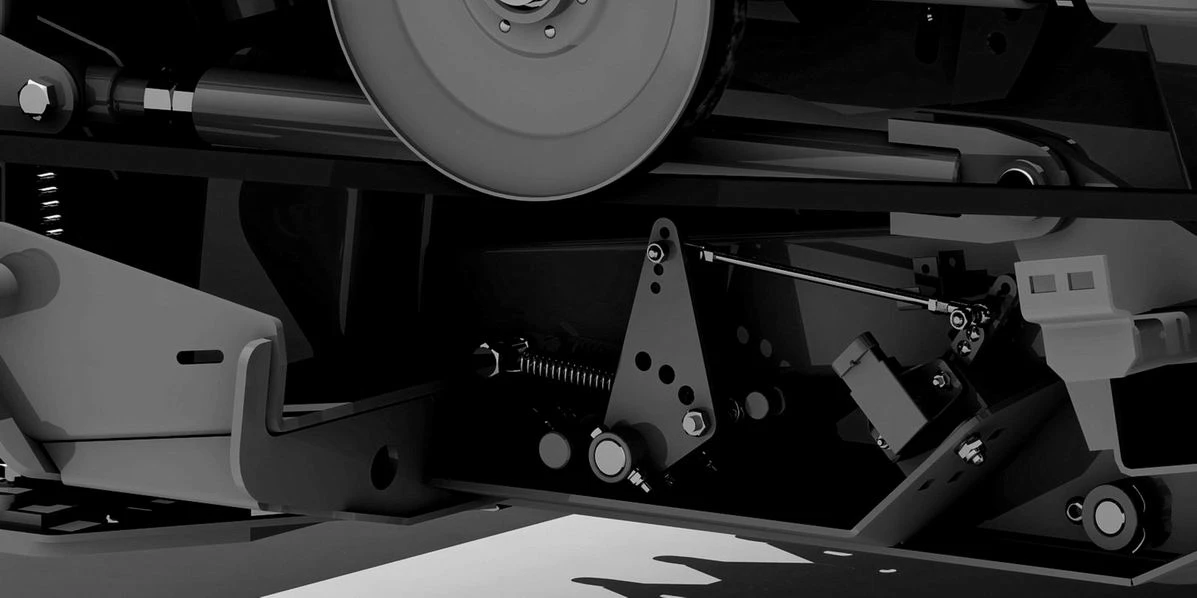

SCRP Electronic Control System

The optional SCRP system uses contact-sensor probes and the combine's onboard computer to regulate cut height fully automatically; a Soy/Grain mode toggle on the windscreen enables rapid reconfiguration between crop types.

Features

🌾

30 mm Floating Knife

The floating cutter bar maintains a minimum cut height of just 30 mm, adapting to ground contours in both the forward and lateral directions to capture the lowest-set soybean and chickpea pods without soil ingestion.

📐

Terrain Following up to 100 mm

A spring-lever counterbalance mechanism allows the cutter bar to copy field relief across a 100 mm range; the optional SCRP electronic system automates this via field-contact sensors and the combine's control computer.

⚙️

Belt Drive with Oscillating Shaft

Drive is transmitted through a belt circuit with a swinging drive shaft that smooths peak torque and shock loads, reducing stress on the gearbox and extending the service life of drive components.

🛡️

Profiled Stone Deflectors

Specially shaped stone deflectors prevent foreign objects from jamming or damaging cutter segments, reducing unplanned downtime on stony or debris-laden fields.

🔧

Segment-Level Knife Replacement

Individual knife segments can be replaced without dismounting the full cutter bar, minimising planned service time and reducing spare-parts inventory requirements.

🔄

Automatic Reel Synchronisation

The hydraulic reel drive (for Rostselmash combines) automatically synchronises reel rotation speed with combine ground speed, maintaining optimal crop feeding at any travel pace.

Buyer Benefits

30 mm minimum cut height captures virtually all soybean pods set close to the ground, directly reducing pre-harvest losses in commercial soy production
Terrain following in both axes eliminates frequent manual height adjustment on uneven or rolling fields
Compatible with Rostselmash self-propelled combines and major imported harvesters, fitting diverse machine fleets without adaptation
Belt-and-oscillating-shaft drive reduces maintenance intervals and extends service life of critical drive components
Individual knife segment replacement without full bar removal cuts planned maintenance time and simplifies field servicing
Optional SCRP electronic terrain system provides fully automatic cut-height control, reducing operator fatigue on long harvesting runs
Plastic reel tine fingers protect the cutter bar against accidental ground strikes during floating-knife operation

Applications

Soybean harvesting where pods attach close to the ground Chickpea (nут) harvesting requiring minimal clearance Wheat, barley, and other cereal grain harvesting Pulse and legume crop harvesting across Russian and CIS farmland Flax harvesting with optional smooth-edge knife segment kit Lodged and laid-down crop recovery in all soil conditions Fields with variable terrain, furrows, and uneven surface relief Large-scale commercial grain and oilseed farming operations

Source: official manufacturer website
