SNMP Monitoring Card for UPS "SKUP-4 — SPECPROMDIZAIN LLC

Name: SNMP Monitoring Card for UPS "SKUP-4
Brand: SKUP
SKU: 591647
Availability: InStock

Brand: SKUP

$90 - $300 USD

MOQ: 20 pieces

Key Features

Overall dimensions: 70 × 67 × 33 mm

Ethernet baud rate: 10

Operating temperature range: 0...70 °C

Power supply voltage: B1/B8 2100/900 MHz V

Supplier Information

SPECPROMDIZAIN LLC

🇷🇺 📦 🏭 🛡️

View All Products (12)

Quick Inquiry

Description

The SNMP Monitoring Card for UPS "SKUP-4" is a sophisticated device designed for monitoring and logging the status of uninterruptible power supplies (UPS). Manufactured by SPECPROMDIZAIN LLC, this card connects via an Intelligent Slot and supports various communication protocols including Megatec and Voltronic.

It features a built-in temperature sensor, event logging capabilities, and two discrete inputs for external sensors. The card operates within a temperature range of 0 to 70°C and has an IP10 protection rating, ensuring durability in various environments.

The device is equipped with a web interface for easy configuration and comes with a MIB file for SNMP parameter polling, making it a versatile choice for industrial applications.

Details & Equipment

Design and components

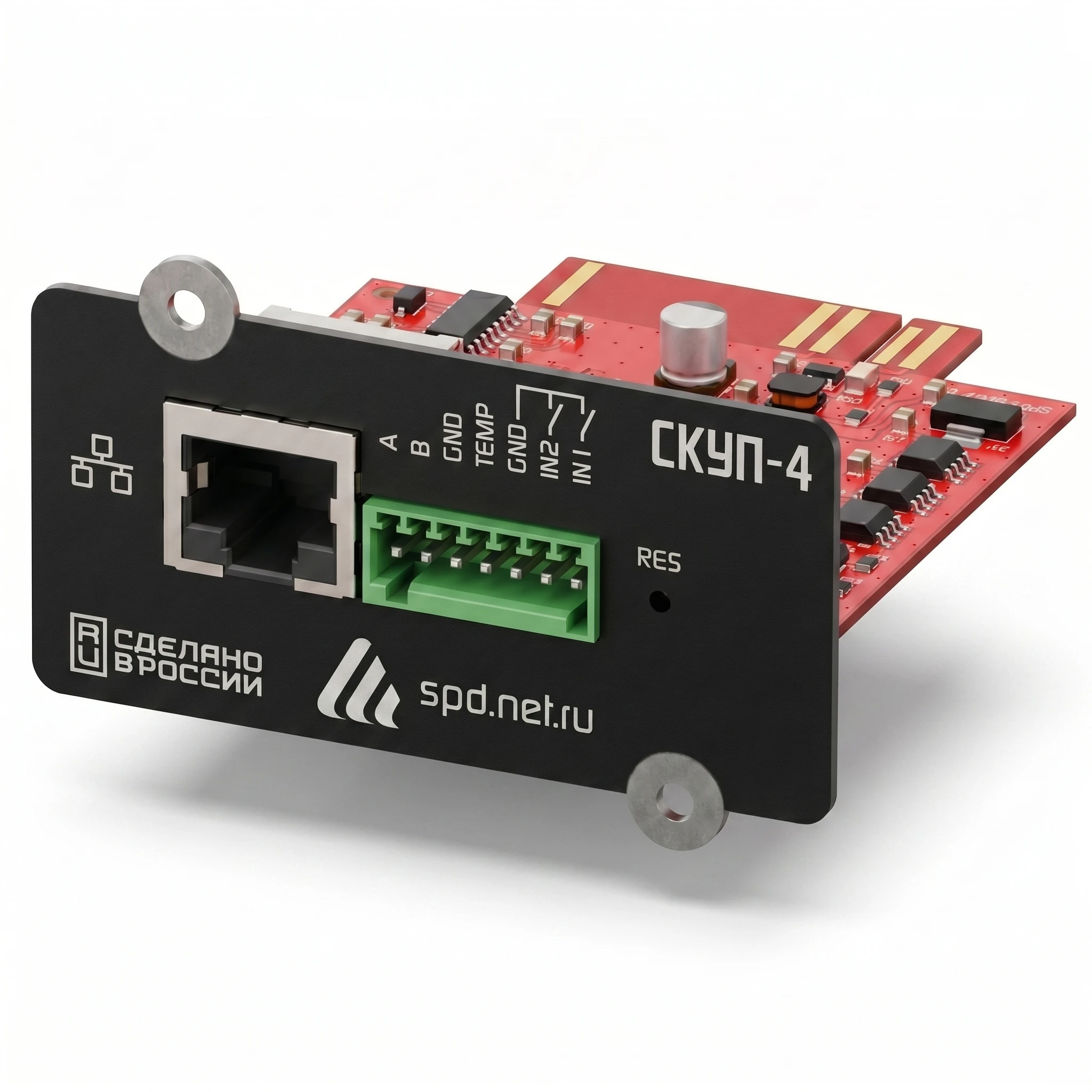

SNMP Monitoring Card SKUP-4

The compact design of the SKUP-4 monitoring card.

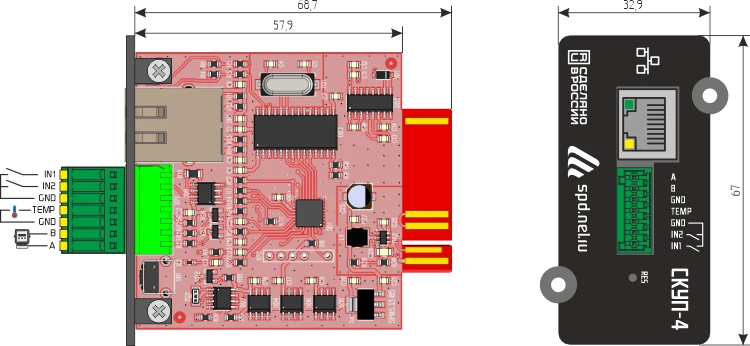

Connection Interface

Detailed view of the SKUP-4's connection interface.

External Sensor Connection

Illustration of how to connect external sensors.

Ethernet Port

The Ethernet port for network connectivity.

Features

🔌

Power Supply Voltage

Operates on a power supply voltage of 12V.

📏

Compact Size

Measures 70 × 67 × 33 mm, making it easy to integrate into existing systems.

🌡️

Temperature Range

Functional within a temperature range of 0 to 70°C.

💧

Humidity Tolerance

Can withstand relative humidity levels up to 90% at 35°C.

🔄

Data Transfer Speed

Supports Ethernet data transfer speeds of 10 Mbps.

Buyer Benefits

Real-time monitoring of UPS status and events.
Ability to send alerts via SNMP to remote servers or messaging apps.
Flexible integration with external sensors and energy meters.
User-friendly web interface for easy configuration.
Compatible with various monitoring protocols, enhancing system interoperability.

Applications

Used in data centers for UPS monitoring. Ideal for industrial automation systems. Applicable in telecommunications for power supply management. Suitable for critical infrastructure requiring reliable power oversight. Utilized in commercial buildings for energy management.

Source: official manufacturer website
