SKP Series Modular Buildings - Transportable Construction Solution

SKP Series Modular Buildings - Transportable Construction Solution

Brand: SKP
$12,000 - $120,000 USD
MOQ: 1 units

Key Features

Presence of thermal insulation shell: With thermal insulation
Fire resistance degree according to SNiP21-01: IV;III;II
Protection degree of the shell according to GOST 14254: IP55
Type of linear connections: Air inlets, cable inlets, air outlets, cable outlets

Description

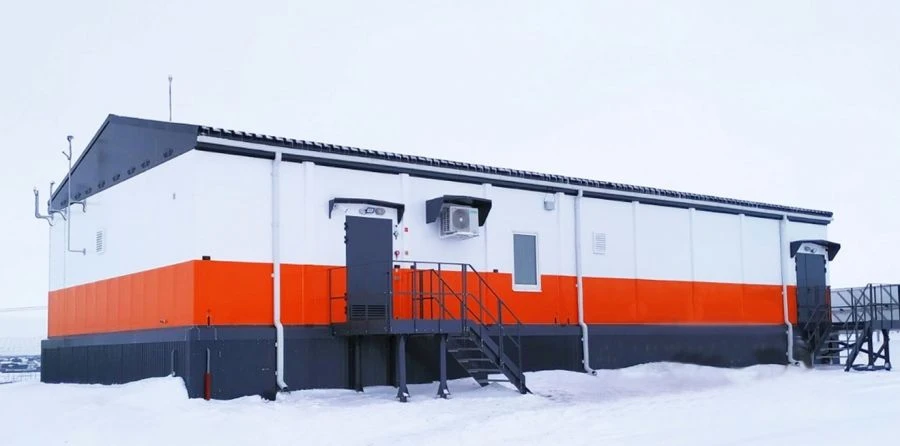

Modular buildings of SKP series represent a ready construction solution of full factory readiness and consist of one or several transportable unified units - specialised multi-profile insulated containers with integrated systems of working and emergency lighting, heating and ventilation, and, if necessary, air conditioning, generally designed to accommodate electrical equipment in its composition and to protect it and service personnel from climatic conditions.
SKP modular buildings have a self-supporting metal frame consisting of walls and a double-sloped roof fixed on a rigid frame base, and have sufficient mechanical strength to ensure normal working and transport conditions without deformation or damage preventing normal operation of the installed equipment.

Specifications

Presence of thermal insulation shell
With thermal insulation
Fire resistance degree according to SNiP21-01
IV;III;II
Protection degree of the shell according to GOST 14254
IP55
Type of linear connections
Air inlets, cable inlets, air outlets, cable outlets
Insulation level of air bushings according to GOST 1516.1
Normal, level "b"
Service conditions of cabinets installed as part of SKP modular buildings
One-sided, two-sided
Climatic version and placement category
U1, UHL 1
Name
With control and maintenance corridor
