Name: SCADA System "KASKAD" - Scalable Information Management Solution
Brand: CASCADE
SKU: 98996
Availability: InStock

Brand: CASCADE

$300 - $6,000 USD

MOQ: 1 units

Key Features

Fully functional process visualisation: yes

Supported protocols: Modbus, IEC-60870-5-103, IEC-60870-5-104, IEC-61850, SNMP, MQTT, proprietary protocols, IEEE C37.118 (vector measurements), 60870-6 ICCP/TASE.2

Поддерживаемые СУБД: MSSQL, Oracle Database, MySQL, PostgreSQL, Firebird

Fully functional reporting system: yes

Supplier Information

CASCADE-GROUP LLC

🇷🇺 📦 🏭 🛡️

View All Products (7)

Quick Inquiry

Description

SCADA «KASKAD» is a flexible, scalable industrial automation software package developed by CASCADE-GROUP LLC (NPO Kaskad-GRUP), headquartered in Cheboksary, Chuvash Republic, Russia. Recognized as Russia's first native 64-bit SCADA platform, it targets automated process control systems (APCS), energy metering and management systems, and supervisory control and data acquisition applications across industrial production, power generation, and municipal utilities.

The system runs on Windows 7 through 11 and Windows Server 2012–2019, as well as certified Russian Linux distributions — Astra Linux Special Edition (versions 1.7 and 1.8), RED OS 7.3 and 8, and ALT Linux 10/11 — each covered by dedicated compatibility certificates. On the communications side, SCADA «KASKAD» supports Modbus RTU/TCP/ASCII, IEC 870-5-101/103/104, IEC-61850, DNP3, SNMP, MQTT, IEEE C37.118 synchrophasor measurements, and ICCP/TASE.2, along with OPC DA 2.0/3.0, OPC HDA, and OPC UA.

Databases supported include MS SQL Server, Oracle, MySQL, PostgreSQL, Firebird, and Russian-certified equivalents Red BD and Postgres Pro.

Operators work through a single unified Russian-language HMI that merges real-time mnemonic process diagrams, alarm management with SMS and email alerts, historical trend analysis, and scheduled report generation — all from one workspace. The KWebVision web module extends supervision to any browser without client software installation.

The product is included in the Russian Software Registry (entry No. 1059, effective 1 June 2016) and holds a GOST compliance certificate (No.

12.0001.1974, valid through May 2027).

Details & Equipment

Real-Time Process Visualization

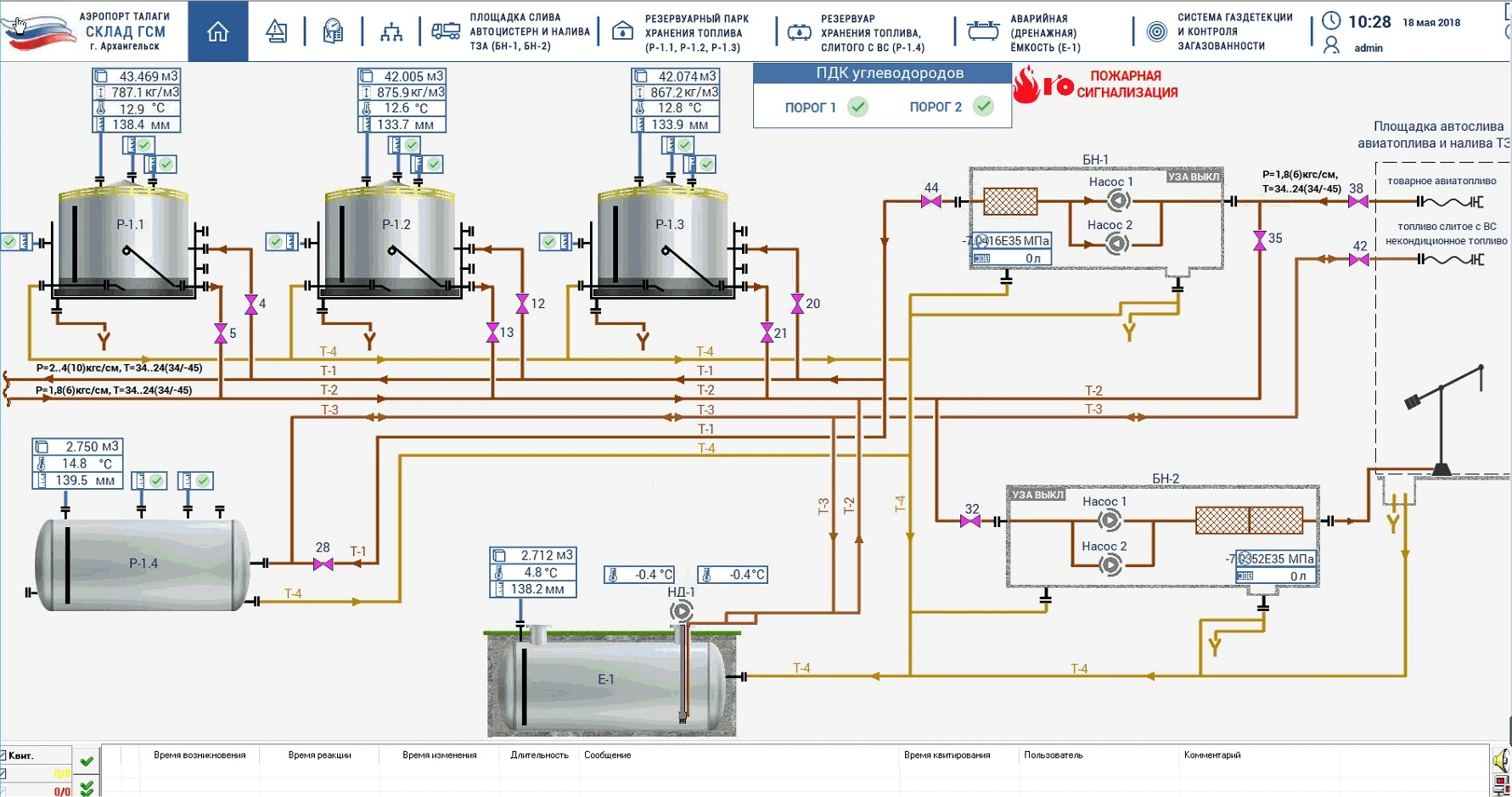

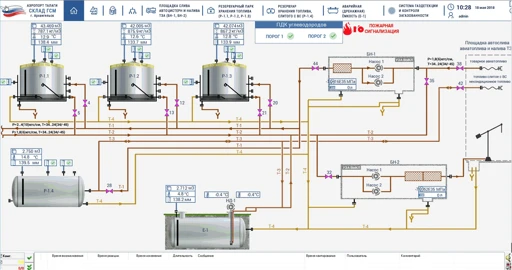

Unified HMI Workspace

The integrated operator environment combines real-time mnemonic process diagrams with live data values, enabling operators to monitor plant state and issue control commands from a single unified interface without switching between applications.

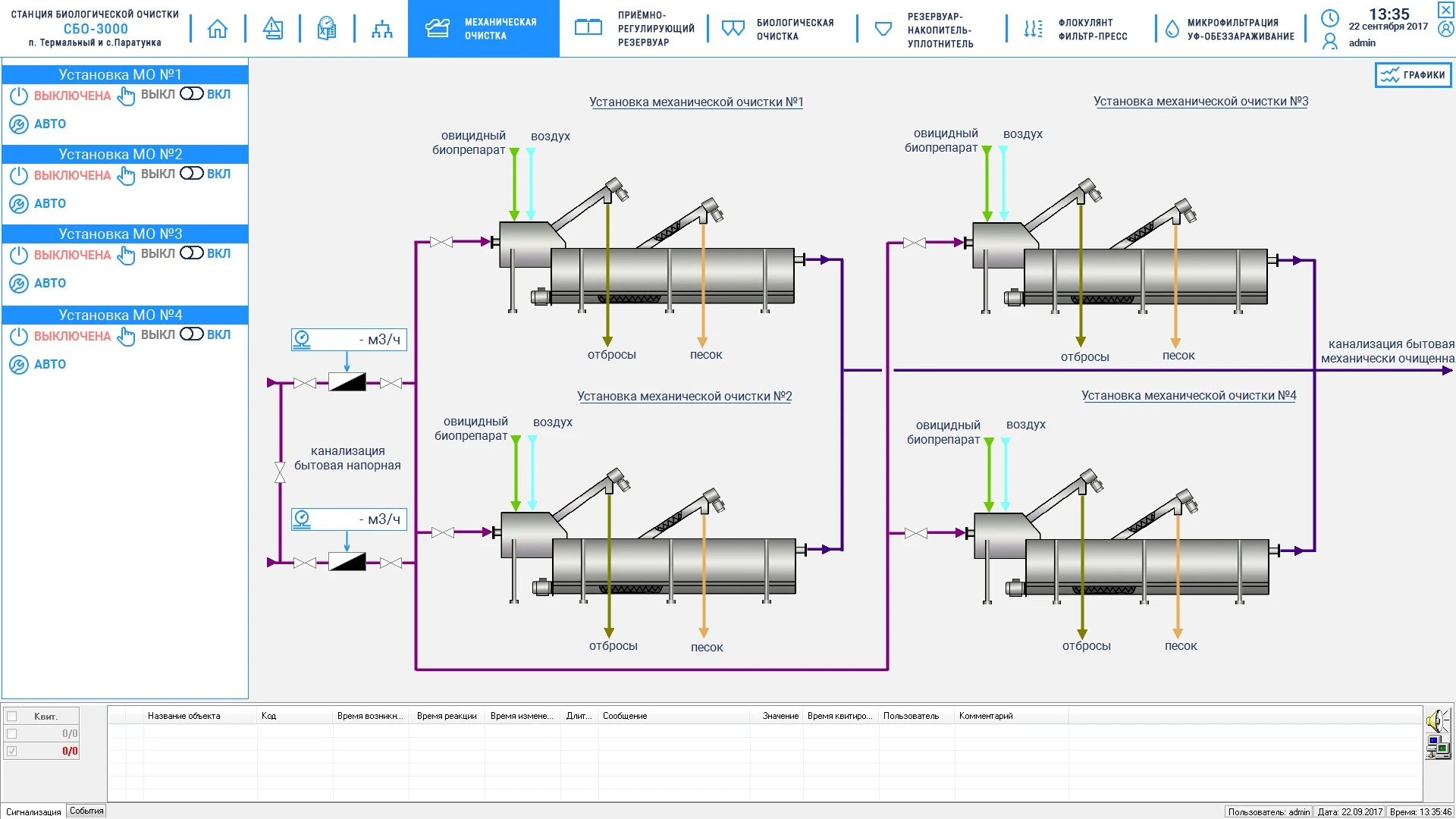

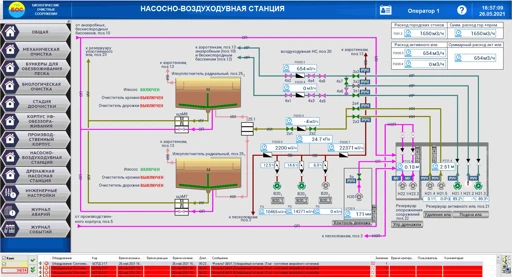

Process Mnemonic Display

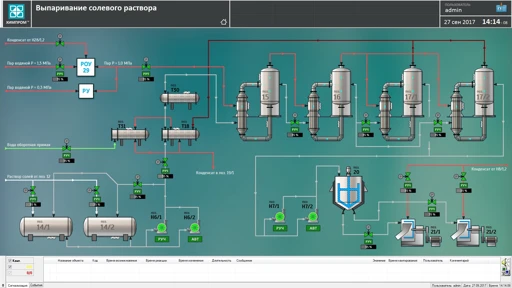

Customizable graphic mnemonic diagrams overlay live process data on top of engineering schematics, giving operators an intuitive, context-aware view of the current state of the technological process.

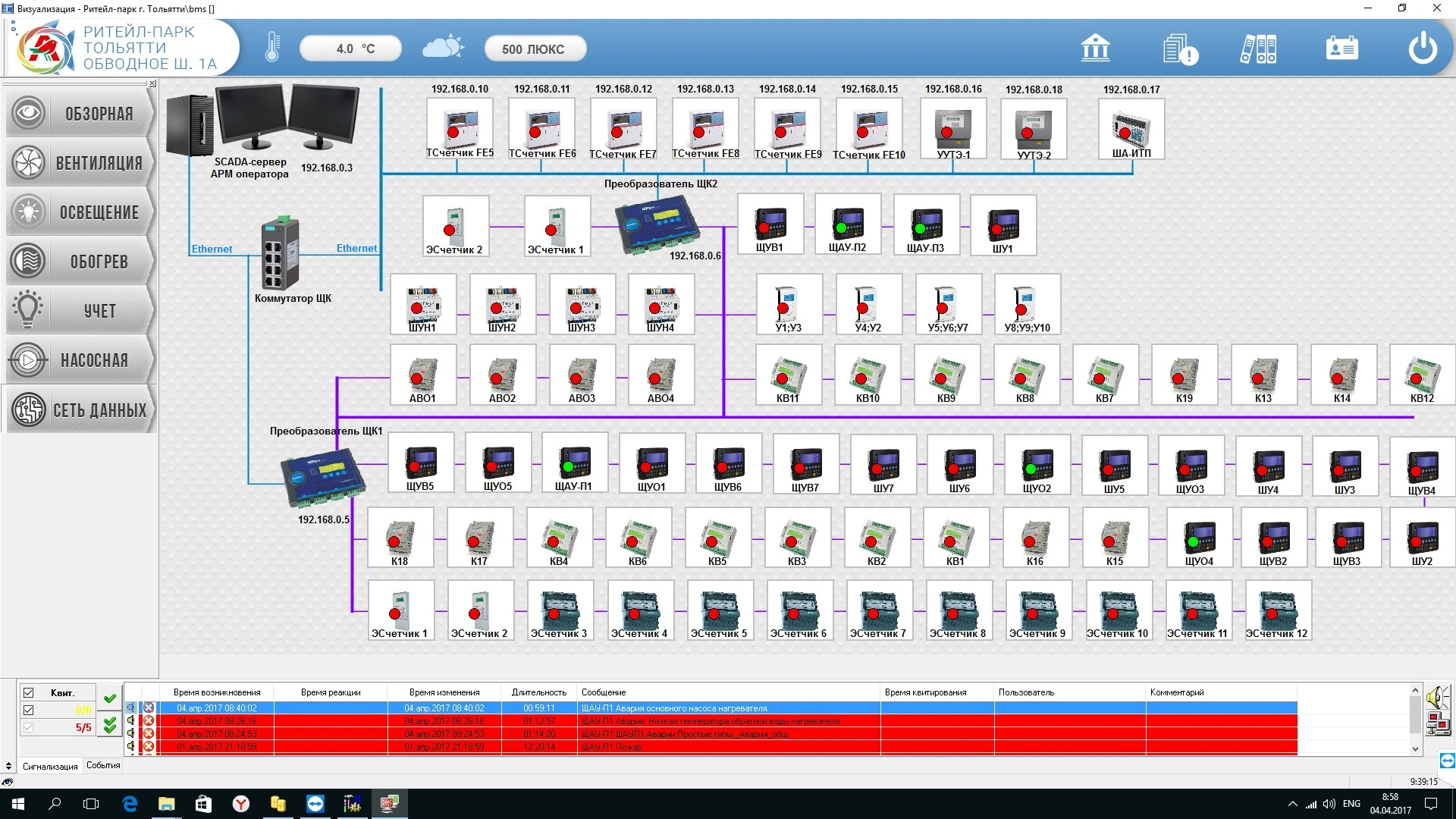

Multi-Subsystem View

Multiple client subsystems — current values, historical trends, and alarm event lists — can be displayed simultaneously within the same operator session, supporting comprehensive situational awareness in complex plants.

Alarms, Trends & Reporting

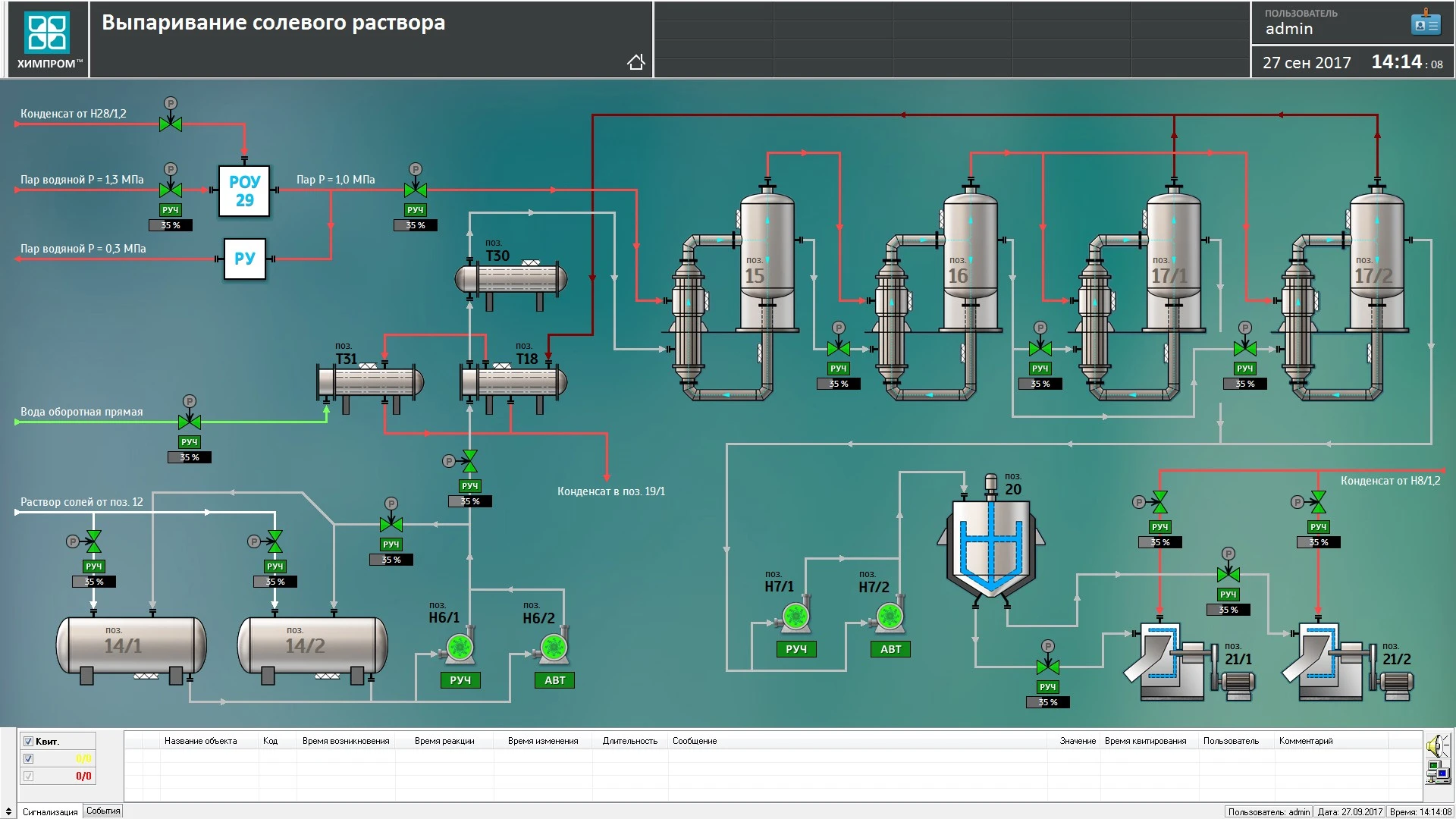

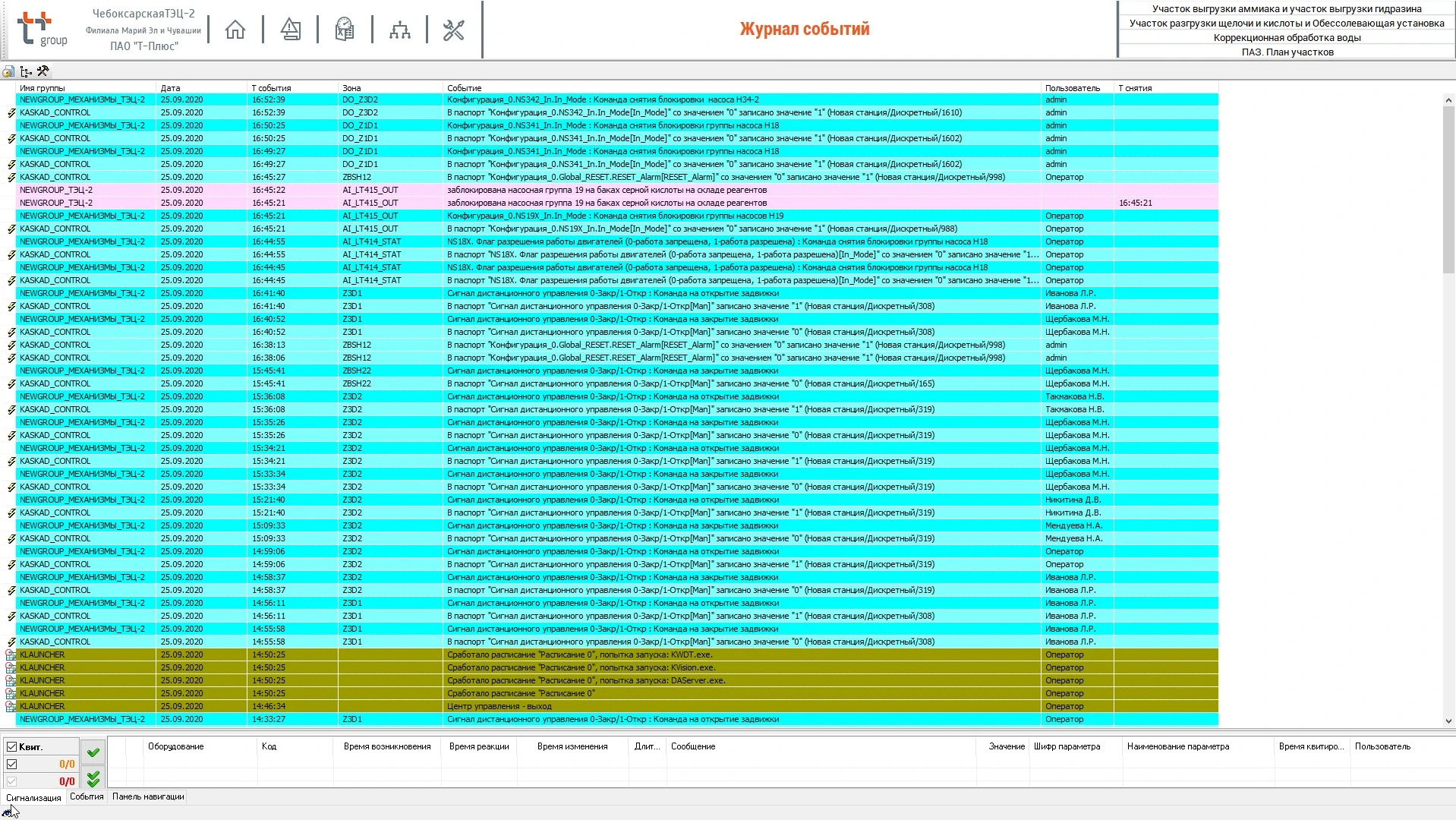

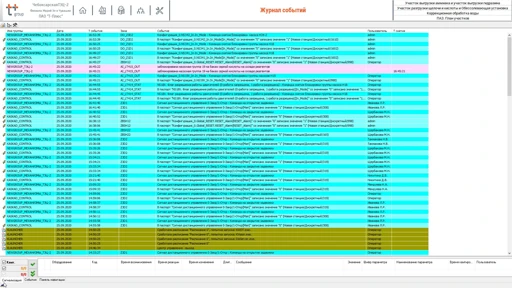

Alarm & Warning Console

The alarm and warning signalization system continuously monitors process parameters against user-defined threshold algorithms, logs every event, and notifies responsible personnel by on-screen alert, audio signal, SMS, or email.

Historical Trend Analysis

The built-in trend viewer plots archived parameter values over any user-defined time range, supporting post-event analysis, process optimization, and compliance documentation without requiring external analytics software.

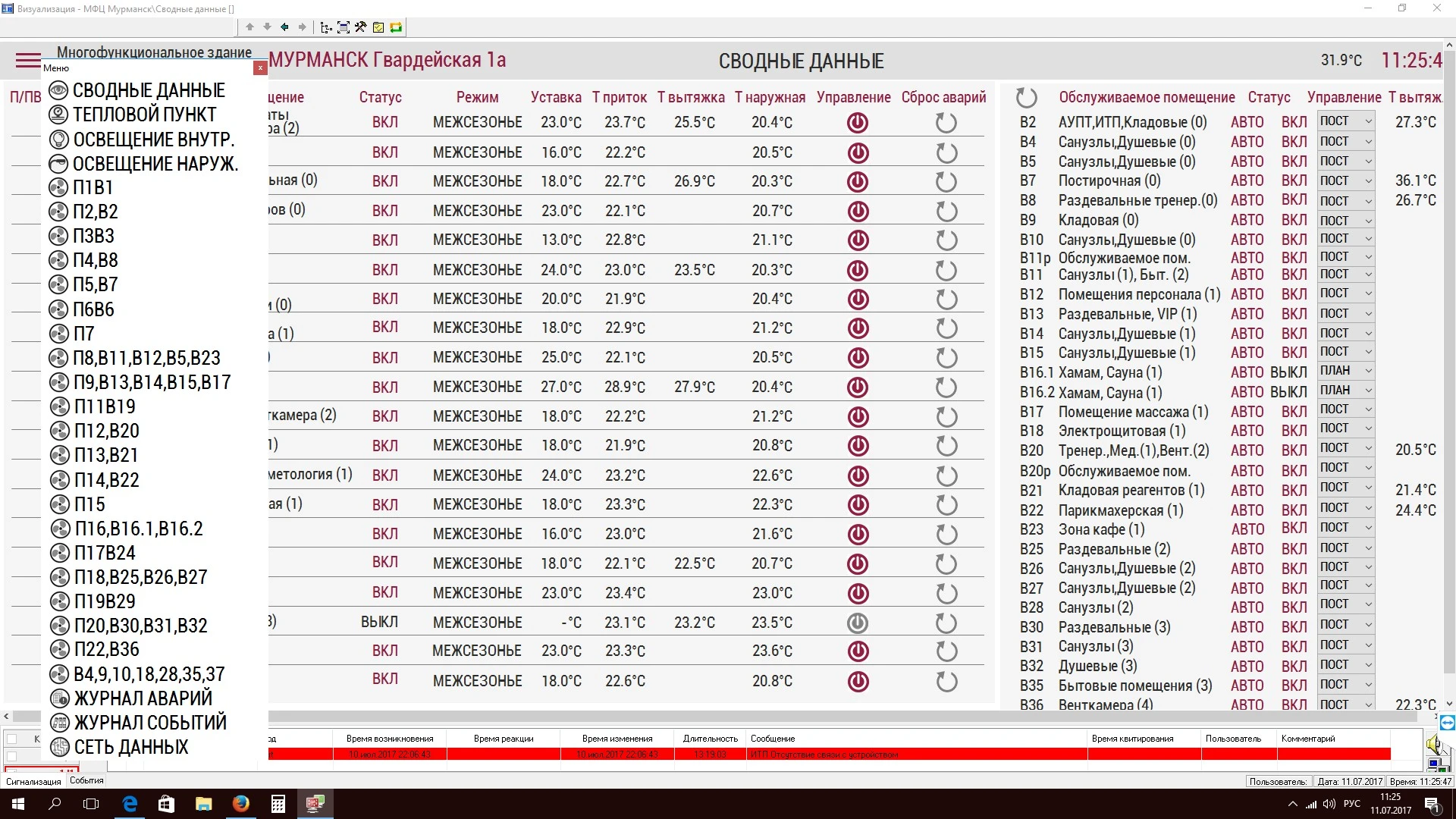

Automated Report Generation

The self-sufficient reporting module generates operational summaries on a schedule, on operator request, or triggered by process events, and can automatically deliver finished reports by email in XML, HTML, or TXT format.

Features

⚙️

64-Bit Native Architecture

Russia's first 64-bit SCADA system (current release v8.3), leveraging multi-core processors for high-throughput data acquisition and real-time processing in demanding industrial environments.

🔌

Broad Protocol Ecosystem

Communicates via Modbus RTU/TCP/ASCII, IEC 870-5-101/103/104, IEC-61850, DNP3, SNMP, MQTT, IEEE C37.118, and ICCP/TASE.2, plus OPC DA 2.0/3.0, OPC HDA, and OPC UA for universal device integration.

🖥️

Cross-Platform OS Compatibility

Runs natively on Windows 7/8/10/11, Windows Server 2012–2019, and certified Russian Linux distributions — Astra Linux Special Edition, RED OS 7.3/8, and ALT Linux 10/11 — each with a dedicated compatibility certificate.

🌐

Full Web Supervision (KWebVision)

The built-in KWebVision module delivers full process mnemonic display in any standard web browser, enabling thin-client operator workstations and remote supervisory access without additional client software installation.

🚨

Integrated Alarm & Reporting Engine

Real-time alarm processing follows user-defined algorithms, delivering alerts via on-screen text, audio, SMS, or email; the self-sufficient report module generates and exports to XML, HTML, or TXT on a schedule or by event trigger.

📋

Russian Registry & GOST Certified

Listed in the Russian Software Registry under entry No. 1059 (from 1 June 2016) and certified to GOST standards (certificate No. 12.0001.1974, valid through May 2027), fulfilling import-substitution requirements for regulated industries.

Buyer Benefits

Listed in the Russian Software Registry (entry No. 1059) — satisfies import-substitution regulations for state-owned, regulated, and strategic enterprises
GOST compliance certificate No. 12.0001.1974 (valid through May 2027) and state attestation certificate APR-180-1974 reduce procurement and certification risk
Compatibility certificates for Astra Linux Special Edition 1.7/1.8, RED OS 7.3/8, and ALT Linux 10/11 ensure deployment on certified domestic operating systems
Free 32-channel demo version available indefinitely with no registration requirement — allows complete functional evaluation before any purchase commitment
Scalable client-server architecture accommodates both single-node installations and complex multi-server, multi-client enterprise deployments without re-licensing
Security vulnerabilities found by Positive Technologies were remediated in the 2026 release; system is certified compatible with Kaspersky Industrial CyberSecurity for Nodes and Networks
Volume licensing discounts of 10–30% for orders of 3 or more license sets, with two years of free updates and technical support included at the time of purchase

Applications

Power generation and grid dispatch — hydropower plants, thermal power stations, and pumped-storage facilities (reference projects: RusGidro Zagorskaya GAES, T-Plus unified SCADA) Oil and gas production — automated supervisory control of extraction wells and gas cooling unit (ACO) systems Municipal water and utilities — water treatment plants, sewage systems, and district heating network management Heavy industry — process control for aluminum smelters, chemical plants, and continuous or discrete manufacturing lines (reference: RUSAL Bratsk electroplant) Commercial and multi-function buildings — life support, HVAC, and utility metering and dispatch for large facilities and residential complexes Agricultural greenhouses — climate control monitoring and remote dispatch for greenhouse complexes Retail chain facility management — supervisory and energy accounting systems for supermarket networks (reference: Magnit hypermarkets) Boiler houses and mini power plants — full APCS coverage and remote supervisory control for district heating and co-generation energy centers

Source: official manufacturer website
