Relay Protection Parameter Measurement Device RETOM-25

Relay Protection Parameter Measurement Device RETOM-25 — Dynamics LLC

Name: Relay Protection Parameter Measurement Device RETOM-25
Brand: RETOM
SKU: 339244
Availability: InStock

Brand: RETOM

$900 - $3,000 USD

MOQ: 2 pieces

Key Features

power: 1400

Voltage output: 250 V

Current output: 200 A

brand: RETOM

Supplier Information

Dynamics LLC

🇷🇺 📦 🏭 🛡️

View All Products (10)

Quick Inquiry

Description

The RETOM-25 is a relay protection parameter measurement and test device developed and manufactured by NPP Dinamika (Dynamics LLC), the Russian maker of the RETOM family of test sets used on power facilities from 0.38 to 1150 kV. It retains the full functionality of the well-known RETOM-21 while weighing only 19 kg in a compact 340 × 430 × 205 mm case with a removable lid, so it can be operated upright or flat and carried to site work easily.

The unit delivers up to 200 A of output current and up to 1400 VA of output power (extendable to 5000 VA with the RET-3000 and RET-VAH-2000 auxiliary blocks), with an output voltage of 250 V for plotting volt-ampere characteristics of current transformers. It tests all types of electromechanical relays, 6-10-35 kV microprocessor protections, RCDs, instrument current and voltage transformers, auto-reclosers, high-voltage and automatic circuit breakers, contactors and starters.

An electronic regulator sets outputs in steps of 0.1% of range, frequency is adjustable from 20 to 1000 Hz with 0.001 Hz resolution, and the device runs standalone or under PC control with supplied software. The RETOM-25 is entered in the official measuring-instrument registers of Russia, Belarus and Kazakhstan, carries a 5-year manufacturer warranty and has a 4-year calibration interval.

Details & Equipment

RETOM-25 in operation

RETOM-25 test set

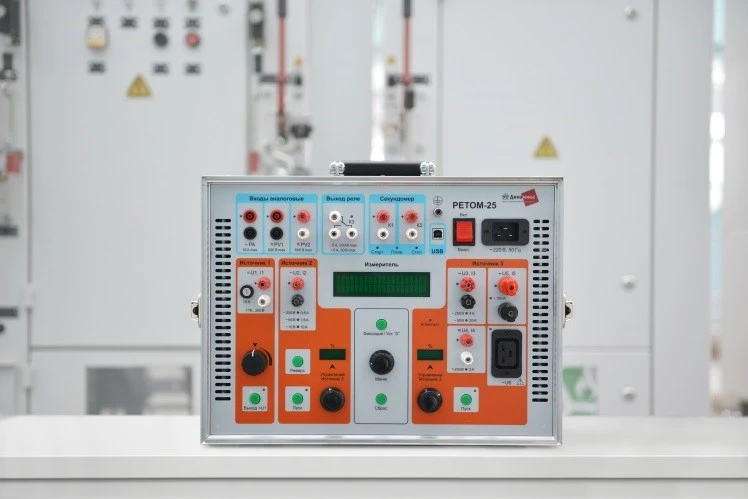

The 19 kg RETOM-25 unit with its front control panel; the removable lid allows operation in both vertical and horizontal positions.

Operation with RET-VAH-2000

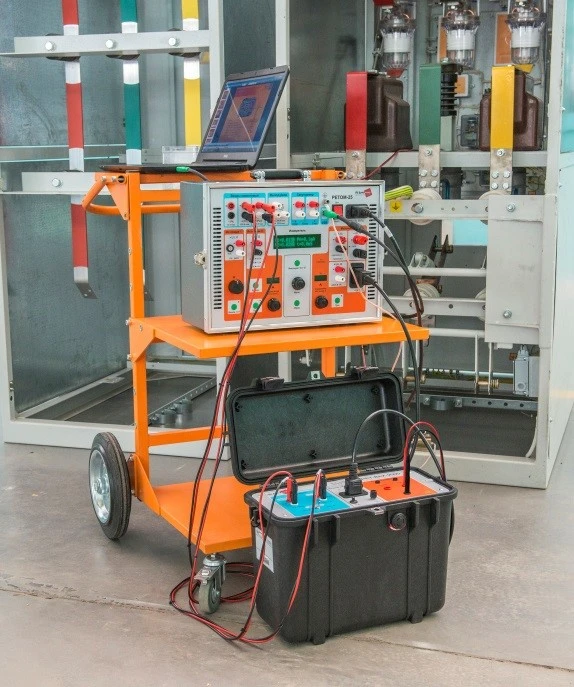

RETOM-25 working together with the RET-VAH-2000 transformer block, which extends output power to 5000 VA for primary-current injection and CT testing.

Features

⚡

200 A output current

Maximum output current of 200 A covers testing of all relay types, current transformer ratio and polarity checks. Maximum output power is 1400 VA, rising to 5000 VA with RET-3000 and RET-VAH-2000 blocks.

🎛️

Precision electronic regulator

Output values are set in steps of 0.1% of the selected range, with position indicators for the regulator. Output voltage up to 250 V allows work in 220 V networks and CT saturation curves up to 250 V.

📊

Wide measurement suite

Measures internal and external current, voltage, frequency, phase angle, full impedance (Z, R, X), power (S, P, Q) and all timing characteristics: pickup, dropout, duration, non-simultaneity and contact bounce.

🌐

20–1000 Hz frequency range

Frequency is set with 0.001 Hz resolution and controllable df/dt rate, enabling tests of filter relays, frequency relays and under-frequency load-shedding schemes. Phase angle between two sources is adjustable over 0–360°.

🔋

Built-in auxiliary power source

A 220 W operational power source tests protection devices autonomously at nominal, reduced or elevated supply voltage from 176 to 260 V.

💻

Standalone or PC control

Supplied software includes a Manual Control module plus automatic test programs for most current, voltage, power and frequency relays and for plotting CT volt-ampere characteristics.

Buyer Benefits

Weighs only 19 kg — almost half the weight of the previous RETOM-21 generation — while keeping its full functionality
One instrument tests electromechanical relays, 6-10-35 kV microprocessor protections, RCDs, CTs, VTs, breakers, contactors and starters
Listed in the measuring-instrument registers of Russia, Belarus and Kazakhstan
5-year manufacturer warranty and a 4-year calibration interval reduce ownership costs
True RMS, amplitude, mean-rectified and 50 Hz first-harmonic measurement methods in one device
Operates from -20 to +50 °C with a rated service life of at least 30 years
Expandable with RET-3000, RET-VAH-2000, RETOM-6000, RET-MIKRO and other manufacturer blocks

Applications

Commissioning and routine testing of electromechanical protection relays (current, voltage, impedance, power, frequency, time relays) Testing of microprocessor-based protection devices in 6-10-35 kV networks Measurement of transformation ratio and polarity of instrument current transformers Plotting volt-ampere (saturation) characteristics of current transformers up to 250 V Testing of high-voltage circuit breakers, automatic breakers and auto-reclose schemes Checking RCDs, contactors, magnetic starters and low-voltage control apparatus Verification of directional protections and synchronization systems using two phase-adjustable sources Testing of under-frequency load shedding and frequency-based automation with controlled df/dt
