Name: Optical Power Meter PHOTON-5V for Fiber Optics Measurement
Brand: Photon
SKU: 196509
Availability: InStock

Brand: Photon

$150 - $480 USD

MOQ: 20 pieces

Key Features

brand: kb svyaz

kit: optical power meter, ADSL tester, VDSL, wire set, charger

protection: against overcurrents and voltage

designation: photon-5V

Supplier Information

KB "SVYAZ" LLC

🇷🇺 📦 🏭 🛡️

View All Products (16)

Quick Inquiry

Description

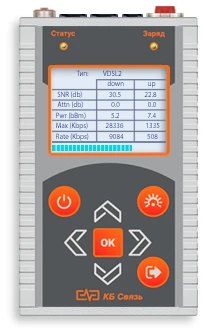

The ФОТОН-5V (Foton-5V) is a six-function handheld field instrument produced by KB SVYAZ LLC, a Russian developer and manufacturer of telecommunications test equipment. In one compact, 0.5 kg body it integrates an optical power meter covering six standard wavelengths (850, 1300, 1310, 1490, 1550, and 1625 nm) with a measurement range of +5 to −60 dBm and an accuracy of ≤0.5%, a 650 nm visual fault locator rated for up to 10 km, a full ADSL/ADSL2+/VDSL/VDSL2 broadband tester, a copper LAN cable analyzer (UTP/FTP), a 1 kHz tone generator for cable sorting, and an LED flashlight.

The 240×320 color backlit display stores up to 50 test reports in internal memory, and the rugged 158×95×36 mm housing is powered by four included AA NiMH rechargeable batteries or a 220 V mains adapter. The device carries a Declaration of Conformity under the TR EAEU technical regulations and is included in the Russian Register of Domestically Manufactured Industrial Products under entry No.

466/14/2023, supporting state procurement and import-substitution programs. KB SVYAZ backs the instrument with a two-year warranty; rated service life is seven years with a mean time between failures of at least 10,000 hours.

Details & Equipment

DSL and Broadband Diagnostics

VDSL Line Parameters

The VDSL test screen displays connection technology, maximum and achieved speed, line attenuation, SNR margin, and output power in a single cyclic readout — all the parameters a technician needs to assess broadband subscriber line quality.

BER Test Results

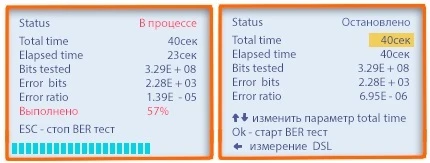

The BER test view reports the total volume of transmitted data and the number of bit errors, giving a direct and objective measure of line quality that goes beyond simple link-up or speed indicators.

Ping and IP Verification

The ping and IP test screen confirms the subscriber's IP address, subnet mask, default gateway, and round-trip latency directly over the DSL connection under test, enabling end-to-end connectivity verification without additional tools.

LAN Cable Analysis

Wire Map and Fault Location

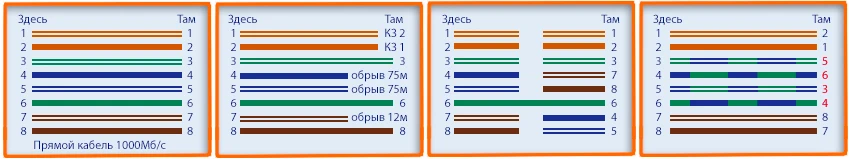

The four-panel LAN wire-map display shows the wiring topology of each conductor pair in a UTP/FTP cable alongside the detected fault type and distance to fault per wire, enabling rapid copper-cable troubleshooting during installation and maintenance.

Features

🔦

Optical Power Meter

Measures optical power from +5 to −60 dBm across six standard wavelengths (850/1300/1310/1490/1550/1625 nm) with a measurement error of ≤0.5%, using a universal connector with interchangeable SC, FC, and ST adapters.

🔴

Visual Fault Locator

The 650 nm, 10 mW VFL operates in continuous or 2 Hz pulsed mode via a universal 2.5 mm FC/UPC connector, locating breaks, bends, bad splices, and bad contacts up to 10 km away.

📡

xDSL Broadband Tester

Auto-detects ADSL, ADSL2, ADSL2+, VDSL, and VDSL2, then cyclically displays achieved speed, maximum speed, line attenuation, SNR margin, output power, and live BER — all without manual mode selection.

🔌

LAN Cable Analyzer

Verifies UTP/FTP wiring maps and detects breaks (with distance-to-fault per conductor up to 300 m), short circuits, reversed pairs, crossed pairs, and split pairs; also performs IP address and ping tests.

📟

Color Graphic Display with Report Memory

A 240×320 pixel backlit display provides clear readouts in all conditions, and onboard memory holds up to 50 saved test reports for on-site documentation.

🔋

Flexible Power and Long Service Life

Runs on four AA NiMH rechargeable batteries (included) or a 220 V/5 V USB adapter; configurable auto power-off (1–60 min) and a rated MTBF of ≥10,000 hours keep downtime low in demanding field use.

Buyer Benefits

Six instruments in one unit — optical meter, VFL, ADSL/VDSL tester, LAN analyzer, tone generator, and LED flashlight — reduce the test kit an engineer needs to carry to the job site.
Wide optical power range of +5 to −60 dBm with ≤0.5% accuracy covers both active-source measurements and passive loss testing across all common single-mode and multimode wavelengths.
Entry No. 466/14/2023 in the Russian Register of Domestically Manufactured Industrial Products simplifies qualification for state and municipal procurement under import-substitution requirements.
Auto-detection of DSL connection technology eliminates manual configuration, accelerating broadband commissioning and subscriber-line acceptance workflows.
On-site BER testing reveals marginal lines that pass basic speed checks but cause real-world user complaints, enabling proactive quality management.
50-report internal memory allows an engineer to document a full day of measurements in the field before transferring data, without needing a laptop or tablet on site.
Two-year warranty and a seven-year rated service life lower total cost of ownership compared with maintaining separate dedicated instruments.

Applications

Commissioning and acceptance testing of FTTH, FTTB, and FTTC fiber-optic access networks Fault location in fiber-optic trunk and distribution cables using VFL and optical power measurement ADSL/VDSL broadband service activation and SLA compliance verification for ISPs and telecom operators Copper UTP/FTP structured cabling installation, certification, and troubleshooting Routine maintenance and performance monitoring of fiber and copper last-mile subscriber lines Cable identification and port sorting using the built-in 1 kHz tone generator with the included terminator plug Pre-installation optical link loss surveys and fiber span budget verification Field diagnostics by telecom contractors, building network installers, and ISP NOC engineers
