Name: Online Double Conversion UPS SIPB3BA.9-11 for Floor Installation
Brand: PARUS
SKU: 181073
Availability: InStock

Brand: PARUS

$420 - $1,200 USD

MOQ: 5 pieces

Key Features

Full power: 3000

Active power: 2700 W

Form factor: floor

Supplier Information

PARUS ELECTRO LLC

🇷🇺 📦 🏭 🛡️

View All Products (118)

Quick Inquiry

Description

The SIPB3BA.9-11 is a 3000 VA / 2700 W online double-conversion uninterruptible power supply in a floor-standing (tower) enclosure, produced by PARUS ELECTRO LLC — a Russian developer and manufacturer of professional UPS equipment. The true online double-conversion topology means connected loads are powered exclusively from a fully conditioned inverter output at all times, with zero milliseconds of transfer time when grid power fails or degrades.

The output waveform is a pure sine wave in every operating mode, making the unit safe for a broad range of sensitive electronic and industrial loads.

The unit accepts a wide input voltage range of 110 to 290 V and a frequency range of 45–65 Hz, tolerating significant grid disturbances without switching to battery. Output voltage is regulated to ±2% accuracy at 220 V with a 0.9 output power factor.

Six built-in sealed lead-acid batteries on a 72 V DC bus deliver approximately 3 minutes of runtime at full load and 8 minutes at 50% load; up to four external battery modules can be added, extending runtime to over 65 minutes at 2500 W. Management is handled via RS-232 and USB ports, an internal slot for an SNMP card or dry-contact relay, and a backlit LCD display with LED indicators.

An ECO mode raises efficiency to ≥94%. The unit holds EAC certification B.00124/24 under TR TS 004/2011 and TR TS 020/2011 and carries a 24-month manufacturer warranty.

Details & Equipment

Product Views

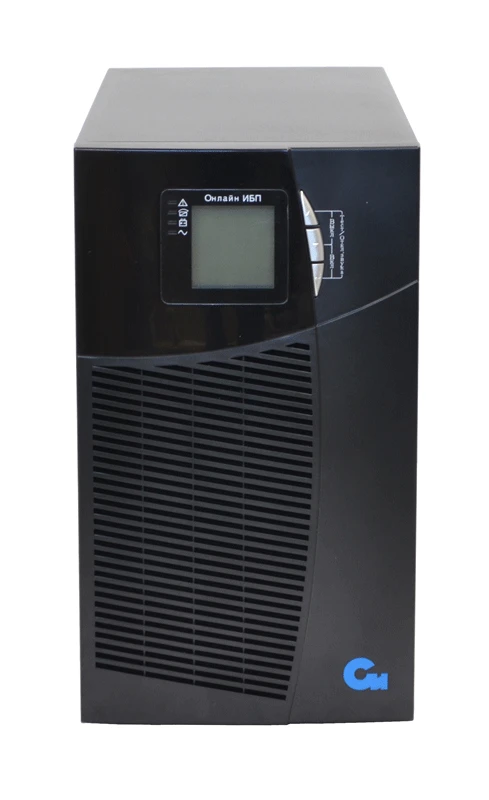

Front Panel

Floor-standing tower enclosure of the SIPB3BA.9-11 showing the LCD status display and front-accessible connectivity, with dimensions of 199 × 466 × 337 mm and a net weight of 27.2 kg.

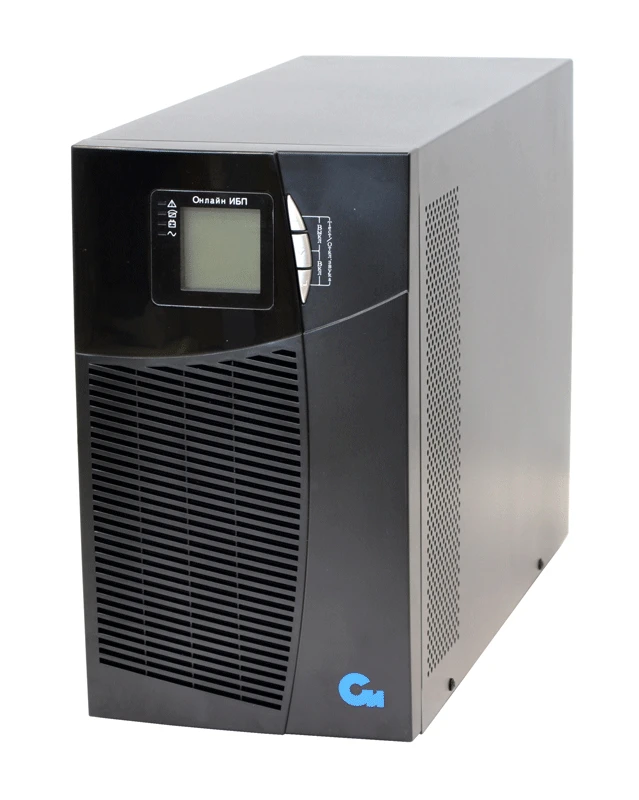

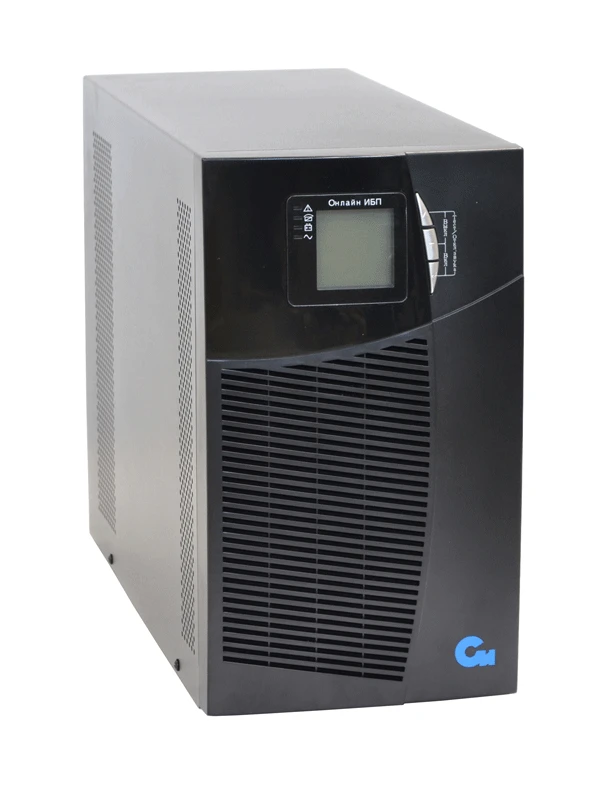

Unit Overview

Full view of the SIPB3BA.9-11 tower UPS, rated 3000 VA with a 0.9 output power factor, suitable for floor installation in server rooms and industrial environments.

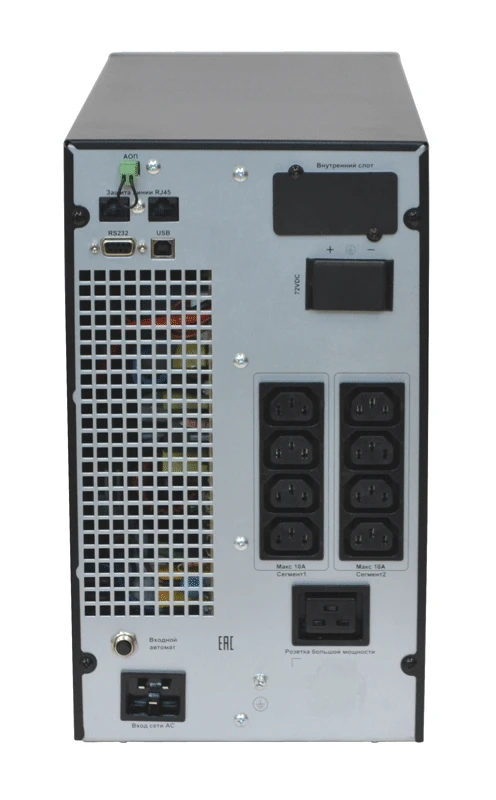

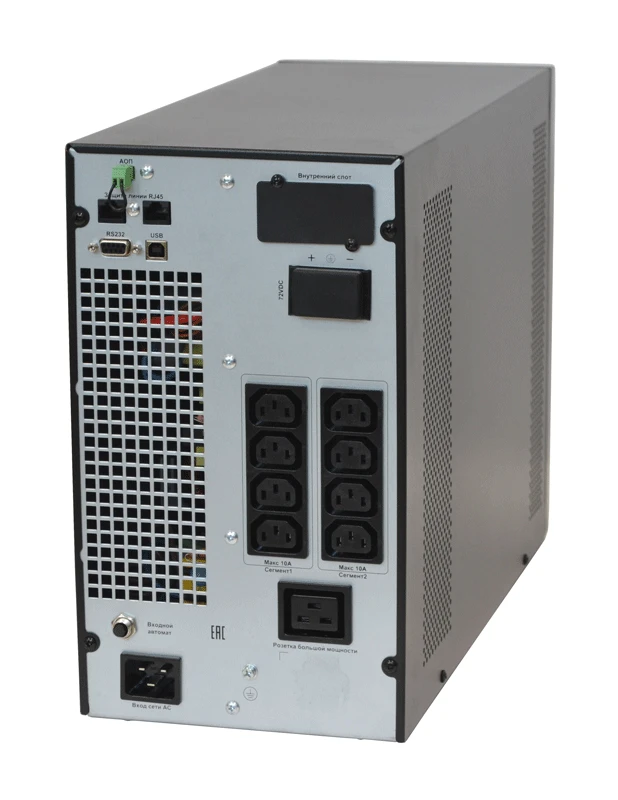

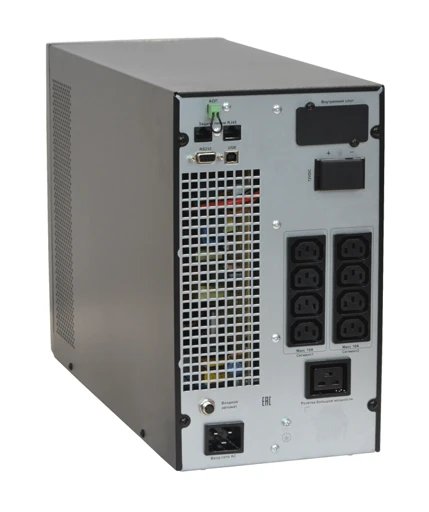

Output Sockets

Rear connectivity panel featuring eight IEC 320 C13 outlets and one high-current IEC 320 C19 outlet, accommodating diverse server, networking, and peripheral loads.

Control Interfaces

Management interface section showing RS-232 and USB ports, the internal SNMP/dry-contact slot, and the configurable EPO emergency power-off connector.

Battery & Indicators

LCD Display

The backlit digital LCD display with supplementary LED indicators provides real-time readings of input/output voltage, load percentage, battery charge level, and alarm status.

Battery Compartment

Internal battery bay housing six sealed lead-acid cells on a 72 V DC bus; the three-stage intelligent charging system restores 90% capacity in approximately 3 hours.

External Battery Connection

External battery module interface enabling connection of up to four additional battery modules (БМ), extending runtime to over 65 minutes at 2500 W load.

Features

🔄

True Online Double Conversion

Loads are continuously powered through the inverter with zero transfer time (0 ms) to battery, and pure sine-wave output is maintained in all operating modes.

⚡

0.9 Output Power Factor

A 0.9 output power factor delivers 2700 W of active power from the 3000 VA rated capacity, providing high power density for real-world loads.

🔋

Expandable Battery Runtime

Six built-in sealed lead-acid batteries offer up to 8 minutes at half load; connecting up to four optional external battery modules extends runtime beyond 65 minutes at 2500 W.

📡

Flexible Management Interfaces

RS-232 and USB ports are built in, with an internal expansion slot accepting either an SNMP network card or a dry-contact relay card, plus a configurable EPO emergency-shutdown port.

🌐

Wide Input Tolerance

Accepts input voltages from 110 to 290 V and frequencies of 45–65 Hz, absorbing severe grid variations without drawing on battery reserves.

🏅

EAC Certified, 24-Month Warranty

Certified under TR TS 004/2011 (safety) and TR TS 020/2011 (EMC) with EAC certificate B.00124/24; backed by a 24-month manufacturer warranty.

Buyer Benefits

Zero-millisecond switchover to battery prevents any power interruption for critical connected equipment
Pure sine-wave output in all modes is compatible with all types of loads, including equipment with active power factor correction
Wide 110–290 V input range handles severe grid instability without consuming battery capacity
ECO mode efficiency of ≥94% reduces operating electricity costs during long continuous runs
Scalable runtime via up to four external battery modules supports mission-critical deployments requiring extended autonomy
Three-stage intelligent battery charging prolongs battery service life and reduces replacement frequency
Eight IEC C13 outlets plus one high-current IEC C19 outlet provide flexible load connection for rack and floor-standing equipment

Applications

Servers and network switches in IT rooms and edge data centers Industrial automation controllers and programmable logic controllers (PLCs) Medical diagnostic and patient-monitoring equipment Telecommunications switching and signaling hardware Security management servers, NVRs, and access-control systems Financial transaction processing and point-of-sale infrastructure Laboratory instrumentation requiring clean, stable power Broadcasting and audiovisual production equipment

Source: official manufacturer website
