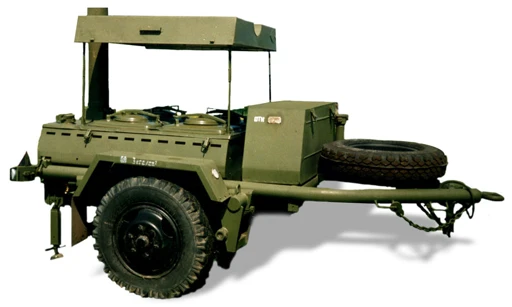

Mobile Kitchen Model 83418A for Catering 130 People
Mobile Kitchen Model 83418A for Catering 130 People
Mobile Kitchen Model 83418A for Catering 130 People
Mobile Kitchen Model 83418A for Catering 130 People
Mobile Kitchen Model 83418A for Catering 130 People
Mobile Kitchen Model 83418A for Catering 130 People
Mobile Kitchen Model 83418A for Catering 130 People
Mobile Kitchen Model 83418A for Catering 130 People

Mobile Kitchen Model 83418A for Catering 130 People — IZST LLC

Brand: null
$9,000 - $30,000 USD
MOQ: 1 pieces

Key Features

Gross weight: 3500 kg
Number of digestion boilers: 4 pcs
length: 3010...5010 mm
Water heater: 1 pcs

Description

The КП-130.11 (model 83418А) is a towed trailer kitchen manufactured by IZST LLC, a Russian specialist in mobile field catering equipment operating under the кухнявполе.рф brand. The unit is designed to provide three full hot meals per day for up to 130 people and can function equally in stationary field conditions — either mounted on its chassis or removed from it — as well as during road movement, so feeding operations continue without halting a convoy.

At the heart of the system are four cooking cauldrons: three units for first courses and boiling water (100 L working / 80 L net each) and one cauldron for main dishes (85 L working / 75 L net), supplemented by a 36-litre water heater and a roasting oven for an expanded menu range. The kitchen runs on liquid diesel fuel at roughly 10 kg/h or on solid fuel such as firewood, giving logisticians flexibility when operating in areas with limited fuel supply.

On its chassis the unit measures 3,810 × 2,180 × 1,620 mm and is towed by standard Russian commercial and military trucks — KAMAZ, ZIL, or GAZ — at speeds up to 80 km/h. Fuel is stored in an onboard tank and additionally in the hollow frame, providing an extended operational range before resupply.

The kitchen ships complete with kitchen accessories, making it a turnkey catering solution for field deployment.

Details & Equipment

Exterior Views

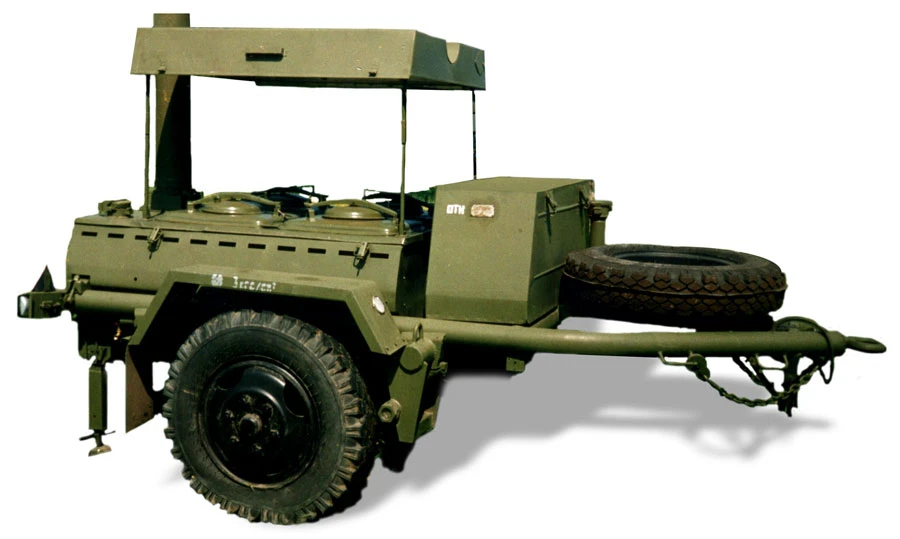

КП-130.11 on Chassis
КП-130.11 on Chassis
Full exterior view of the КП-130.11 trailer kitchen mounted on its single-axle chassis, ready for towing. Overall on-chassis dimensions are 3,810 × 2,180 × 1,620 mm.

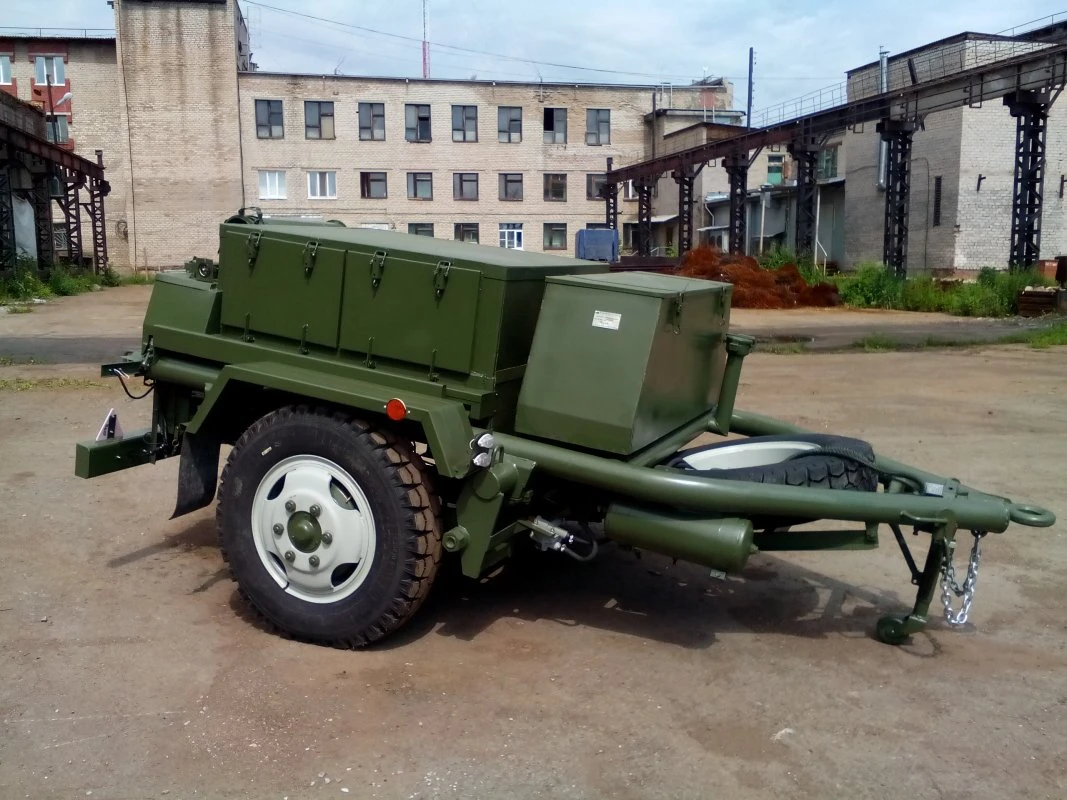

Side Profile
Side Profile
Side view showing the compact enclosed body that protects the cooking equipment during transport and provides a stable working environment for kitchen personnel in any weather.
Deployed Configuration
Deployed Configuration
The kitchen in field-deployed configuration with access panels open, illustrating how the unit transitions from road-mobile mode to active catering operations on arrival.

Cooking Equipment

Cauldron Array
Cauldron Array
Interior showing the four cooking cauldrons: three first-course units (100 L working volume each) and one main-course cauldron (85 L working volume), all heated from a common fuel system.
Roasting Oven & Water Heater
Roasting Oven & Water Heater
The onboard roasting oven and 36-litre water heater complement the cauldrons, enabling baked dishes and a continuous hot-water supply for food preparation and hygiene.
Fuel System Detail
Fuel System Detail
Fuel storage comprises a dedicated 48-litre tank and an additional 65-litre capacity within the hollow frame, supporting extended diesel operation at approximately 10 kg/h consumption.

Features

🍲
Four-Cauldron Configuration
Three cauldrons (100 L / 80 L net) serve soups and boiling water, while a fourth (85 L / 75 L net) handles main dishes, enabling simultaneous preparation of a full three-course meal for 130 people.
🔥
Dual-Fuel Capability
Operates on liquid diesel fuel at approximately 10 kg/h or on solid fuel such as firewood (up to 35 kg/h at 35% moisture), ensuring uninterrupted cooking wherever fuel supply is limited.
🚐
Cook-on-the-Move
The trailer can remain in active cooking mode while being towed at up to 80 km/h behind a KAMAZ, ZIL, or GAZ truck, eliminating setup delays during tactical movements.
🌡️
Integrated Water Heater
A 36-litre onboard water heater provides a continuous supply of hot water for cooking, dishwashing, and field hygiene without relying on external sources.
🥩
Roasting Oven Onboard
The built-in roasting oven expands the menu beyond boiled and stewed dishes, supporting a more varied and nutritionally balanced catering programme in the field.
⚙️
Stationary or Mobile Use
The cooking body can be detached from the chassis and operated on the ground, giving deployment teams the option to set up a semi-permanent field kitchen without the trailer undercarriage.

Buyer Benefits

Applications

Military and defence field catering for company- or battalion-size units Disaster relief and emergency response feeding centres Seasonal field camps for agriculture, construction, and infrastructure projects Geological survey and resource-extraction expeditions in remote areas Civil defence training exercises and emergency preparedness drills Humanitarian aid missions requiring mobile food distribution Large outdoor events and festivals with temporary catering infrastructure needs Peacekeeping and expeditionary operations in areas without permanent kitchen facilities

Specifications

Gross weight
3500 kg
Number of digestion boilers
4 pcs
length
3010...5010 mm
Water heater
1 pcs
Roasting cabinet
1 pcs
width
1650...2500 mm
height
1340...1800 mm
Fuel consumption
8...10 kg
