Milking Machine with Pipeline ADM-8A-200 for 200 Cattle

Milking Machine with Pipeline ADM-8A-200 for 200 Cattle — Kurgaselmash LLC

Name: Milking Machine with Pipeline ADM-8A-200 for 200 Cattle
Brand: Kurgaselmash
SKU: 594594
Availability: InStock

Brand: Kurgaselmash

$15,000 - $48,000 USD

MOQ: 1 sets

Key Features

Aggregate ADM-8A-200 with 13 seats: 1 pcs

Packing of components: 1 pcs

Packaging of the milk frother: 1 pcs

Packaging of assembly parts: 1 pcs

Supplier Information

Kurgaselmash LLC

🇷🇺 📦 🏭 🛡️

View All Products (2)

Quick Inquiry

Description

The ADM-8A-200 is a pipeline milking machine system designed for machine milking and primary milk processing on dairy cattle farms operating under stall-housing conditions. Manufactured by Kurganselmash LLC — a specialized agricultural machinery producer based in Kurgan, Russia — the ADM-8A-200 is the 200-head variant of the ADM-8A series, distinguished by its glass milk pipeline construction.

The system accommodates 208 head of cattle and comes equipped with 12 milking units, with an installed electrical power of 8.75 kW. The complete assembly consists of 13 component packages covering all major subsystems: the glass milk pipeline, milk evacuator, two automatic milk pipeline lift devices, milk dosers, mounting hardware, stainless steel pipes, PVC pipes, and the UVU-F-60 unified vacuum unit.

Kurganselmash has been manufacturing dairy equipment for decades, with a product range spanning vacuum and milk pumps, milking aggregates, stall equipment, manure removal conveyors, and all associated spare parts and fittings. Equipment is delivered throughout all regions of the Russian Federation.

The ADM-8A-200 can be installed with either front-end or side placement of the milk room and vacuum section, allowing flexible integration into existing barn layouts. Custom configurations for non-standard herd sizes are also available from the manufacturer on request.

Details & Equipment

Product Overview

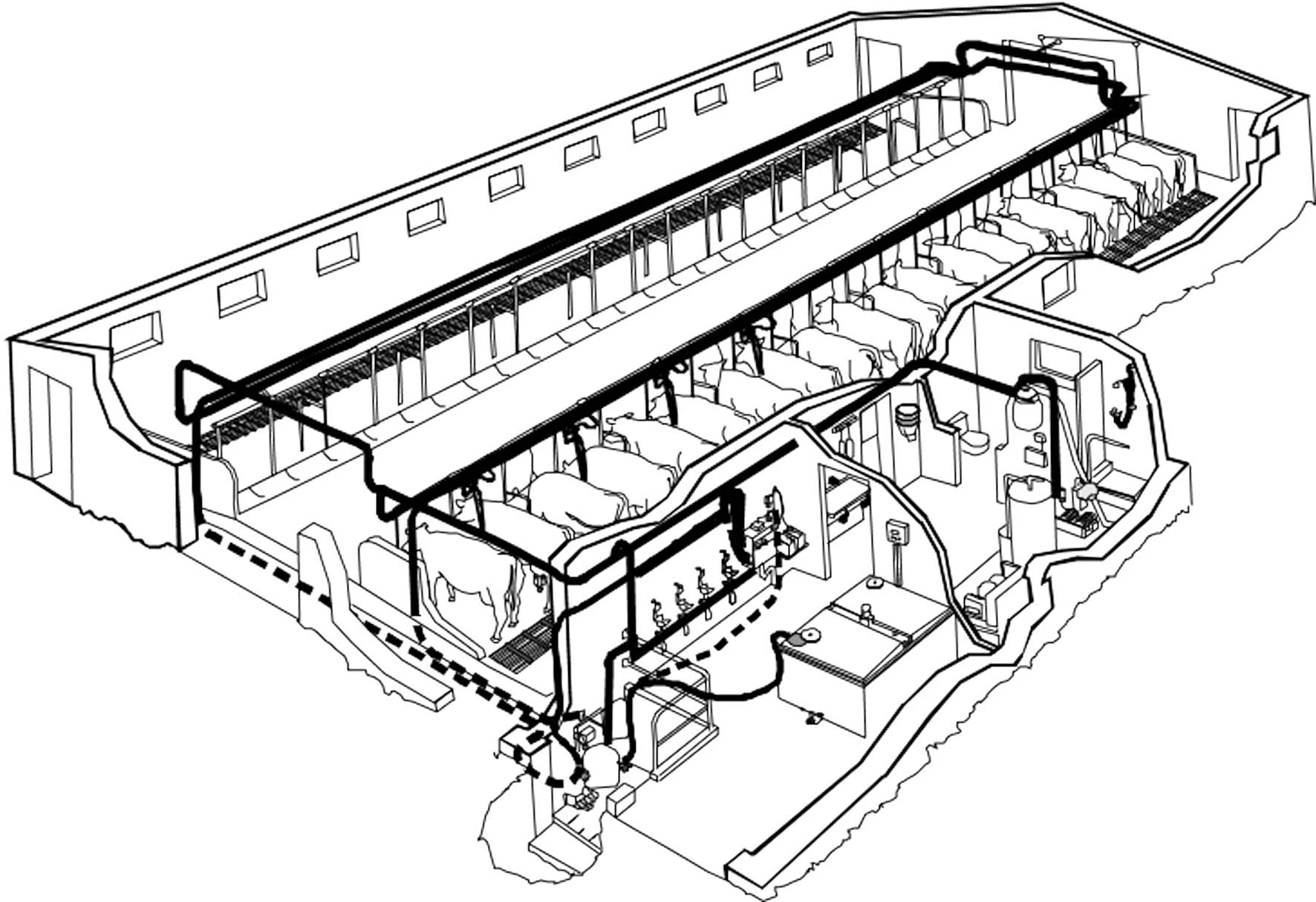

ADM-8A-200 Milking Aggregate

The ADM-8A-200 pipeline milking system as shown on the manufacturer's catalog page. The glass milk pipeline variant serves herds of up to 208 cattle with 12 milking units and 8.75 kW installed power.

System Components View

Component view of the Kurganselmash milking aggregate, illustrating the assembly that ships as 13 numbered packages including pipeline sections, vacuum unit, milk evacuator, dosers, and mounting hardware.

Features

🐄

200-Head Milking Capacity

Designed for herds of up to 208 head, the system deploys 12 milking units in simultaneous operation, providing the throughput needed for large-scale commercial dairy farms.

🔬

Glass Milk Pipeline

The ADM-8A series uses a glass milk pipeline, enabling visual inspection of milk flow during operation and making it easy to detect contamination or blockages before milk reaches the bulk tank.

⚡

8.75 kW Installed Power

The complete aggregate operates on 8.75 kW of installed electrical power, supplying the vacuum unit, milk pump, and auxiliary equipment across the full 200-head pipeline.

🔄

Automatic Pipeline Lift Devices

Two automatic milk pipeline lift mechanisms are included in the assembly, simplifying cleaning-in-place procedures and reducing manual labor during sanitation cycles.

🏗️

Flexible Layout Configuration

The system supports two installation variants — front-end or side placement of the milk room and vacuum unit — adapting to different existing barn geometries without requiring structural changes.

📦

Complete 13-Package Kit

The ADM-8A-200 ships as 13 numbered packages covering every component for full installation: pipeline, evacuator, milk dosers, mounting parts, and the UVU-F-60 unified vacuum unit.

Buyer Benefits

Turnkey system — all 13 component packages required for full installation are supplied together, eliminating the need for separate procurement of sub-assemblies
Dual layout options (front-end or side milk room placement) allow integration into existing stall configurations without structural modifications to the barn
Glass pipeline enables real-time visual monitoring of milk flow, allowing operators to detect issues before they reach the bulk storage tank
Two included automatic pipeline lift devices reduce manual handling during washdown and CIP, lowering labor requirements for daily sanitation
12 simultaneous milking units support efficient milking cycles for herds up to 208 head, suitable for medium-to-large commercial dairy operations
Includes the complete UVU-F-60 unified vacuum unit, providing reliable and consistent vacuum for the entire milking line
Custom herd-size configurations are available from Kurganselmash for farms with non-standard facility sizes beyond the standard 100 or 200 head variants

Applications

Medium and large-scale dairy cattle farms with stall-housing (tied or loose stall systems) Milk collection and primary processing on commercial dairy complexes New dairy barn construction requiring complete milking system integration from a single supplier Modernization and replacement of outdated or manual milking systems on existing cattle farms State and cooperative dairy enterprises requiring certified domestically manufactured milking equipment Multi-shift milking operations requiring consistent vacuum performance and high throughput for 200-head herds Farms participating in Russian agricultural subsidy or leasing programs that require domestic equipment origin Operations in regions across the Russian Federation served by Kurganselmash's nationwide delivery network

Source: official manufacturer website
