Manual Resuscitation Ventilator for Adults ADR-MP-V

Manual Resuscitation Ventilator for Adults ADR-MP-V — MEDPLANT LLC

Name: Manual Resuscitation Ventilator for Adults ADR-MP-V
Brand: MEDPLANT
SKU: 319775
Availability: InStock

Brand: MEDPLANT

$30 - $180 USD

MOQ: 50 sets

Key Features

Overall dimensions: (370x175x310)±20 mm

mass: 3 kg

model: adr-mp-v

Supplier Information

MEDPLANT LLC

🇷🇺 📦 🏭 🛡️

View All Products (71)

Quick Inquiry

Description

The ADR-MP-V is a manual resuscitation ventilator for adults developed and manufactured by MEDPLANT, a Moscow-based producer of emergency and resuscitation medical equipment. The device is designed for manual artificial lung ventilation of patients weighing over 20 kg in respiratory failure of any etiology, and is intended for emergency medical services, disaster medicine, military and extreme medicine, hospital anesthesiology, intensive care and resuscitation departments, and maternity facilities.

This is a reusable, sterilizable new-generation system built around the KD-MP-V breathing set with an Ambu-type self-inflating bag (1650 ml breathing bag, 2600 ml reserve bag) and a high-capacity portable mechanical aspirator APM-MP-1 delivering up to 70 kPa vacuum. Maximum minute ventilation reaches 31 L/min at a ventilation rate of 12-20 breaths per minute, with airway pressure limited to about 60 cm H2O by a relief valve.

The complete kit, including airways, a tongue holder, a screw-type mouth gag and aspiration catheters, packs into a compact fabric carrying bag weighing around 3 kg. The product holds Russian registration certificate No.

FSR 2007/00439 and a registration certificate for the Republic of Kazakhstan No. RK MI (MT)-0 No.025220.

Details & Equipment

What's in the kit

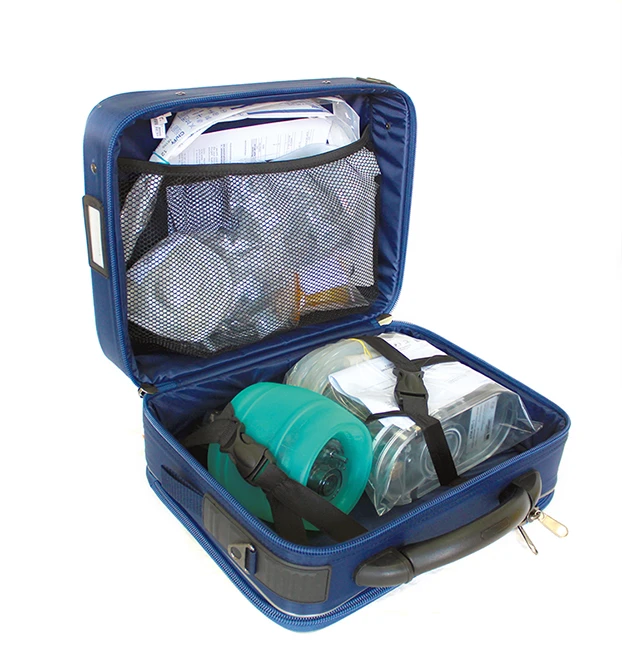

Packed carrying case

The complete ADR-MP-V system stowed in its fabric carrying bag: the breathing set and aspirator are secured by straps, with accessories and documents in the mesh pocket.

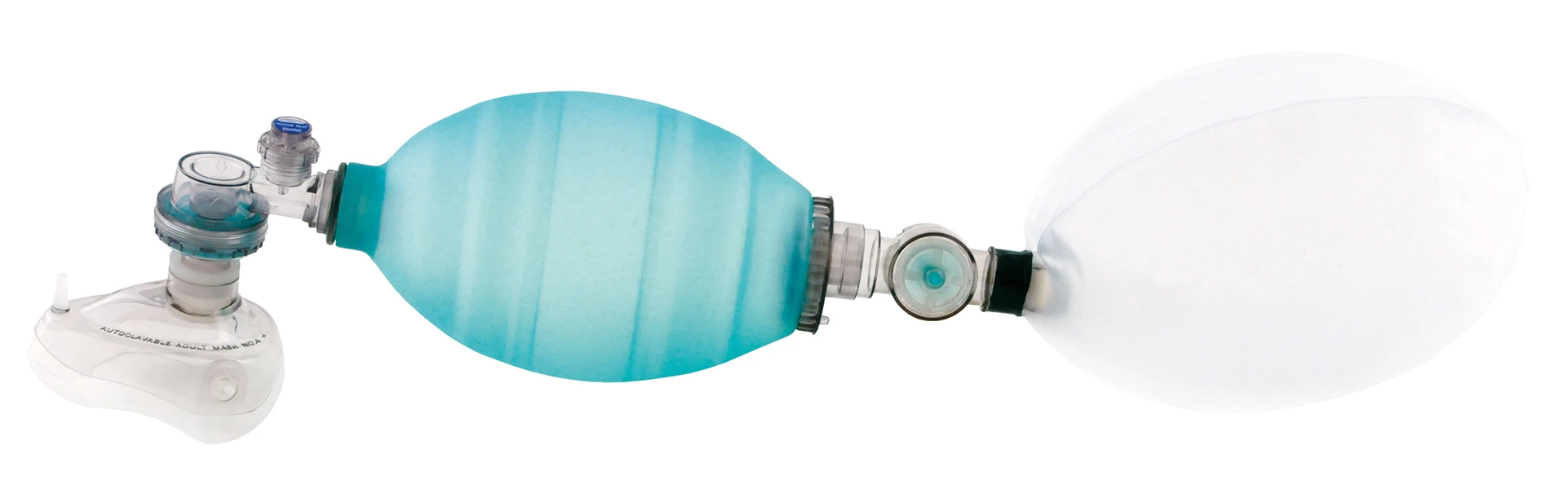

Assembled breathing set KD-MP-V

Ambu-type self-inflating bag (1650 ml) with patient valve, pressure-relief valve, adult face mask and 2600 ml reserve bag, delivering minute ventilation of at least 31 L/min.

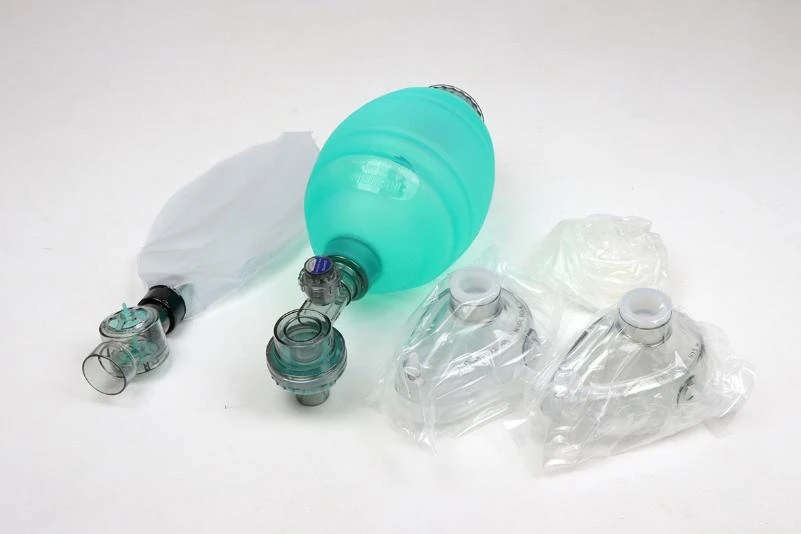

Breathing set components

Sterilizable breathing bag, valve assemblies, reserve bag and face masks of the KD-MP-V set, all reusable after sterilization.

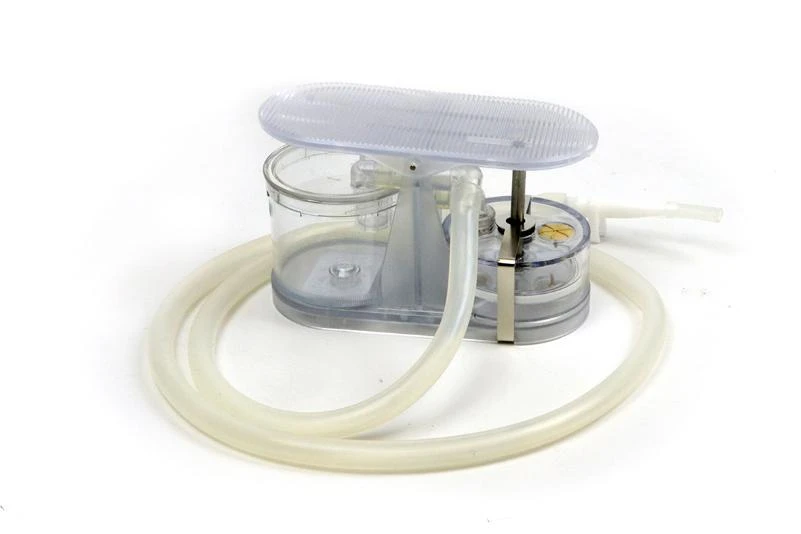

Mechanical aspirator APM-MP-1

Foot-operated portable aspirator producing up to 70 kPa vacuum, with at least 6 L/min water suction capacity, a 0.3 L collection container and a 10 mm suction tube.

Features

🫁

Adult ventilation capacity

Self-inflating Ambu-type bag of 1650±200 ml with a 2600±200 ml reserve bag provides maximum minute ventilation of at least 31 L/min for patients over 20 kg.

🛡️

Pressure-limited circuit

A relief valve limits circuit pressure to 6±1 kPa (~60 cm H2O), while inspiratory and expiratory resistance stay below 0.5 kPa at a 50 L/min flow.

🌀

Built-in mechanical aspirator

The foot-operated APM-MP-1 aspirator develops up to 70 kPa vacuum within 10 seconds and removes at least 6 L/min of water or 2 L/min of vomit, with a 0.3 L collection container.

♻️

Reusable and sterilizable

All components are multi-use and withstand sterilization, making the system suitable for repeated deployment in ambulance and hospital service.

🧰

Complete airway kit

Supplied with three airways of different sizes, a tongue holder, a screw-type mouth gag, aspiration catheters and an operation manual, all packed in a fabric carrying bag.

📜

Certified medical device

Registered in Russia (certificate No. FSR 2007/00439) and in the Republic of Kazakhstan (No. RK MI (MT)-0 No.025220).

Buyer Benefits

One compact kit covers both manual ventilation and airway suction, replacing separate devices at the emergency scene
Fully manual operation requires no electricity or compressed gas, ensuring readiness in field and transport conditions
Reusable sterilizable design reduces per-use cost compared with disposable resuscitation bags
Lightweight package of about 3 kg in a fabric bag (approx. 370x180x310 mm) is easy to carry and store in an ambulance
Low dead space of the patient valve (no more than 5 ml +10% of tidal volume) supports effective ventilation
Gas leakage of no more than 0.5 L/min at 30 cm H2O ensures reliable delivery of tidal volume
Dual registration for Russia and Kazakhstan simplifies procurement across EAEU markets

Applications

Ambulance and emergency medical service crews Disaster medicine and rescue teams Military and extreme medicine units Anesthesiology and intensive care departments of hospitals Resuscitation rooms and emergency departments Maternity hospitals and obstetric facilities First-aid stations at industrial sites and remote facilities Medical evacuation and patient transport

Source: official manufacturer website
