Large Ceiling Fan for Industrial Use - Monsterfan MF-C16
Large Ceiling Fan for Industrial Use - Monsterfan MF-C16
Large Ceiling Fan for Industrial Use - Monsterfan MF-C16
Large Ceiling Fan for Industrial Use - Monsterfan MF-C16
Large Ceiling Fan for Industrial Use - Monsterfan MF-C16
Large Ceiling Fan for Industrial Use - Monsterfan MF-C16
Large Ceiling Fan for Industrial Use - Monsterfan MF-C16
Large Ceiling Fan for Industrial Use - Monsterfan MF-C16
Large Ceiling Fan for Industrial Use - Monsterfan MF-C16

Large Ceiling Fan for Industrial Use - Monsterfan MF-C16 — Sibshvank OJSC

Brand: Monsterfan
$1,500 - $4,800 USD
MOQ: 2 pieces

Key Features

diameter: 4900 mm
mass: 113 kg
Effective on an area up to: 850

Description

The Monsterfan MF-C16 is an industrial-grade HVLS (High Volume, Low Speed) ceiling fan developed by MonsterFans, a brand of Schwank Group and manufactured in Russia by Sibshvank OJSC. Nicknamed "The Allround Monster," the MF-C16 occupies the mid-position in the three-model MonsterFans range and is the most widely applicable choice for large industrial and commercial spaces.

The fan spans 4.9 metres (16 ft) in diameter and rotates at 10 to 75 RPM, quietly displacing large volumes of air across floor areas of up to 850 m². Its blades are fabricated from lightweight aluminium alloy drawn from the aerospace industry, and paired with a high-quality precision motor to deliver both outstanding air distribution and extended service life.

The unit weighs 113 kg and ships with a dedicated speed-control box. The underlying physics of the MF-C16 make it a year-round asset.

In summer it produces a gentle, steady air column that reduces the perceived temperature by up to 5°C, substantially improving worker comfort at a fraction of the energy cost of conventional air conditioning. In winter the same fan breaks up the heat stratification typical in high-bay buildings, redistributing warm air trapped near the ceiling down to the working zone and cutting heating expenditure significantly.

Three interchangeable mounting systems — standard I-beam, beam-structure bracket, and concrete side mount — allow installation in virtually any building configuration without structural modification.

Details & Equipment

Suspension Options

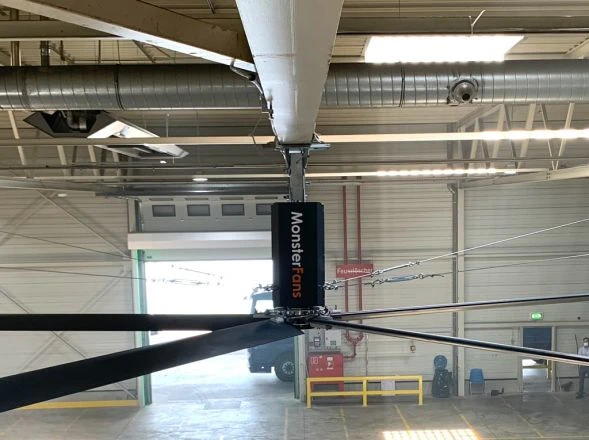

Standard I-Beam Mount
Standard I-Beam Mount
The standard mounting set for I-beam steel structures is included in every MF-C16 delivery, making it ready to install in typical industrial steel-frame buildings with no additional hardware.

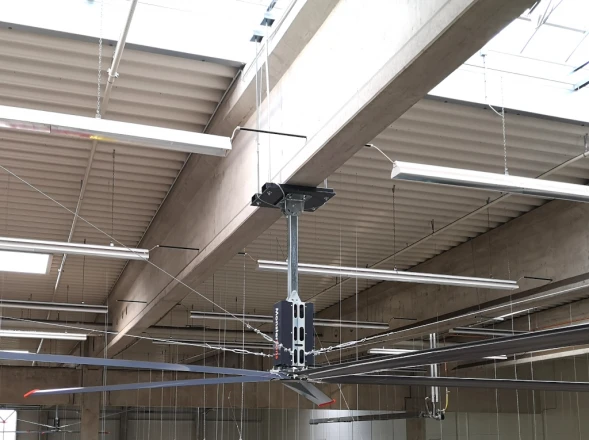

Beam Structure Mount
Beam Structure Mount
An optional bracket set is available for attachment to truss or beam-structure ceilings, covering a wide variety of industrial hall configurations where a standard I-beam is not present.

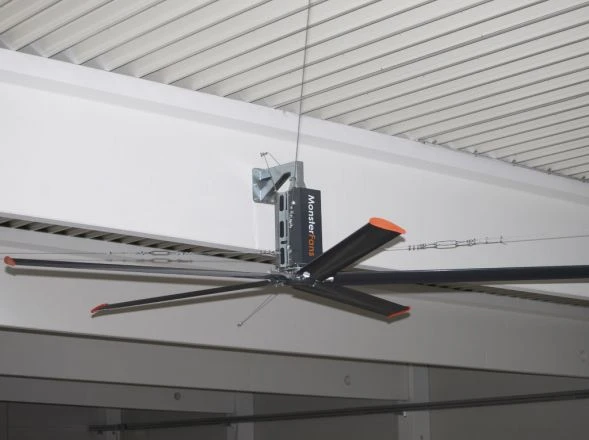

Concrete Side Mount
Concrete Side Mount
The side-mount kit secures the fan to a concrete wall or column, providing a flexible solution for buildings without overhead steel structure, such as concrete-frame warehouses or agricultural halls.

Technical Specifications & Control

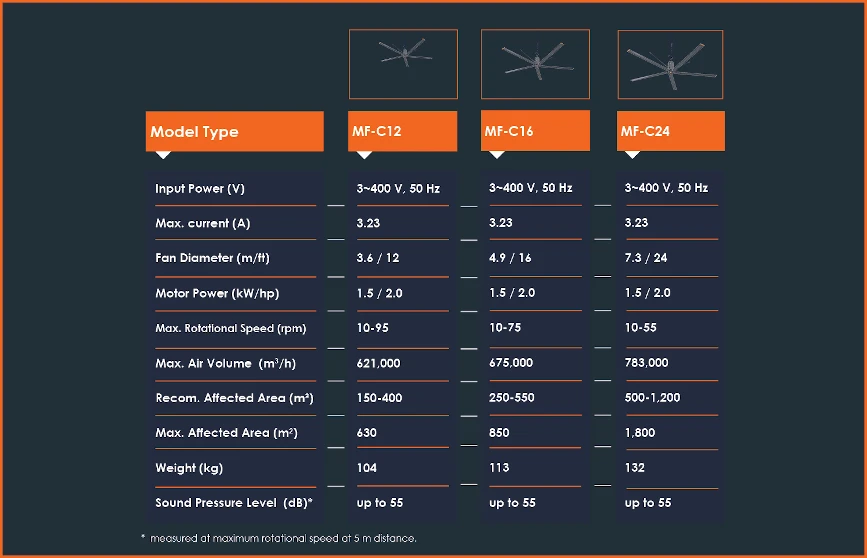

Product Technical Table
Product Technical Table
The MonsterFans technical data table summarises key parameters for the full range including the MF-C16: rotor diameter 4.9 m (16 ft), operating speed 10–75 RPM, effective coverage area up to 850 m², and unit weight 113 kg.

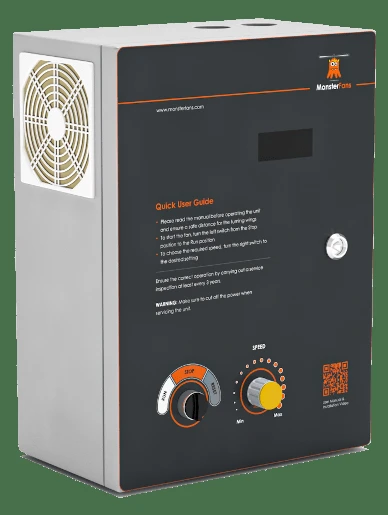

Speed Control Box
Speed Control Box
Each MF-C16 is supplied with its own simply-designed control box that allows stepless adjustment of fan speed, enabling operators to balance airflow and energy consumption to suit seasonal and load conditions.

Features

🌀
HVLS Technology
A 4.9 m (16 ft) diameter rotor spinning at 10–75 RPM moves enormous volumes of air at very low speed, creating a sustained and energy-efficient airflow across the entire floor area.
❄️
Summer Cooling
The steady air column produced by the fan reduces the perceived ambient temperature by up to 5°C, delivering genuine comfort for workers and occupants at minimal electricity cost.
🔥
Winter Destratification
In heating season the fan redistributes heat accumulated at ceiling level back to the working zone, eliminating stratification and generating significant savings on building heating bills.
✈️
Aerospace Aluminium Blades
The fan blades are manufactured from the same lightweight aluminium alloy used in professional aviation, providing fatigue resistance and long service life under continuous industrial duty.
📐
850 m² Coverage
A single MF-C16 unit effectively serves floor areas of up to 850 m², reducing the number of fans required in large warehouses, factories, or logistics halls.
🔇
Very Quiet Operation
The low-speed motor and aerodynamically optimised blades keep noise to a minimum, making the MF-C16 suitable for noise-sensitive environments such as sports halls, showrooms, and offices within industrial buildings.

Buyer Benefits

Applications

Warehouses and logistics distribution centres Manufacturing halls and assembly workshops Agricultural buildings and livestock housing Large retail stores and automotive showrooms Sports halls and indoor arenas Airport hangars and aircraft maintenance facilities Food processing facilities and cold-storage anteroom areas Exhibition halls and convention centres
