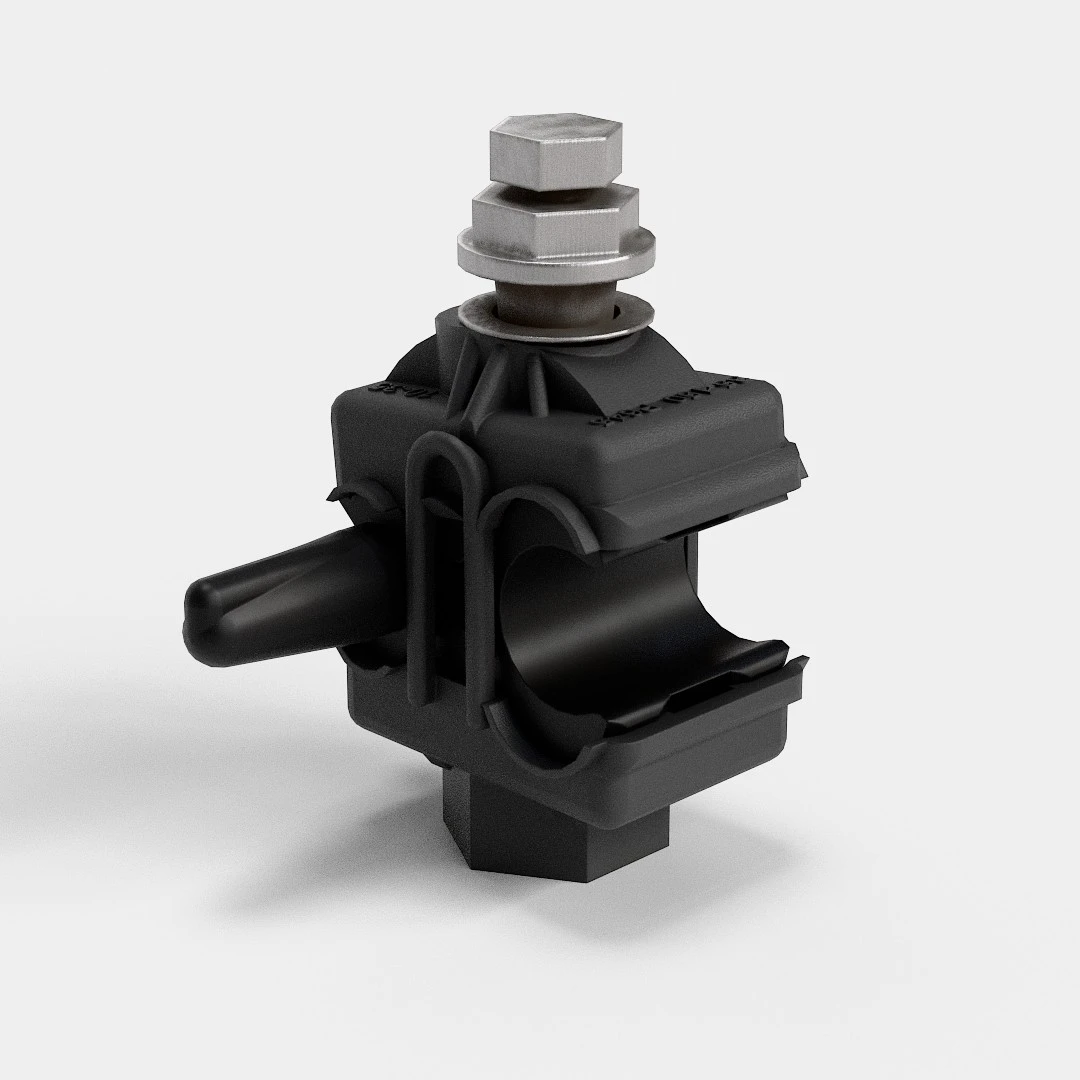

Name: Insulated Branch Clamp P645
Brand: Niled
SKU: 361218
Availability: InStock

Brand: Niled

$1.50 - $6 USD

MOQ: 1000 pieces

Key Features

Cross section of trunk core: 16...150 mm²

Cross section of branch conductor: 6...35 mm²

Supplier Information

Niled LLC

🇷🇺 📦 🏭 🛡️

View All Products (86)

Quick Inquiry

Description

The Insulated Branch Clamp P645, manufactured by Niled LLC, is designed for secure electrical connections and branchings in SIP-2 and SIP-4 wire systems. It accommodates conductor cross-sections ranging from 16 to 150 mm² for the main line and 6 to 35 mm² for branch lines.

With a nominal voltage of 1 kV and a current rating of 160 A, this clamp ensures reliable performance in various environmental conditions. Its innovative design features pyramidal piercing teeth for quick electrical contact and effective sealing.

The clamp is made from high-quality aluminum alloy and is resistant to UV rays, temperature fluctuations from -60°C to +50°C, and corrosion, making it suitable for outdoor applications.

Details & Equipment

Design and components

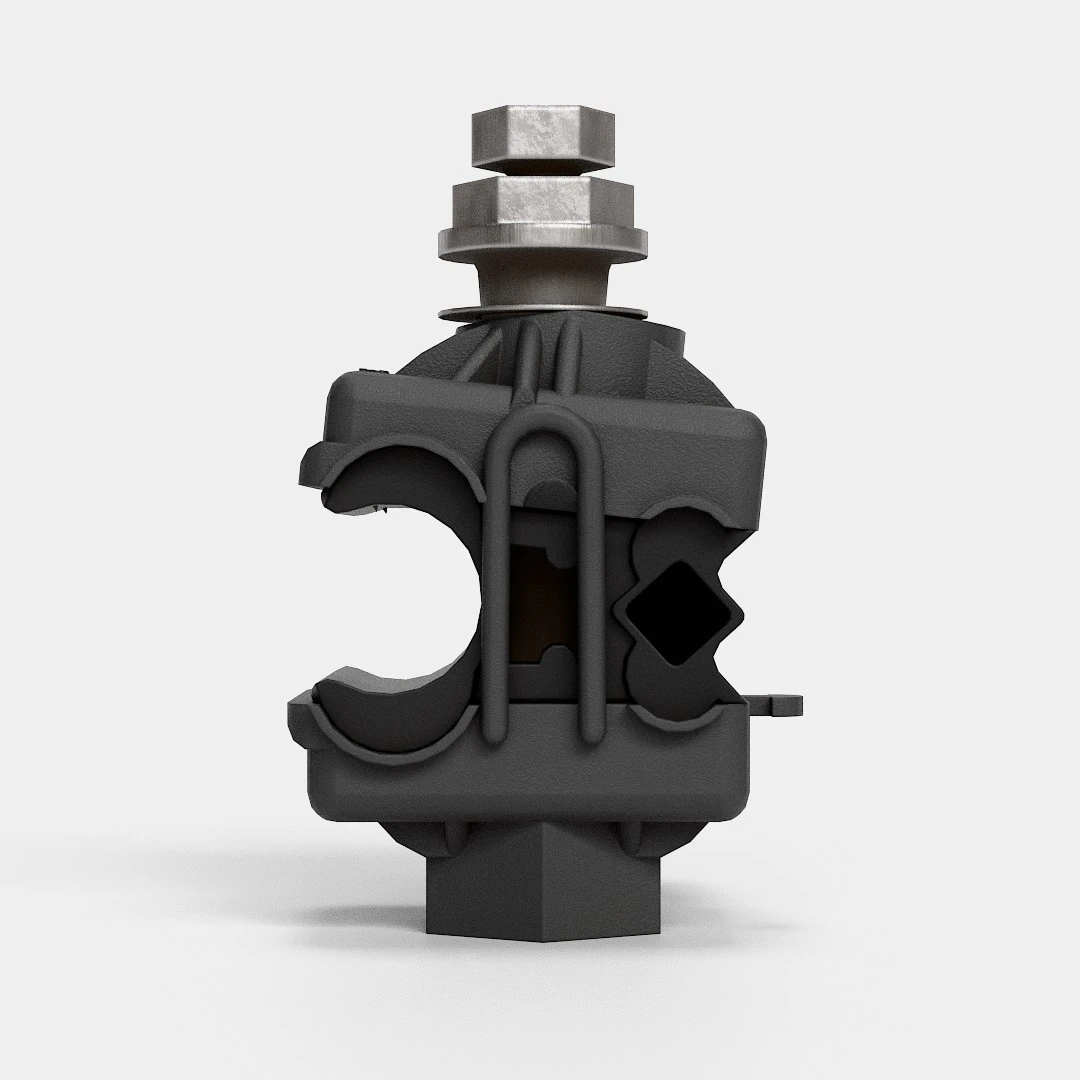

Close-up of the Clamp

Detailed view showcasing the pyramidal piercing teeth for optimal contact.

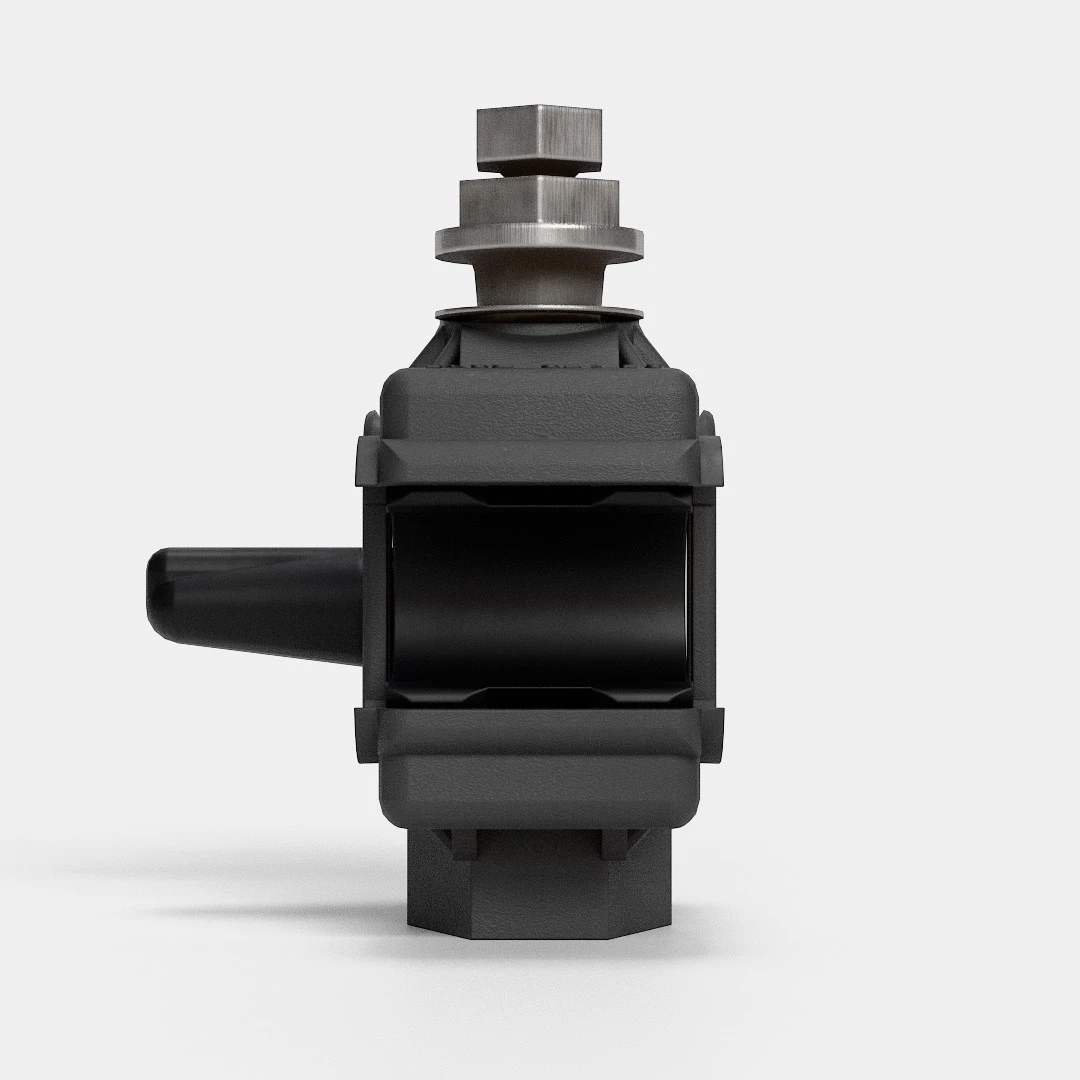

Installation Example

Illustration of the clamp installed on a live line.

Features

🔩

Durable Material

Constructed from aluminum alloy, ensuring excellent conductivity and compatibility with both aluminum and copper wires.

⚡

High Voltage Rating

Rated for a nominal voltage of 1 kV, making it suitable for high-voltage applications.

🌡️

Temperature Resistance

Operates effectively in a wide temperature range from -60°C to +50°C.

🔒

Reliable Sealing

Features pyramidal piercing teeth for fast electrical contact and reliable sealing.

🛠️

Easy Installation

Can be mounted on live lines, facilitating quick and safe installation.

Buyer Benefits

Ensures a secure and hermetic electrical connection.
Reduces the risk of oxidation with conductive grease on piercing elements.
Designed for easy tightening with an insulated socket wrench.
Resistant to aggressive atmospheric conditions, ensuring long-term reliability.
Backed by a 60-month warranty for peace of mind.

Applications

Used in electrical distribution networks for connecting branch lines. Ideal for street lighting and residential electrical connections. Applicable in overhead power lines using SIP conductors. Suitable for use in outdoor installations exposed to varying weather conditions. Utilized in industrial settings for reliable electrical junctions.
