Handheld Wired Barcode Scanner for Document Automation - BitBook SC-70AWU

Handheld Wired Barcode Scanner for Document Automation - BitBook SC-70AWU — BITBOOK LLC

Name: Handheld Wired Barcode Scanner for Document Automation - BitBook SC-70AWU
Brand: BitBook
SKU: 211756
Availability: InStock

Brand: BitBook

$15 - $60 USD

MOQ: 100 pieces

Key Features

Connection interface: USB (HID+VCOM+POS), Optional: RS-232, KBW

Types of codes: 1D, 2D

Degree of protection: IP54, resistant to falls from a height of up to 1.8 meters

Supplier Information

BITBOOK LLC

🇷🇺 📦 🏭 🛡️

View All Products (6)

Quick Inquiry

Description

The BitBook SC-70AWU is a rugged handheld wired barcode scanner developed and manufactured by BITBOOK LLC, a Russian company specialising in barcode coding equipment and based in Nizhny Tagil. Designed for document automation and industrial workflows, the SC-70AWU reads both 1D and 2D barcode symbologies — including EAN-13, Code 39, Code 128, PDF417, Data Matrix, and Aztec codes — via an area-image sensor that delivers reliable, wide-angle capture.

The scanner connects via USB with simultaneous HID, VCOM, and POS emulation modes, while optional RS-232 and keyboard-wedge (KBW) adapters extend compatibility with legacy point-of-sale and industrial terminals.

Built for real-world production and warehouse conditions, the SC-70AWU carries an IP54 ingress-protection rating and is tested for drop resistance from heights up to 1.8 metres. Three operating modes — manual trigger, stationary motion-detection, and continuous conveyor scan — allow the device to function as both a handheld scanner and a fixed-mount unit on a production or conveyor line.

Running on DC 5V drawn directly from the USB port, the scanner requires no external power supply. BITBOOK supplies the unit from stock in Nizhny Tagil for fast domestic fulfilment.

Details & Equipment

Design & Construction

SC-70AWU Handheld Scanner

The BitBook SC-70AWU in its standard black plastic housing, featuring the ergonomic pistol-grip form factor and integrated USB cable for simultaneous power and data.

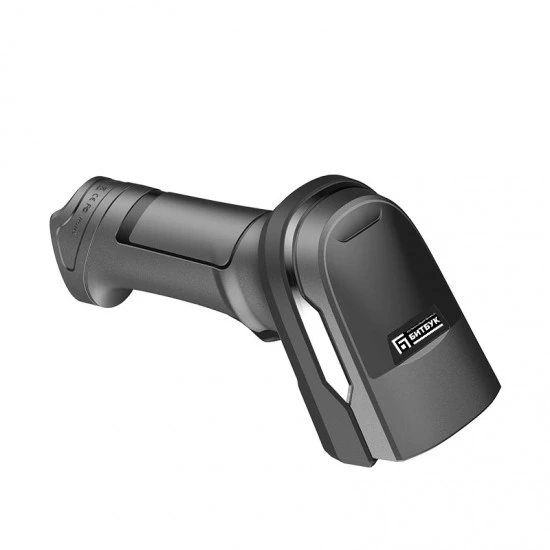

Scan Window & Trigger

The area-image sensor window at the scanner head enables wide-angle 1D and 2D code reading; the trigger button activates manual scan mode for targeted barcode capture.

Side Profile

Compact side profile of the SC-70AWU showing the lightweight plastic body suited for extended handheld use and compatible with optional desk-stand mounting.

USB Connection Detail

The integrated USB cable carries both HID, VCOM, and POS data signals and DC 5V bus power, making external power adapters unnecessary.

Rear Angle View

Three-quarter rear view highlighting the IP54-rated enclosure that resists dust and water splashes and withstands accidental drops from heights up to 1.8 metres.

Features

📷

Area-Image 1D/2D Scanning

Reads all major symbologies including EAN-13, Code 128, PDF417, Data Matrix, and Aztec Code using an area-image sensor for accurate wide-angle capture of both linear and matrix codes.

🔌

Multi-Mode USB Interface

Ships with USB HID + VCOM + POS emulation simultaneously active; optional RS-232 and keyboard-wedge (KBW) interfaces ensure drop-in compatibility with legacy POS systems and industrial terminals.

🛡️

IP54 & 1.8 m Drop Protection

Sealed against dust ingress and water splashes to IP54, and tested to survive drops from 1.8 metres, reducing downtime caused by accidental damage on factory floors or in warehouses.

⚙️

Three Operating Modes

Switches between manual trigger, motion-detection stationary, and continuous conveyor modes, making a single device suitable for handheld, presentation-stand, and line-integrated applications.

🔋

USB Bus-Powered

Draws DC 5V directly from the USB host — no external power adapter needed, simplifying installation and eliminating extra cabling on crowded workstations or conveyor lines.

🏭

Russian-Manufactured & In Stock

Designed, produced, and warehoused by BITBOOK LLC in Nizhny Tagil with domestic warranty, local technical support, and short lead times for B2B buyers across Russia.

Buyer Benefits

No external power supply required — the scanner is fully powered over USB (DC 5V), reducing cable management complexity
IP54 dust and splash protection combined with 1.8-metre drop resistance lowers long-term replacement costs in harsh environments
Single unit handles both 1D and 2D code types, eliminating the need to stock separate scanner models for different symbologies
Three built-in operating modes (trigger, motion-detection, conveyor) adapt to multiple workflow configurations without additional hardware
Optional RS-232 and KBW interfaces allow integration with legacy POS terminals and industrial equipment already installed on-site
Direct-from-manufacturer stock availability in Russia ensures fast domestic delivery and accessible warranty service

Applications

Document management and automated data entry in office and back-office environments Warehouse receiving, put-away, and inventory cycle counting Retail point-of-sale checkout with POS interface emulation mode Manufacturing line part tracking and work-in-progress scanning Pharmaceutical and medical labelling verification using Data Matrix and other 2D code formats Logistics and parcel sorting on conveyor lines in continuous-scan mode Library and archive barcode cataloguing Customs and export documentation scanning for cross-border shipments

Source: official manufacturer website
