Name: Grass Header 500D for John Deere 7380, 5m Width
Brand: Klever
SKU: 509963
Availability: InStock

Brand: Klever

$9,000 - $30,000 USD

MOQ: 1 pieces

Key Features

Working width: 5 m

Operating speed: 10

Supplier Information

ROSTSELMASH OJSC

🇷🇺 📦 🏭 🛡️

View All Products (145)

Quick Inquiry

Description

The Grass Header 500D is a forage harvester adapter manufactured by Klever (АО «Клевер»), a Russian agricultural machinery producer that operates within the Rostselmash industrial group. Purpose-built for attachment to John Deere 7380 forage harvesters, the header cuts thin-stemmed green forage crops and grain silage standing up to 1.5 metres tall.

With a constructed working width of 4,950 mm, it delivers efficient field coverage during intensive feed-harvesting campaigns. The single-knife segmented cutting apparatus with steel double open-type fingers is driven by a planetary gear reducer, achieving 573 cutting strokes per minute at an 85 mm knife stroke.

A four-blade rake reel ensures reliable crop intake, while the proprietary balancing mechanism allows the header body to float in both longitudinal and transverse directions, maintaining a consistent stubble height of 50±15 mm even across uneven ground. The terrain-copying range of +200/−60 mm adapts to field contour without operator intervention, protecting cut quality and minimising field losses.

Knife position can be adjusted upward or downward to match varying crop conditions, and conveniently arranged lubrication points keep daily servicing fast. The machine holds EAC conformity certificate №ЕАЭС KG417-046.RU.02.07012, confirming compliance with Eurasian technical regulations, and qualifies under Russian Government subsidy programmes that can reduce the purchase price by up to 20 percent.

Details & Equipment

Product Views

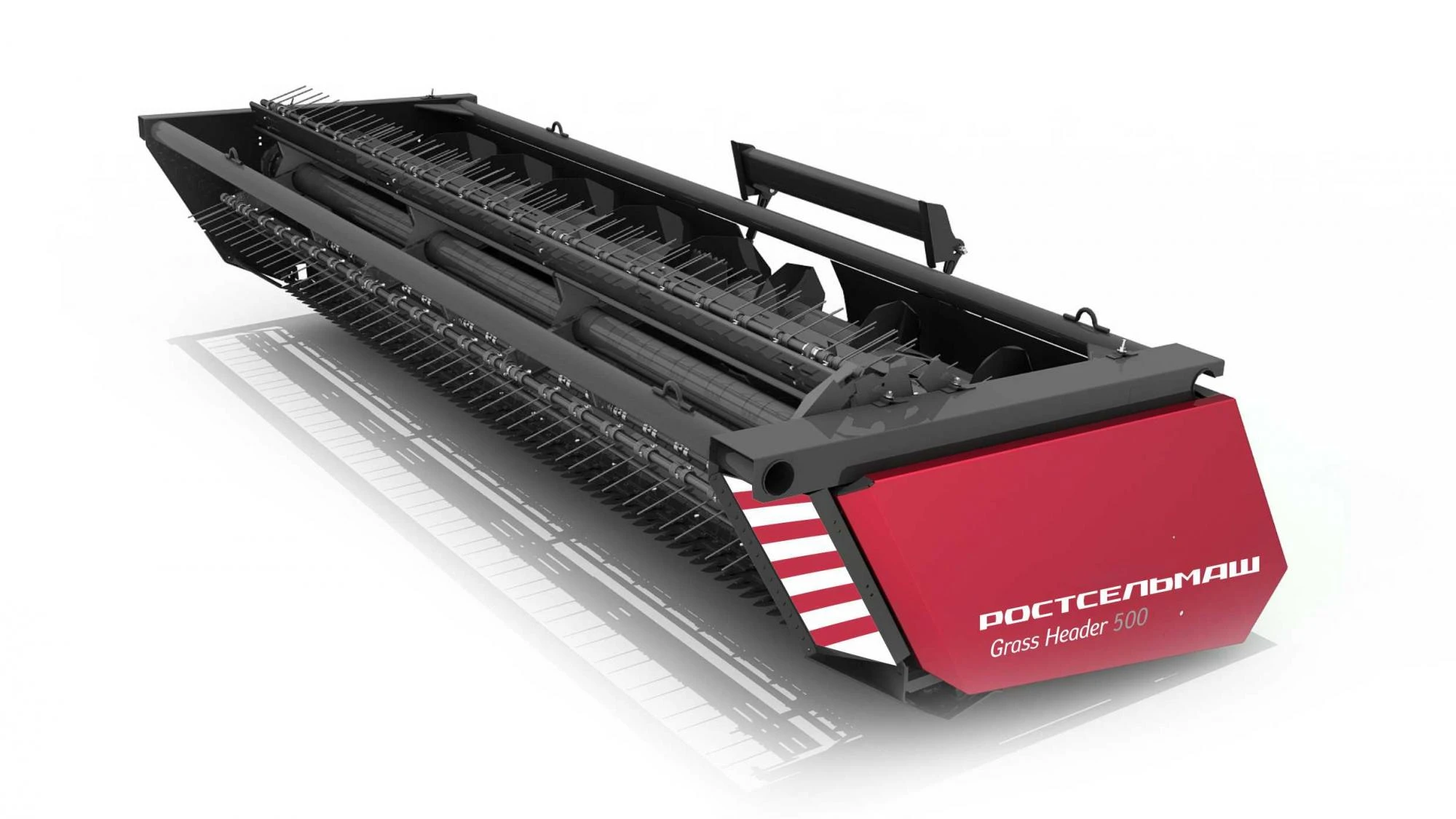

Grass Header 500D — Main View

The Grass Header 500D (РСМ-100.70) shown in working configuration. The 4,950 mm wide cutting platform features the rake-type reel and segmented knife bar that processes forage crops up to 1.5 m tall.

Header Frame & Reel

Close view of the four-blade rake reel and header frame. The enlarged reel tube diameter is designed to handle dense grain-silage stands reliably without wrapping.

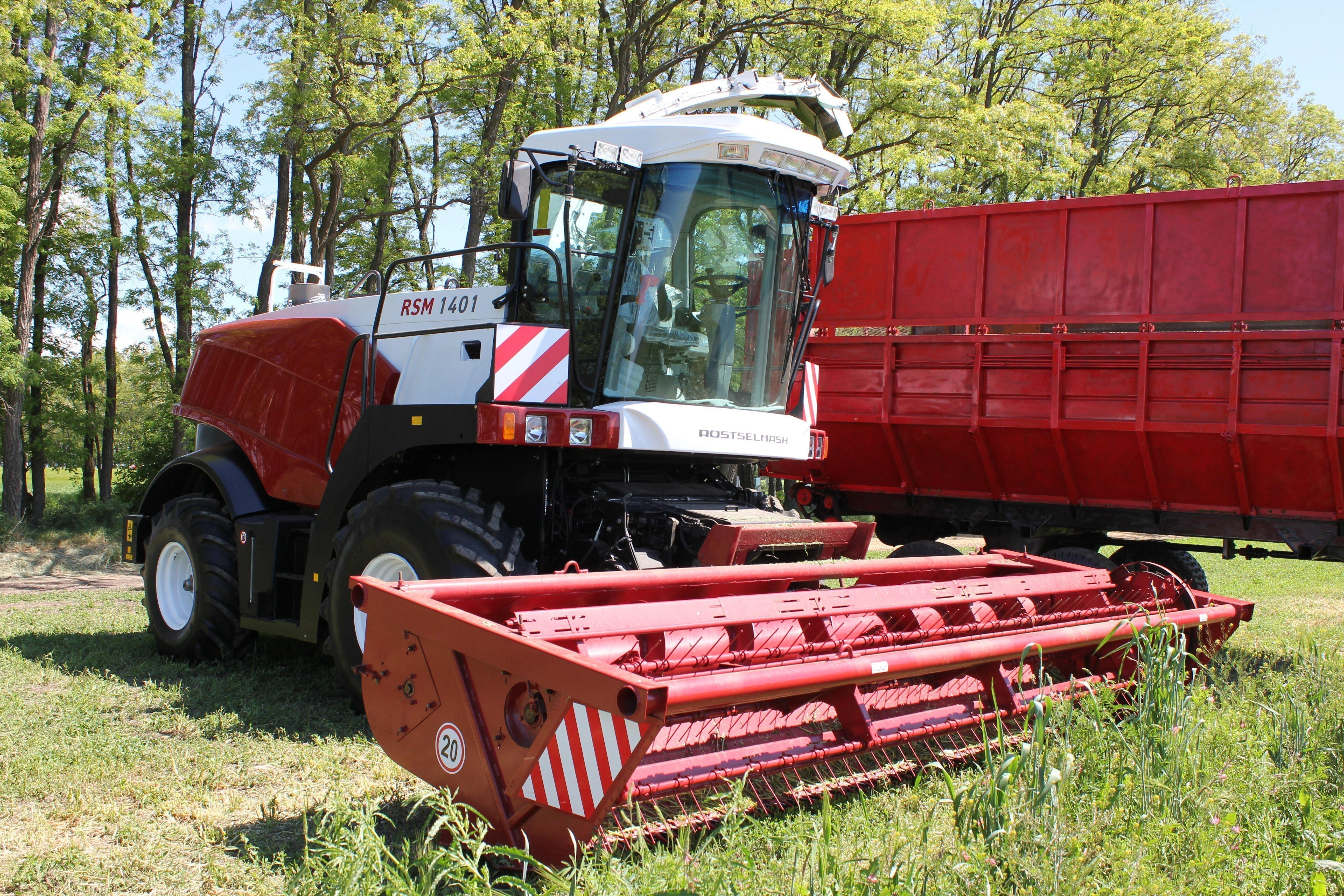

Field Operation

The Grass Header 500D operating in the field attached to a forage harvester. The balancing mechanism keeps the cutter bar floating at a consistent 50±15 mm stubble height.

Design Features

Cutting Apparatus

Single-knife segment-type cutting apparatus with steel double open-type fingers driven by a planetary gear reducer at 573 strokes per minute and an 85 mm knife stroke.

Balancing Mechanism

The floating balancing mechanism allows the header body to travel +200/−60 mm in longitudinal and transverse directions, adapting to field relief without operator input.

Dimensional Diagram

Dimensional drawing of the Grass Header 500D showing overall proportions. Machine weight is 1,800±50 kg; constructed working width is 4,950 mm.

Features

📐

5 m Working Width

Constructed working width of 4,950 mm covers large paddock areas efficiently. Rated operating speed reaches 10 km/h for high seasonal productivity.

⚙️

Planetary Knife Drive

Single-knife segment-type cutting apparatus with steel double open fingers is powered by a planetary gear reducer achieving 573 strokes per minute with an 85 mm knife stroke.

🔄

Terrain-Copying Float

Balancing mechanism allows the header body to move +200/−60 mm in both longitudinal and transverse directions, holding stubble height at 50±15 mm on uneven fields.

🌾

4-Blade Rake Reel

Four-blade rake-type reel with an enlarged tube diameter reliably gathers dense grain silage and green fodder up to 1.5 m tall without wrapping or clogging.

🔧

Minimal Servicing

Conveniently located lubrication points and straightforward gap adjustment reduce routine maintenance time, keeping the machine field-ready throughout the season.

📋

EAC Certified

Holds Eurasian conformity certificate №ЕАЭС KG417-046.RU.02.07012 and is eligible for Russian Government subsidy programmes, reducing effective purchase cost.

Buyer Benefits

Purpose-engineered adapter for John Deere 7380 forage harvesters — direct bolt-on fit with no field modifications
Terrain-copying balancing mechanism maintains consistent stubble height on rolling ground, reducing dry-matter losses
Adjustable knife position (raised or lowered) adapts to crop height and density for maximum throughput
Large-diameter reel tube handles thick grain-silage stands without stalling or wrapping
573 strokes-per-minute planetary knife drive ensures a clean cut that preserves forage fermentation quality
EAC conformity certificate (№ЕАЭС KG417-046.RU.02.07012) confirms compliance with Eurasian technical regulations
Eligible for Russian Government subsidy programmes (Постановление 1432/518), cutting the effective purchase price by up to 20%

Applications

Harvesting grass and legume crops for silage and green fodder on dairy and beef cattle farms Cutting whole-plant grain silage (зерносенаж) — cereals at milky-wax ripeness — in a single harvester pass Processing thin-stemmed forage crops standing up to 1.5 m tall Operation on rolling or uneven terrain using the terrain-copying floating header design Large-scale commercial forage harvesting operations where 5 m swath width reduces total field time Feed preparation for livestock complexes requiring consistent, high-quality green feed Integration into John Deere 7380 combine forage harvester systems as a purpose-built front adapter Farms participating in state subsidy programmes for Russian-manufactured agricultural machinery

Source: official manufacturer website
