Grain Cleaning and Sorting Machine for Cereal and Legume Crops ALFA
Grain Cleaning and Sorting Machine for Cereal and Legume Crops ALFA
Grain Cleaning and Sorting Machine for Cereal and Legume Crops ALFA
Grain Cleaning and Sorting Machine for Cereal and Legume Crops ALFA

Grain Cleaning and Sorting Machine for Cereal and Legume Crops ALFA — ROMAKS LLC

Brand: ALFA
$15,000 - $120,000 USD
MOQ: 1 pieces

Description

The ALFA is a series of high-throughput grain pre-cleaning machines developed and manufactured in-house by ROMAX factory — one of Russia's leading producers of equipment for the agro-industrial complex, headquartered in the Voronezh region. The line covers four throughput capacities: 50, 100, 150, and 200 t/h, each designed for preliminary (rough) cleaning of cereals, legumes, and groat crops, removing coarse and light impurities from freshly harvested grain before it enters storage or further processing.

Cleaning is based on an aerodynamic principle: grain arrives in a receiving hopper fitted with a beater and adjustable gate that distribute the flow evenly across a mesh conveyor cassette; coarse debris such as straw and grain heads is discharged by the cassette, while the semi-cleaned grain falls into an aspiration channel where a built-in high-efficiency diameter fan strips out lightweight fractions; clean grain then exits by gravity. The 2022 product update added the removable cassette assembly, beater with adjustable shutter, level sensor, and lock valve as standard items, materially improving ease of maintenance and reliability with wet or sticky material.

Body and working elements are fabricated from galvanized steel for maximum corrosion resistance and long service life in any climate zone. The ALFA series holds EAC certification and conforms to EU Machinery Directive 2006/42/EC, confirming its suitability for international supply.

Details & Equipment

Machine Design & Cleaning Process

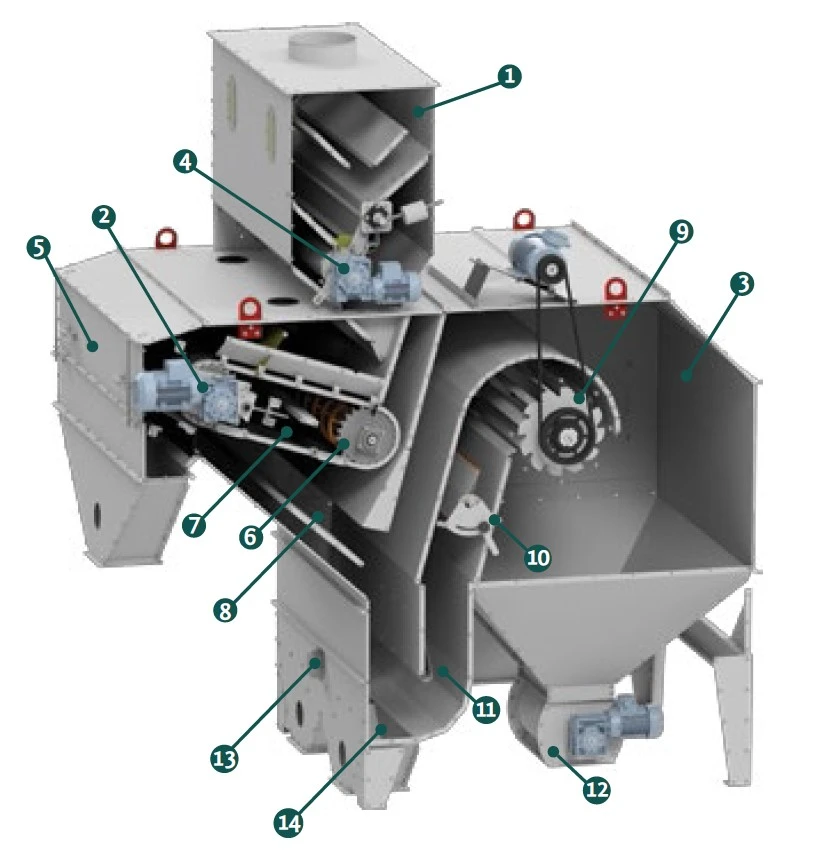

ALFA Series — 2022 Configuration
ALFA Series — 2022 Configuration
The updated ALFA grain cleaner features a galvanized steel body, an integrated receiving hopper with beater, and a lock valve for reliable discharge of light fractions. The removable mesh cassette assembly and level sensor were added to the standard specification as part of the 2022 upgrade.

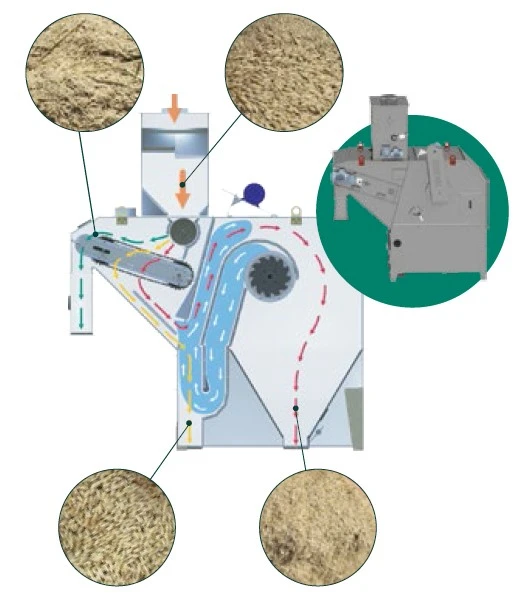

Aerodynamic Cleaning Process Flow
Aerodynamic Cleaning Process Flow
Grain entering the hopper is distributed evenly by the beater across the mesh conveyor cassette, which separates coarse impurities; the remaining material then passes through the aspiration channel where the built-in diameter fan removes lightweight debris and clean grain exits by gravity.

Features

50–200 t/h Capacity Range
Four standard models — ALFA 50, 100, 150, and 200 — let buyers match throughput precisely to their operation, from farm grain pits to large elevator reception lines.
🌬️
Aerodynamic Cleaning Principle
A mesh conveyor cassette removes coarse impurities, then a built-in diameter fan with 800–1 200 m³/h air flow strips lightweight fractions in the aspiration channel; clean grain exits by gravity.
🔧
Removable Cassette for Fast Service
The mesh conveyor unit pulls out as a complete cassette, allowing sieve replacement and cleaning in minutes — critical during peak harvest when downtime is costly.
🛡️
All-Galvanized Steel Construction
Every structural and working element is made from high-quality galvanized steel, preventing product adhesion, resisting corrosion, and extending service life in any climatic conditions.
⚙️
2022 Standard Package Upgrade
From 2022 the base specification includes a beater with adjustable shutter for even product distribution, a level sensor for automatic overflow protection, and a lock valve that reliably discharges light fractions even from wet or high-moisture grain.
🔩
Bolt-Assembly Structure
All major joints use bolted connections, eliminating deformation during transport and installation while simplifying future relocation between facilities.

Buyer Benefits

Applications

Preliminary cleaning of freshly harvested wheat, barley, rye, oats, and other cereals at farm grain pits Rough cleaning of soybean, sunflower, and rapeseed crops at harvest reception points and oilseed plants Pre-cleaning of legumes — peas, lentils, and beans — before grading and storage First-stage cleaning in multi-stage processing lines at grain elevators and export terminals Reception and pre-cleaning at large farming enterprises, grain cooperatives, and agro-industrial holdings Cleaning incoming grain at compound-feed plants, flour mills, and malting facilities Integration into stationary continuous-flow production lines for year-round operation in any climatic zone of Russia and beyond
