Grain Bunker Loader Liliani BP-16/20-1 — Liliani LLC

Brand: Liliani
$9,000 - $24,000 USD
MOQ: 1 pieces

Key Features

load capacity: 16 t
Geometric volume: 20
Discharge auger capacity: 600
Unfilled hopper weight: 5800 kg

More from Liliani

Grain and Bulk Loader MVA-250-V

Grain and Bulk Loader MVA-250-V

$9,000-$30,000
Grain Packaging Machine MZU-01

Grain Packaging Machine MZU-01

$9,000-$30,000
Grain Loader with Screw Discharge System Lilianni BP-16/20-8

Grain Loader with Screw Discharge System Lilianni BP-16/20-8

$9,000-$24,000
Grain Loader with Screw Discharge System Liliani BP-33/42-2

Grain Loader with Screw Discharge System Liliani BP-33/42-2

$9,000-$24,000
Grain Bunker Loader Liliani BP-25/31-2

Grain Bunker Loader Liliani BP-25/31-2

$9,000-$24,000
Grain Bunker Loader Lilianni BP-25/31-7

Grain Bunker Loader Lilianni BP-25/31-7

$9,000-$24,000
Grain Bunker Loader Liliani BP-16/20-5

Grain Bunker Loader Liliani BP-16/20-5

$9,000-$24,000
Grain Transfer Bunker Trailer Lilianni BP-25/31-1

Grain Transfer Bunker Trailer Lilianni BP-25/31-1

$9,000-$24,000
Grain Bunker Loader Lilianni BP-22/28-2

Grain Bunker Loader Lilianni BP-22/28-2

$9,000-$24,000
Liliani Bunker-Transloader BP-25/31-3 for Efficient Grain Handling

Liliani Bunker-Transloader BP-25/31-3 for Efficient Grain Handling

$9,000-$30,000
Grain Bunker Loader Liliani BP-33/42-6

Grain Bunker Loader Liliani BP-33/42-6

$9,000-$30,000
Grain Bunker Loader Lilians BП-16/20-6

Grain Bunker Loader Lilians BП-16/20-6

$9,000-$24,000
Grain Bunker Loader Liliani BP-16/20-7

Grain Bunker Loader Liliani BP-16/20-7

$9,000-$24,000
Grain Loader MVA-450-01 for Efficient Bulk Handling

Grain Loader MVA-450-01 for Efficient Bulk Handling

$9,000-$30,000
Grain Hopper Loader Liliani BP-33/42-3

Grain Hopper Loader Liliani BP-33/42-3

$9,000-$30,000
Grain Bunker Loader Lilianni BP-33/42-1

Grain Bunker Loader Lilianni BP-33/42-1

$9,000-$30,000
Grain Bunker Loader Liliani BP-22/28-4

Grain Bunker Loader Liliani BP-22/28-4

$9,000-$24,000
Grain Bunker Loader Liliani BP-33/42-9

Grain Bunker Loader Liliani BP-33/42-9

$9,000-$24,000
Grain Bunker Loader Lilianni BP-22/28-3

Grain Bunker Loader Lilianni BP-22/28-3

$9,000-$30,000
Grain Bunker Loader Lilianni BP-22/28-7

Grain Bunker Loader Lilianni BP-22/28-7

$15,000-$42,000

Description

The Liliani BP-16/20-1 is a trailed grain cart manufactured by Liliani LLC, a Russian company focused on advanced agro-logistics solutions. With a 20 m³ geometric volume and a 16-tonne payload, the machine acts as a high-speed buffer between combine harvesters and grain transport trucks, emptying its full load at the field edge in roughly five minutes.

The discharge auger delivers throughput of up to 600 tonnes per hour — among the highest in its class — and PTO speeds of 540 or 1,000 rpm are both supported, giving compatibility with a broad range of tractors from Class III onward (120 hp minimum). The 360 mm horizontal feed auger and 430 mm discharge auger are computer-balanced for minimum vibration, quieter running, and extended service life.

A hydraulic folding mechanism raises and lowers the discharge auger quickly, and the front-fold design keeps the work zone fully visible from the tractor cab throughout loading and unloading. Four 500/60-22.5 tires on a balancing suspension chassis distribute weight evenly and protect soil structure.

Bolted sectional side walls replace the cheaper welded-panel designs used by competitors, resulting in a more durable structure suited to intensive field seasons. Quick-access cleanout hatches allow the auger channel to be cleared in under four minutes.

The BP-16/20 is classified under Russian Government Decree No. 616 as agricultural machinery for grain, oilseed, legume, and cereal crop harvesting, making it eligible for state subsidy and Rosagrolizing leasing programs across Russia, Kazakhstan, and Belarus.

Details & Equipment

Grain Cart in Field Operation

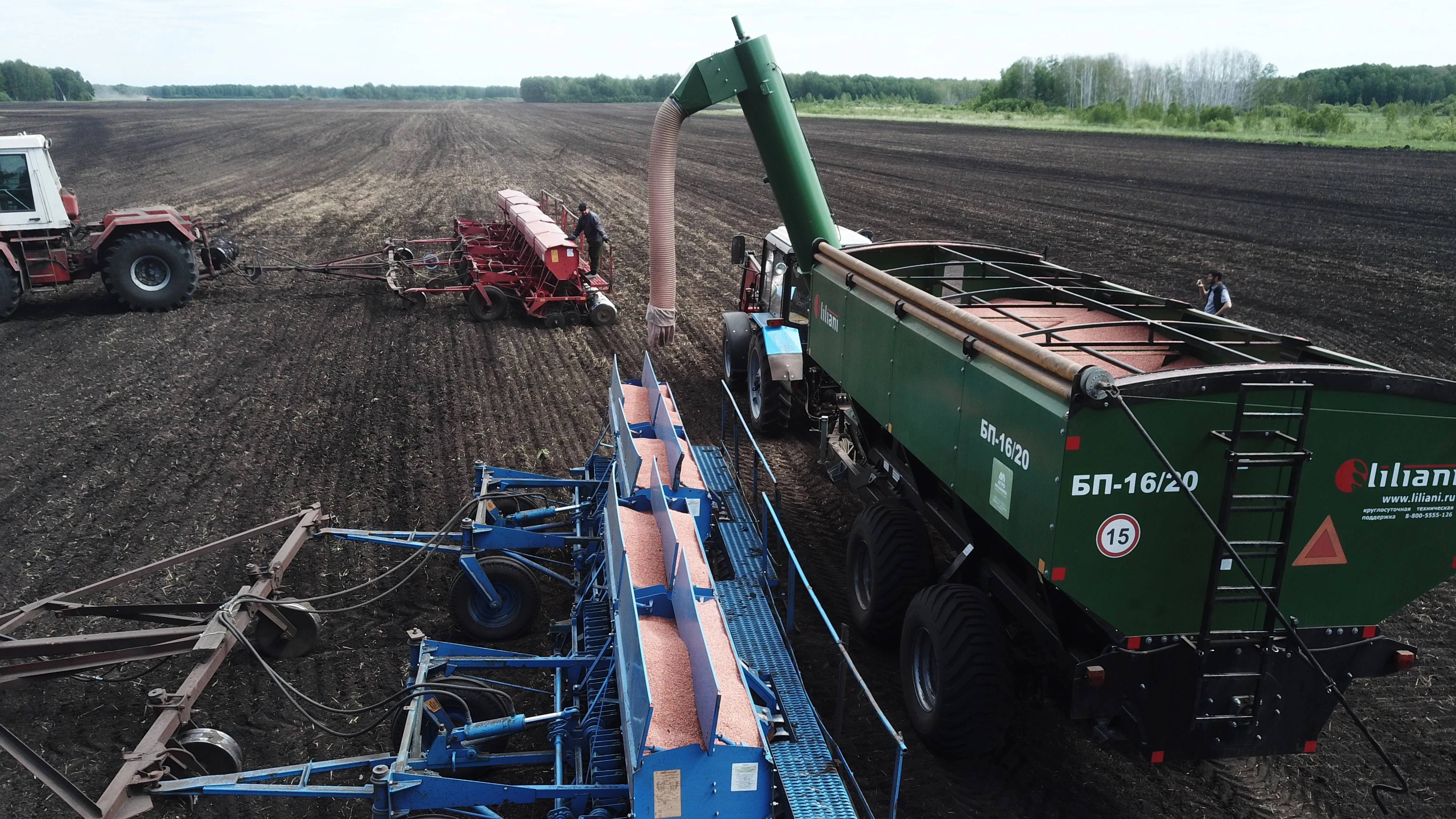

Harvest Field Transfer
Harvest Field Transfer
The BP-16/20 receives grain directly from a combine harvester on the move, acting as a mobile buffer that keeps the combine running continuously without waiting for road trucks.
Discharge into Grain Truck
Discharge into Grain Truck
The 430 mm diameter discharge auger swings forward hydraulically to fill a grain truck at the field edge; the front-fold position maintains full visibility from the tractor cab throughout the operation.
Transport Configuration
Transport Configuration
With the discharge auger folded, the machine fits within a 2,498 mm transport width and 3,210 mm height, allowing travel on public roads without special permits or registration.

Design & Specifications

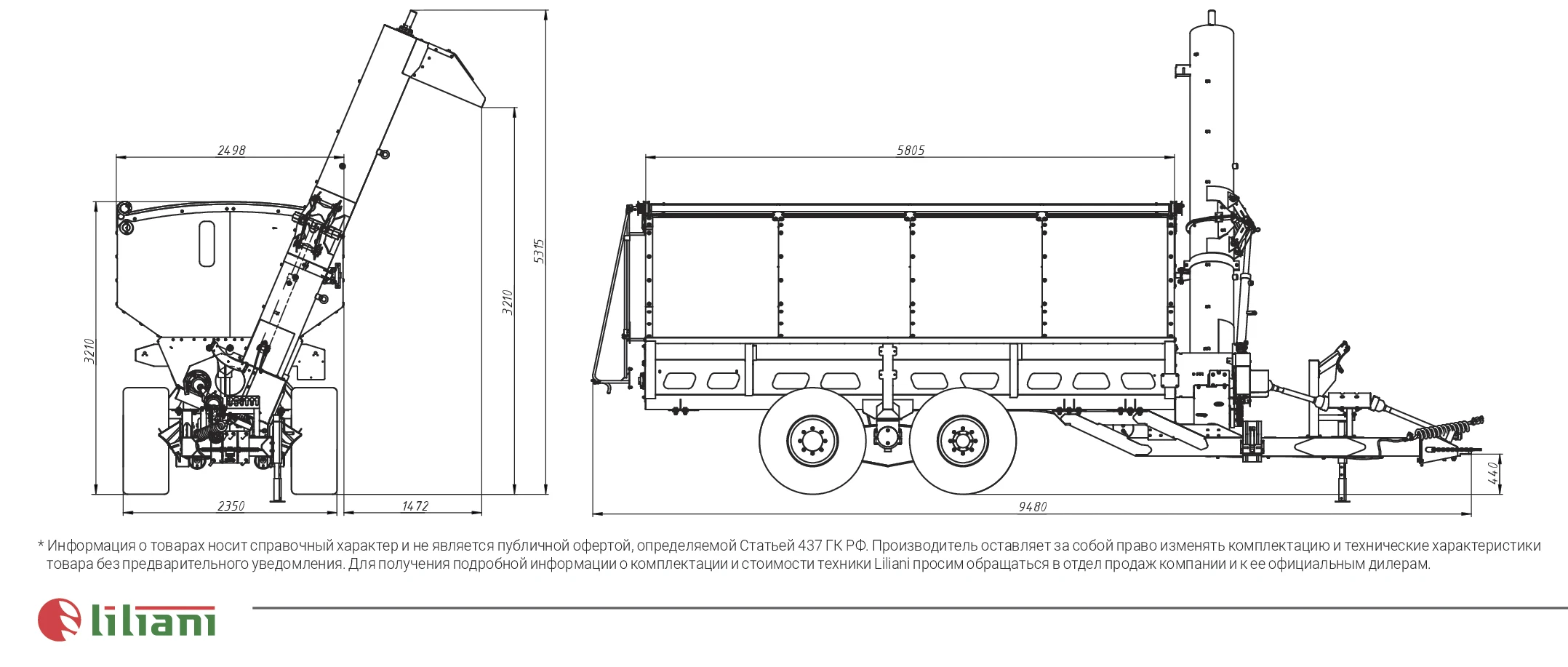

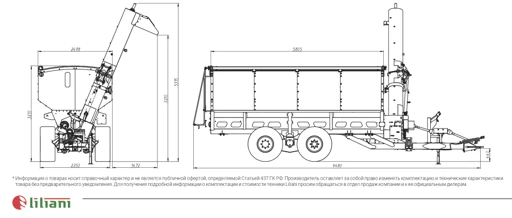

Dimensional Drawing
Dimensional Drawing
Working dimensions with the discharge auger extended reach 9,480 mm in length, 3,970 mm in width, and 5,315 mm in height; the grain intake height is 3.21 m to match standard combine discharge spouts.
Balancing Suspension Chassis
Balancing Suspension Chassis
The tandem balancing axle equalises load across all four 500/60-22.5 tires, smoothing the ride over rough terrain and significantly reducing stresses transferred to the tractor drawbar.
Hopper Body Detail
Hopper Body Detail
Optimised interior wall angles and a smooth, protrusion-free surface ensure the hopper self-empties completely at all grain moisture levels, while bolted sectional side panels provide long-term structural durability.
Auger Assembly
Auger Assembly
The 360 mm horizontal feed auger and 430 mm discharge auger are computer-balanced to minimise vibration; quick-access cleanout hatches on the auger channel allow residue removal in under four minutes.

Features

600 t/h Discharge Rate
The 430 mm diameter discharge auger moves up to 600 tonnes per hour (12.5 m³/min), emptying the full 16-tonne load into a grain truck at the field edge in approximately five minutes.
⚙️
Computer-Balanced Auger Blades
Auger blade geometry is optimised through computer modelling, reducing drivetrain vibration and noise while boosting throughput and extending the overall service life of the machine.
🔧
Quick-Clean Hatch System
Hinged access hatches give direct reach to the auger channel for rapid cleaning; bottom discharge hatches allow full gravity clearance of the hopper into a pit in under four minutes.
🌿
Low Soil Pressure Chassis
Balancing suspension with 500/60-22.5 low-pressure tires spreads axle load evenly; the track width is deliberately offset from the tractor's own track to avoid repeated compaction of the same strips.
👁️
Front-Fold Auger with Full Cab Visibility
The hydraulic front-folding discharge auger transitions between transport and working positions in seconds and keeps the entire discharge zone in clear view from the tractor cab, reducing spill risk and operator fatigue.
🔩
Bolted Sectional Side Walls
Side walls are built from bolted sectional panels rather than welded sheet, a design Liliani credits with superior fatigue resistance and durability during intensive harvest campaigns.

Buyer Benefits

Applications

Three-link grain harvesting: buffers grain between combine harvesters and road trucks to eliminate combine downtime High-speed seeder and planting-complex loading during sowing campaigns Fertiliser blending (tukosmes production) using the optional two-section divider Grain storage in polymer sleeves — loading and unloading sleeve-storage systems Grain quality and moisture mixing when operating with two internal sections Transhipment at railway, river, and marine terminals — loading hopper wagons on unequipped sidings Seed dressing and inoculation in the field with the optional self-loading auger and treatment system Precision fertiliser top-dressing support during growing season operations

Specifications

load capacity
16 t
Geometric volume
20
Discharge auger capacity
600
Unfilled hopper weight
5800 kg
Grain loading height
3.21 m
Discharge height of auger
4.25 m
Screw drive
power take-off shaft
Number of wheels
4 pcs
wheels
550/60 - 22,5
Horizontal auger diameter
360 mm
Discharge auger diameter
430 mm
Tractor traction class
3
Overall dimensions in working position
9095x4049x5315
Overall dimensions in transport position
9095x2498x3208
Available options
weighing system
