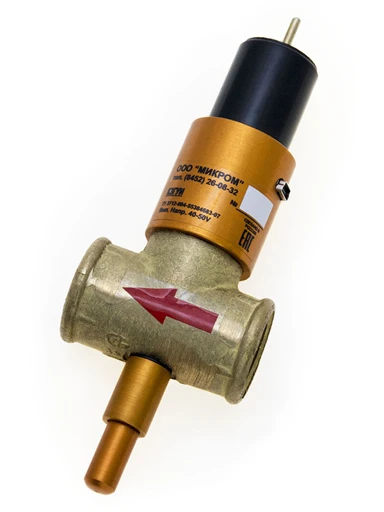

Name: Gas Shut-Off Valve with Electromagnetic Control KZGUI
Brand: null
Availability: InStock

Gas Shut-Off Valve with Electromagnetic Control KZGUI

Brand: null

$30 - $300 USD

MOQ: 20 pieces

Key Features

Nominal diameter, DN: 15, 20, 25, 32, 40, 50, 65, 80, 100, 150

Weight: (15)-0,15, (20)-0,23, (25)-0,29, (32)-0,4, (40)-0,5, (50)-1,0, (50?)-8, (65)-5,0, (80)-15,0, (100)- 22,0, (150)- 20,0

Dimensions: (15)-48x35x170, (20)-58x35x157, (25)-69x39x160, (32)-80x50x170, (40)-98x57x185, (50)-105x70x210, (50f)-230x160x270, (65)-210x115x285, (80)-310x195x350, (100)-350x215x370, (150)-350x260x375

Degree of protection: IP30

Description

Gas shut-off valve controlled pulse KZGUI is used as a fast-acting solenoid valve together with gas alarms UKZ-RU in domestic and industrial premises where gas-using equipment is used. Purpose: valves are used as a shut-off valve on internal gas pipelines with operating pressure from 0.0005 to 0.3 MPa (0.005 - 3.0 kgf/cm2) for automatic shut-off of gas supply.

Specifications

Nominal diameter, DN

15, 20, 25, 32, 40, 50, 65, 80, 100, 150

Weight

(15)-0,15, (20)-0,23, (25)-0,29, (32)-0,4, (40)-0,5, (50)-1,0, (50?)-8, (65)-5,0, (80)-15,0, (100)- 22,0, (150)- 20,0

Dimensions

(15)-48x35x170, (20)-58x35x157, (25)-69x39x160, (32)-80x50x170, (40)-98x57x185, (50)-105x70x210, (50f)-230x160x270, (65)-210x115x285, (80)-310x195x350, (100)-350x215x370, (150)-350x260x375

Degree of protection

IP30

Housing material

Bronze, cast iron

Operating temperature range

0...50 million m³

Equipment

Gas valve

Nominal pressure

0,0001 - 0,005 MPa 0,005 - 0,3 MPa

Response time
