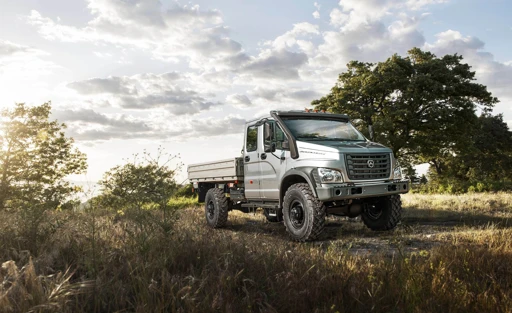

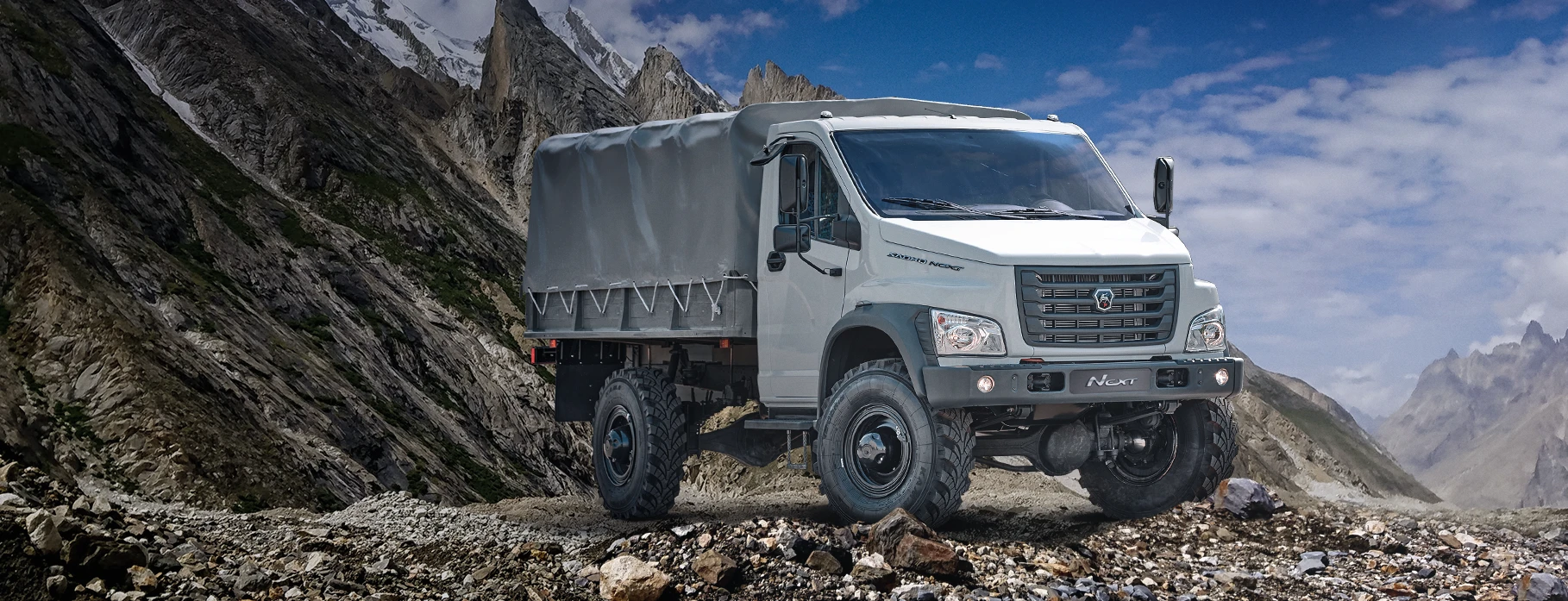

The Front Drive Axle with Brakes and Hubs C41C23-2300012 is a genuine OEM assembly manufactured by PJSC GAZ — Russia's Gorky Automobile Plant, one of the country's largest commercial vehicle producers. Designed specifically for the GAZ Sadko NEXT С41С23, a heavy-duty 4×4 all-terrain truck engineered for mining sites, geological surveys, forestry operations, and challenging terrain from deserts and mountains to jungle, this axle delivers the durability and precision the application demands.
The assembly incorporates a single-stage bevel reduction gear with hypoid offset, ensuring smooth, quiet torque transfer to the front wheels. Key dimensional parameters include a 1,830 mm wheel track and a 970 mm spring track, with the unit rated for a vertical load of 3,200 kg (32,000 N) at the front axle — matching the Sadko NEXT's 6,850 kg gross vehicle weight exactly.
The assembly is supplied complete with drum brake assemblies and wheel hubs, enabling a direct bolt-on replacement without additional machining or separate component sourcing. It integrates seamlessly with the Sadko NEXT's electropneumatic reinforced part-time transfer case, maintaining full 4×4 capability and factory-standard braking performance.
PJSC GAZ exports its NEXT-range vehicles and original spare parts to more than twenty countries across Eastern Europe, Central Asia, Africa, and beyond.
