Name: Fractal-800 Stationary Metal Detector
Brand: Fractal
SKU: 231899
Availability: InStock

Brand: Fractal

$900 - $3,600 USD

MOQ: 2 pieces

Key Features

Duration of alarm notification: 0.5

Current consumption: 0.6 A

Power supply of the metal detector is carried out from the power supply unit (adapter): B1/B8 2100/900 MHz V

Supplier Information

SKIZEL OJSC

🇷🇺 📦 🏭 🛡️

View All Products (27)

Quick Inquiry

Description

The Fractal-800 is a stationary arch-type walk-through metal detector produced by SKIZEL (АО НПП СКИЗЭЛ), a Russian research-and-production enterprise whose customer base spans Rosatom, Gazprom, Russian Railways, the FSB, the Federal Penitentiary Service, the Ministry of Defence, Transneft, and the Central Bank of Russia. The unit belongs to the passive class of detectors: it emits absolutely nothing, instead registering distortions of the Earth's natural magnetic field caused by ferromagnetic objects passing through the 2 000 × 800 mm archway.

Because no radiation is produced, the Fractal-800 is safe for pregnant women, children, animals, pacemaker users, hearing-aid wearers, and health-monitoring devices. Shielding or concealing a ferromagnetic weapon from detection is physically impossible with this operating principle.

Twenty programmable sensitivity levels cover the full range from bulk weapons to micro-objects: at maximum sensitivity the detector reliably picks up a single cartridge or half a razor blade, while keeping false alarms on keys, coins, foil, watches, jewellery, and metallic medical implants to a minimum. Throughput reaches 60 people per minute.

The frame is an anti-vandal extruded aluminium profile rated IP40 and operational from −10 °C to +50 °C. The Fractal-800 is listed in the Unified Register of Russian Radio-Electronic Products of the Ministry of Industry and Trade, is certified to TR TS 020/2011 electromagnetic compatibility requirements and SanPiN norms, carries a five-year warranty, and includes free on-site installation by the manufacturer.

Details & Equipment

Arch Design & Dimensions

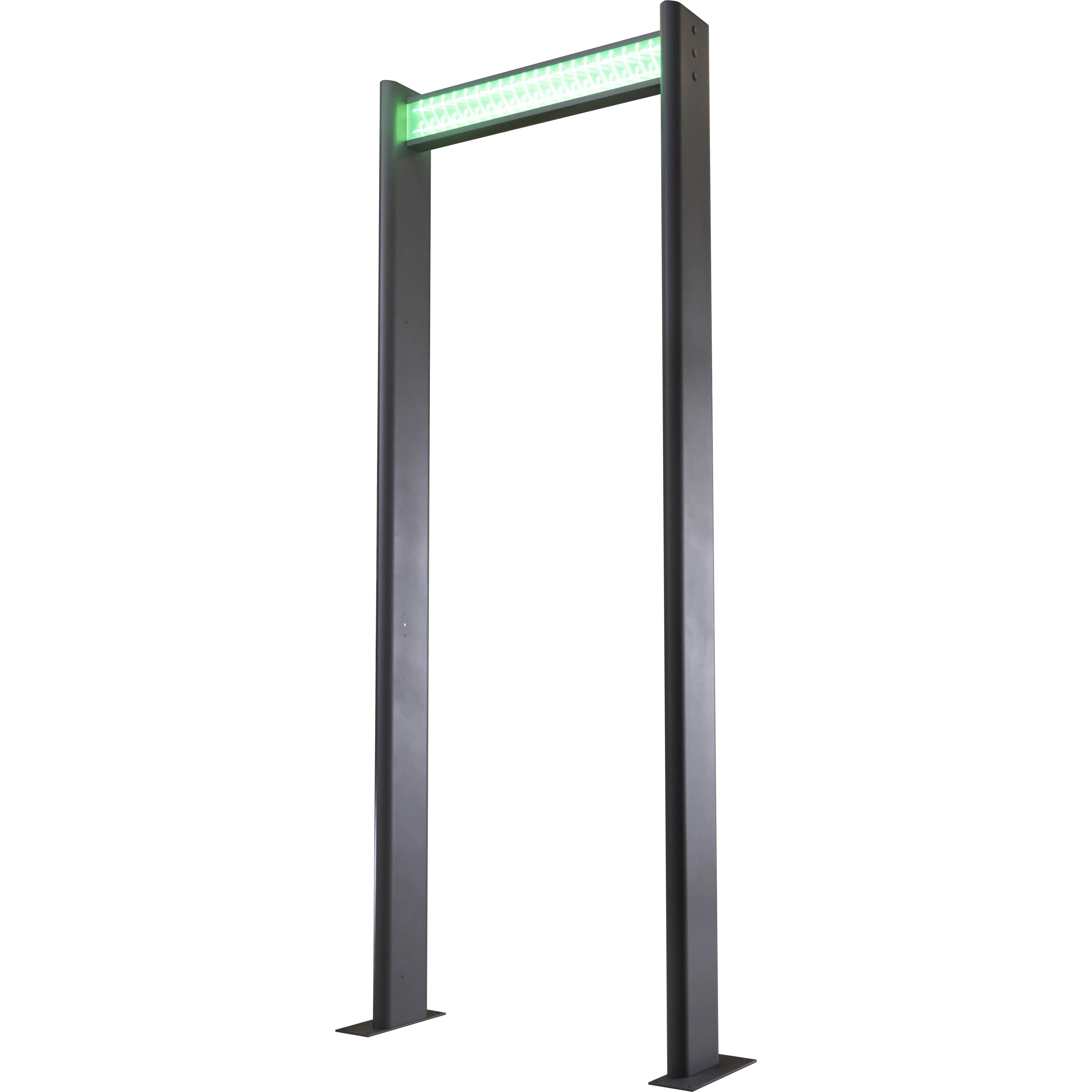

Full Arch — Front View

The Fractal-800 arch in standard black finish; the clear passage measures 2 000 × 800 mm and each support pillar is 180 mm wide, housed in extruded anti-vandal aluminium profile.

Alarm Indicator Strip

The 800 × 90 mm illuminated alarm panel delivers a visible alert area of 720 sq cm across the full width of the archway, with three selectable volume levels and a silent mode.

Installation & Connectivity

Built-In Control Unit

The integrated control unit manages 20 sensitivity levels and provides two independent dry-contact relay outputs; both power and signal connections are accessible from the top and bottom of the frame.

Base & Footprint

Each pillar rests on a 300 × 1 000 mm installation plate; the complete detector ships in a 2 330 × 330 × 180 mm carton weighing 31 kg, enabling transport and repositioning by a small team.

Features

🔇

Truly Passive — Zero Emissions

Operating on the principle of Earth's magnetic field distortion, the Fractal-800 emits nothing at all, making it certified safe for pacemaker users, pregnant women, children, and sensitive medical equipment.

🎯

20-Level Sensitivity

Twenty selectable sensitivity steps allow fine-tuning from detection of half a razor blade and a single cartridge at maximum, down to a comfortable daily-carry threshold that minimises false alarms on keys, coins, jewellery, and implants.

⚡

High Throughput — Up to 60 ppl/min

The 2 000 × 800 mm clear passage and fast response logic support a flow of up to 60 people per minute, suited to high-traffic venues such as stadiums, shopping centres, and transport hubs.

🛡️

Anti-Vandal Extruded Aluminium Body

The frame is formed from extruded aluminium profile — corrosion-resistant and impact-tough — with an IP40 rating and an operating temperature range of −10 °C to +50 °C.

🔗

Dual Relay Outputs for ACS Integration

Two independent dry-contact relay outputs, one at the top and one at the bottom of the detector, allow straightforward connection to turnstiles, barriers, CCTV triggers, or any access-control system.

📋

Certified & Registry-Listed

Included in the Minpromtorg Unified Register of Russian Radio-Electronic Products; compliant with TR TS 020/2011 and SanPiN; backed by a five-year warranty and free manufacturer installation.

Buyer Benefits

No radiation of any kind — certified safe for pacemakers, hearing aids, and implants, eliminating liability concerns at public and medical checkpoints
Impossible to defeat: the passive magnetic principle makes it physically impossible to shield or screen a ferromagnetic weapon from detection
5-year manufacturer warranty with free on-site installation included, substantially lowering total cost of ownership
Listed in the Minpromtorg Unified Register of Russian Radio-Electronic Products — satisfies domestic-sourcing requirements for state procurement
Adjustable alarm: three audible volume levels plus a fully silent mode support both overt and covert checkpoint configurations
Custom RAL colour option available, enabling the arch to blend with interior design in corporate, governmental, or cultural venues
Dual dry-contact relay outputs (top and bottom) simplify integration with existing turnstiles, barriers, and security management platforms

Applications

Entrances to defence-industry and critical-infrastructure enterprises (OPK facilities) Correctional facilities, remand prisons, and FSIN-operated institutions Police stations, investigative offices, and MVD administrative buildings High-traffic retail and entertainment venues — shopping centres, stadiums, and concert halls Schools, universities, and public examination centres Museums, theatres, and cultural-heritage sites Airport and railway terminal pre-boarding screening checkpoints Corporate office lobbies and government administration buildings

Source: official manufacturer website
