Foam Polyethylene Protective Tubes with Polymer Coating TILIT Super Protect

Foam Polyethylene Protective Tubes with Polymer Coating TILIT Super Protect — LIT PLANT OJSC

Name: Foam Polyethylene Protective Tubes with Polymer Coating TILIT Super Protect
Brand: TILIT
SKU: 1781
Availability: InStock

Brand: TILIT

$0.90 - $3.60 USD

MOQ: 2000 meters

Supplier Information

LIT PLANT OJSC

🇷🇺 📦 🏭 🛡️

View All Products (36)

Quick Inquiry

Description

TILIT Super Protect is a range of foam polyethylene pipe insulation tubes manufactured by LIT Plant OJSC (Завод ЛИТ) using a co-extrusion process that simultaneously bonds a durable polymer film directly onto the grey closed-cell polyethylene core. This integral bond raises the tube's mechanical strength by 50% compared with plain foam PE insulation, giving the product outstanding resistance to abrasion, compression and the alkaline attack of cement, concrete, gypsum and lime.

Available in blue (grade С) for cold-water and general water supply circuits and in red (grade К) for heating lines, the colour coding makes system identification immediate after installation is complete. Produced to GOST R 56729-2015, the tubes are rated across a wide operating window of −60 °C to +95 °C with a thermal conductivity of just 0.039 W/(m·°C) and a near-zero steam permeability of ≤ 0.001 mg/(m·h·Pa).

Inner diameters run from 15 mm to 35 mm, covering steel, copper and plastic pipe from DN 8 through DN 25. The product is supplied in 10-metre coils (4 mm wall) for economical freight and storage, or in 2-metre sticks (walls of 6, 9 or 13 mm) for above-ground runs.

The elastic foam layer compensates thermal expansion in embedded pipework, protecting floor screeds from cracking, while the G1 (low-flammability) classification satisfies fire codes for use inside building assemblies. Rated service life is a minimum of 25 years.

Details & Equipment

Product Range

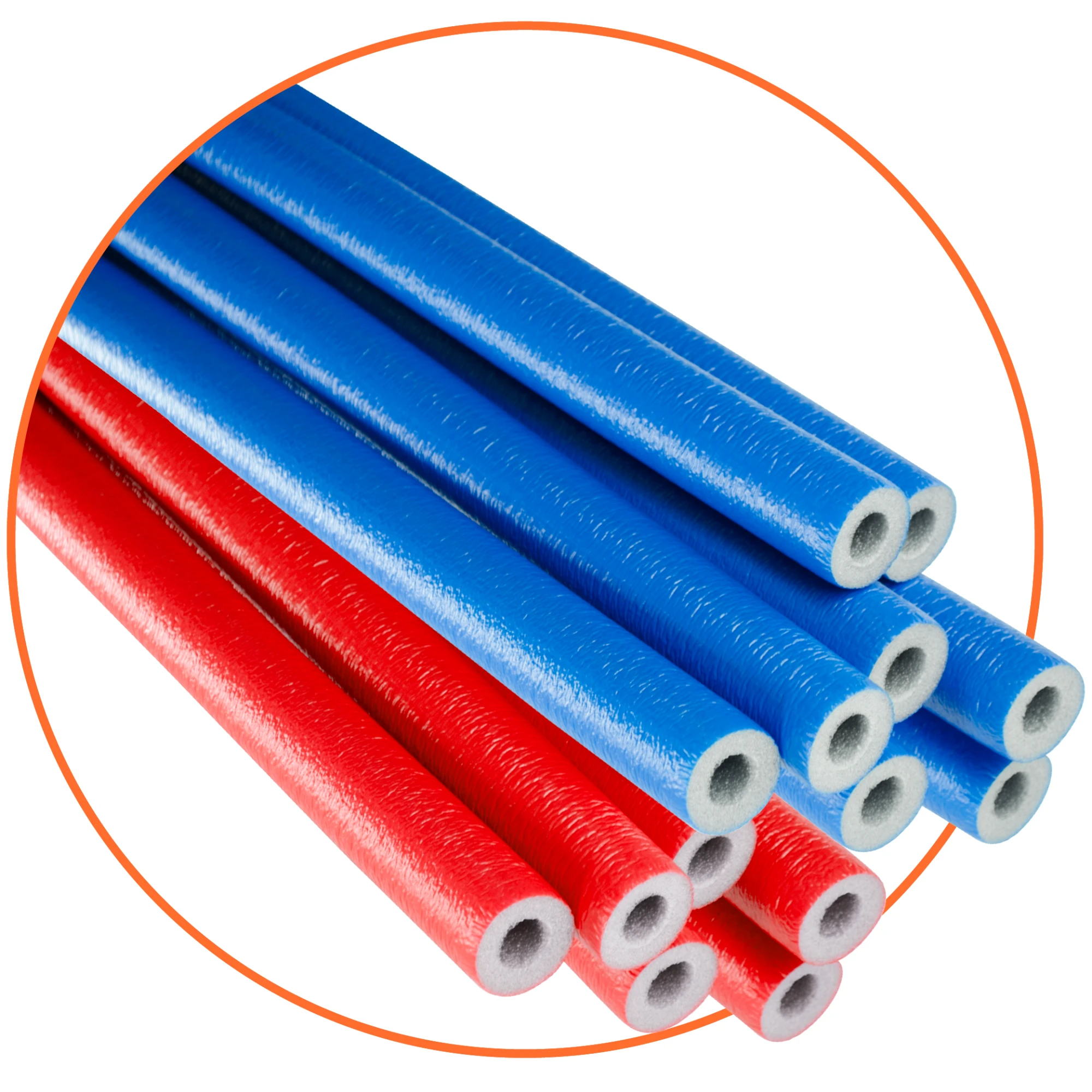

Super Protect S (Blue) — Coil Format

Blue-coded Super Protect С tubes in 10-metre coils with 4 mm wall thickness, intended for cold-water supply and general water supply circuits. The colour polymer shell is co-extruded with the foam core for a permanent bond.

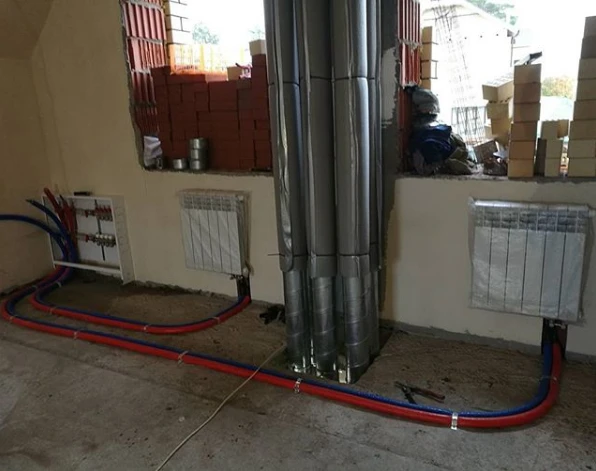

Super Protect K (Red) — Heating Circuits

Red-coded Super Protect К variant identifies heating-circuit pipework. The same 50%-stronger polymer coating and closed-cell foam core apply; the red colour differentiates it from cold-water lines after installation.

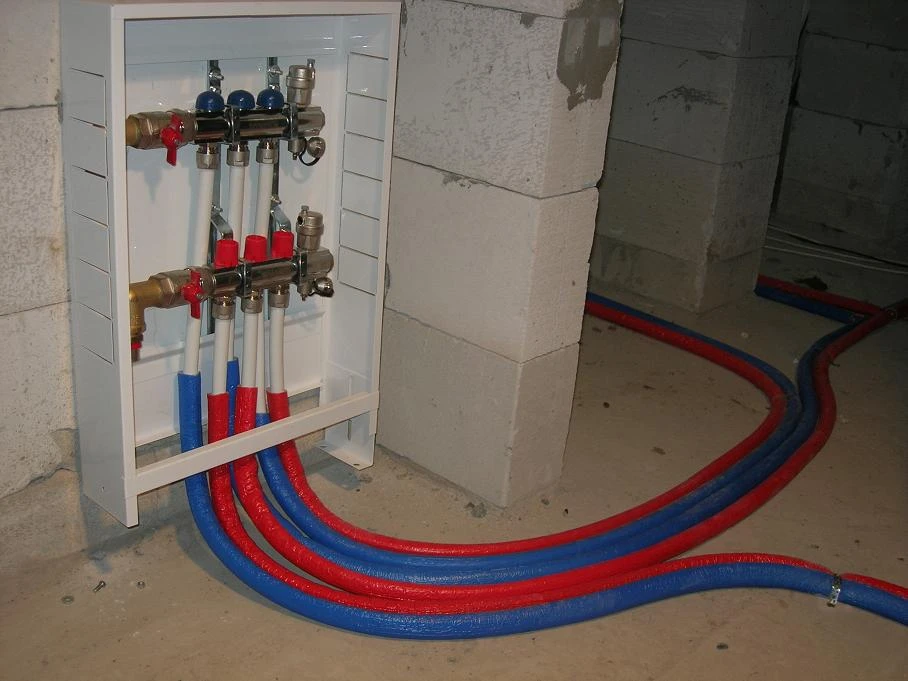

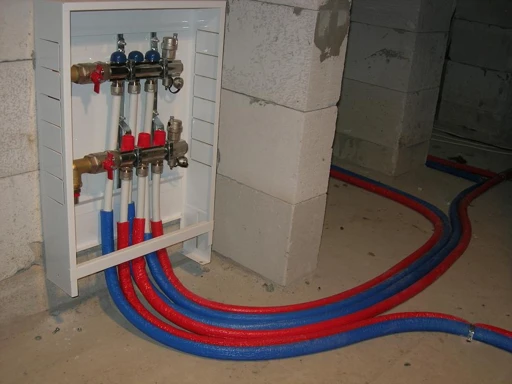

Underfloor Application

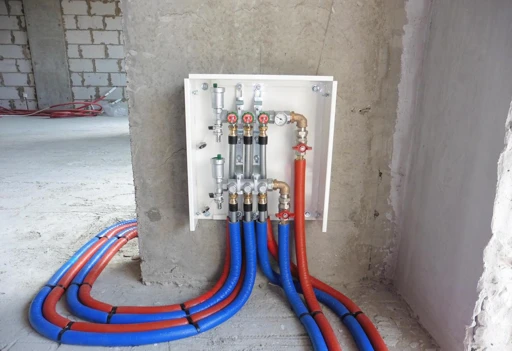

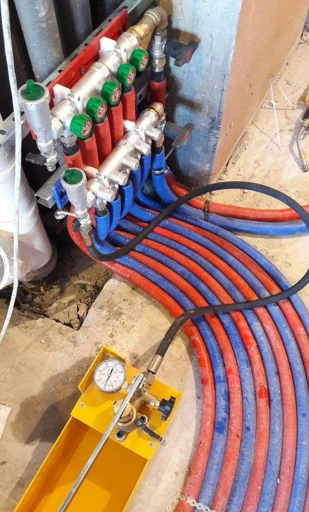

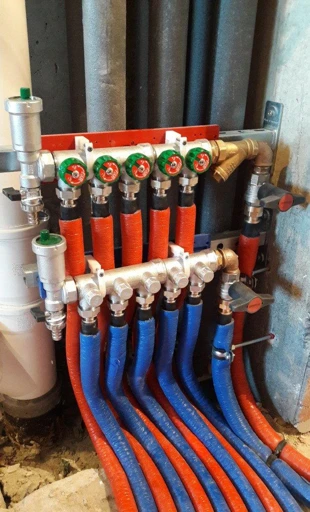

TILIT Super Protect tubes installed on pipes prior to screeding, demonstrating the product's key use case: protecting embedded pipework in warm-floor systems where the polymer coating resists the alkaline environment of fresh concrete.

Features

🛡️

50% Stronger Polymer Shell

Co-extruded polymer film raises compressive and abrasion strength by 50% over standard foam PE, protecting the insulation from mechanical damage during installation and from aggressive construction media such as cement and concrete.

🌡️

Wide Operating Range

Rated from −60 °C to +95 °C, the tubes handle both cold-water supply lines and high-temperature heating circuits inside buildings without deforming or losing their sealing performance.

💧

Near-Zero Vapour Barrier

Steam permeability of ≤ 0.001 mg/(m·h·Pa) prevents moisture migration through the insulation wall, eliminating condensation on cold-water pipes and reducing the risk of corrosion beneath the jacket.

🎨

Colour-Coded Circuit Identification

Blue Super Protect С marks cold-water and general supply circuits; red Super Protect К identifies heating lines — enabling fast visual system identification and meeting colour-coding requirements of building installations.

📦

Coil & Stick Formats

Ten-metre coils (4 mm wall) minimise logistics costs and on-site storage, while 2-metre sticks with wall thicknesses of 6, 9 or 13 mm suit above-ground exposed runs requiring thicker insulation.

✅

GOST R 56729-2015 Certified

Manufactured to the Russian national standard for factory-made polyethylene foam insulation for building services and industrial installations, with a rated service life of at least 25 years and G1 low-flammability classification.

Buyer Benefits

50% greater mechanical strength than plain foam PE insulation — withstands backfill, heavy foot traffic and site impact during the construction phase
Directly embeddable in cement, concrete, gypsum and lime without chemical attack, eliminating the need for additional protective wrapping
Elastic foam layer absorbs thermal expansion of embedded pipes, preventing screed cracking around underfloor heating and in-wall pipework
Dual colour range (blue / red) meets building-services colour-coding requirements and speeds post-installation system identification
Near-zero steam permeability stops condensation forming on cold-water lines and removes a common source of hidden corrosion
Minimum 25-year rated service life reduces lifecycle replacement costs and disruption to finished floors and walls
G1 low-flammability rating satisfies fire-safety regulations for installation inside floor and wall building assemblies

Applications

Thermal insulation of hydronic underfloor heating pipes (warm-floor systems) laid beneath floor screed Hot-water supply pipe insulation routed inside wall and floor construction Cold-water supply pipe insulation where condensation prevention is required Heating circuit pipe insulation with red polymer coating for mandatory colour coding Pipe insulation in wall chases, duct penetrations and concealed service voids Above-ground hot and cold water supply runs using the 2-metre rigid stick format Insulation of copper, steel and plastic pipes covering outer diameters from 13.5 mm to 35 mm

Source: official manufacturer website
