Fire Hose "EXPERT" Pressure with Internal Waterproof Coating DN 50, 65, 80

Fire Hose "EXPERT" Pressure with Internal Waterproof Coating DN 50, 65, 80 — RUSARSENAL LLC

Name: Fire Hose "EXPERT" Pressure with Internal Waterproof Coating DN 50, 65, 80
Brand: Expert
SKU: 25799
Availability: InStock

Brand: Expert

$9 - $36 USD

MOQ: 200 meters

Supplier Information

RUSARSENAL LLC

🇷🇺 📦 🏭 🛡️

View All Products (7)

Quick Inquiry

Description

The EXPERT fire pressure hose (РПМ(В)-Ду-И-УХЛ1) is a premium-grade fire suppression hose manufactured by NPO Rusarsenal (ООО «НПО «РУСАРСЕНАЛ»), Russia's dedicated fire safety manufacturer based in Krasnogorsk, Moscow Region, with production facilities in Yaroslavl. The EXPERT line features an internal waterproof chamber made from thermoplastic polyurethane (TPU) bonded to a circular-woven synthetic-fibre jacket with twill weave — no outer protective coating.

Available in DN 50, 65, 80 (working pressure 1.6 MPa) and DN 100, 150 (1.2 MPa), the hose is designed exclusively for mobile fire equipment (fire trucks and motor pumps). The TPU inner layer delivers exceptional hydraulic smoothness, increasing flow velocity and maximum head compared to conventional rubber-lined hoses.

With a rated operating temperature range of −60 °C to +40 °C (climate class УХЛ1) and abrasion resistance of ≥200 cycles (DN 50), the EXPERT withstands severe field conditions without cracking, mould growth, or adhesion to itself. The product is certified under TR EAES 043/2017 (Certificate № C-RU.ПБ97.В.00475/23), complies with GOST R 51049-2019, and is manufactured under TU 13.96.16-063-85787444-2022.

Standard coil length is 20 ± 1 m; each unit ships individually packaged with a repair kit for rapid field patch of leaks.

Details & Equipment

Product Overview by Diameter

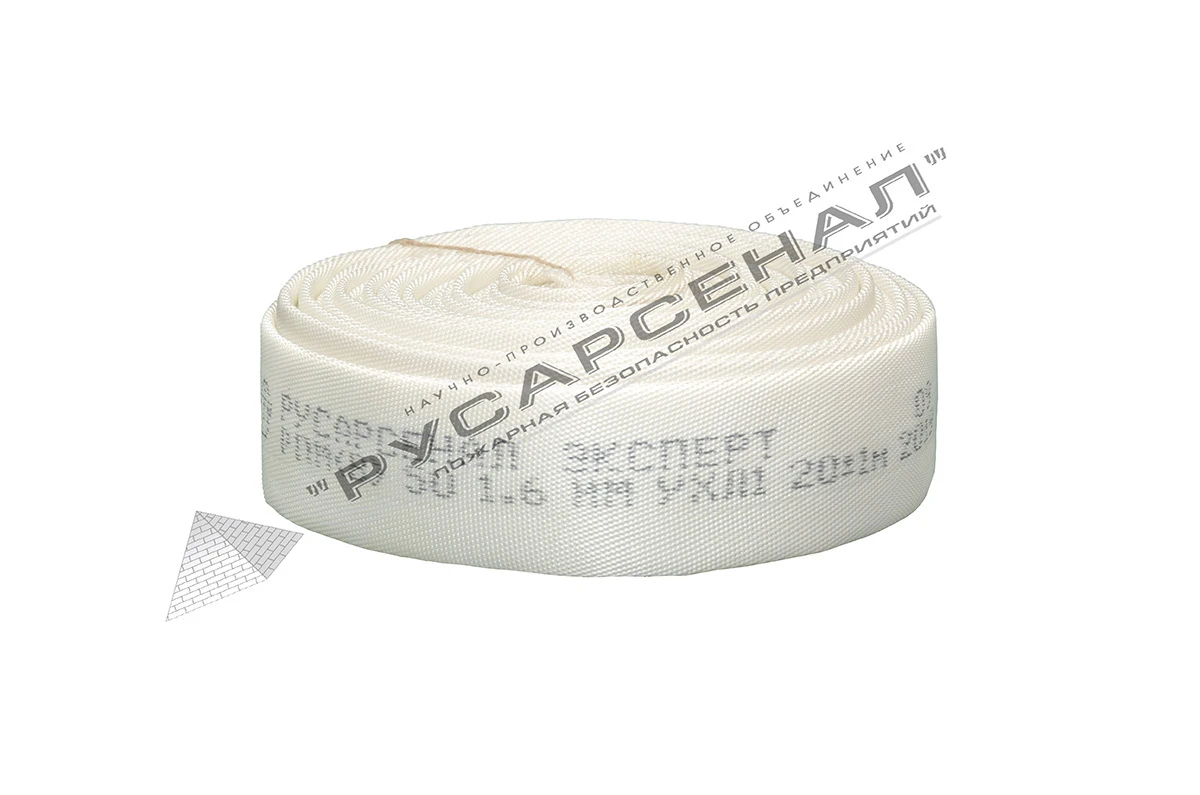

EXPERT DN 50 Hose

The DN 50 EXPERT hose (РПМ(В)-50-1,6-И-УХЛ1) is the most common attack-line diameter for fire trucks. The circular-woven TPU-lined hose is shown coiled in its standard 20 m reel, ready for deployment.

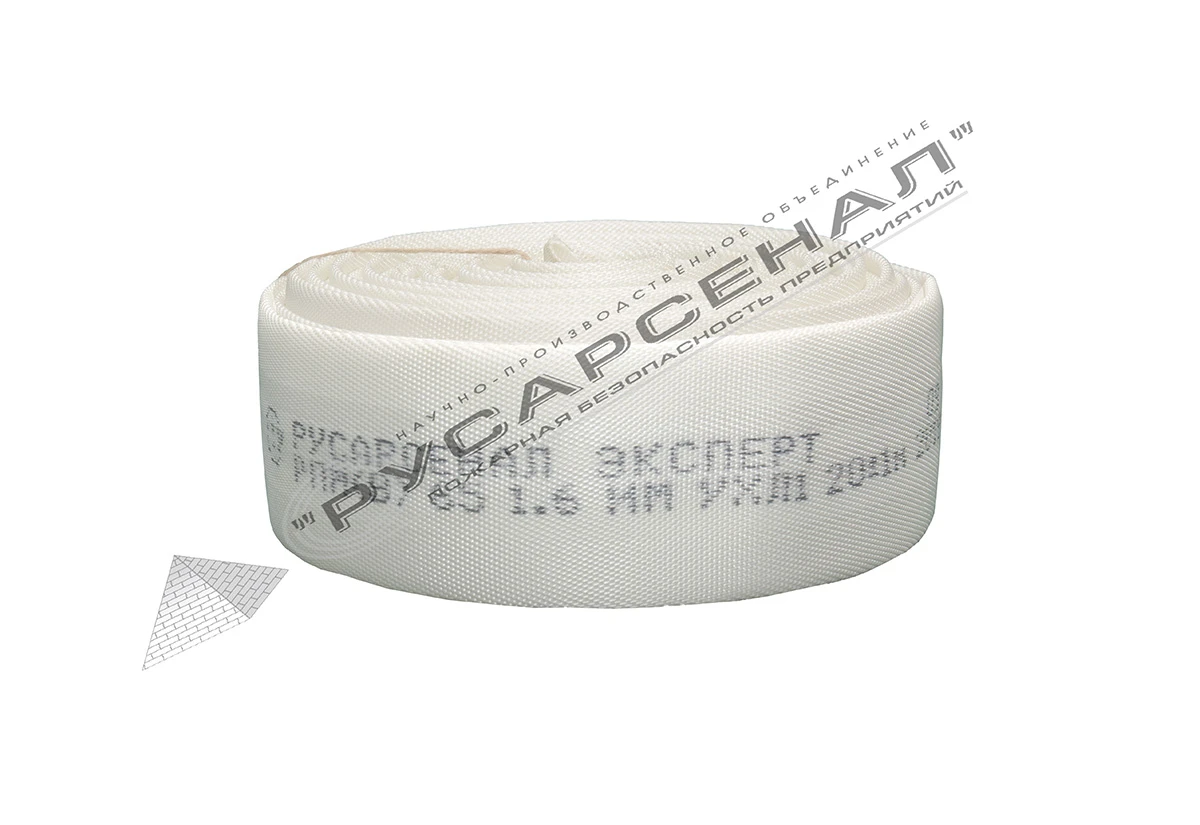

EXPERT DN 65 Hose

The DN 65 EXPERT (РПМ(В)-65-1,6-И-УХЛ1) handles 1.6 MPa working pressure and fits standard GR-65 couplings. The coil illustrates the synthetic jacket's characteristic smooth outer finish.

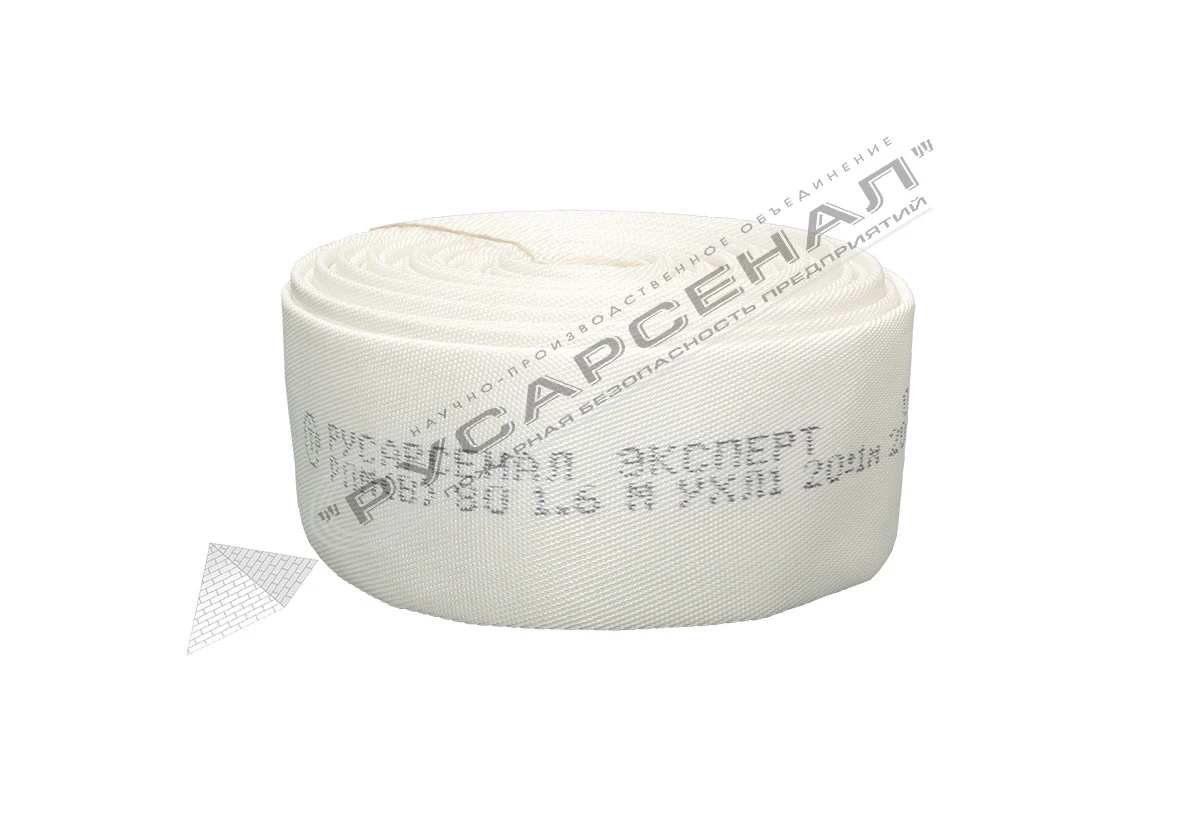

EXPERT DN 80 Hose

The DN 80 version (РПМ(В)-80-1,6-И-УХЛ1) bridges attack and supply-line diameters. At 1.6 MPa rated pressure it is used as a primary feed line between the pump and barrel manifolds.

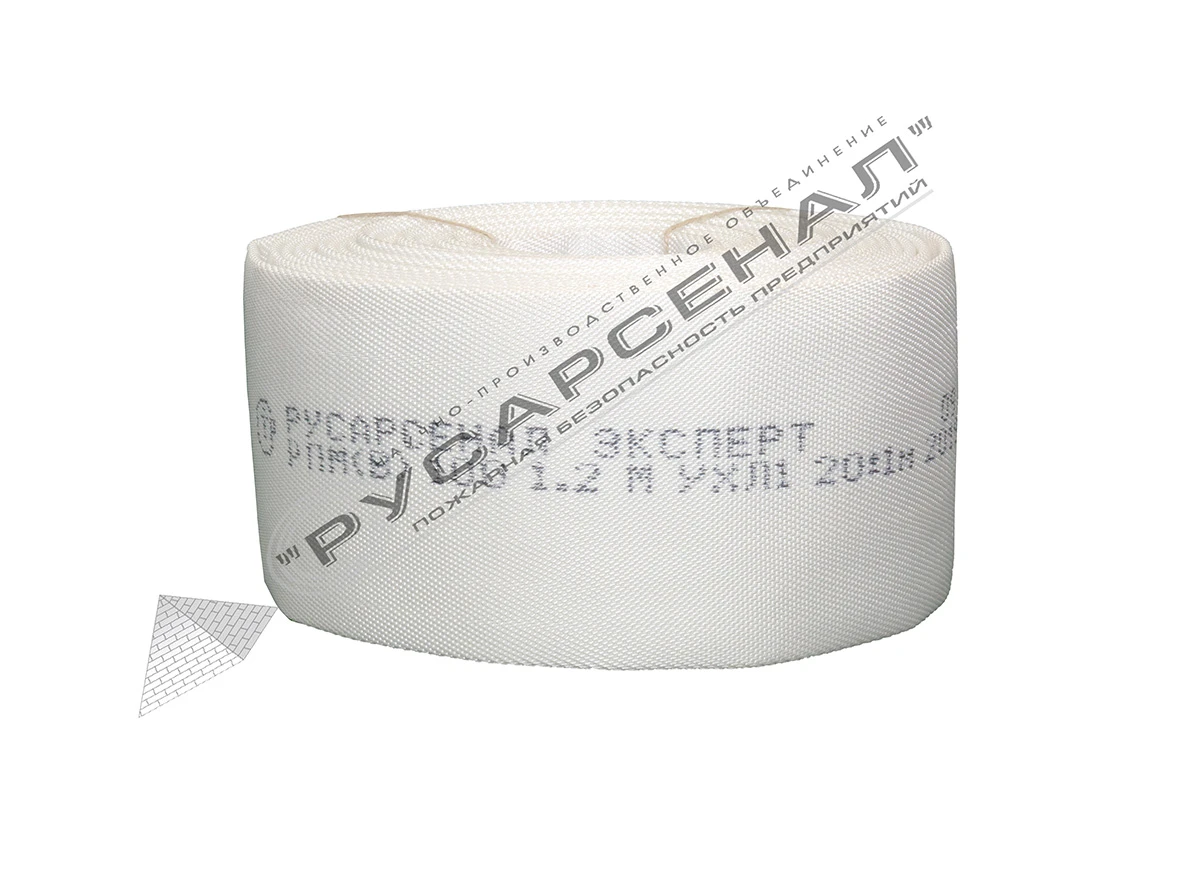

EXPERT DN 100 Hose

The large-bore DN 100 EXPERT (РПМ(В)-100-1,2-УХЛ1) operates at 1.2 MPa and is intended for relay pumping and tanker-to-pump water transfers at major incidents.

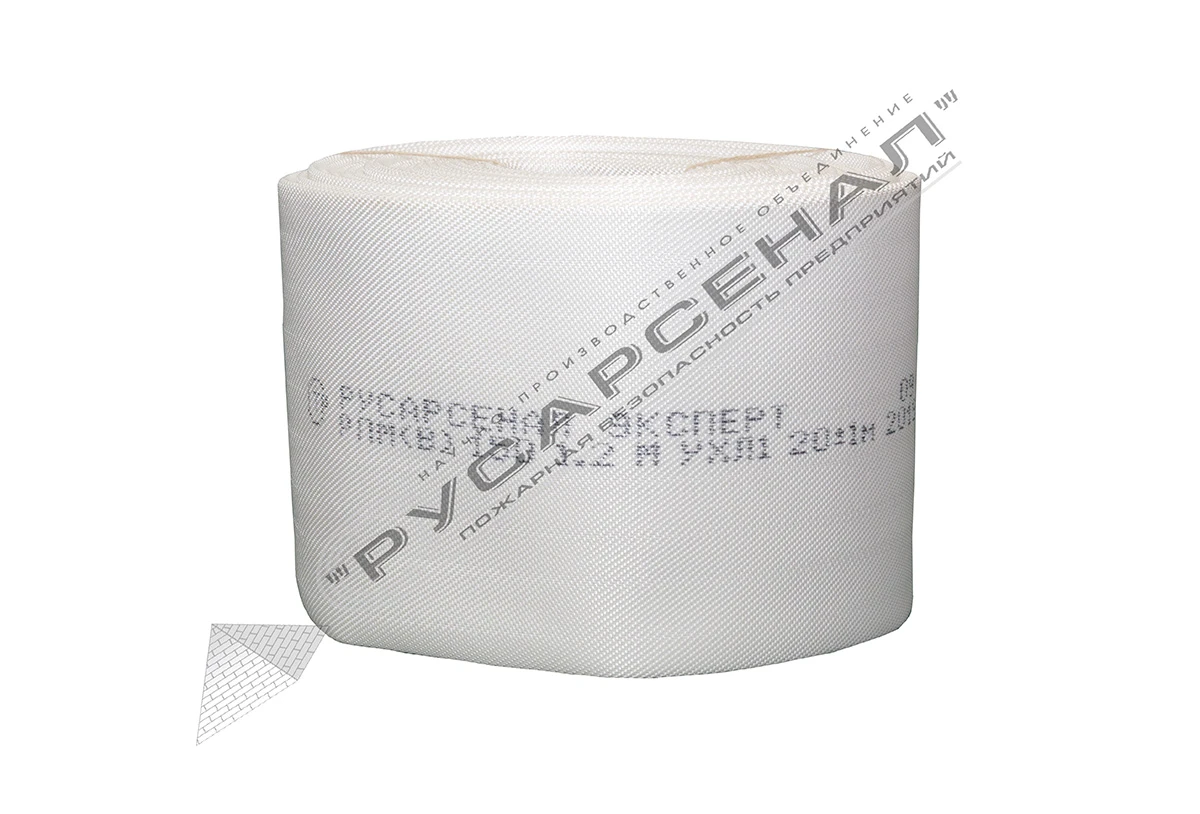

EXPERT DN 150 Hose

The largest DN 150 variant (РПМ(В)-150-1,2-УХЛ1) delivers maximum flow volume for large-scale industrial or infrastructure firefighting. Up to 96 coils fit in a single shipping container.

Hose Construction

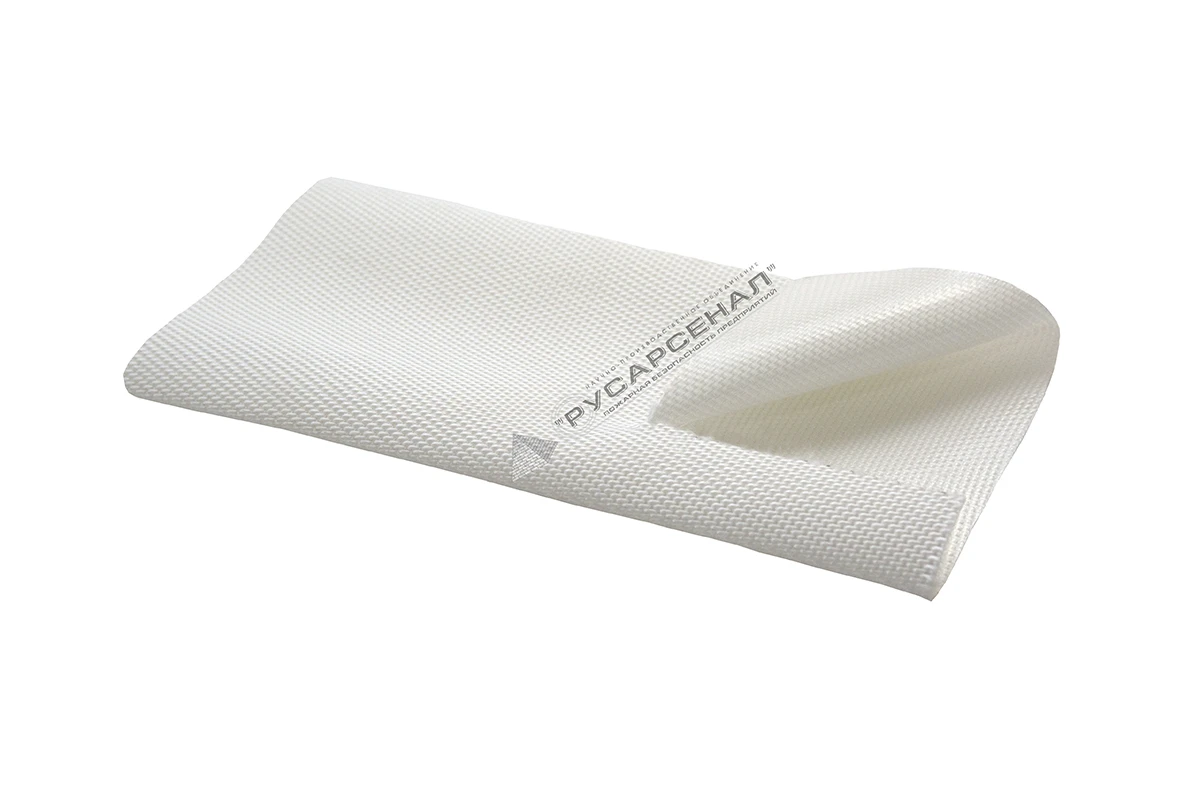

Cross-Section Diagram

Cut-away view of the EXPERT hose showing the two-layer construction: the inner TPU waterproof chamber bonded directly to the circular-woven synthetic-fibre twill jacket, with no outer polymer coating. The bond strength between liner and fabric reaches ≥ 10 N/cm across all diameters.

Coupling Options

EXPERT Hoses with Fire Couplings

The EXPERT DN 50 and DN 65 hoses fitted with factory-supplied GR-type fire couplings. The hose is supplied in three configurations: bare hose, with coupling head only, or with coupling head and fire nozzle pre-attached.

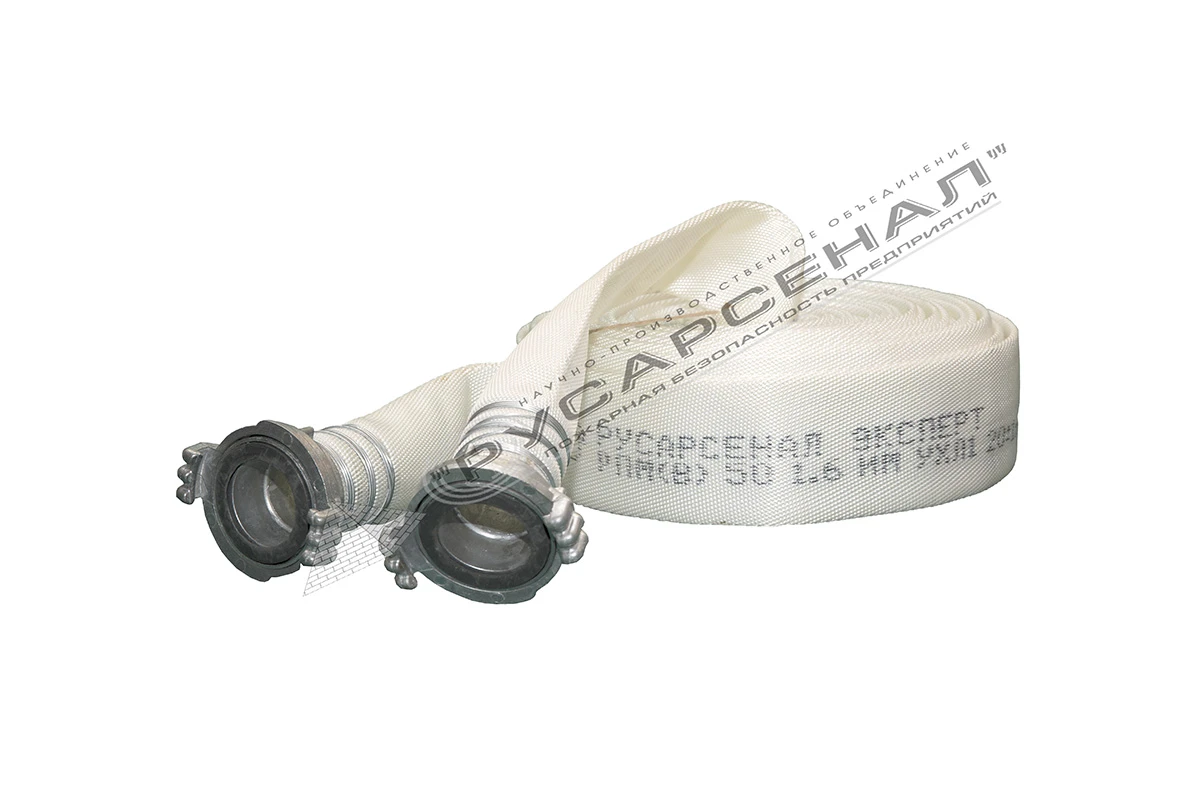

DN 50 Assembly with Coupling

DN 50 EXPERT hose with coupling attachment shown in detail. Factory fitting ensures correct clamping torque and leak-free connection at the rated 1.6 MPa working pressure.

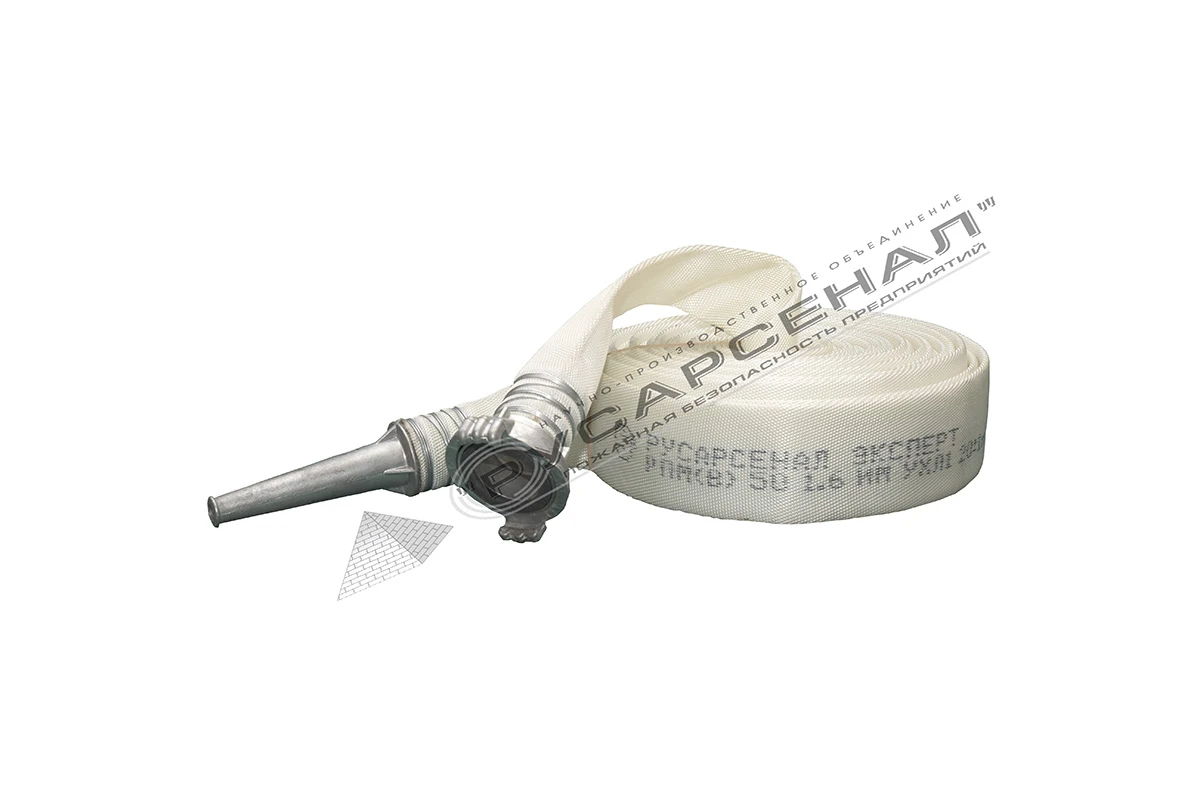

DN 50 Assembly with Nozzle

DN 50 EXPERT hose equipped with both coupling head and fire nozzle (РС-50.01 type). This ready-to-deploy configuration reduces hose-laying time on the fire ground.

Packaging

Features

💧

TPU Internal Waterproof Chamber

The inner liner is extruded from thermoplastic polyurethane (TPU), providing a smooth, water-repellent surface that accelerates flow and maximises pressure head at the nozzle.

🌡️

Wide Operating Temperature Range

Rated for continuous use from −60 °C to +40 °C (climate class УХЛ1), making the EXPERT suitable for arctic, Siberian, and high-altitude deployments without brittleness or cracking.

⚙️

High Working Pressure — 1.6 MPa (DN 50–80)

DN 50, 65, and 80 versions sustain 1.6 MPa working pressure, pass hydrostatic proof at 2.0 MPa, and withstand a burst pressure of ≥ 3.5 MPa per GOST R 51049-2019 test protocol.

🔩

Abrasion-Resistant Twill-Weave Jacket

The outer jacket uses a twill (саржевое) weave of synthetic composite yarn, achieving ≥ 200 abrasion cycles for DN 50 and ≥ 150 for DN 65 — significantly higher than standard plain-weave hoses.

📋

GOST R 51049-2019 Certified

Mandatory certification under TR EAES 043/2017 (Certificate № C-RU.ПБ97.В.00475/23); certified by the Fire Safety Academy of EMERCOM Russia laboratory (RA.RU.21ПЖ15); manufactured under TU 13.96.16-063-85787444-2022.

📦

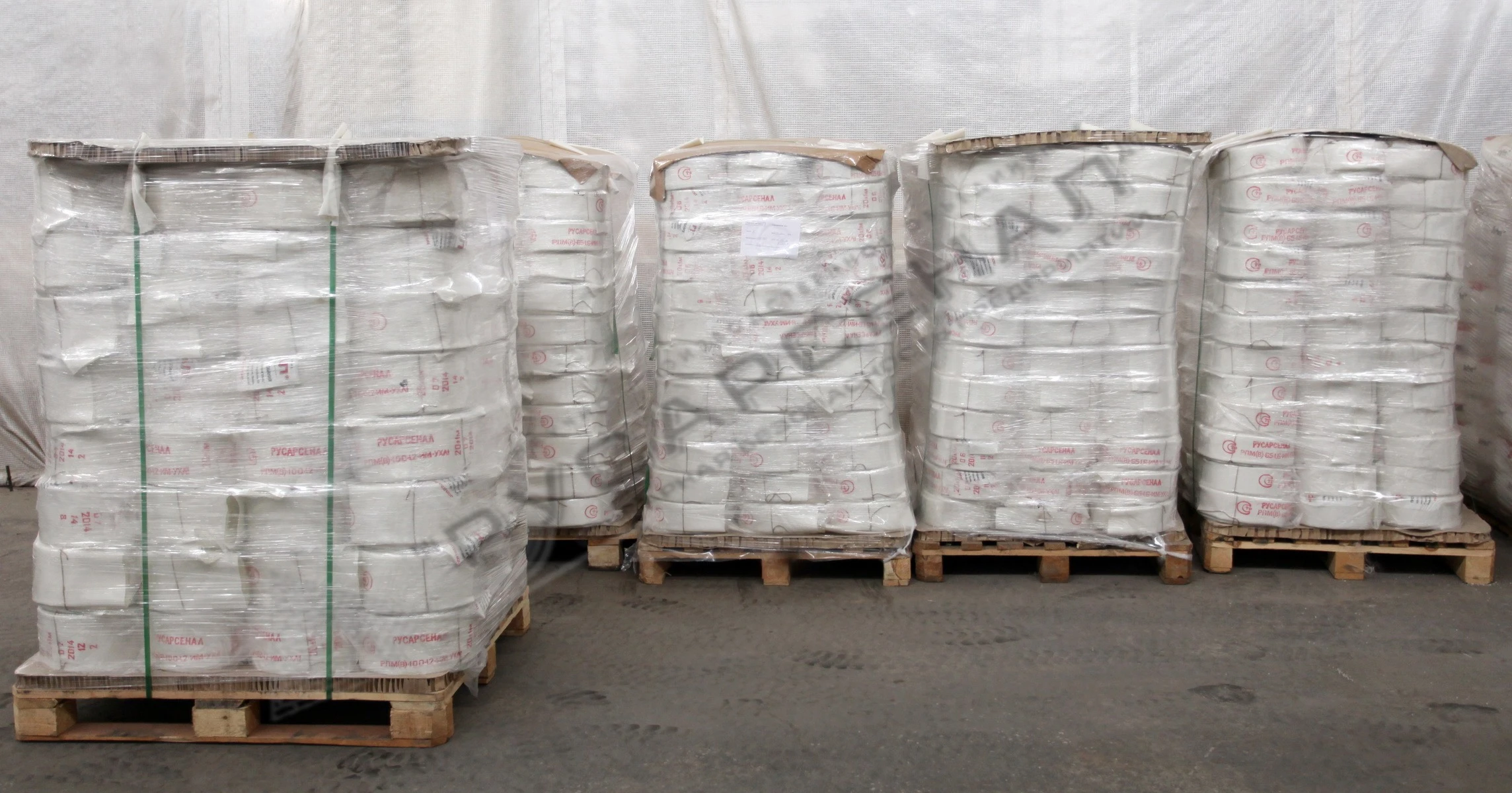

Practical Packaging and Logistics

Supplied in individual protective coils (20 ± 1 m per reel) with a field repair kit; bulk palletised loads of up to 264 reels (DN 50) per shipping container streamline large-order fulfilment.

Buyer Benefits

No mandatory drying or talc treatment after use — TPU liner does not absorb water, reducing post-deployment maintenance time.
Resistant to UV radiation, ozone, and ageing — the hose does not crack or degrade under prolonged outdoor storage (climate class УХЛ1).
Oil- and chemical-resistant formulation inhibits mould and withstands contact with fuels and lubricants encountered at industrial and military fire scenes.
Low elongation under pressure (≤ 5% axial and ≤ 5% diameter at rated pressure) ensures predictable handling and stable nozzle positioning for fire crews.
Inner layer-to-fabric bond strength ≥ 10 N/cm across all diameters prevents delamination during surge pressures and repeated roll/unroll cycles.
Optional factory-fitted coupling heads (DN 50 with РС-50.01 nozzle; DN 65 with РС-70.01) reduce on-site assembly time.

Applications

Mobile fire truck (РПМ-class vehicle) primary attack lines — DN 50 and DN 65 for structural firefighting. Large-diameter supply lines (DN 80, 100, 150) for relay pumping and tanker-to-pump transfers at major incidents. Motor pump and portable pump kits for forestry, industrial, and disaster-response units. Cold-climate and arctic fire brigades requiring frost-stable hose rated to −60 °C. Military and civil defence depots where long shelf life without regular maintenance cycles is required. Industrial plant fire suppression systems where oil and chemical resistance is mandatory. Municipal fire services upgrading from latex-lined hose to lightweight, low-maintenance TPU technology. Export customers in CIS and Customs Union member states — the hose bears the Eurasian conformity mark under TR EAES 043/2017.
