Explosion-Proof Flame Detector C2000-Spektron-207-Exi

Explosion-Proof Flame Detector C2000-Spektron-207-Exi — SPEKTRON LLC

Name: Explosion-Proof Flame Detector C2000-Spektron-207-Exi
Brand: Spectron
SKU: 369980
Availability: InStock

Brand: Spectron

$15 - $48 USD

MOQ: 200 pieces

Key Features

Viewing angle: Flat grinder, Specialised grinder

Operating temperature range: 55 °C

Explosion protection marking: RO Ex ia I Ma X / 0Ex ia IIC T6 Ga X / Ex ia IIIC T85ºC Da X

Power supply voltage (DPLS): 8...11 V

Supplier Information

SPEKTRON LLC

🇷🇺 📦 🏭 🛡️

View All Products (174)

Quick Inquiry

Description

The С2000-Спектрон-207-Exi is an explosion-proof single-channel infrared flame detector manufactured by NPO Spektron (SPEKTRON LLC), a Russian developer specializing in hazardous-area fire detection systems. It is the intrinsically safe addressable member of Spektron's 200-series flame detector family, designed for direct integration into С2000 addressable fire alarm systems via a two-wire ДПЛС loop supplied at 8–11 V.

The detector carries explosion protection marking РО Ex ia I Ma X / 0Ex ia IIC T6 Ga X / Ex ia IIIC T85°C Da X, certifying it for Group I mining atmospheres (methane), Group IIC gas and vapor environments (hydrogen group), and Group IIIC combustible dust — all at temperature class T6 and surface temperature limit T85°C. Up to 120 detectors can share a single addressable loop, significantly reducing wiring and infrastructure costs in large-scale industrial installations.

The single-channel infrared sensor delivers a 90° field of view and detects standard fire test sources at up to 25 m range with a minimum response time of 6 seconds. Operating across –55 °C to +75 °C, it performs reliably in Arctic outdoor conditions and hot industrial environments alike.

Certifications include fire safety under TR EAEU 043/2017, functional safety assessment, and seismic and vibration resistance testing — covering all mandatory approvals for the Russian and EAEU markets.

Details & Equipment

Enclosure Variants

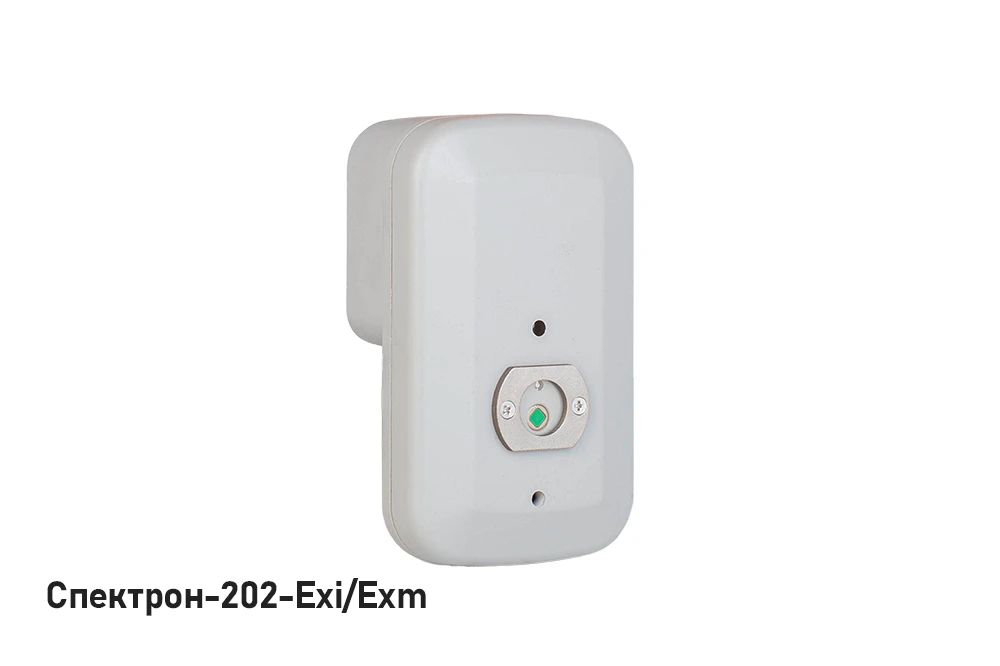

Standard ABS Plastic Enclosure

The base Exi version uses a compact, lightweight ABS plastic housing rated IP66/IP68, suitable for the majority of indoor and sheltered outdoor hazardous-area installations where chemical resistance is not critical.

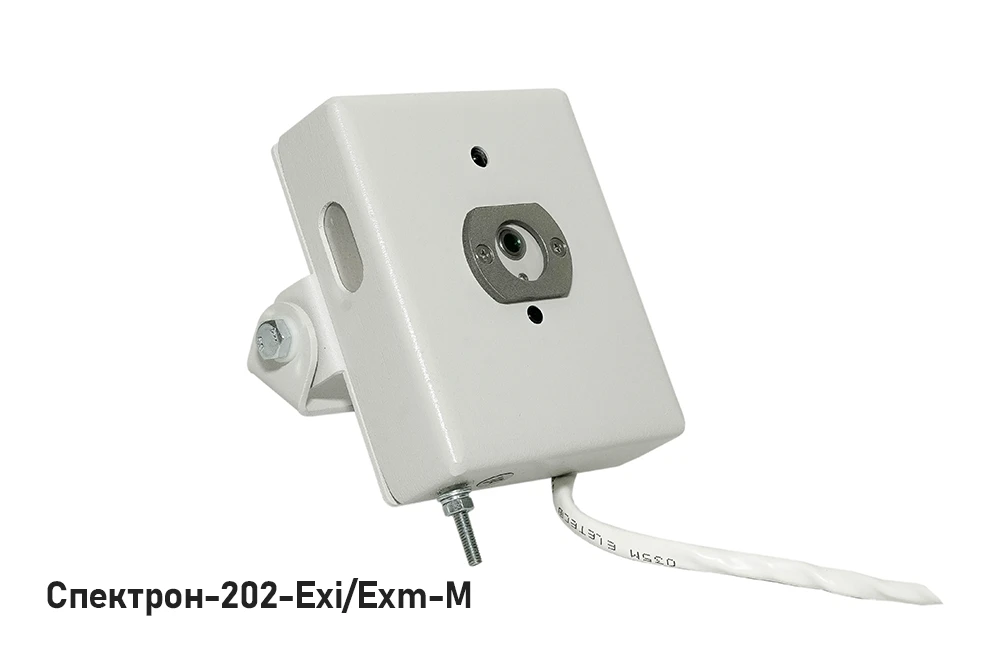

Galvanized Steel Enclosure (-M Variant)

The -M variant substitutes galvanized steel for enhanced mechanical impact resistance, extending the upper operating temperature limit to +85 °C — preferred for hot process areas and locations subject to physical damage.

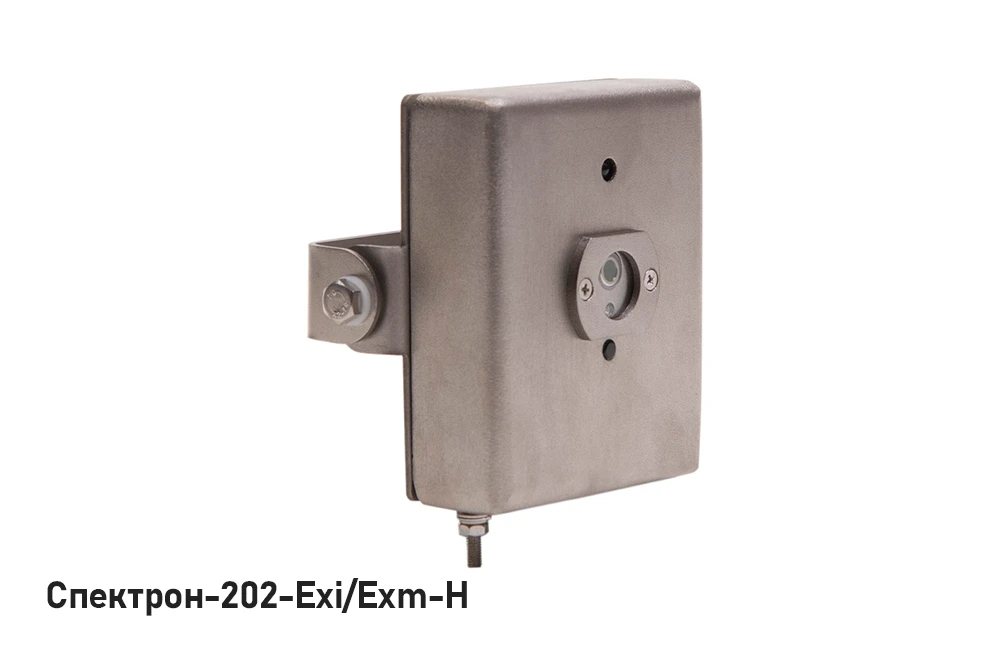

Stainless Steel Enclosure (-N Variant)

The -N variant uses a stainless steel enclosure that withstands aggressive cleaning agents and corrosive atmospheres, making it the preferred choice for marine, offshore, and chemically hostile environments.

Features

⚡

Intrinsic Safety Class 'ia'

Certified to explosion-protection marking РО Ex ia I Ma X / 0Ex ia IIC T6 Ga X / Ex ia IIIC T85°C Da X, the highest intrinsic safety level, enabling safe use in Zone 0 gas/vapor and Zone 20 dust environments without additional protective enclosures.

📡

Addressable ДПЛС Interface

Integrates directly into С2000 Bolid addressable fire alarm loops (ДПЛС) at 8–11 V supply voltage; up to 120 detectors can share a single two-wire loop, eliminating dedicated home-run cables for each unit.

👁️

90° Wide-Angle Detection

The infrared sensor delivers a 90° field of view in all planes, providing broad coverage of open industrial areas from a single mounting point and reducing the total number of detectors required.

🌡️

Extended Operating Range

Rated –55 °C to +75 °C, the detector withstands severe Arctic winters as well as elevated-temperature industrial environments — all in the same standard ABS plastic enclosure weighing approximately 200 g.

🔍

25 m Detection Range

Detects a standard fire test source (TP6) at up to 25 m distance; a configurable БЛИЗКО mode switches sensitivity for close-range TP5 detection at 15 m, adapting to different facility geometries.

📋

Full Certification Package

Holds TR EAEU 043/2017 fire safety certificate, functional safety assessment per ROSS RU.FB01, and seismic and vibration resistance certificates — all approvals needed for commissioning in oil, gas, and mining facilities in Russia and EAEU states.

Buyer Benefits

Zone 0 and Zone 20 certification (intrinsic safety class 'ia') eliminates the need for costly explosion-proof enclosures around the detector
Native С2000 addressable loop compatibility means direct integration into Bolid-based fire alarm systems with no additional interface modules
Up to 120 units per ДПЛС loop cuts per-point infrastructure cost in large facilities such as refineries and processing plants
Compact, lightweight ABS housing (≈200 g) simplifies mounting in confined spaces and at height
Operating range from –55 °C covers outdoor installations in northern Russia without supplementary heating
Self-test capability built into the detector reduces maintenance visits and lowers the risk of undetected faults
Complete TR EAEU certification package accelerates regulatory approval and project commissioning across Russia and EAEU markets

Applications

Oil and gas production facilities and refineries with explosive gas/vapor atmospheres Underground coal and ore mines requiring Group I (mining) explosion protection Petrochemical plants and chemical processing facilities with hydrogen or Group IIC gases LNG storage terminals and gas distribution stations Offshore drilling platforms and floating production and storage units Paint shops and solvent-handling areas where flammable vapors may accumulate Grain elevators and flour mills with combustible dust atmospheres (Zone 20) Hydrogen production, compression, and storage facilities

Source: official manufacturer website
