Electric Frying Pan with Tilted Bowl, SESM-0.5LCH

Electric Frying Pan with Tilted Bowl, SESM-0.5LCH — TULATORGTECHNIKA OJSC

Name: Electric Frying Pan with Tilted Bowl, SESM-0.5LCH
Brand: null
SKU: 160912
Availability: InStock

Brand: null

$2,100 - $6,000 USD

MOQ: 1 pieces

Key Features

Rated capacity of the frying pan: B1/B8 2100/900 MHz kW

Overall dimensions of the frying pan: length 1370 x width (depth) 845 x height 940 mm

Nominal bowl volume: 75 liters

Power connection parameters: 3N 230 V ~

Supplier Information

TULATORGTECHNIKA OJSC

🇷🇺 📦 🏭 🛡️

View All Products (57)

Quick Inquiry

Description

The SESM-0.5LCH (СЭСМ-0,5ЛЧ) is a heavy-duty professional electric tilting frying pan manufactured by TULATORGTECHNIKA OJSC, a Russian industrial cooking equipment producer based in Tula. Built for high-volume food service operations, the unit features a thick-walled cast-iron bowl with a hearth area of 0.5 m² and a nominal working capacity of 75 litres.

Heat is delivered by tubular electric heaters (TENs) mounted directly beneath the bowl, supplied at 230 V on a three-phase 3N 230 V circuit with a total rated power of 12 kW. A built-in thermostat holds the bowl floor temperature automatically anywhere between +50 °C and +300 °C, covering the full range from gentle simmering to deep-frying.

The bowl tilts to any required angle via a screw-drive mechanism operated by a flywheel on the left side of the machine, making bulk product discharge straightforward; as a built-in safety feature, the heaters cut out automatically whenever the bowl tilts more than 12° from horizontal. A spring-assisted hinged lid sits over the bowl, minimising splatter during cooking, cutting heat losses, and preventing condensate from running down the external surfaces.

Control is concentrated on the right-hand panel: thermostat knob plus two indicator lamps showing grid connection and heater on/off status. Overall footprint is 1370 × 845 × 940 mm; operating weight is 225 kg.

Details & Equipment

Product Overview

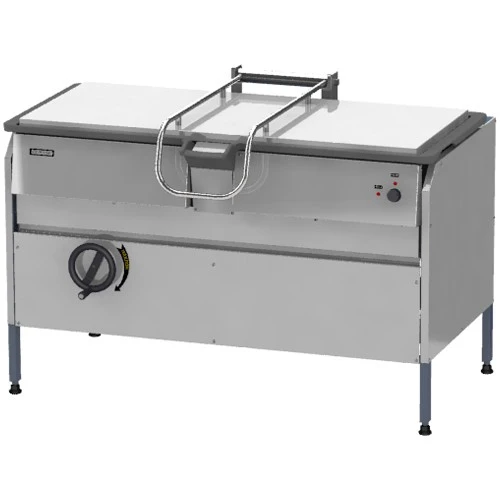

General view

The SESM-0.5LCH with its lid closed in the working position; the screw-drive tilt flywheel is visible on the left side and the control panel with thermostat and indicator lamps is on the right.

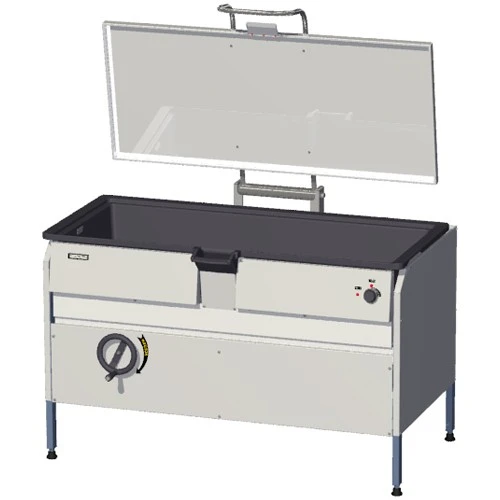

Lid open

The spring-assisted hinged lid is raised and locked in the open position, giving full access to the 0.5 m² cast-iron bowl; the smooth interior surface facilitates cleaning after use.

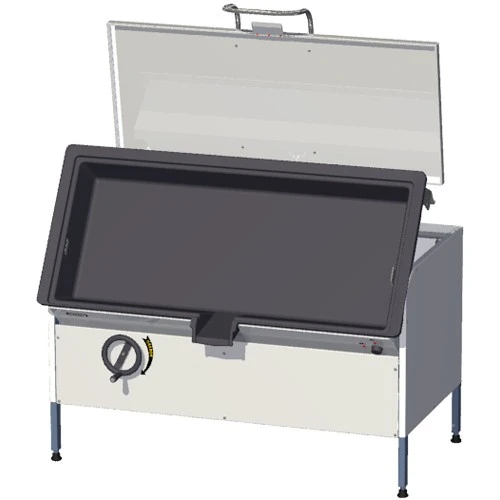

Bowl tilted for discharge

The cast-iron bowl tilted forward by the screw mechanism to discharge cooked product; the heaters cut off automatically at tilt angles greater than 12° for operator safety.

Features

🍳

Cast-iron bowl

The 75-litre bowl is cast from grey iron, ensuring outstanding heat distribution and thermal mass to maintain stable cooking temperatures during heavy loads.

🔄

Screw-drive tilt mechanism

A left-side flywheel tilts the bowl to any angle required for product discharge; the heaters shut off automatically when tilt exceeds 12° from horizontal for safe operation.

🌡️

Precise thermostat control

An integrated thermostat automatically maintains the hearth temperature in the range +50 °C to +300 °C, suitable for slow braising through to deep frying.

⚡

12 kW three-phase power

Tubular heating elements are powered at 230 V on a 3N 230 V three-phase supply, delivering 12 kW of rated output with rear access to heater terminals for servicing.

🔒

Spring-assisted hinged lid

The counterbalanced lid lifts and locks open effortlessly, reducing splash, retaining heat, and preventing condensate from contacting the outer surfaces of the pan.

📊

Status indicator panel

A service panel on the right carries the thermostat knob and two signal lamps — one confirming grid connection, one showing heater status — and can be opened for instrument access.

Buyer Benefits

Large 75-litre cast-iron bowl handles bulk meal production in a single batch, reducing cycle times in high-throughput kitchens
Cast iron construction delivers superior heat retention and even floor-to-wall temperature distribution, preventing hot spots
Automatic thermostat maintains the set temperature without operator intervention, freeing kitchen staff for other tasks
Screw-drive tilting bowl enables fast, effortless product discharge without manual lifting or ladling
Automatic heater cut-off at >12° tilt removes the risk of overheating during unloading, protecting both equipment and personnel
Spring-loaded lid reduces cooking losses, contains aerosols, and keeps the surrounding work area clean
Rear access to heater contacts simplifies routine maintenance and element replacement, minimising downtime

Applications

Braising large batches of meat, poultry, or mixed dishes in catering kitchens Sautéing onions, root vegetables, and aromatics as a base for soups and sauces Blanching and poaching fish, vegetables, and dumplings in liquid Deep-frying breaded portions, pastries, and doughnuts in oil Shallow-frying cutlets, patties, pancakes, and similar items Preparing large-volume sauces, gravies, and marinades Industrial canteens, military and hospital food service facilities Food-processing enterprises requiring continuous, high-capacity thermal treatment

Source: official manufacturer website
