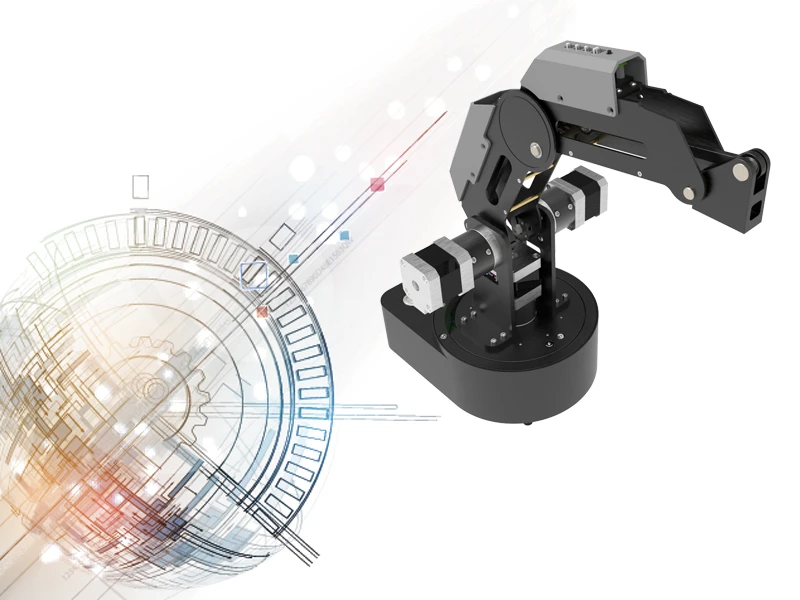

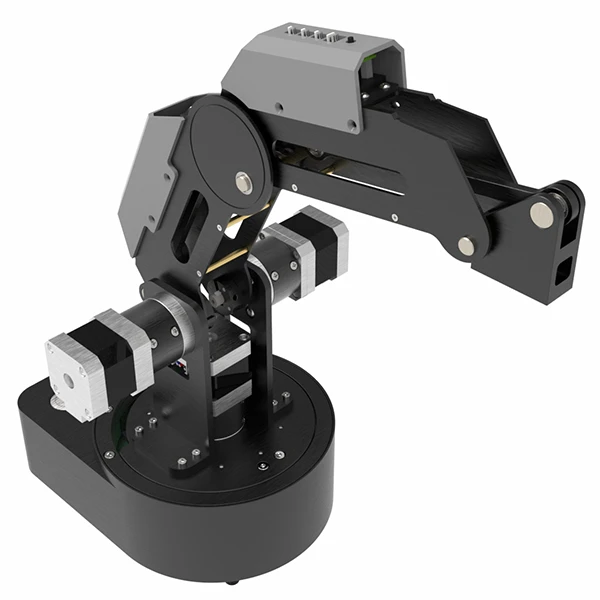

The educational robot is designed to master the basics of robotics and prepare students for the introduction and subsequent use of robotics in industrial production.
Supply kit:
Power supply unit.
Suction cup with servo motor.
Mechanical gripping device.
Pencil and/or felt-tip pen holder.
Laser engraving device complete with glasses.
3D printing device.
A remote control.
Wireless communication module.
Designer mount.
Technical specifications:
Number of axles: 4.
Working radius: up to 350 mm.
Motor type: stepper motors.
Rotation angle: first axis 180°, second axis 125°, third axis 140°, fourth axis 180°.
Repositioning accuracy: 0, 2 mm.
Maximum payload: up to 500g.
Installed power: 100 W.
Rated voltage: 180-240 VAC with frequency 50/60 Hz.
Operating temperature: 0 to plus 40°C.
Protection class: IP20.
Overall dimensions (WxHxH): 216x421x.
