Name: Duct Fan TYPHOON 315 2SP for Efficient Airflow
Brand: TYPHOON
SKU: 156730
Availability: InStock

Brand: TYPHOON

$90 - $300 USD

MOQ: 20 pieces

Key Features

diameter: 315 mm

power: 390 W

length: 510 mm

width: 360 mm

Supplier Information

ERA LLC

🇷🇺 📦 🏭 🛡️

View All Products (159)

Quick Inquiry

Description

The TYPHOON 315 2SP is a mixed-flow axial duct fan from ERA PRO, a leading Russian ventilation brand that manufactures a full range of HVAC equipment for residential, commercial, and industrial use. Built for inline integration into 315 mm round ductwork, it is the largest model in ERA PRO's TYPHOON two-speed series and handles both supply and exhaust ventilation duties.

The fan body is molded from white plastic and features a modular design: the central assembly — housing the motor, impeller, and terminal box — detaches from the inlet and outlet flanges using quick-release metal clamps. This allows the entire drive unit to be removed and serviced without disturbing the duct installation.

Power comes from a two-speed single-phase motor mounted on long-life ball bearings. Built-in thermal protection with automatic restart lets the fan recover autonomously from brief overloads without manual intervention.

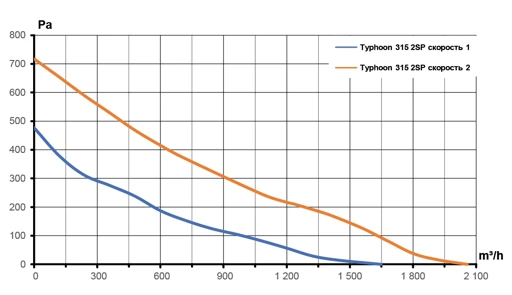

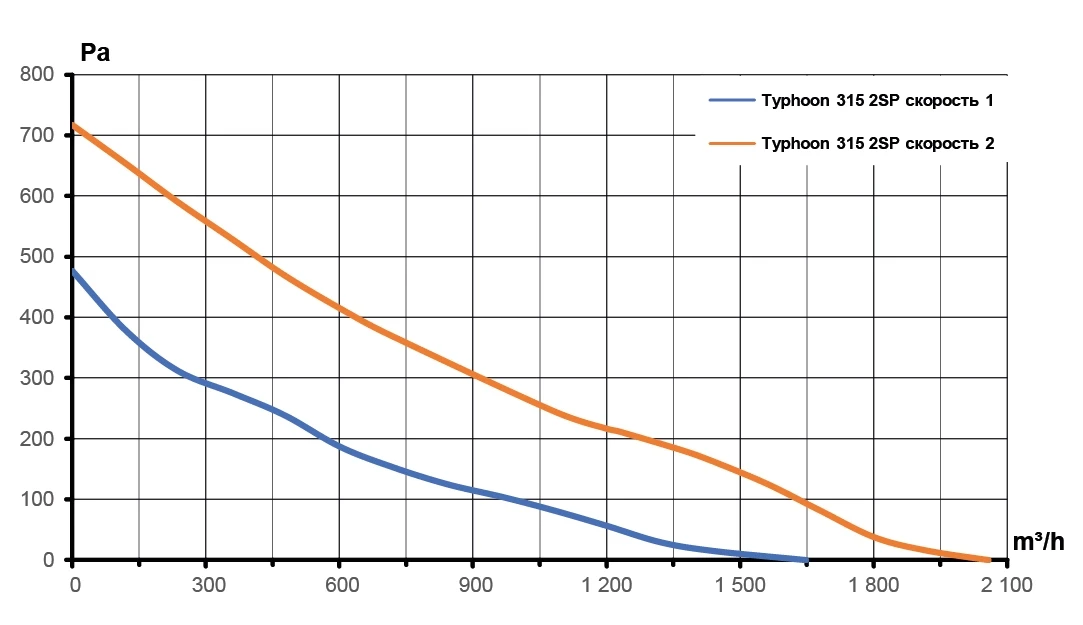

Speed selection is made at the terminal block during commissioning or via an external pushbutton sold separately. On low speed, the fan delivers 1,650 m³/h at up to 480 Pa static pressure; on high speed, output rises to 2,060 m³/h and 715 Pa while drawing up to 285 W.

The IP44 enclosure rating suits humid, dusty, and light-industrial environments. Both horizontal and vertical mounting are supported; the unit is fixed with self-tapping screws.

ERA PRO backs the TYPHOON 315 2SP with a 3-year manufacturer warranty.

Details & Equipment

Product Views

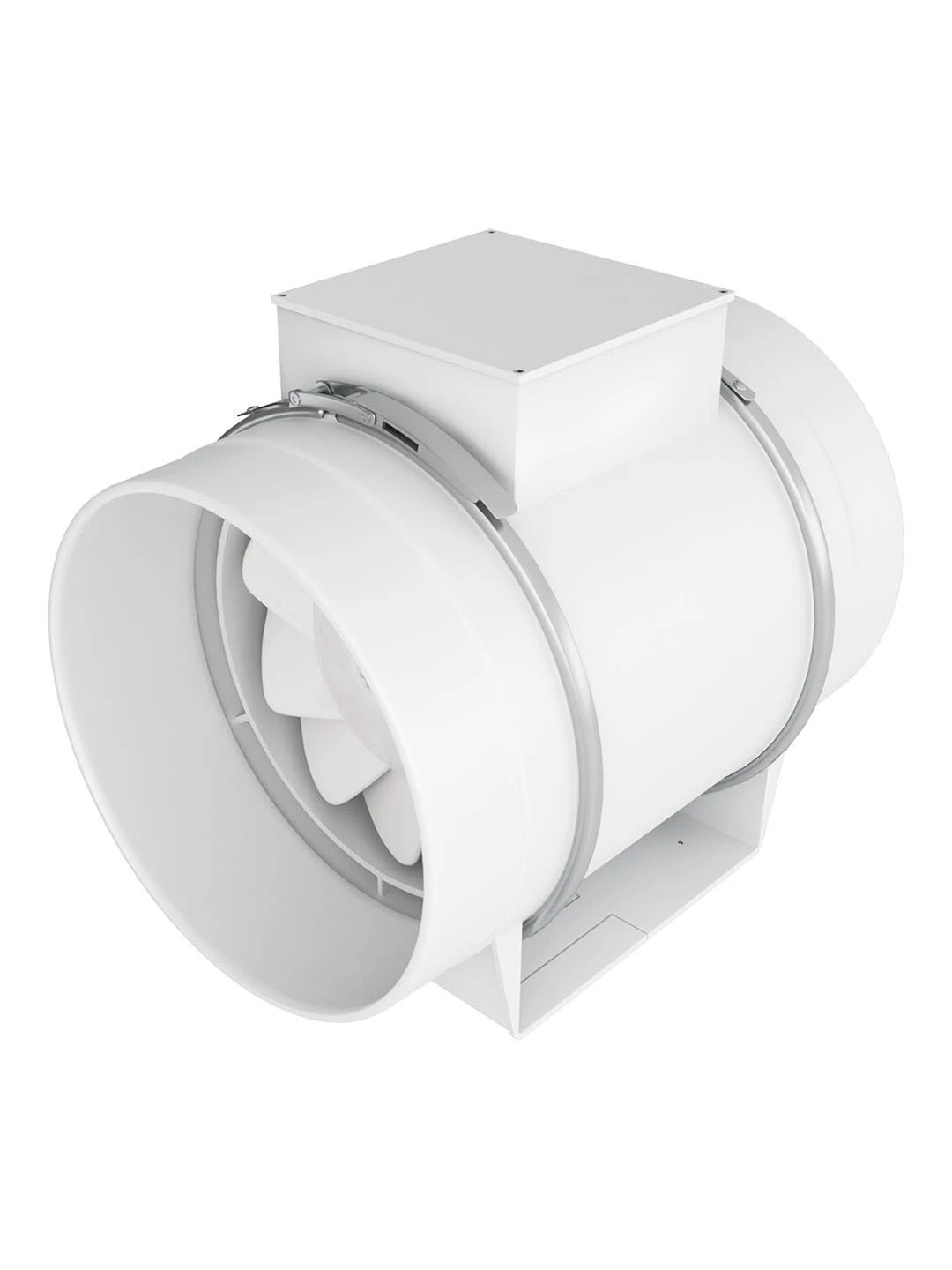

Main View

The TYPHOON 315 2SP in its white plastic housing with inlet and outlet flanges designed for direct inline duct connection.

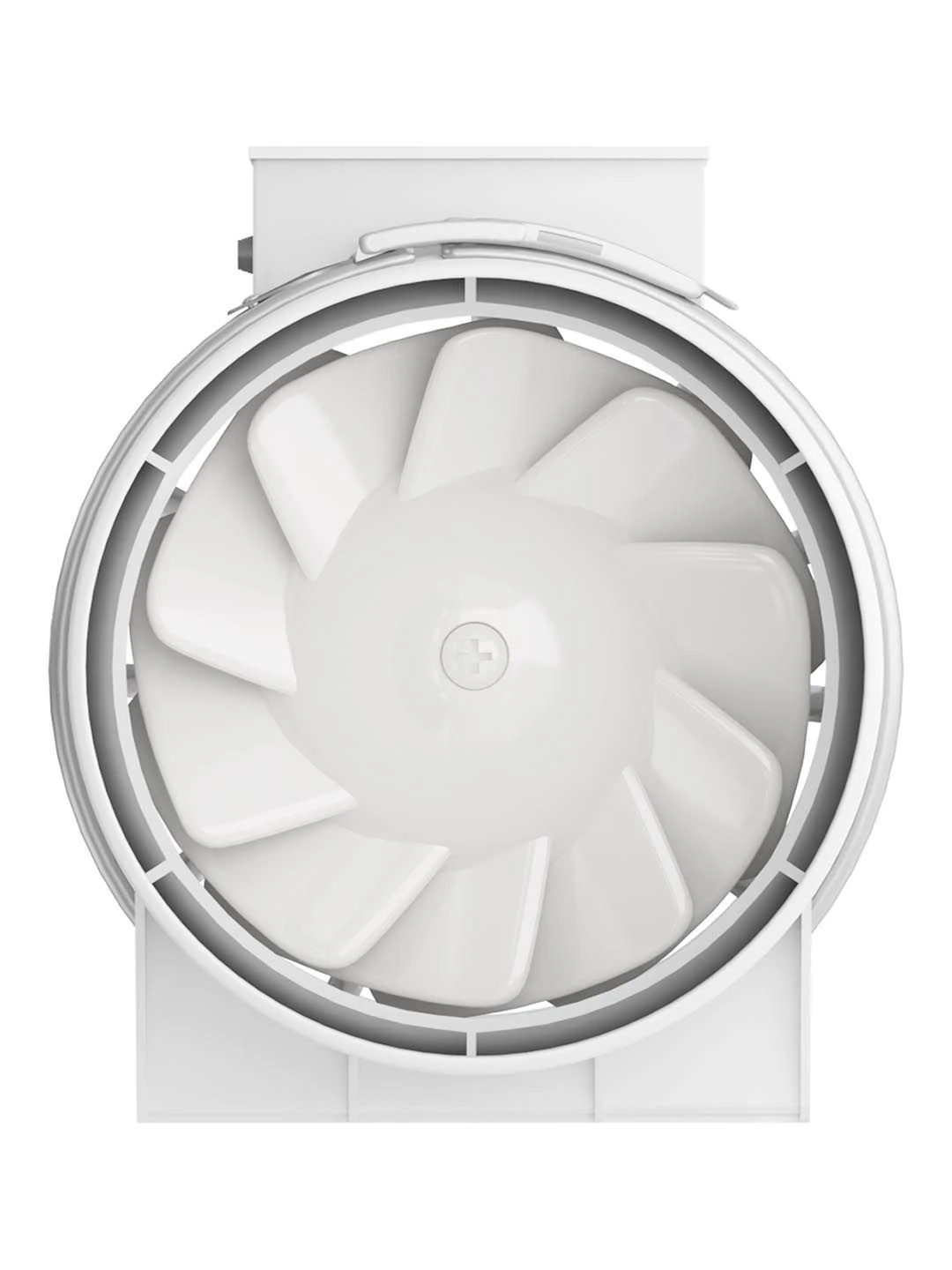

Impeller Side

View into the fan showing the mixed-flow impeller arrangement that enables the high static pressure output characteristic of the TYPHOON 2SP series.

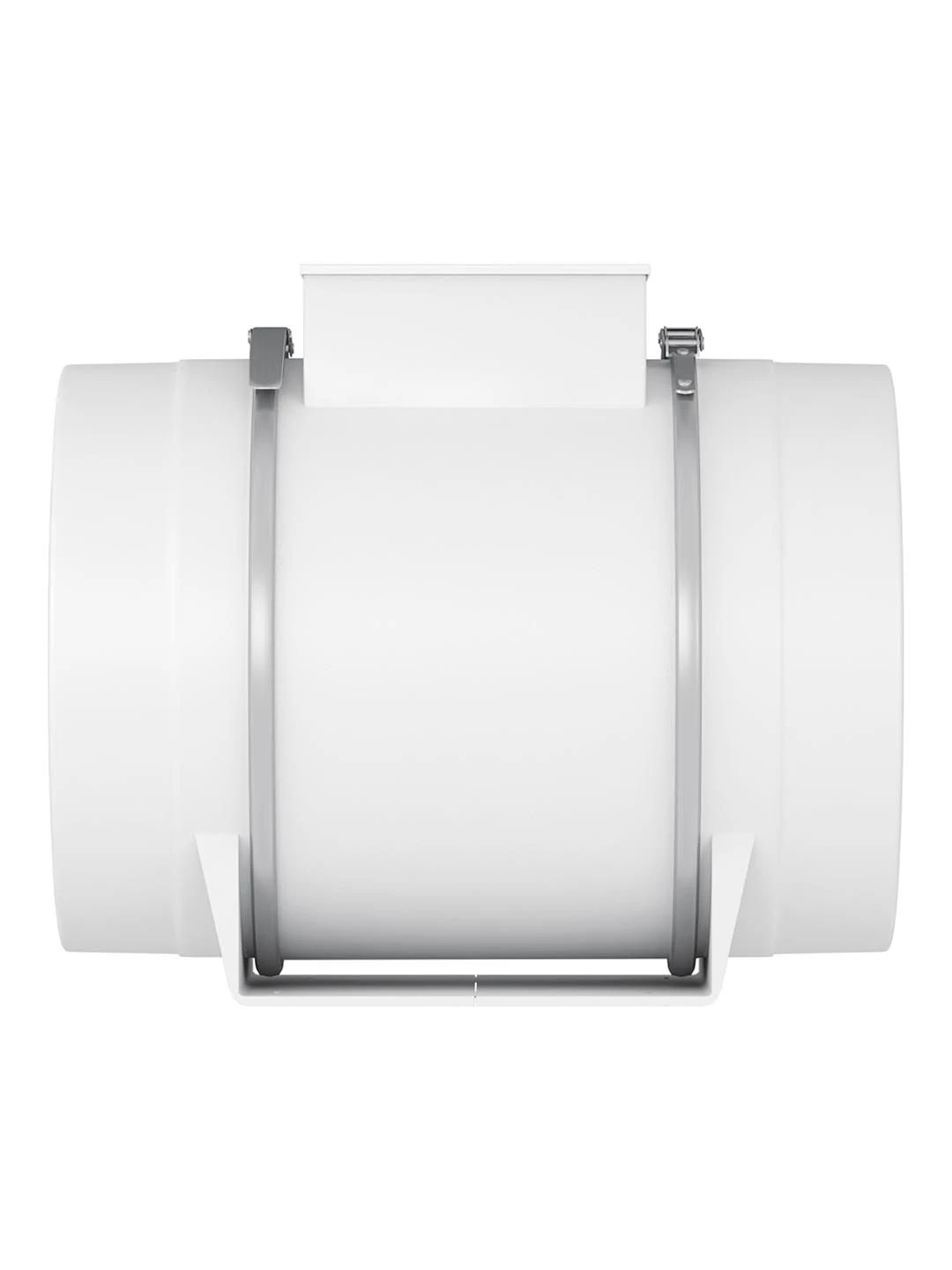

Modular Assembly

The detachable central block — comprising the two-speed motor, impeller, and terminal box — is secured to the duct flanges by metal clamps for tool-accessible servicing.

Technical Specifications

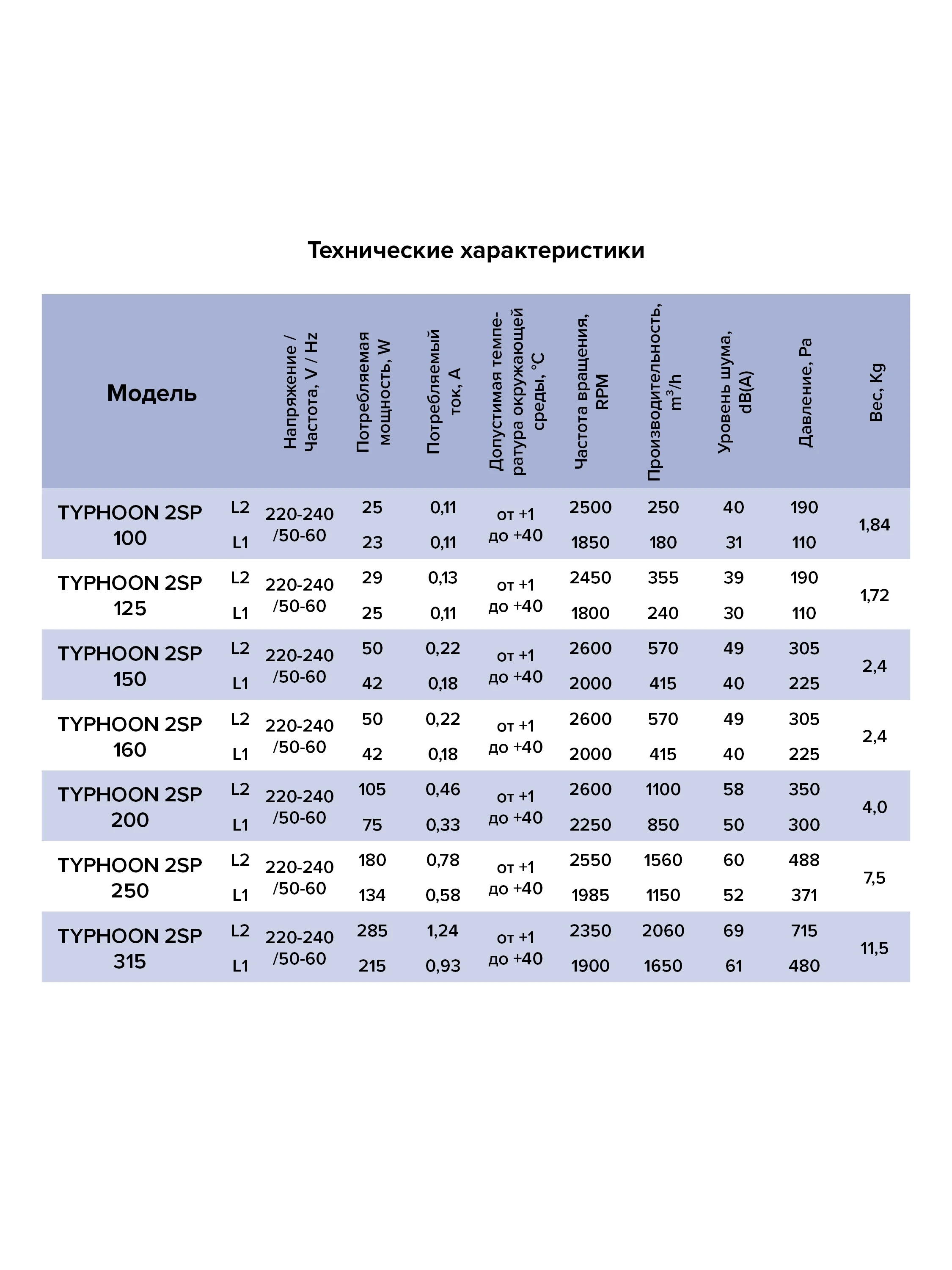

Performance Data

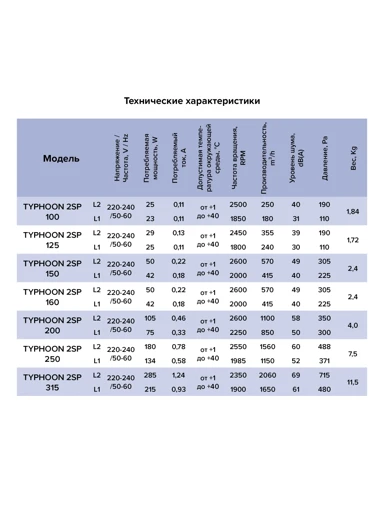

ERA PRO technical data sheet for the TYPHOON 2SP series covering airflow rates (1,650–2,060 m³/h), static pressure range (480–715 Pa), noise levels (61–69 dB(A)), and power consumption (215–285 W).

Dimensional Drawing

Dimensional reference for the TYPHOON 315 2SP showing the 312 mm installation diameter, 325 mm height, 386 mm width, and 446 mm body depth for duct layout planning.

Features

💨

Two-Speed Airflow

Selectable low and high speeds deliver 1,650 or 2,060 m³/h respectively, letting operators match ventilation output to actual occupancy or process demand.

🔄

Mixed-Flow Aerodynamics

The mixed-flow axial impeller achieves static pressures up to 715 Pa — significantly higher than conventional axial fans of the same diameter, enabling use in longer duct runs.

🛡️

IP44 Protection

Sealed against dust ingress and water splashes, the IP44-rated plastic housing is suitable for industrial halls, basements, and other demanding environments.

🔧

Detachable Central Module

The motor, impeller, and terminal box form a single removable core secured by metal clamps — allowing in-situ servicing without cutting or dismantling the ductwork.

🌡️

Thermal Protection with Auto-Restart

The single-phase ball-bearing motor incorporates built-in thermal protection and automatic restart, preventing damage from overloads without requiring manual reset.

📐

Universal Mounting

Compatible with both horizontal and vertical duct orientations; fixed to surfaces with self-tapping screws for straightforward site installation.

Buyer Benefits

Two switchable speed modes (1,650 / 2,060 m³/h) reduce energy consumption during off-peak periods while maintaining full ventilation capacity when needed.
Static pressure capability up to 715 Pa suits complex or extended duct networks where standard axial fans would be insufficient.
Modular clamp-on construction cuts maintenance downtime — motor and impeller can be swapped without opening or removing duct sections.
Ball-bearing motor delivers quiet, reliable long-term operation with minimal mechanical wear.
IP44 rating extends the fan's usable range to production halls, warehouses, car parks, and other challenging locations.
3-year manufacturer warranty lowers total cost of ownership and provides assurance for building operators and integrators.
Domestic Russian manufacture by ERA PRO ensures ready availability of spare parts and straightforward technical support.

Applications

Inline supply or exhaust ventilation in industrial and manufacturing facilities HVAC systems in commercial buildings, shopping centres, and retail premises Supply-exhaust ventilation for offices, educational institutions, and public spaces Forced ventilation in warehouses, logistics centres, and cold-storage areas Exhaust ventilation for industrial kitchens and catering establishments Residential apartment-block and multi-unit building ventilation shafts Ventilation of underground car parks and technical basements Forced-air circulation in server rooms, electrical switchgear areas, and utility spaces
