Name: Digital Wall Clock with NTP Synchronization - Impulse-NOVA-100-R-ETN-NTP
Brand: Impuls
SKU: 153540
Availability: InStock

Brand: Impuls

$90 - $300 USD

MOQ: 20 pieces

Key Features

Высота цифр: 100 mm

Type of time synchronisation: NTP protocol

Operating conditions: indoor

Operating temperature: from +5 to +40 °C °C

Supplier Information

RUSIMPULS LLC

🇷🇺 📦 🏭 🛡️

View All Products (3)

Quick Inquiry

Description

The IMPULSE-NOVA-100-R-ETN-NTP is an indoor LED digital wall clock designed and manufactured by RUSIMPULS LLC (ООО «РусИмпульс»), a Moscow-based specialist in electronic display systems. Launched in 2023, the NOVA-100 series introduces a redesigned 7-segment LED matrix with wider, bolder digit segments, delivering improved brightness and legibility over previous models.

The 100 mm character height provides clear visibility at distances up to 40 m, supported by a 120° horizontal viewing angle — ideal for large open spaces such as production floors, offices, or public halls.

The display alternates between current time (HH:MM) and date (DD:MM) on a four-digit panel, with each readout duration configurable via the included IR remote (range up to 10 m). The ETN-NTP suffix denotes the built-in Ethernet interface — an IP54-rated RJ45 connector enabling automatic NTP time synchronisation over a local network, eliminating the need for manual corrections.

Housed in a powder-coated stamped steel enclosure with a decorative profile and acrylic glass face, the clock measures 450×150 mm and consumes just 5 W at 220 V/50 Hz. A backup power circuit preserves the time and all user settings during mains interruptions.

The LED indicators are rated for 100,000 hours of service life, and the clock carries RUSIMPULS's standard 2-year manufacturer's warranty.

Details & Equipment

Product Exterior

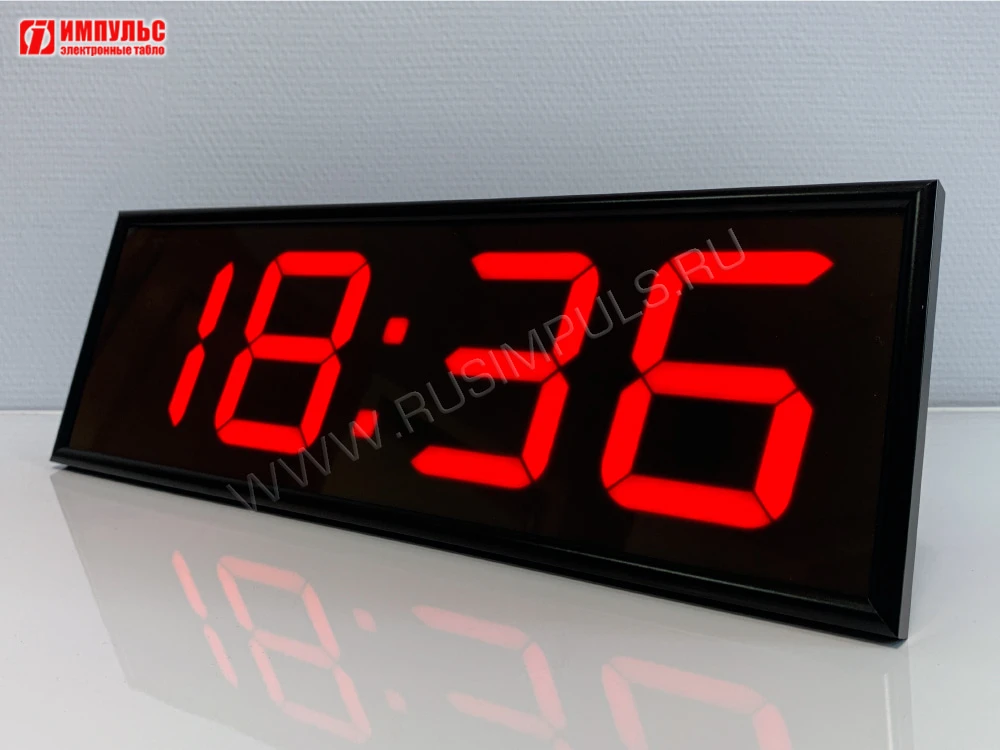

Front view — red LED model

Front face of the IMPULSE-NOVA-100-R showing the redesigned wide-segment 7-segment LED matrix in red, set within the powder-coated black steel housing with decorative profile and acrylic glass cover.

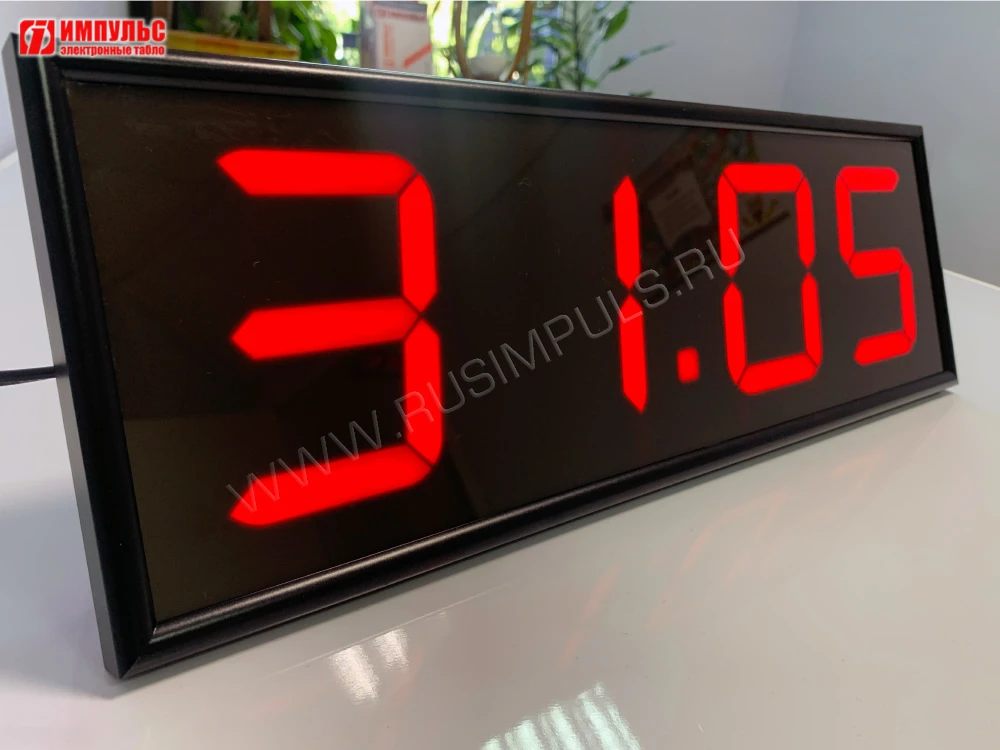

Full product shot

The 450×150 mm enclosure is compact enough for standard wall mounting via two integrated hooks on the rear panel; the black powder-coat finish suits most interior environments.

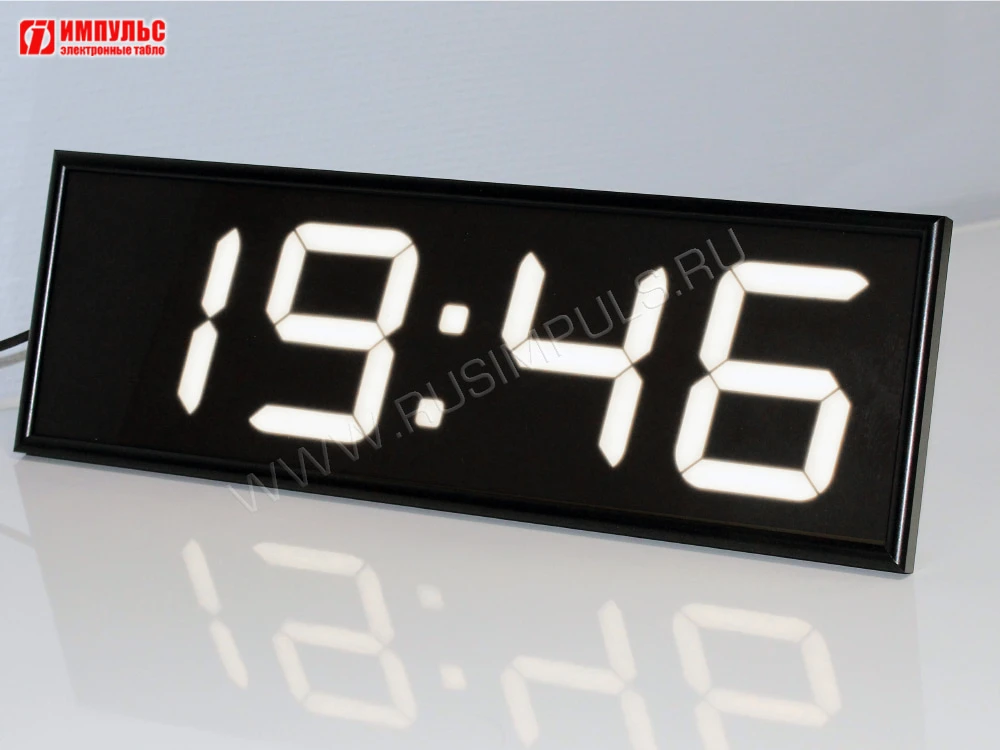

Close-up of digit segments

The NOVA-100 series uses wider, more substantial LED segments compared to earlier Impulse models, resulting in a bolder and more readable numeral face visible from across a large room.

Display Modes

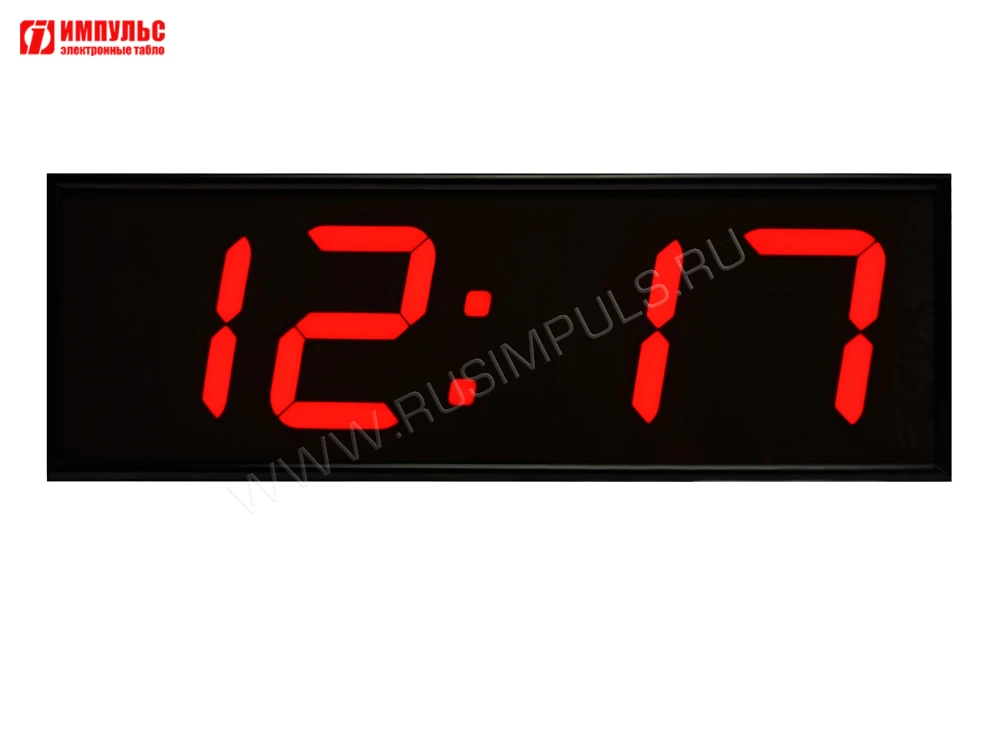

Time display mode

Time display mode presents hours and minutes in HH:MM format using four 100 mm red LED digits; visibility is guaranteed at distances up to 40 metres in standard indoor lighting conditions.

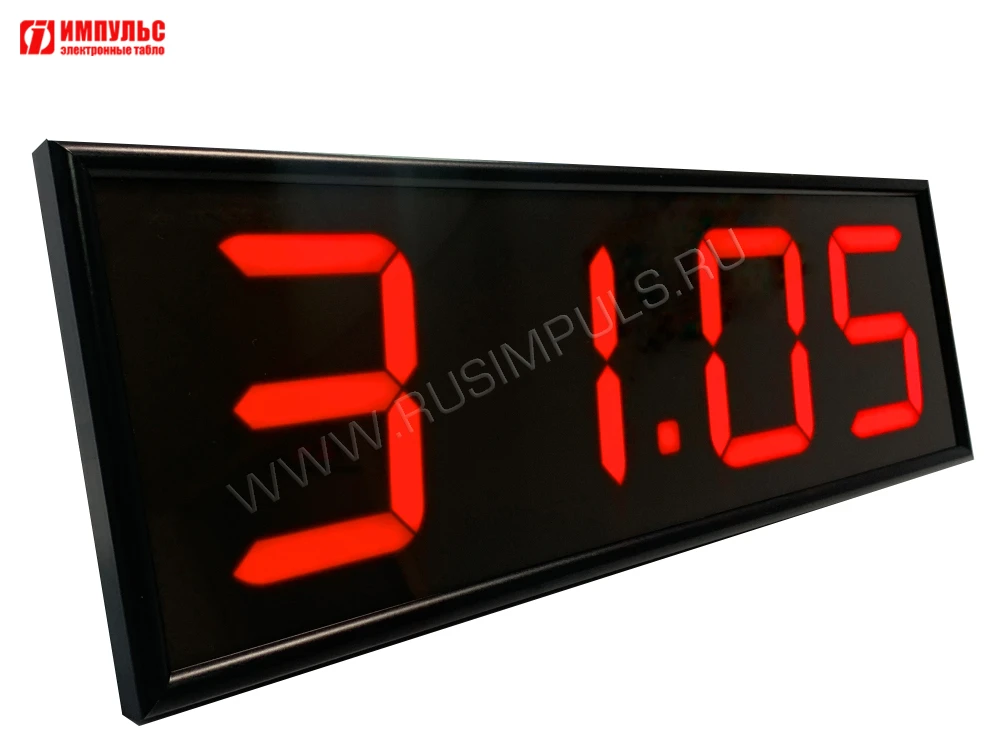

Date display mode

The clock alternates to date display mode showing day and month in DD:MM format; the duration of each display cycle is configurable via the included IR remote.

Rear Panel and Connectivity

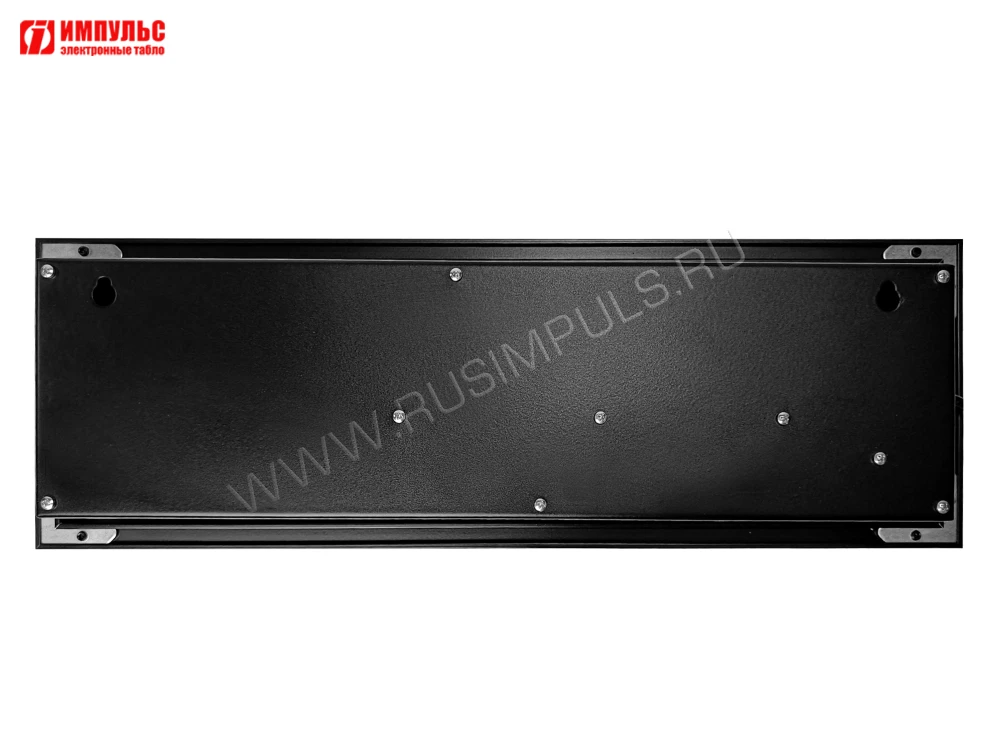

Rear panel — NTP Ethernet connector

The rear panel provides access to the IP54-rated RJ45 Ethernet port for NTP synchronisation, power cable entry (220 V/50 Hz, 1.5 m lead), and two suspension hooks for standard wall mounting.

Features

🔴

Red 7-Segment LED Display

100 mm character height with new wide-segment design delivers excellent brightness; 120° horizontal viewing angle ensures readability at distances up to 40 m.

🌐

NTP Ethernet Synchronisation

Built-in Ethernet interface via IP54-rated RJ45 connector enables automatic time synchronisation using the NTP protocol over a local network, eliminating manual adjustments.

📅

Time and Date Alternating Display

Shows time (HH:MM) and date (DD:MM) in alternating 4-digit [88:88] format; the display interval for each parameter is user-configurable.

🛡️

IP54-Rated Steel Enclosure

Stamped steel body with powder-coat finish, decorative profile, and acrylic glass face; IP54 protection against dust ingress and water splashing.

🔋

Backup Power Circuit

Integrated backup supply maintains timekeeping and preserves all user settings during mains power interruptions, ensuring continuous accuracy.

🕹️

IR Remote Control

Included infrared remote allows wireless adjustment of time, date, and operating parameters from up to 10 m away without touching the clock.

Buyer Benefits

Automatic NTP synchronisation via Ethernet removes any need for manual timekeeping corrections, guaranteeing network-accurate time at all times
100 mm digit height and 120° viewing angle ensure clear readability across large rooms, open-plan offices, and industrial spaces up to 40 m away
IP54-rated enclosure and connector safeguard electronics against workshop dust and incidental moisture splash
Backup power circuit prevents time loss during power outages, maintaining clock accuracy and all configured settings
Low 5 W power consumption suits continuous 24/7 operation without significant impact on energy costs
LED indicators rated for 100,000 hours of service life reduce maintenance intervals and replacement costs
2-year manufacturer's warranty from RUSIMPULS, a dedicated Russian producer of LED display systems with over 500 series models

Applications

Office and business centre lobbies requiring precise, network-synchronised wall clocks Production floors and warehouses where large-format, clearly readable time display is essential for shift management Schools, universities, and training centres that rely on accurate timekeeping for class scheduling Healthcare facilities and hospitals needing reliable, network-accurate clocks across multiple departments Conference halls and meeting rooms where a prominent time display keeps participants on schedule Transportation and logistics hubs such as freight depots and bus stations Sports facilities and gymnasiums for timekeeping and session management IT server rooms and data centres where NTP-synchronised time standards are required
