Name: Digital TV Receiver IMAQLIQ G-Box X
Brand: IMAQLIQ
SKU: 231842
Availability: InStock

Brand: IMAQLIQ

$18 - $72 USD

MOQ: 100 pieces

Key Features

Video codecs: H.264, H.265, VP9; MPEG2

CPU: 4xCortex 64-bit

Supported network protocols: TCP/IP - HTTP, HTTPS, UDP, TCP

Rated voltage at audio output on 2.5 kOhm load, not less: 3 V

Supplier Information

IMACLIK SERVICE LLC

🇷🇺 📦 🏭 🛡️

View All Products (3)

Quick Inquiry

Description

The IMAQLIQ G-Box X is a compact IPTV/OTT set-top box developed and manufactured by IMACLIK SERVICE LLC (IMAQLIQ), a Saint-Petersburg-based telecommunications equipment company established in 1993 and supplying operators across Russia and the CIS. Launched in 2019, the G-Box X was designed to deliver flagship-class performance at an accessible price point, drawing on technology refined in the company's top-tier Q-Box Ultra model.

Powered by an Amlogic S905X system-on-chip with a quad-core Cortex-A53 64-bit processor at 1.5 GHz and a Penta-core Mali-450 GPU at 750 MHz, the device decodes 4K video at up to 60 fps — including H.265, H.264, VP9 10-bit, and MPEG2 — and outputs via HDMI 2.0a. Up to 2 GB of DDR-2400 RAM and 8 GB of NAND eMMC storage keep apps responsive and local content readily accessible.

Connectivity covers dual-band 802.11ac Wi-Fi (2.4 and 5 GHz, 2×2 MIMO), Bluetooth 4.1, 10/100 Ethernet, two USB 2.0 ports, and a composite AV output.

The G-Box X runs Android 7.1.2 and is also available with a Linux-based firmware, making it suitable for both consumer use and operator-managed deployments. Professional-grade conditional access systems — IMAQrypt, Verimatrix, and IPTV Portal — are integrated for secure content delivery, with streaming support for IPTV Multicast, HLS, RTSP, and HTTP as well as M3U playlists.

The unit achieves a declared MTBF of 26,000 hours and carries a 12-month warranty. It ships complete with an IR remote, HDMI cable, and a universal 100–220 V AC power adapter.

Details & Equipment

Device Design

Top view

The compact rectangular enclosure is finished in matte black MABS plastic with the IMAQLIQ brand embossed on the top surface and the G-Box X designation marked on the front edge.

Rear interfaces

All connections are grouped at the rear: DC 12V power input, USB 2.0 port, 10/100 Ethernet (RJ-45), HDMI 2.0a, and a composite AV output for legacy display compatibility.

Full port layout

An angled view reveals the complete connectivity — rear panel ports (power, USB 2.0, Ethernet, HDMI, AV) alongside a second USB 2.0 port accessible from the side, confirming the two-port USB arrangement.

Package Contents

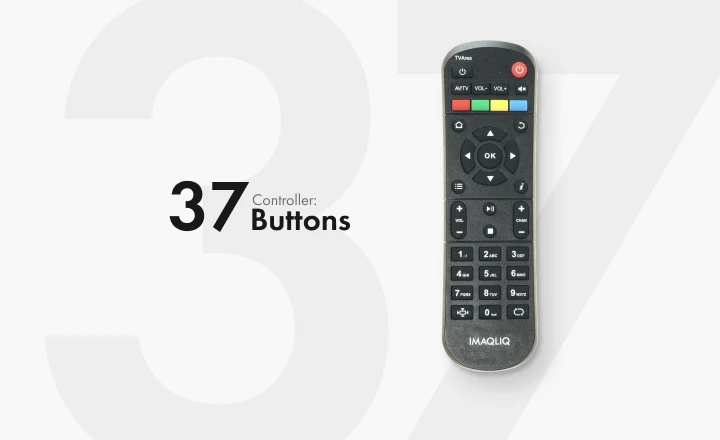

37-button IR remote

The included infrared remote provides 37 buttons covering navigation, playback, volume, channel selection, colored shortcut keys, and a full numeric pad for direct channel entry.

Retail packaging

The G-Box X is delivered in a branded IMAQLIQ hexagonal-pattern box; the device's compact footprint is evident next to the retail sleeve.

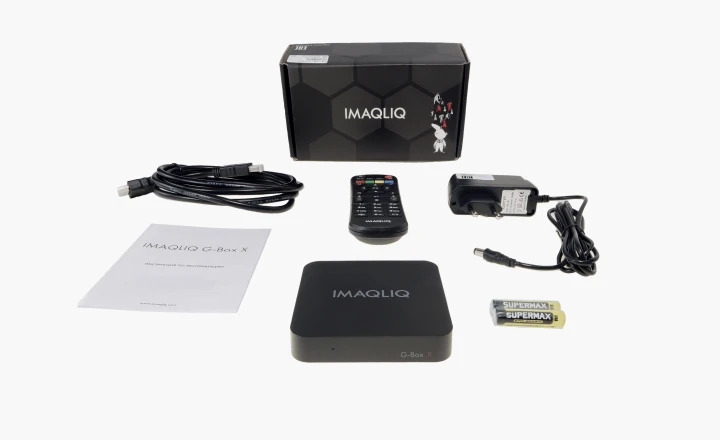

Complete kit

Standard package contents include the G-Box X unit, 37-button IR remote, HDMI cable, 100–220 V AC to 12 V DC power adapter, batteries, and a printed Russian-language user manual.

Features

🎬

4K Decoding at 60 fps

The Amlogic S905X SoC handles H.265, H.264, VP9 10-bit, and MPEG2 video up to 4K@60fps, outputting over HDMI 2.0a for full-resolution 4K display.

⚡

Quad-Core 64-bit CPU

Four Cortex-A53 cores at 1.5 GHz and a Penta-core Mali-450 GPU at 750 MHz deliver 14K DMIPS of processing headroom for smooth UI and media performance.

📡

Dual-Band 802.11ac Wi-Fi

2×2 MIMO Wi-Fi operates on both 2.4 and 5 GHz bands alongside 10/100BASE-T Ethernet and Bluetooth 4.1, covering all standard connectivity scenarios.

🔒

Professional CAS Integration

Built-in support for IMAQrypt, Verimatrix, and IPTV Portal conditional access systems enables secure operator-grade content protection and subscriber management.

📺

Broad Streaming Protocol Support

Streams via IPTV Multicast, HLS, RTSP, and HTTP with M3U playlist compatibility; supports TCP/IP, HTTP, HTTPS, UDP, and TCP network protocols.

🔧

Dual OS Options

Ships with Android 7.1.2 (available in 1 GB and 2 GB RAM configurations); a Linux-based firmware build is also offered for operator-customized deployments.

Buyer Benefits

Compact black MABS plastic enclosure with all interfaces grouped on the rear panel keeps the installation neat and cable runs short
Up to 2 GB DDR-2400 RAM paired with 8 GB NAND eMMC storage delivers fast app launch times and space for local media
Nominal audio output of 3 V into a 2.5 kΩ load ensures clean stereo sound over the composite RCA output alongside PCM, AAC, and MP3 decoding
Powered by 12 V DC from a bundled universal adapter (100–220 V AC input), compatible with standard Russian and international mains supplies
Declared MTBF of 26,000 hours combined with a 12-month warranty supports reliable around-the-clock residential and operator deployments
Android API and JS API developer interfaces allow telecom operators to integrate proprietary portals and service applications
Complete out-of-box kit — HDMI cable, IR remote, power adapter, and printed user manual — means no additional purchases for a standard installation

Applications

IPTV and OTT service delivery for residential subscribers on telecom operator networks Home media center for streaming 4K content from local storage or cloud-based video services Hotel and hospitality IPTV systems requiring professional conditional access and operator-branded interfaces Corporate digital signage and video display management using Android app deployments Educational institution network-based content distribution over managed IPTV infrastructure Operator-managed set-top box rollouts with custom Android or Linux firmware builds Multi-room video distribution with centralized IPTV middleware and Multicast delivery Development and integration testing for IPTV portal, CAS, and streaming service platforms

Source: official manufacturer website
