Diesel Pump Unit DNU-480/30 - High Performance

Diesel Pump Unit DNU-480/30 - High Performance — PSM LLC

Name: Diesel Pump Unit DNU-480/30 - High Performance
Brand: PSM
SKU: 549102
Availability: InStock

Brand: PSM

$6,000 - $18,000 USD

MOQ: 1 pieces

Key Features

performance: 480

pressure: 30 m

Fuel type: diesel

Rotational speed: 1800

Supplier Information

PSM LLC

🇷🇺 📦 🏭 🛡️

View All Products (99)

Quick Inquiry

Description

The PSM DNU-480/30 is a diesel-driven pump unit engineered for high-volume water transfer in demanding industrial, construction, and emergency applications. Manufactured by PSM (ООО Завод ПСМ) — Russia's largest producer of diesel and gas power equipment — it pairs an Italian Rovatti cantilever pump with a Minsk Motor Plant MMZ D-245 turbocharged four-cylinder engine.

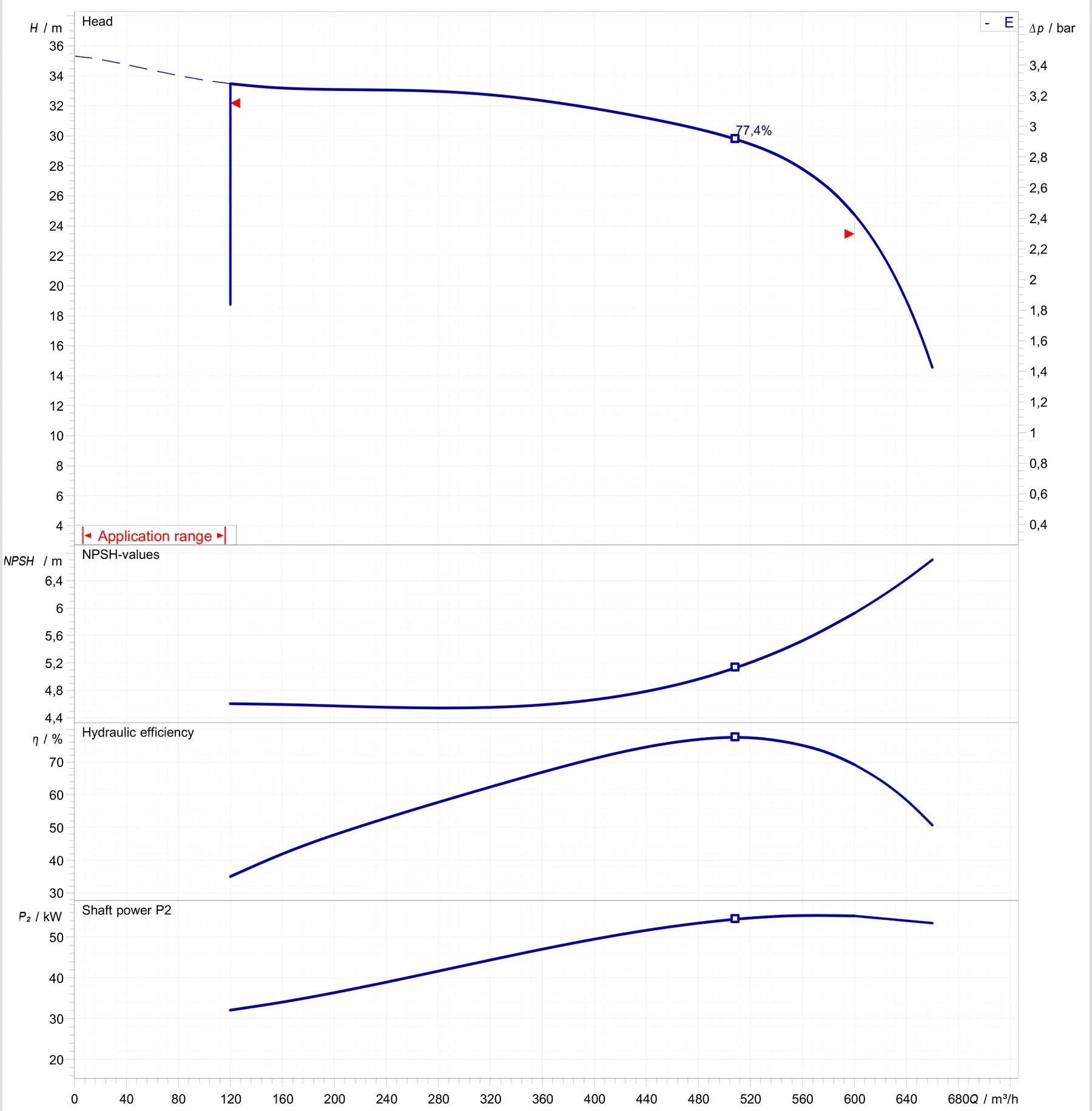

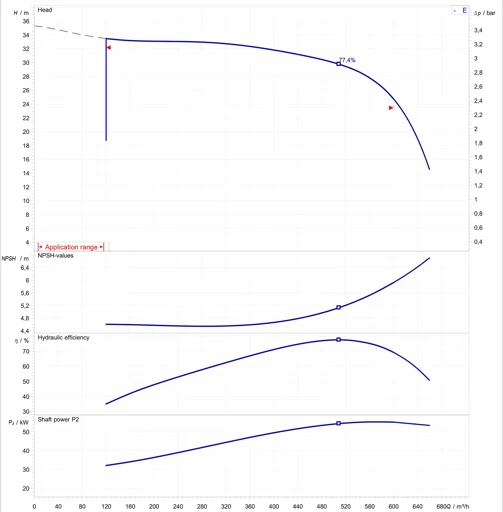

At its rated duty point the unit delivers 480 m³/h at 30 m of head at 1800 RPM, with an operating envelope spanning 300–660 m³/h across 14–35 m of head. The MMZ D-245 displaces 4.75 litres, features a 15.1:1 compression ratio, and is protected by a combined multi-stage air filtration system — monocyclone pre-stage, oil dust catcher, and three-section wet nylon element.

A 160-litre onboard fuel tank sustains nearly 10 hours of continuous operation at the rated duty point (16.1 L/h consumption). Suction and discharge ports are flanged at 200 mm; maximum pumped fluid temperature is 90°C with solids tolerance up to 0.2 mm particle size and 40 g/m³ content.

Overall dimensions are 2120 × 1150 × 1320 mm at an operating weight of 1030 kg. Every unit undergoes bench testing at PSM's Krasny Bor plant before delivery and carries certifications under TR CU 010/2011, ISO 9001:2015, and GOST 15150-69 climate class УХЛ.

Five enclosure variants — from open canopy to fully insulated Arctic container — extend the deployable temperature range to −40°C.

Details & Equipment

Unit Configuration

Standard Canopy Version

The DNU-480/30 in its standard canopy execution, mounted on anti-vibration isolators. Overall footprint is 2120 × 1150 × 1320 mm at an operating weight of 1030 kg.

Pump & Connections

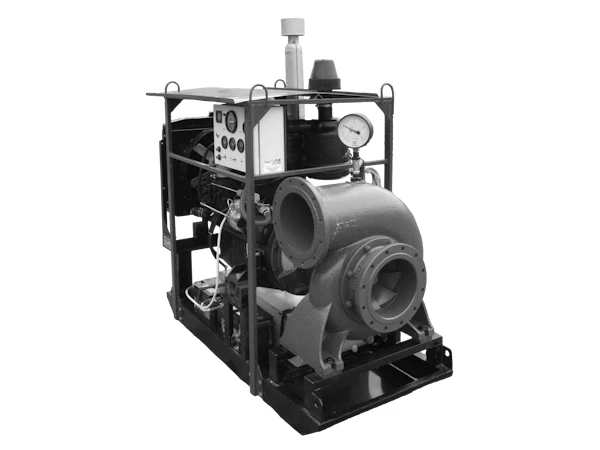

The Italian Rovatti cantilever pump with 200 mm flanged suction and discharge ports and the manual vacuum priming system for self-priming from open water sources.

Engine & Fuel System

The MMZ D-245 turbocharged diesel (4.75 L, 4-cylinder) alongside the integrated 160-litre fuel tank, enabling approximately 9.9 hours of autonomous operation at the rated duty point.

Drive & Filtration

Direct Drive Coupling

Rigid direct coupling between the MMZ D-245 engine and the Rovatti pump at 1800 RPM; the unit handles clean water up to 90°C with solids up to 0.2 mm particle size and 40 g/m³ content.

Multi-Stage Air Filter

Three-stage air filtration assembly — monocyclone pre-cleaner, oil dust catcher, and three-section wet nylon filter element — designed to protect the engine during extended outdoor and construction-site operation.

Control & Enclosure Options

Control Panel

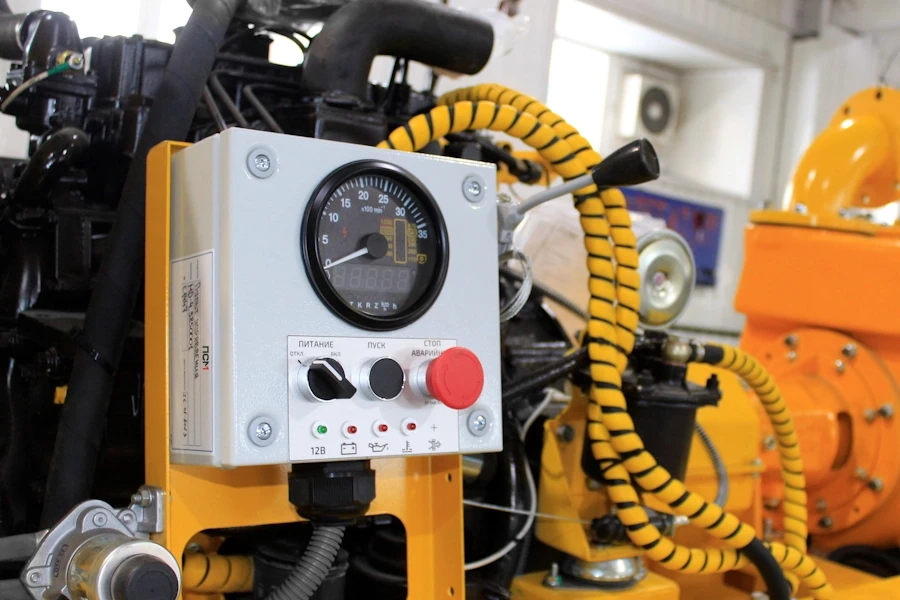

Base manual control panel with analog instruments and push-buttons monitoring RPM, operating hours, coolant temperature, and battery charge; optional Deif controller upgrade enables fully automatic operation.

Weather Hood Enclosure

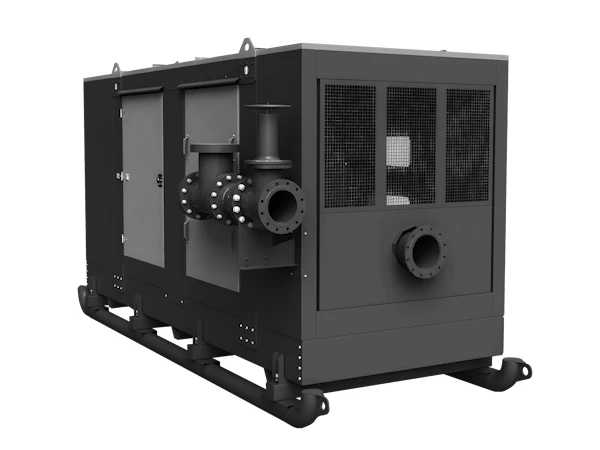

Optional weather-protective hood with rigid metal frame and louvered ventilation panels, providing full all-weather enclosure for year-round outdoor installations.

Arctic Container 'Sever'

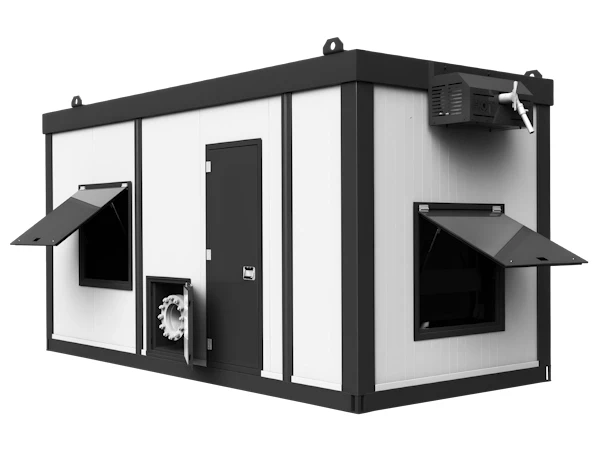

The 'Sever' container variant uses 50–100 mm sandwich-panel insulation (floor 150 mm, ceiling 100 mm, snow load 300 kg/m²) to sustain operation at ambient temperatures down to −40°C.

Features

💧

High-Flow Rovatti Pump

Italian Rovatti cantilever pump rated 480 m³/h at 30 m head; full operating range spans 300–660 m³/h across heads of 14–35 m at 1800 RPM. PSM has assembled 500+ units with this pump since the partnership began in 2010, with no recorded quality complaints.

🔧

MMZ D-245 Diesel Engine

Minsk-built turbocharged 4-cylinder diesel, 4.75 L displacement, 15.1:1 compression ratio. A 160-litre fuel tank delivers approximately 9.9 hours of runtime at the rated duty point (16.1 L/h specific consumption).

🌬️

Multi-Stage Air Filtration

Combined three-stage air filter — monocyclone pre-cleaner, oil dust catcher, and wet three-section nylon element — protects the engine in dusty or outdoor field environments for extended service intervals.

🏔️

Arctic Enclosure Options

Insulated 'Sever' and 'Sever-M' container variants rated to −40°C use 50–200 mm sandwich panels with snow-load capacity up to 300 kg/m², and support optional fire suppression, heating, and integrated exhaust systems.

🤖

Automatic Control (Optional)

Deif controller-based panel enables unmanned start/stop, hot standby, continuous parameter logging, and automatic shutdown with audible/visual alarm on low oil level, high coolant temperature, or overspeed events.

✅

Factory Tested & Certified

Every unit is bench-tested at the PSM Krasny Bor plant before shipment and certified under TR CU 010/2011, ISO 9001:2015, and GOST 15150-69 (climate class УХЛ, standard operating range −10°C to +40°C).

Buyer Benefits

Rated duty point of 480 m³/h at 30 m head with a working envelope of 300–660 m³/h — adaptable to varying site demands without equipment change
Italian Rovatti pump backed by a 15-year PSM partnership and 500+ field-deployed units with no recorded pump-side quality issues
160-litre onboard fuel tank provides ~9.9 hours of autonomous runtime — practical for remote deployments without frequent refuelling
Factory bench-tested before dispatch; certified under TR CU 010/2011, ISO 9001:2015, and GOST 15150-69 УХЛ
Five enclosure options — open canopy to fully insulated Arctic container — extend the operational temperature range to −40°C ambient
Optional Deif automatic control package for unattended operation, hot standby mode, and integrated remote monitoring and emergency shutdown
On-site in-warranty service across Russia and CIS included in the standard 12-month / 2000-motor-hour warranty

Applications

Open-water surface intake for industrial and municipal water supply systems Construction site dewatering and excavation pit drainage Fire-suppression water supply and emergency flood response Agricultural irrigation and large-scale land drainage Temporary bypass supply during pipeline repair or maintenance shutdowns Remote infrastructure and off-grid industrial facility water supply Mining site groundwater and seepage management Disaster-response high-volume water removal operations
