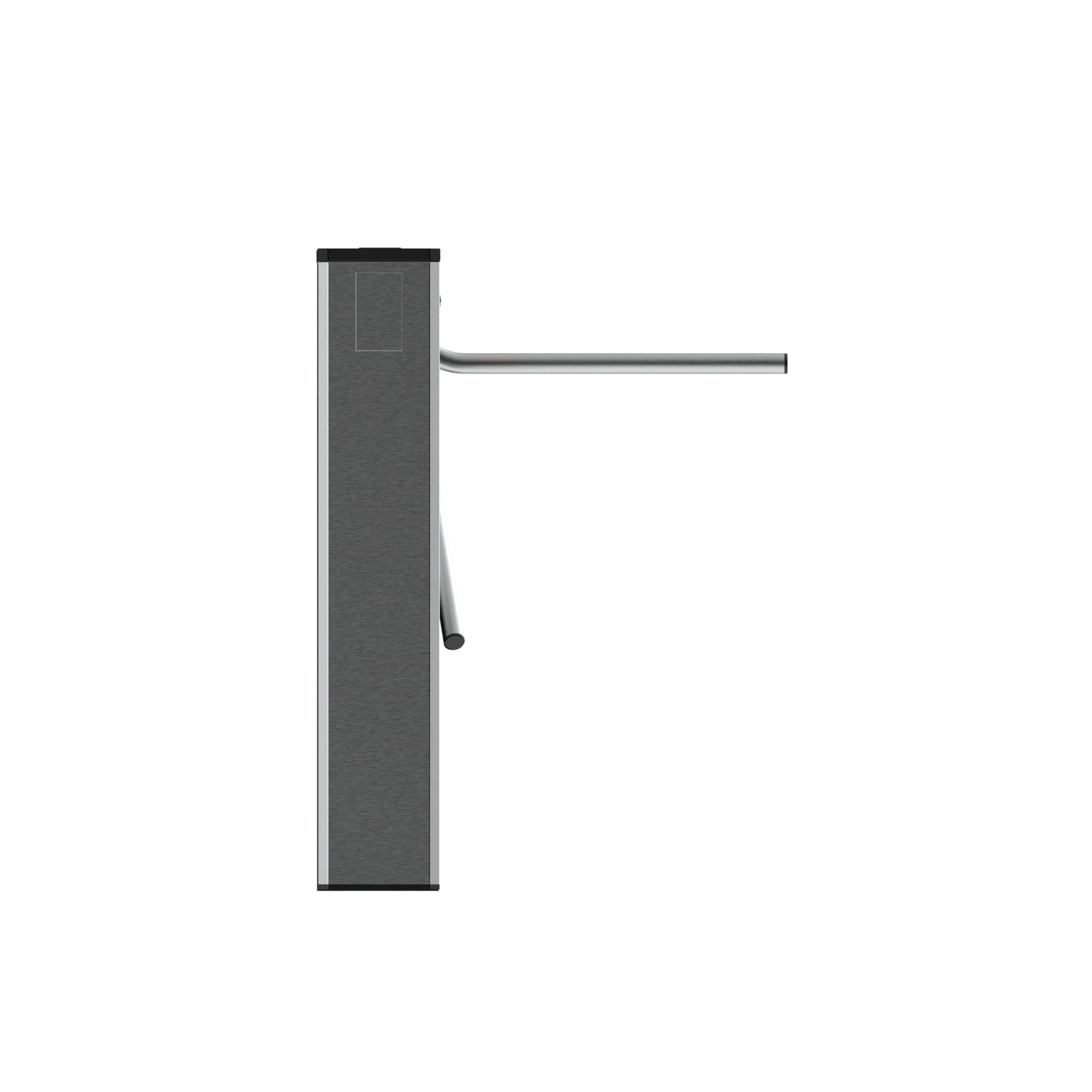

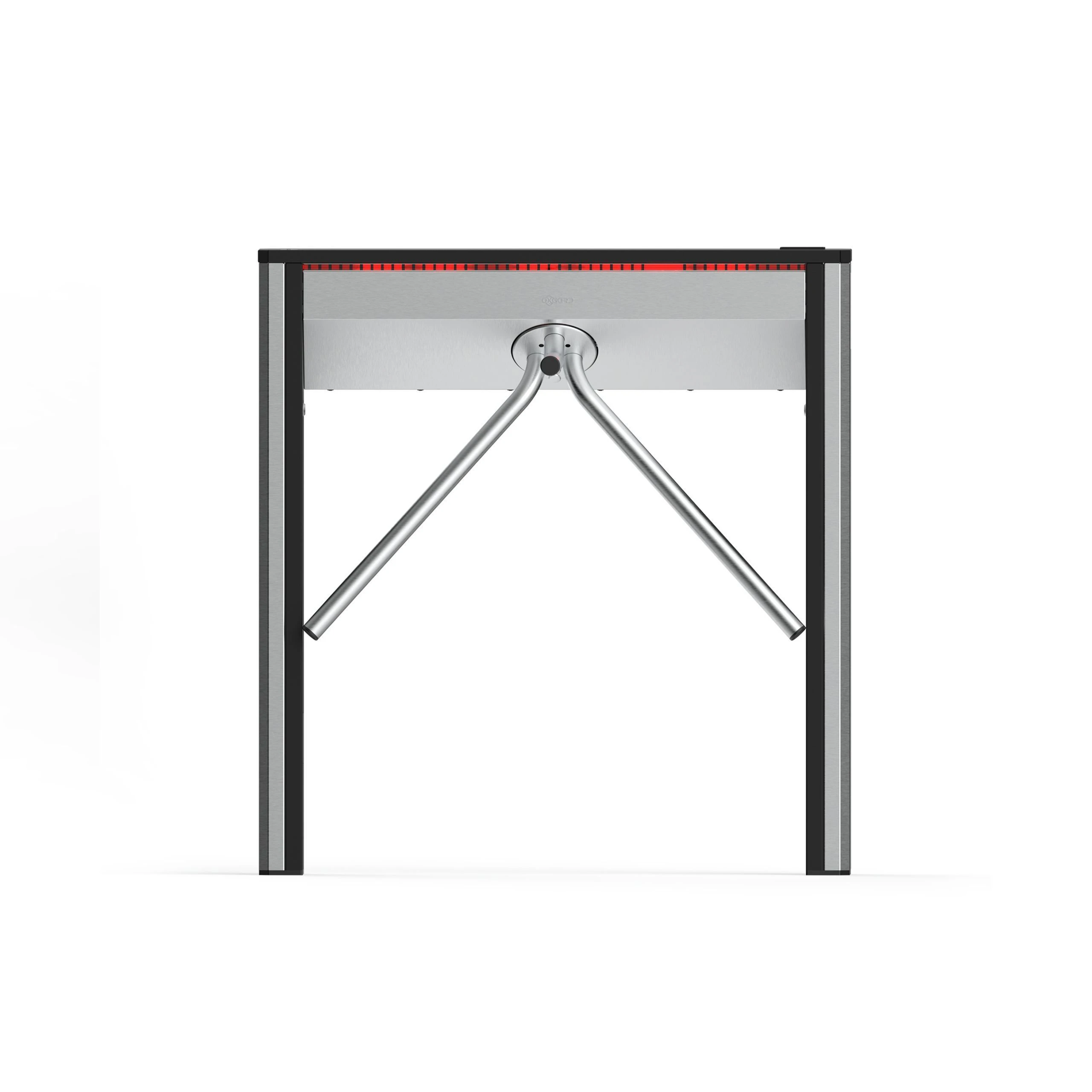

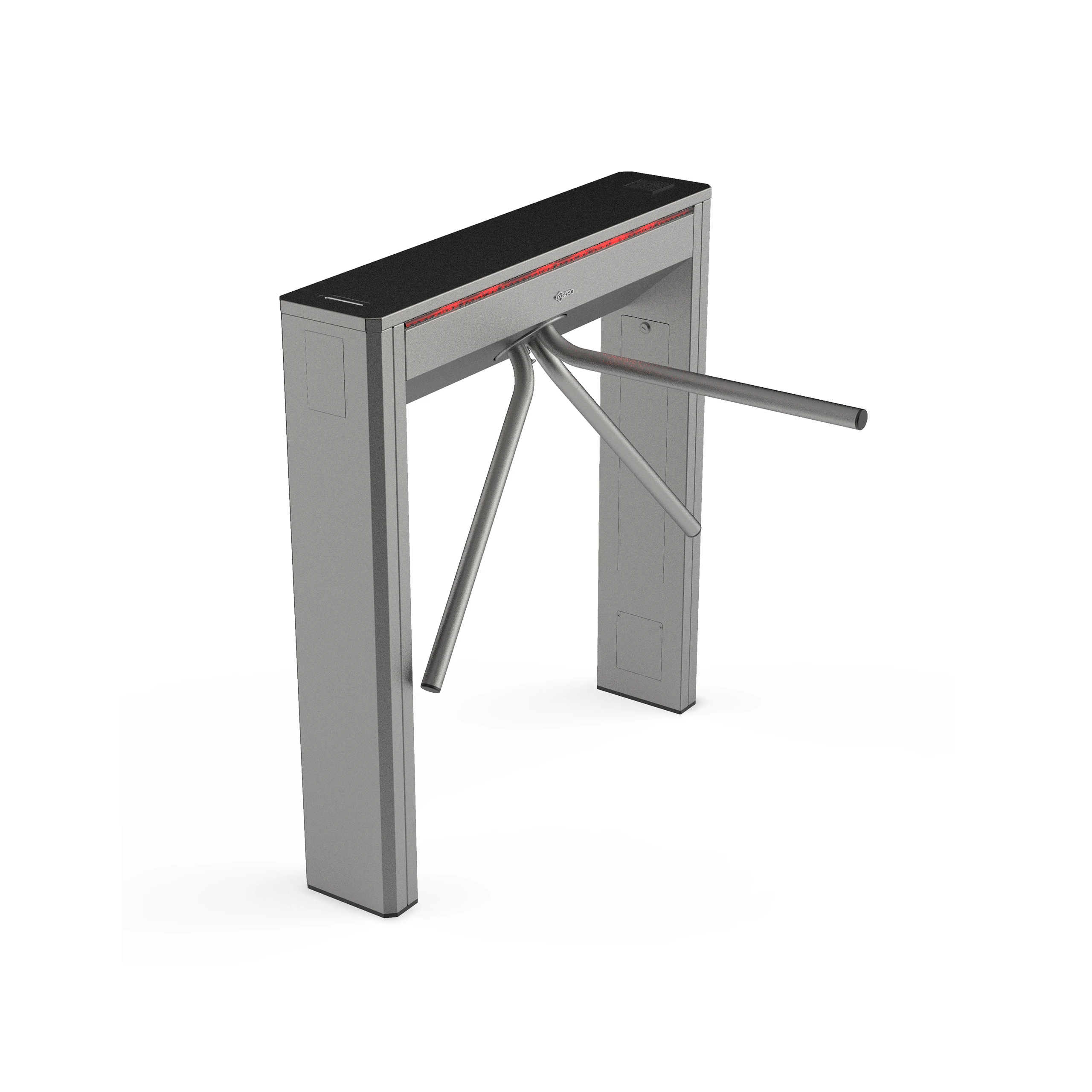

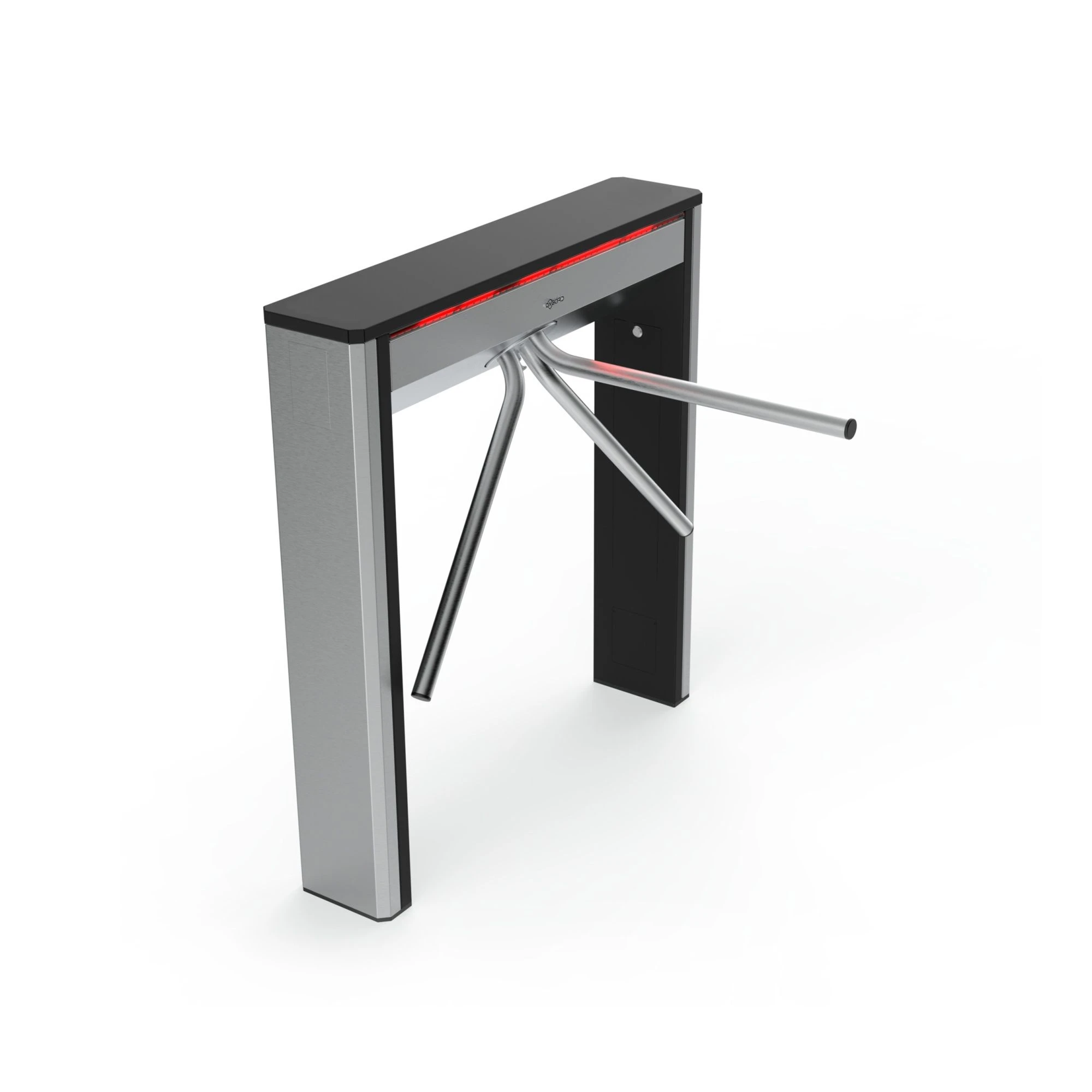

The Oxgard Cube C-04 is a compact electromechanical tripod turnstile engineered for indoor access control at industrial facilities, business centers, universities, and institutional buildings. Manufactured in Russia by VOZROZHDENIE LLC under the Oxgard brand, it features a body constructed from stainless steel and powder-coated steel housing an integrated electronic control unit, eliminating the need for a separate external controller.
The clear passage width is 565–595 mm, and the turnstile handles up to 30 persons per minute in controlled single-pass mode and 60 persons per minute in free-flow mode. A mechanical anti-panic mechanism automatically folds the arms flat upon power loss, ensuring unobstructed emergency egress without any manual intervention.
Standard equipment includes the tripod arms, a remote control handset for up to two operators, and a passage indicator lamp. The compact housing — only 192 mm deep when arms are stowed — provides internal mounting space for optional readers, a controller, or an uninterruptible power supply, keeping installations clean and cable runs short.
The unit operates at 12 V DC nominal, draws just 1.5 A during standby and normal passage, and peaks at 3.0 A only during anti-panic arm actuation. IP41 ingress protection, an operating temperature range of +1 to +40 °C, and a rated service life of 8 years make the Cube C-04 well suited for sustained daily operation.
Integration with any access-control system is achieved through dry-contact inputs, ensuring compatibility with virtually every ACS platform on the market.
