Crawler Tractor Chetra T-35.01KB-3 Heavy-Duty Bulldozer

Crawler Tractor Chetra T-35.01KB-3 Heavy-Duty Bulldozer — PROMTTRACTOR LLC

Name: Crawler Tractor Chetra T-35.01KB-3 Heavy-Duty Bulldozer
Brand: CHETRA
SKU: 13904
Availability: InStock

Brand: CHETRA

$150,000 - $420,000 USD

MOQ: 1 pieces

Supplier Information

PROMTTRACTOR LLC

🇷🇺 📦 🏭 🛡️

View All Products (170)

Quick Inquiry

Description

The CHETRA T-35.01KB-3 is a Class 35 heavy-duty crawler bulldozer-ripper produced by PROMTRACTOR in Cheboksary, Russia — one of the world's four leading manufacturers of heavy dozer-ripper machinery. The T-35.01KB-3 is the Cummins-engined variant of the T35.01 series, powered by a Cummins QSK-19 diesel delivering 394 kW (536 hp) nominal and 360 kW (490 hp) at the operating point.

A hydromechanical transmission with three forward and three reverse ranges covers road speeds from 4.4 to 13 km/h, while an 830-litre fuel tank supports extended autonomous operation. The machine carries an 18.5 m³ semi-spherical dozer blade (4670 × 2465 mm) and a rear-mounted adjustable ripper accepting one or three teeth, with a maximum single-tooth penetration of 1500 mm — making it effective on frozen ground, rock, and heavily consolidated soils.

A three-point semi-rigid undercarriage with an offset oscillation axis and seven support rollers per side limits ground pressure to no more than 1.37 kgf/cm², protecting fragile surfaces during bulk earthmoving. Operating weight with full fuel load, blade, ripper, and operator reaches 62.3 tonnes.

CHETRA equipment is listed in Russia's Official Register of Industrial Products and qualifies for government procurement under Federal Law 44-FZ, with a manufacturer warranty of one year unlimited hours or two years/3000 motor-hours.

Details & Equipment

Machine Overview

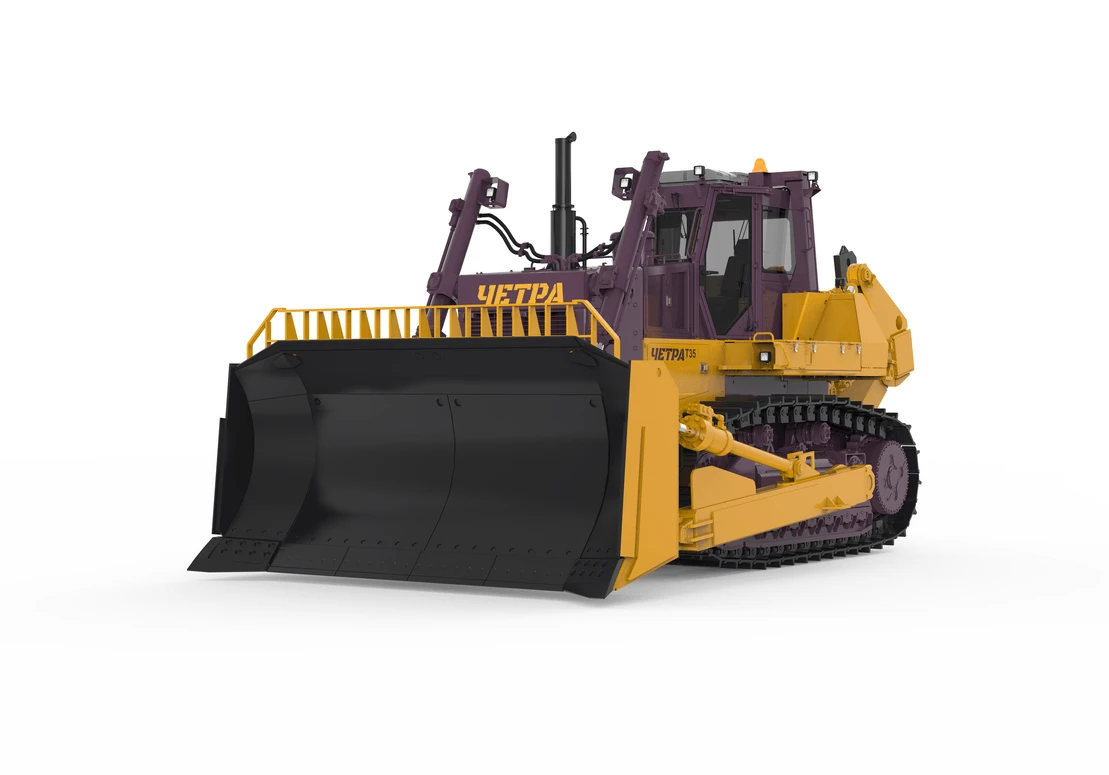

Front Three-Quarter View

The T-35.01KB-3 from the front-right with its 18.5 m³ semi-spherical dozer blade raised, showing the CHETRA yellow-and-purple livery, full-length access walkways, and cab safety railings.

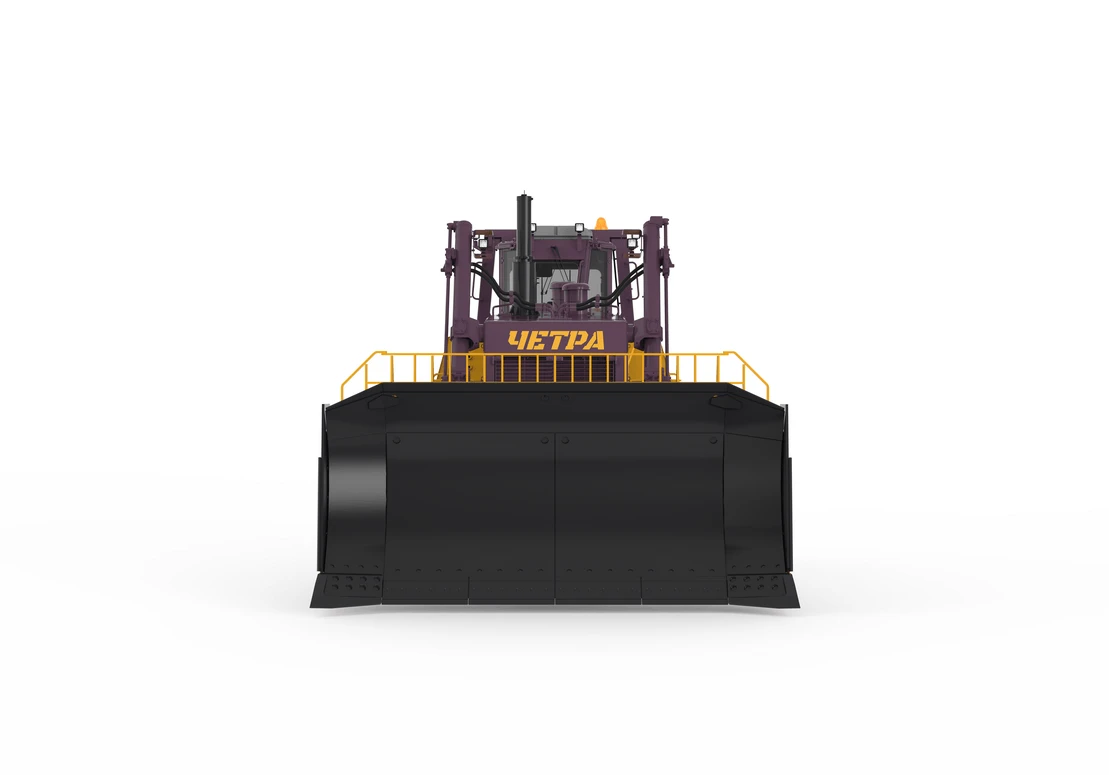

Direct Front View

Head-on view of the full 4670 mm blade width and 3281 mm machine body, illustrating the cutting reach and the robust frame that supports up to 62.3 tonnes operating weight.

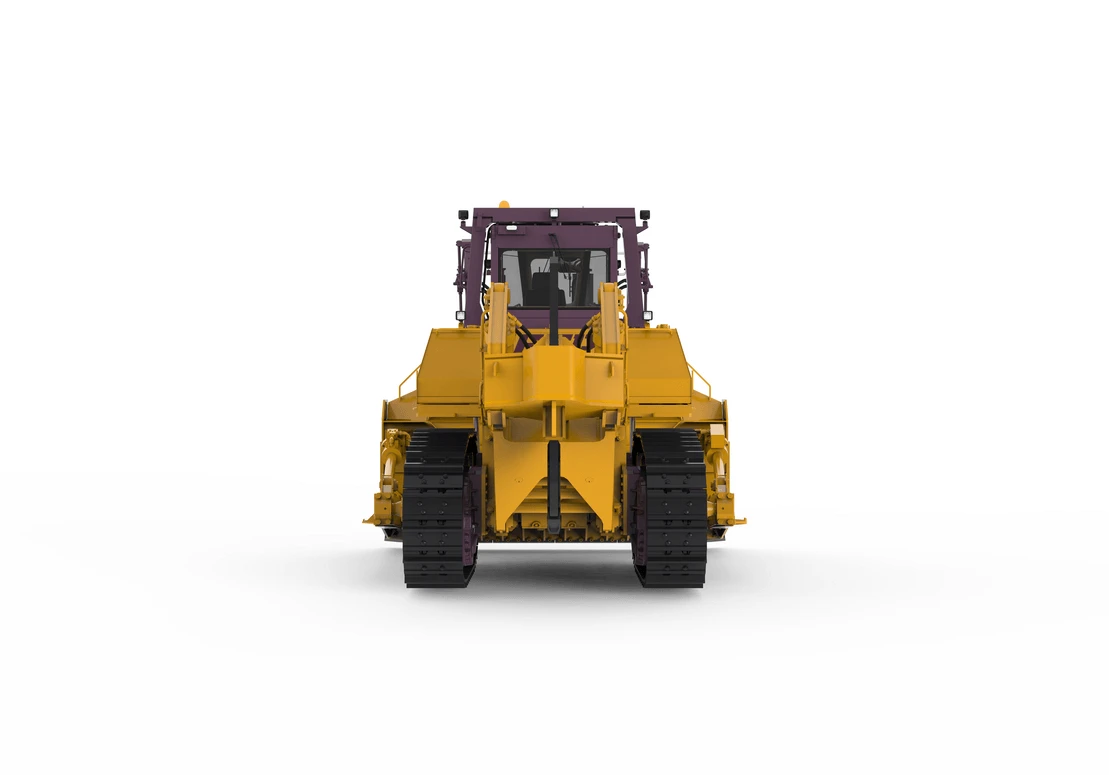

Rear View

Rear elevation showing the reinforced upper frame, cab access platform with safety railings, and the wide 650 mm track shoe assembly that underpins the machine's ≤1.37 kgf/cm² ground pressure.

Side Profile and Ripper Assembly

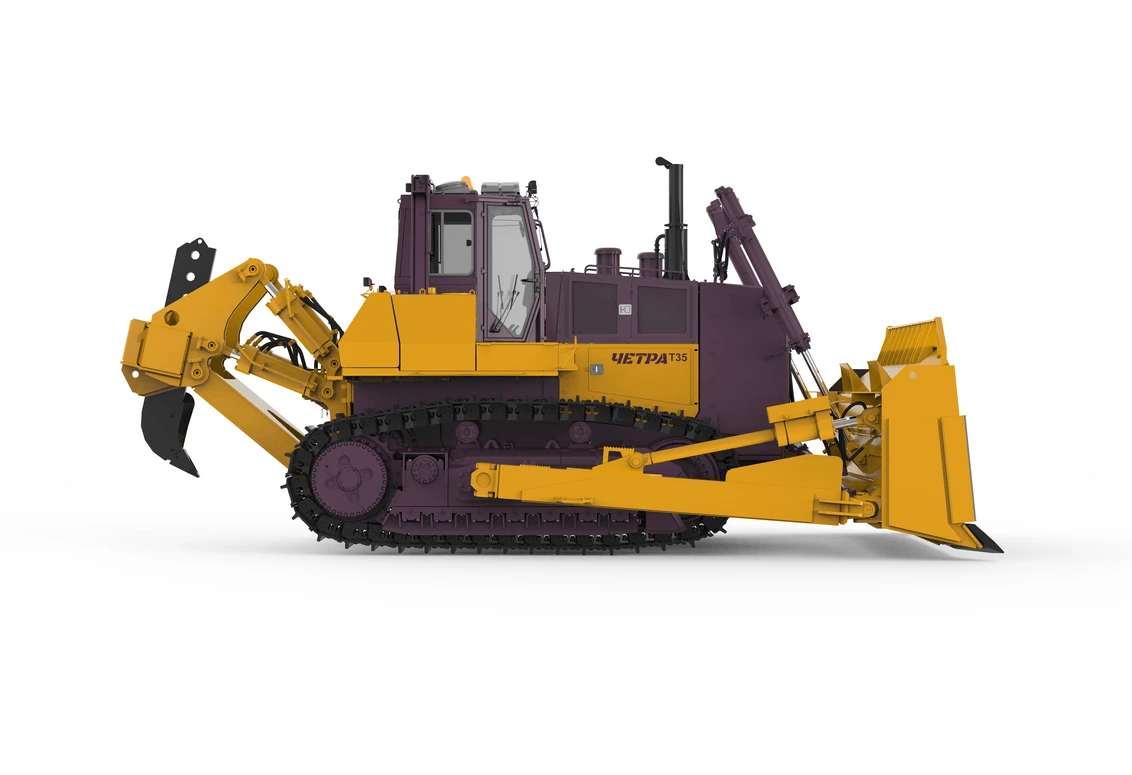

Left-Side Profile — Ripper Deployed

Left-side view with the single-tooth ripper extended to working position, revealing the hydraulic cylinder reach that delivers up to 1500 mm penetration depth in frozen and rocky ground.

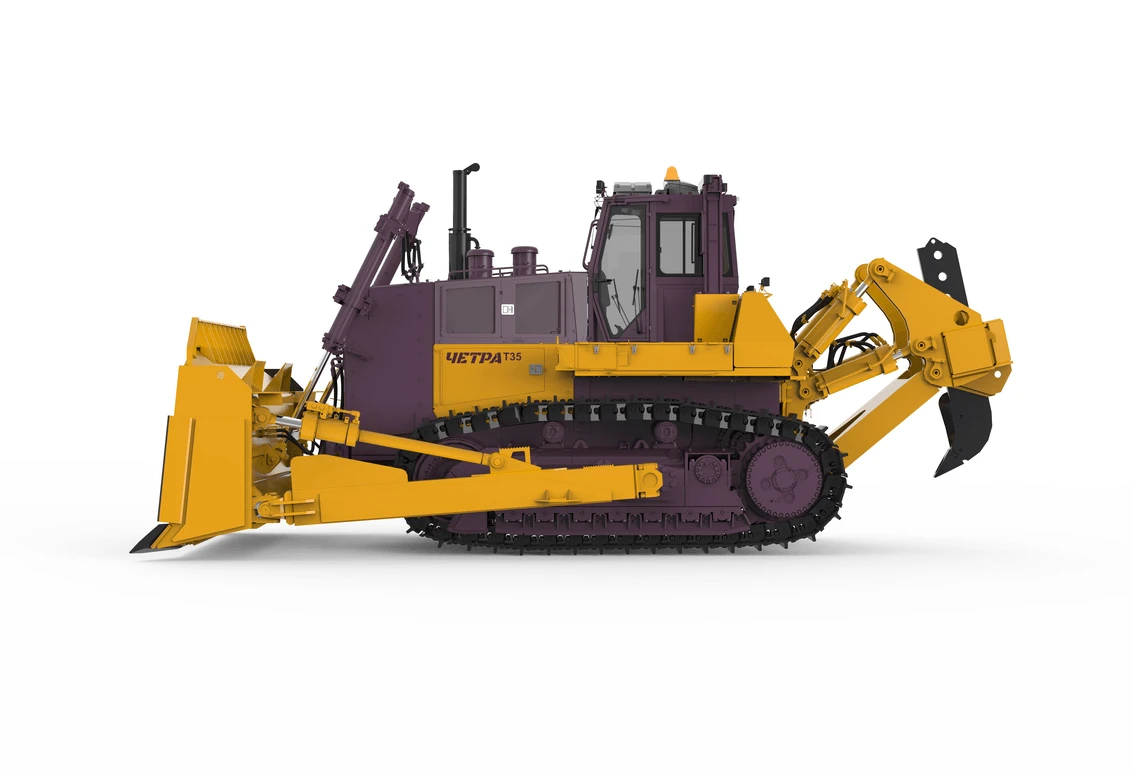

Right-Side Profile — Full Configuration

Right-side profile of the complete bulldozer-ripper assembly, showing the 3525 mm track base, 7-roller undercarriage per side, and rear ripper arm with its offset hydraulic linkage.

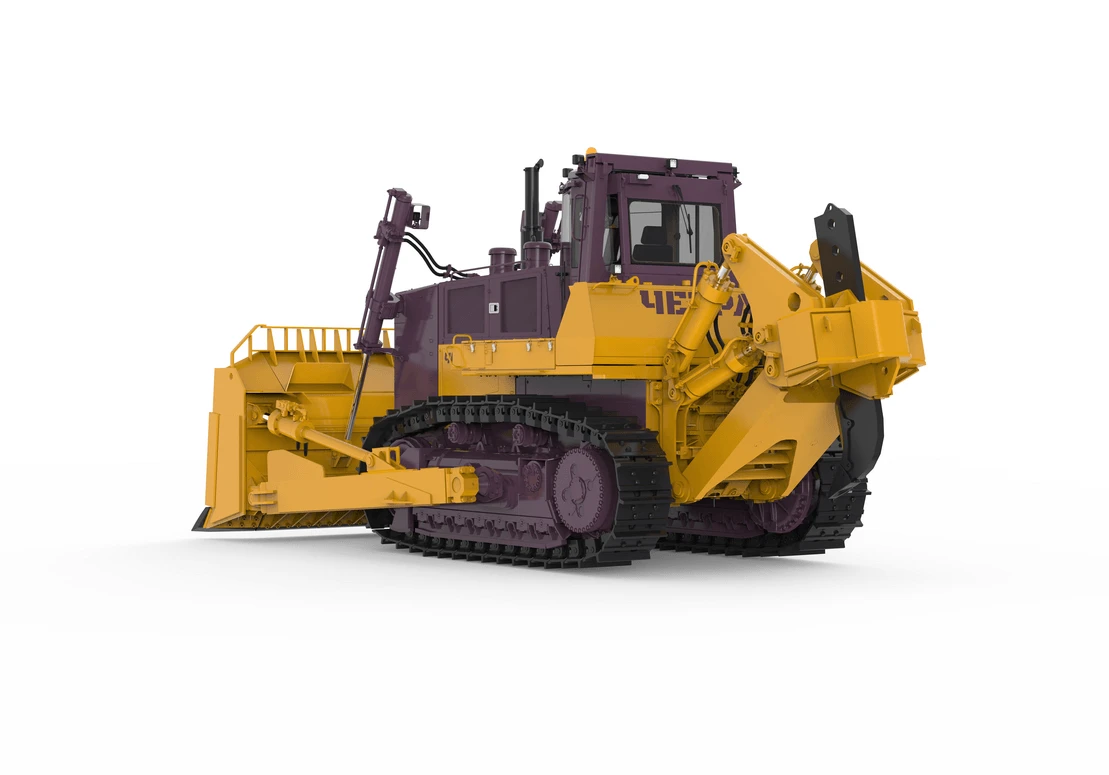

Rear Three-Quarter View

Rear three-quarter view highlighting the ripper parallel-linkage hydraulics and the robust final-drive housings that form part of the modular powertrain — removable and bench-testable in the field.

Features

🔧

Cummins QSK-19 Engine

The 19-litre Cummins QSK-19 diesel develops 394 kW (536 hp) nominal and 360 kW (490 hp) at operating power, with a specific fuel consumption of 219 g/kWh — combining high output with competitive running costs.

⚙️

Hydromechanical Transmission

A three-range hydromechanical gearbox delivers travel speeds up to 13 km/h forward and 15.7 km/h in reverse, enabling smooth power matching across the full range of earthmoving and dozing tasks.

🪣

18.5 m³ Semi-Spherical Blade

The 4670 × 2465 mm semi-spherical blade has a struck capacity of 18.5 m³, lifts 1470 mm above grade, digs 710 mm deep, and tilts ±10° for precise shaping on uneven terrain.

⛏️

Adjustable Rear Ripper

The hydraulically adjustable ripper accommodates one tooth (max penetration 1500 mm, weight 6300 kg) or three teeth (max 900 mm, weight 7228 kg) — rated for frozen ground, rock breaking, and deep scarification.

🔩

Three-Point Semi-Rigid Undercarriage

Seven support rollers per side and an offset oscillation axis distribute the machine's weight across 4.6 m² of contact area, keeping ground pressure at ≤1.37 kgf/cm² while absorbing high dynamic loads.

🌡️

Extreme-Climate Rating

Designed and tested for ambient temperatures from −50°C to +35°C, the T-35.01KB-3 delivers reliable performance year-round in Arctic and subarctic operating environments.

Buyer Benefits

Powertrain modules can be removed and reinstalled as discrete field units, then bench-tested before re-installation — minimising downtime on remote or inaccessible sites
Low ground pressure of ≤1.37 kgf/cm² across 4.6 m² of contact area enables effective operation on soft, frozen, or disturbed ground without excessive sinkage
830-litre fuel tank extends autonomous operating cycles, reducing refuelling interruptions during large-scale earthmoving campaigns
Interchangeable single-tooth and three-tooth ripper configurations allow the same machine to tackle both deep rock-breaking and wide shallow scarification
Listed in Russia's Official Industrial Products Registry — eligible for state procurement under 44-FZ with subsidy potential up to 35% under Government Resolution No. 823
Manufacturer warranty of one year with no hour limitation, or two years/3000 motor-hours — providing comprehensive coverage through the initial operating period
Produced by PROMTRACTOR in Cheboksary, a plant ranked among the world's top four manufacturers of heavy dozer-ripper equipment

Applications

Open-pit overburden stripping and ore-face preparation in coal and hard-rock mines Road subgrade preparation, earthfill placement, and grading for highway and urban road construction Frozen-ground and permafrost excavation in Arctic and subarctic regions Pipeline corridor clearing and trench-bottom profiling in oil and gas field development Ground clearing, levelling, and foundation backfilling for industrial and civil construction projects Quarry bench formation and waste-dump shaping in extractive industries Debris clearance and road restoration during emergency response and disaster relief operations Land reclamation, forest clearing, and site preparation for large-scale infrastructure projects

Source: official manufacturer website
