Name: CNC Gear Cutting Machine Model 5C280PF3
SKU: 440674
Availability: InStock

$90,000 - $300,000 USD

MOQ: 1 pieces

Key Features

Largest diameter of gears to be machined: 800 mm

Largest width of the gear ring of the cut gears: 125 mm

The largest average normal modulus of machined gears: 16 mm

Supplier Information

SZTZS LLC

🇷🇺 📦 🏭 🛡️

View All Products (3)

Quick Inquiry

Description

The 5С280ПФ3 is a CNC bevel gear cutting machine built by Saratov Heavy Gear-Cutting Machine Tool Plant (SZTZS) — a recognized leader in Russia and the CIS for heavy gear-processing equipment, operating since 2009. The machine is designed for both rough and finish cutting of bevel and hypoid gears with circular arc teeth, achieving accuracy grade 5–7 per GOST 1758-81.

It handles workpieces up to 800 mm in diameter with a maximum module of 16 mm and accommodates gears with 10 to 150 teeth. Gear cutting can be performed by either the generating method or the plunge method, using face gear-cutting heads as the cutting tool.

The CNC system is built on a SIEMENS S7-300 programmable controller with a CPU 315T-3PN/DP processor and SINAMICS S120 servo drives; during operation it continuously calculates and monitors the mutual position of all machine axes in real time, ensuring consistent tooth form accuracy throughout the cutting cycle. The 5С280ПФ3 is a universal machine designed for easy changeover between workpiece geometries, making it equally at home in single-piece prototype work, small-batch production, and medium-series manufacturing across a broad range of mechanical engineering industries.

Details & Equipment

Product Overview

Complete Machine

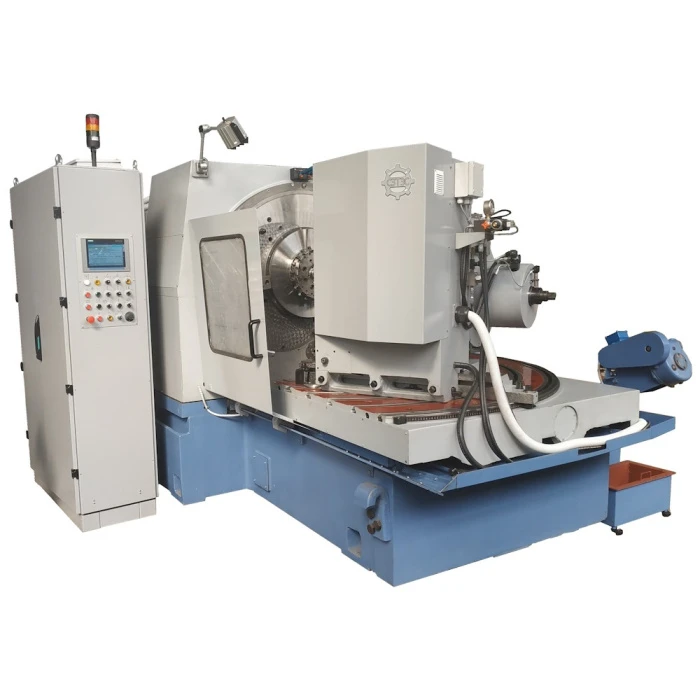

The finished 5С280ПФ3 CNC bevel gear cutting machine showing the overall configuration with the cutter head column, work table, and enclosed guarding typical of SZTZS heavy gear machines.

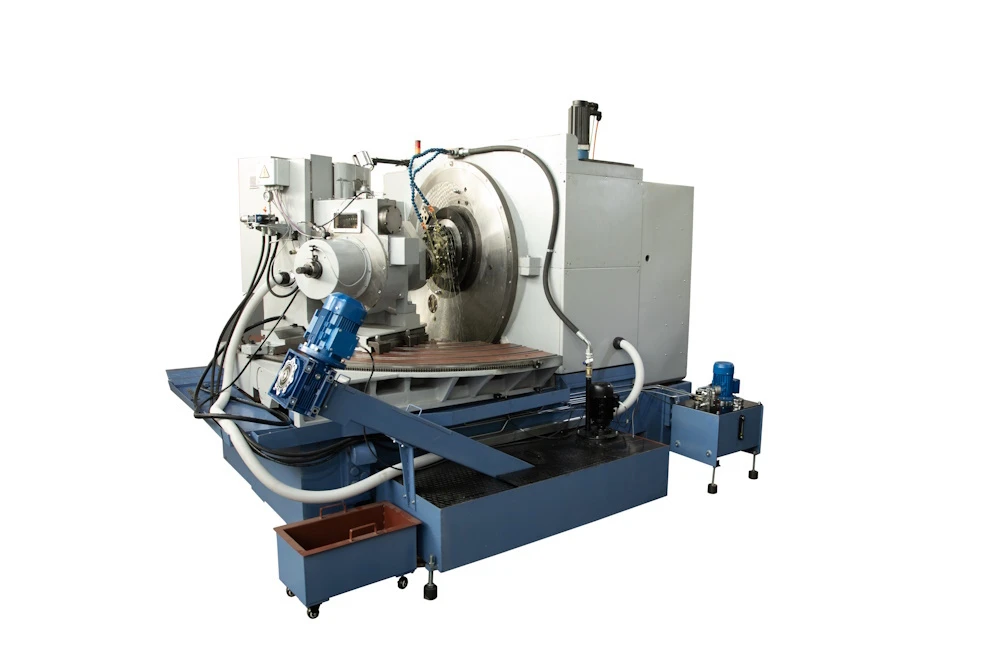

Three-Quarter View

Studio view of the 5С280ПФ3 revealing the robust cast iron base, the CNC-controlled cradle assembly, and the cutter spindle arrangement used for generating circular arc bevel and hypoid teeth.

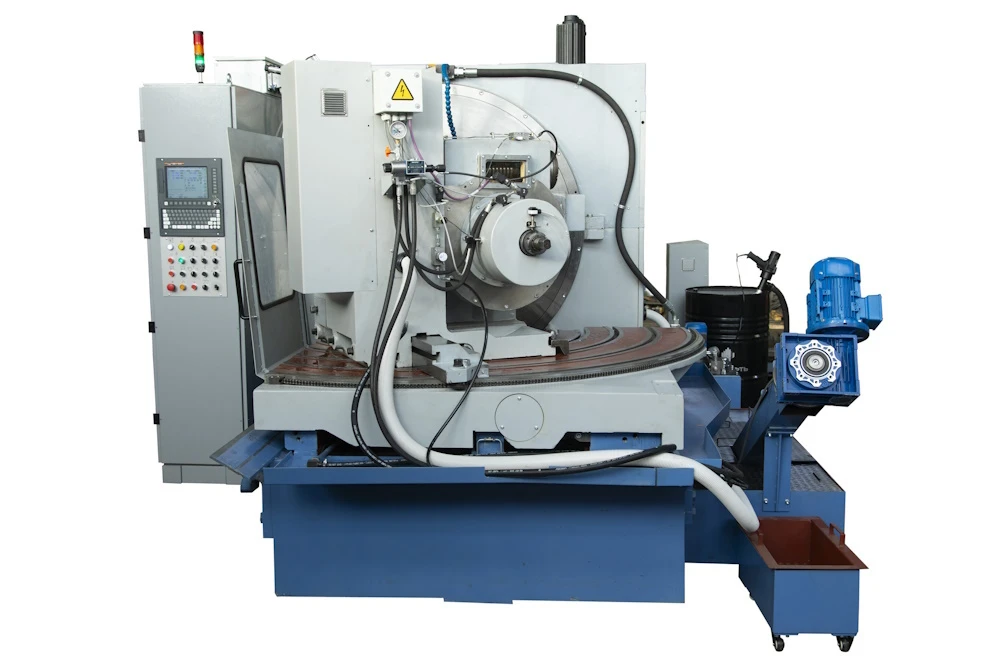

Side Profile

Side profile of the machine showing the compact footprint, the precision guideways of the work-head column, and the operator access panel for the SIEMENS S7-300 CNC control system.

Manufacturing Details

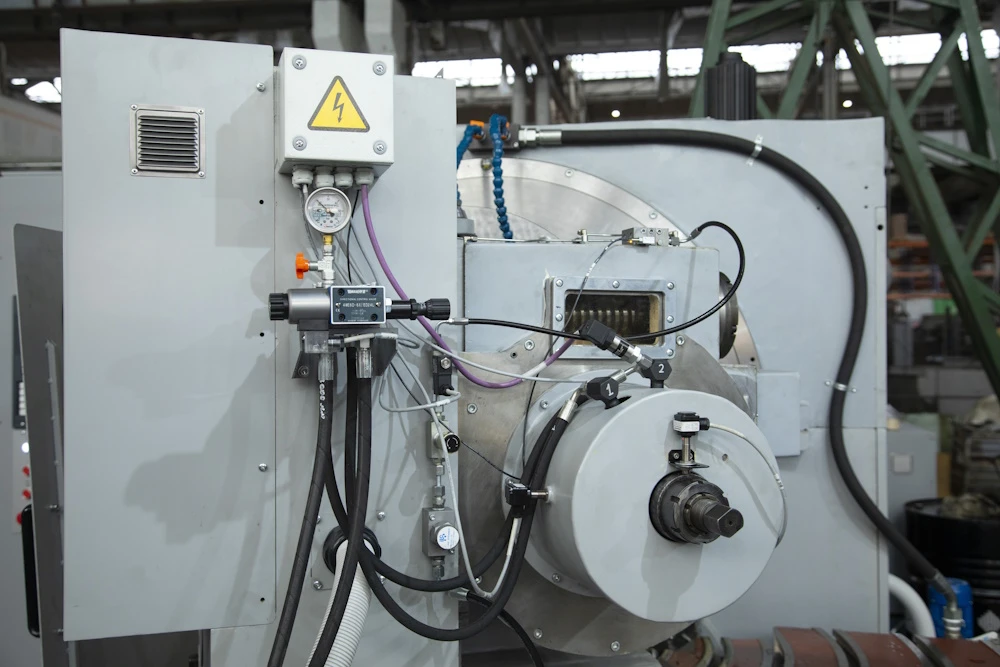

Cutter Head Assembly

Close view of the cutter spindle and head assembly, which accepts face gear-cutting heads used in both the generating and plunge methods to produce circular arc bevel gear teeth.

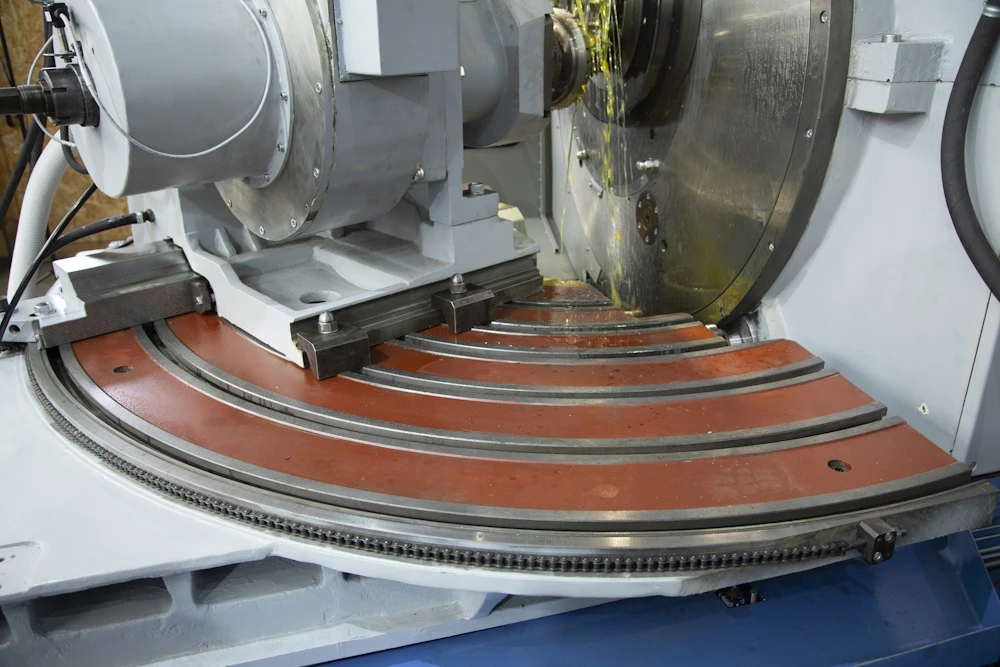

Work Table & Clamping

The rotary work table accommodating gear blanks up to 800 mm in diameter; precise angular positioning is controlled by the SINAMICS S120 servo system for consistent tooth spacing across all 10–150 teeth.

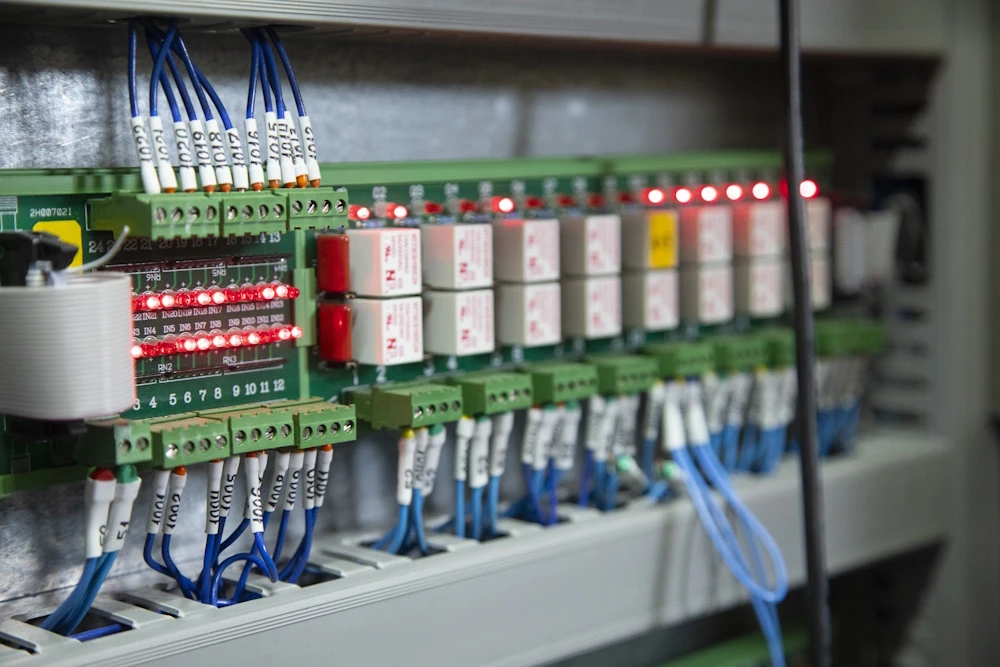

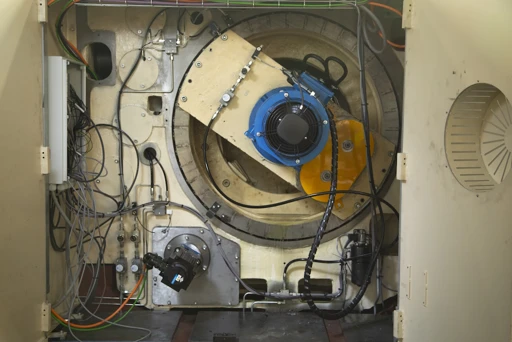

Drive & Control Components

Internal drive and servo components integrated into the machine frame, representing the SIEMENS S7-300 PLC and SINAMICS S120 drive architecture that continuously monitors all axis positions during cutting.

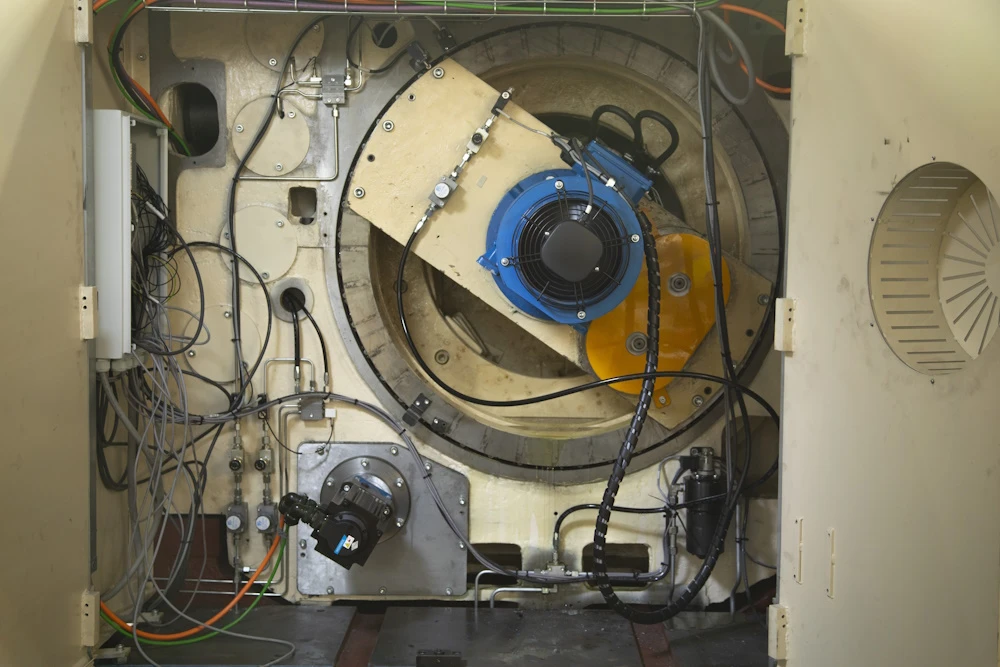

Assembly at SZTZS

The 5С280ПФ3 during factory assembly at the Saratov Heavy Gear-Cutting Machine Tool Plant, illustrating the precision machining and assembly standards applied to all production machines.

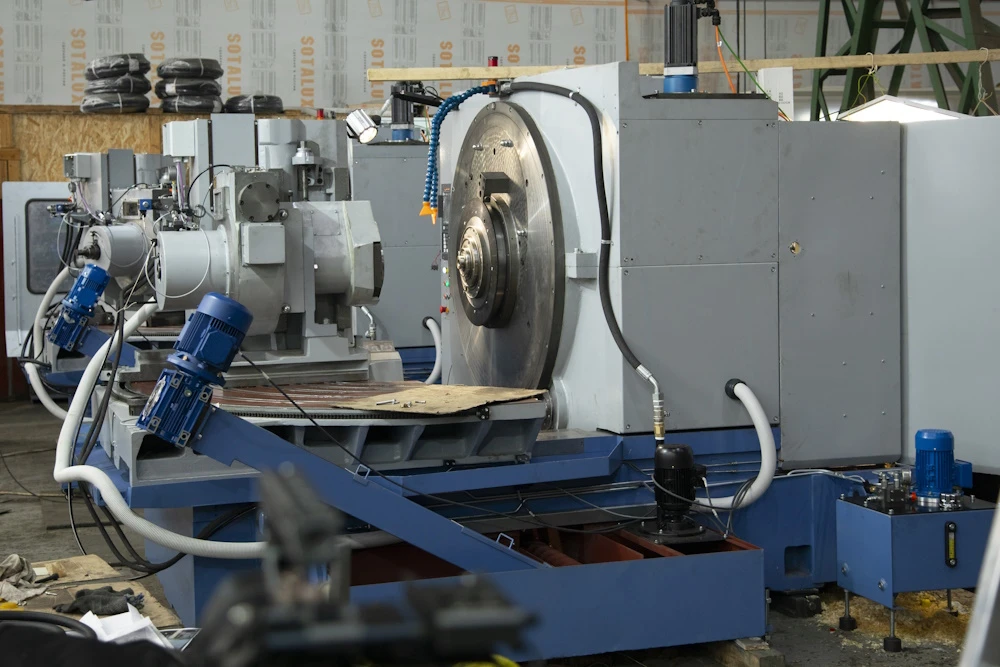

Machine in Workshop

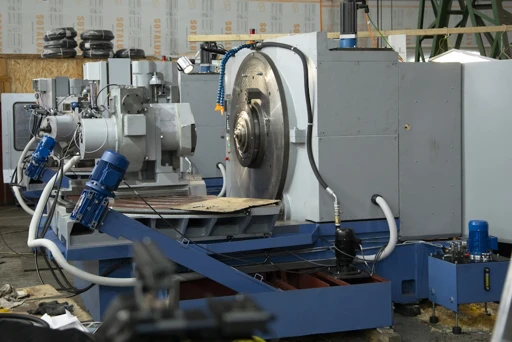

The 5С280ПФ3 on the SZTZS production floor, demonstrating the manufacturer's capability to build, test, and commission heavy CNC gear cutting machines before delivery.

Features

⚙️

Large Workpiece Capacity

Accommodates bevel gear blanks up to 800 mm in diameter with a maximum module of 16 mm, covering a wide range of heavy-duty applications from large reducer gears to vehicle axle components.

🎯

High Accuracy Cutting

Achieves gear precision grade 5–7 per GOST 1758-81, meeting the demanding accuracy requirements of power transmission and drivetrain applications without secondary finishing.

🖥️

SIEMENS CNC Control

Runs on a SIEMENS S7-300 PLC with CPU 315T-3PN/DP and SINAMICS S120 servo drives, with the control system continuously calculating and monitoring axis positions throughout every cut.

🔄

Dual Cutting Methods

Supports both the generating (hobbing) method and the plunge method using face gear-cutting heads, giving operators flexibility to optimize cycle time or surface quality for each part.

🔧

Fast Changeover

Universal construction allows quick retooling between different gear geometries, reducing setup time and making the machine cost-effective for mixed-part or small-batch production environments.

📐

Wide Tooth Count Range

Processes gears from 10 to 150 teeth in a single machine, covering everything from small bevel pinions to large hypoid ring gears without additional tooling changes.

Buyer Benefits

Cuts both bevel and hypoid gears with circular arc teeth up to 800 mm diameter in one setup
SIEMENS SINAMICS S120 servo drives deliver repeatable axis positioning for consistent part-to-part accuracy
Grade 5–7 GOST 1758-81 precision eliminates the need for additional grinding on many power-transmission applications
Generating and plunge cutting methods are both available, reducing the number of machines needed in a gear cell
Easy retooling between workpiece geometries lowers changeover costs in mixed or small-batch production
Manufactured and supported by SZTZS, which holds all design documentation and provides in-house after-sales service
Suitable for single-piece through serial production across diverse sectors including heavy vehicles, mining, rail, and energy

Applications

Bevel and hypoid gear sets for heavy truck and bus drive axles Ring-and-pinion gears for mining equipment and large industrial reducers Bevel gears for railway and locomotive traction drives Drive pinions and ring gears for construction and road-building machinery Gear sets for industrial mill drives and metallurgical equipment Bevel gears for marine propulsion and offshore equipment gearboxes Prototype and low-volume bevel gear production for special-purpose machinery Replacement and spare-part gears for legacy industrial and transport equipment

Source: official manufacturer website
